About

Description

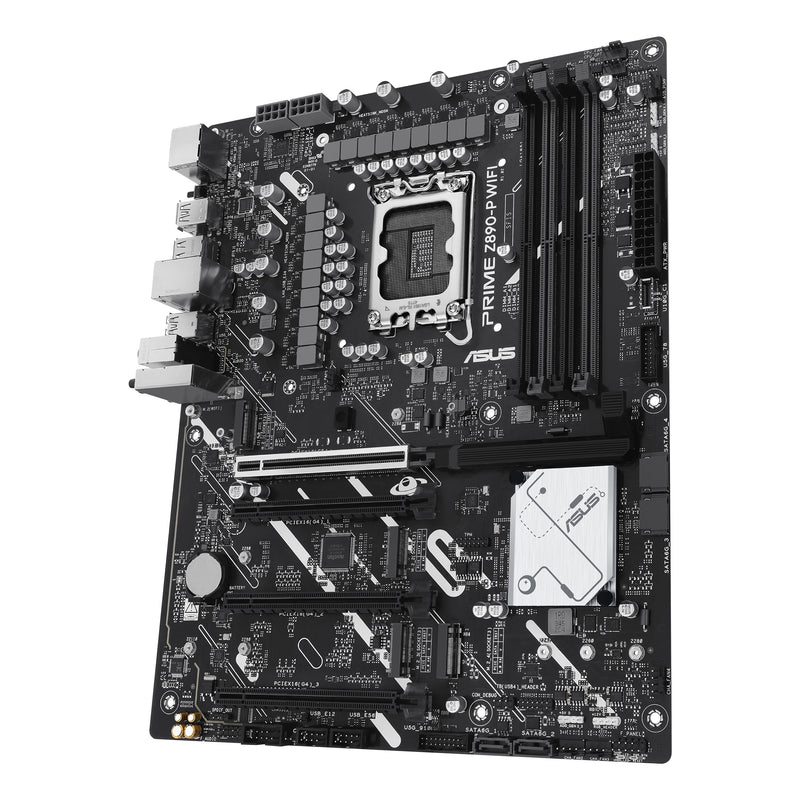

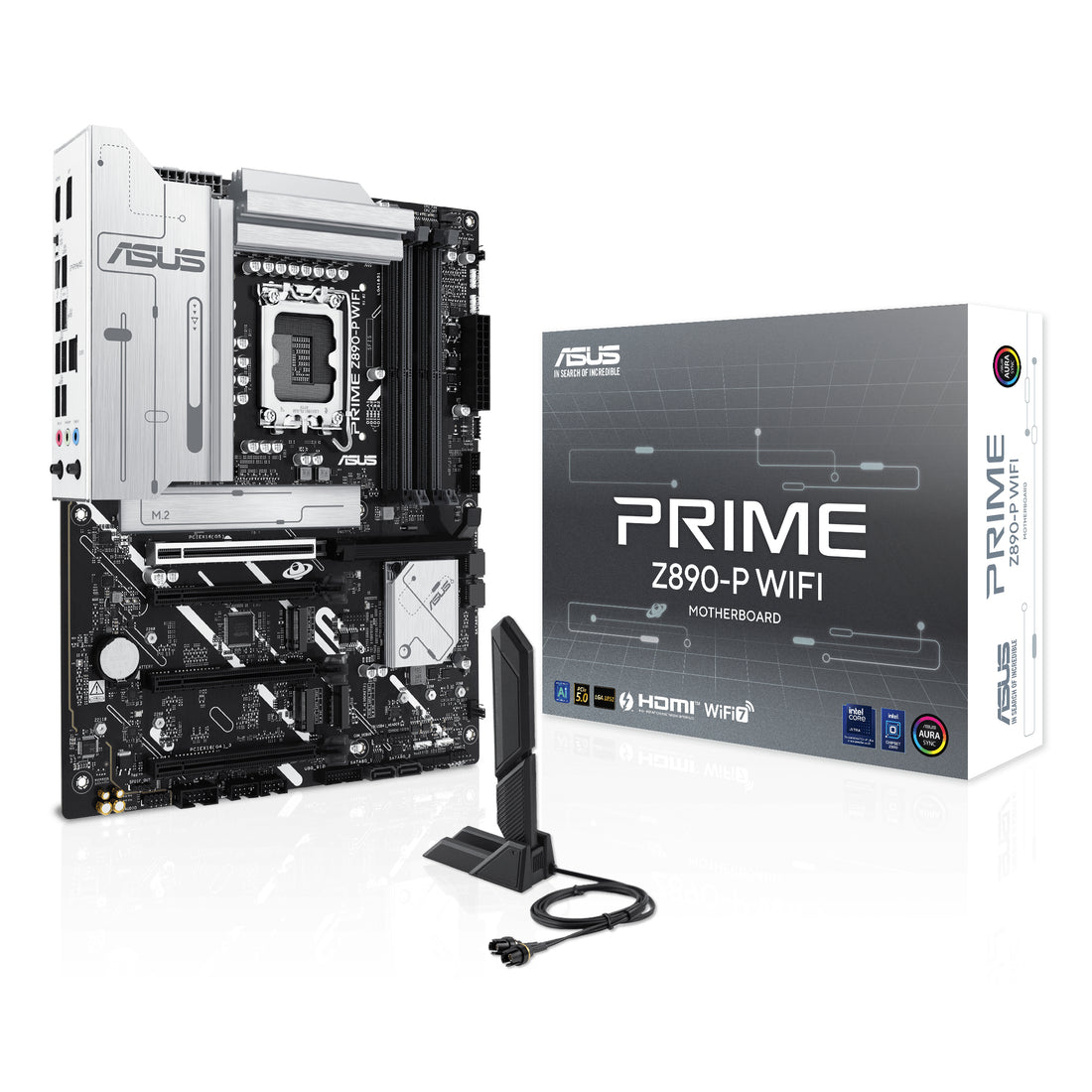

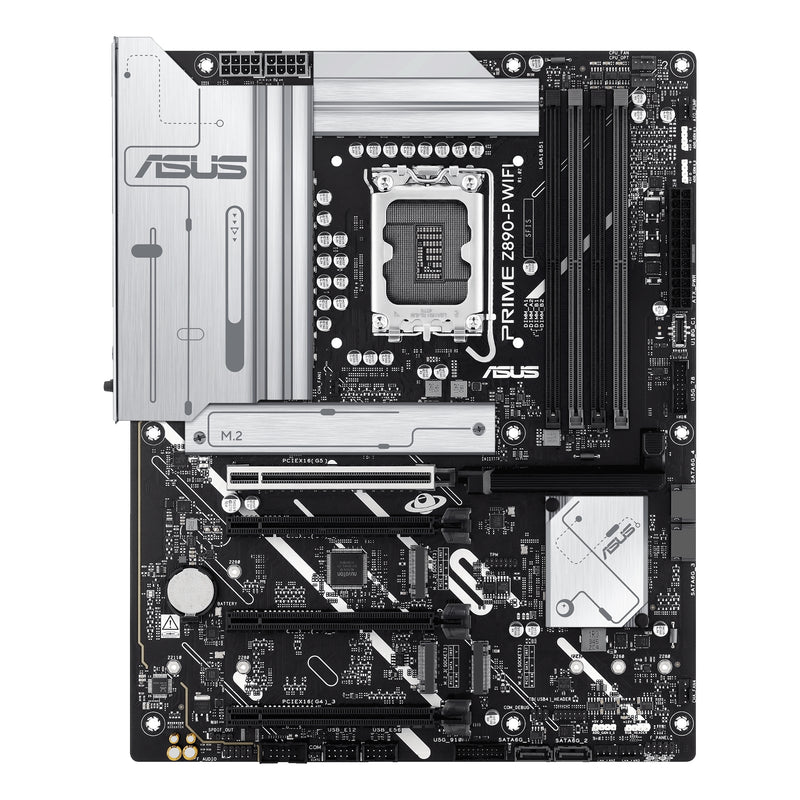

The Asus PRIME Z890-P WIFI is a motherboard designed for users looking to build a robust PC with Intel processors. It supports the latest DDR5 memory and offers versatile storage options, making it suitable for various computing needs from gaming to productivity.

Supports Intel Core Ultra processors for high-performance computing.
Equipped with 4 memory slots for up to 192 GB of DDR5 RAM, allowing for extensive multitasking.
Offers 4 SATA connectors and M.2 interfaces for flexible storage configurations with both HDDs and SSDs.
Includes multiple USB connectors to enhance connectivity options for peripherals.
Supports RAID configurations for improved data management and redundancy.

Technical details (2)

Producer product name: PRIME Z890-P WIFI
Net weight: 0.78 kg

Specifications (1)

Warranty: 36 month(s)

Internal I/O (2)

Number of SATA connectors: 4
Supported hard disk drive interfaces: M.2, SATA

Memory (1)

Supported memory types: DDR5

Processor (2)

Processor family: Intel
Processor socket: LGA1851

Additional specifications (69)

Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 7600 MHz
Maximum internal memory: 192 GB
Unbuffered memory: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 8
RAID support: Yes
RAID levels: 0, 1, 5, 10
Parallel processing technology support: Not supported
On-board graphics card: No
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
Thunderbolt headers: 1
12V power connector: Yes
RGB LED pin header: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

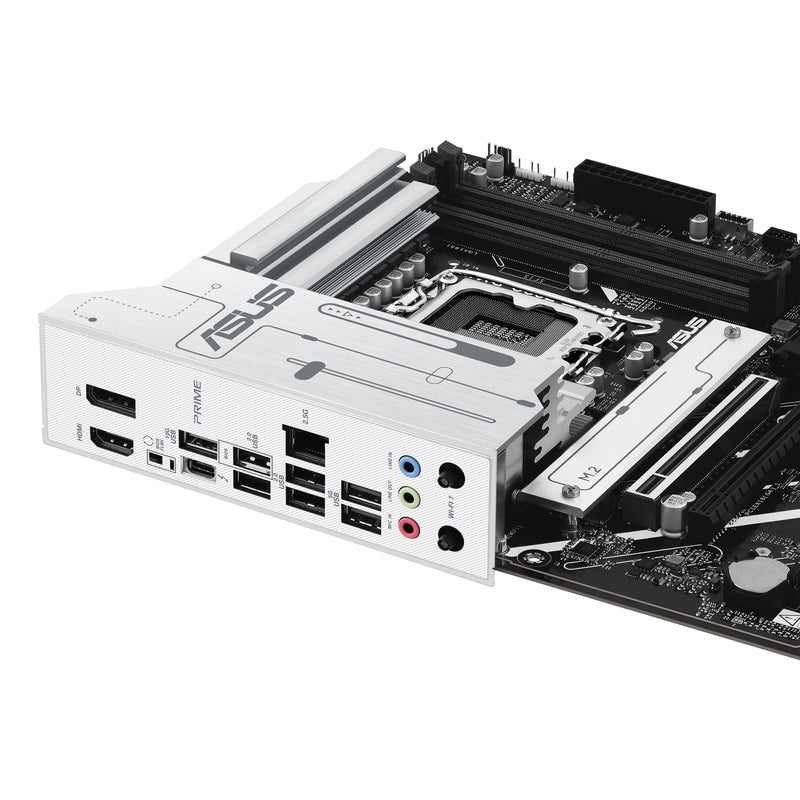

Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4
Motherboard chipset: Intel Z890
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11
PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Width: 305 mm
Depth: 244 mm
Cables included: SATA
Quick installation guide: Yes
Back-to-BIOS button: Yes
