Description

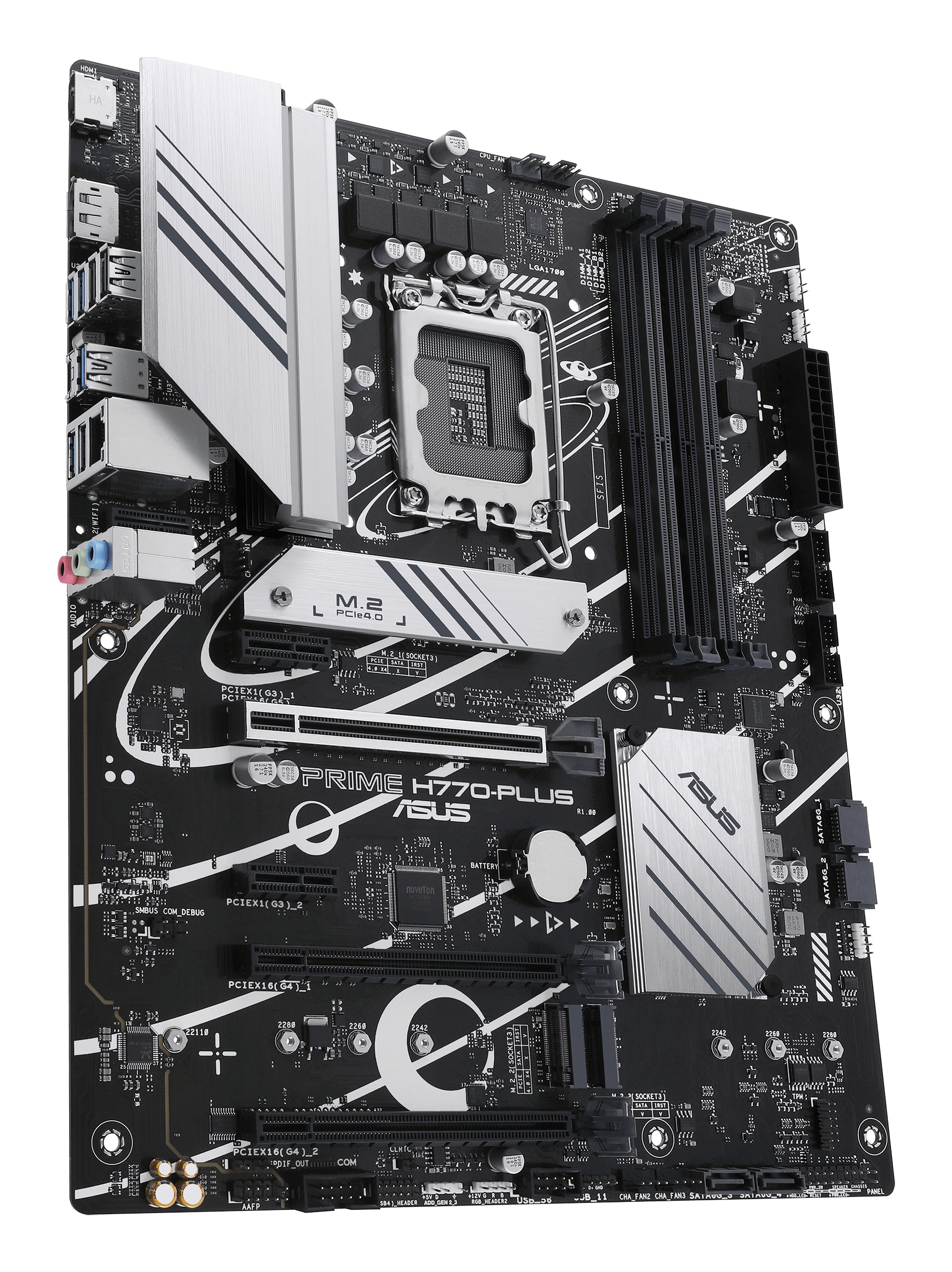

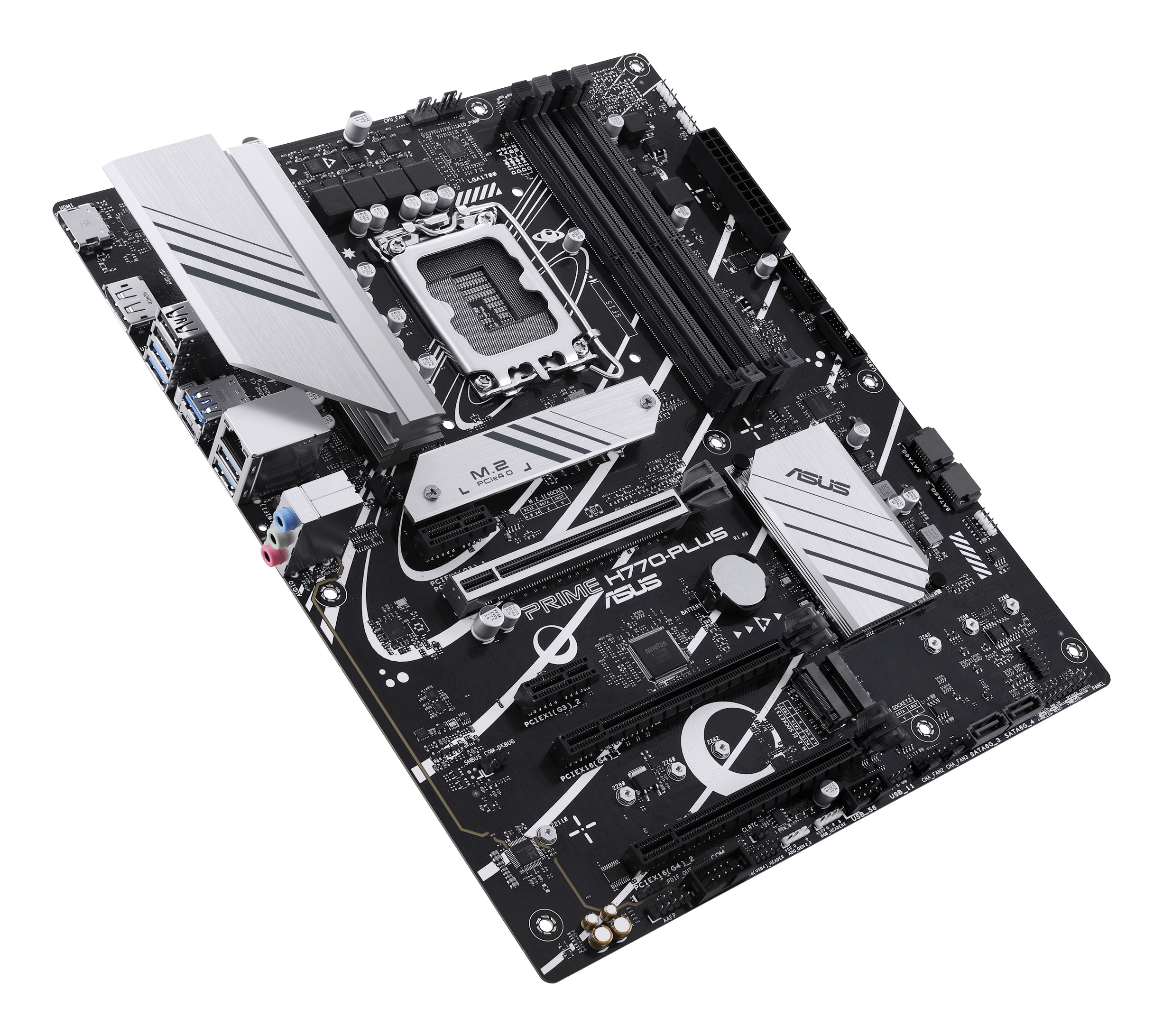

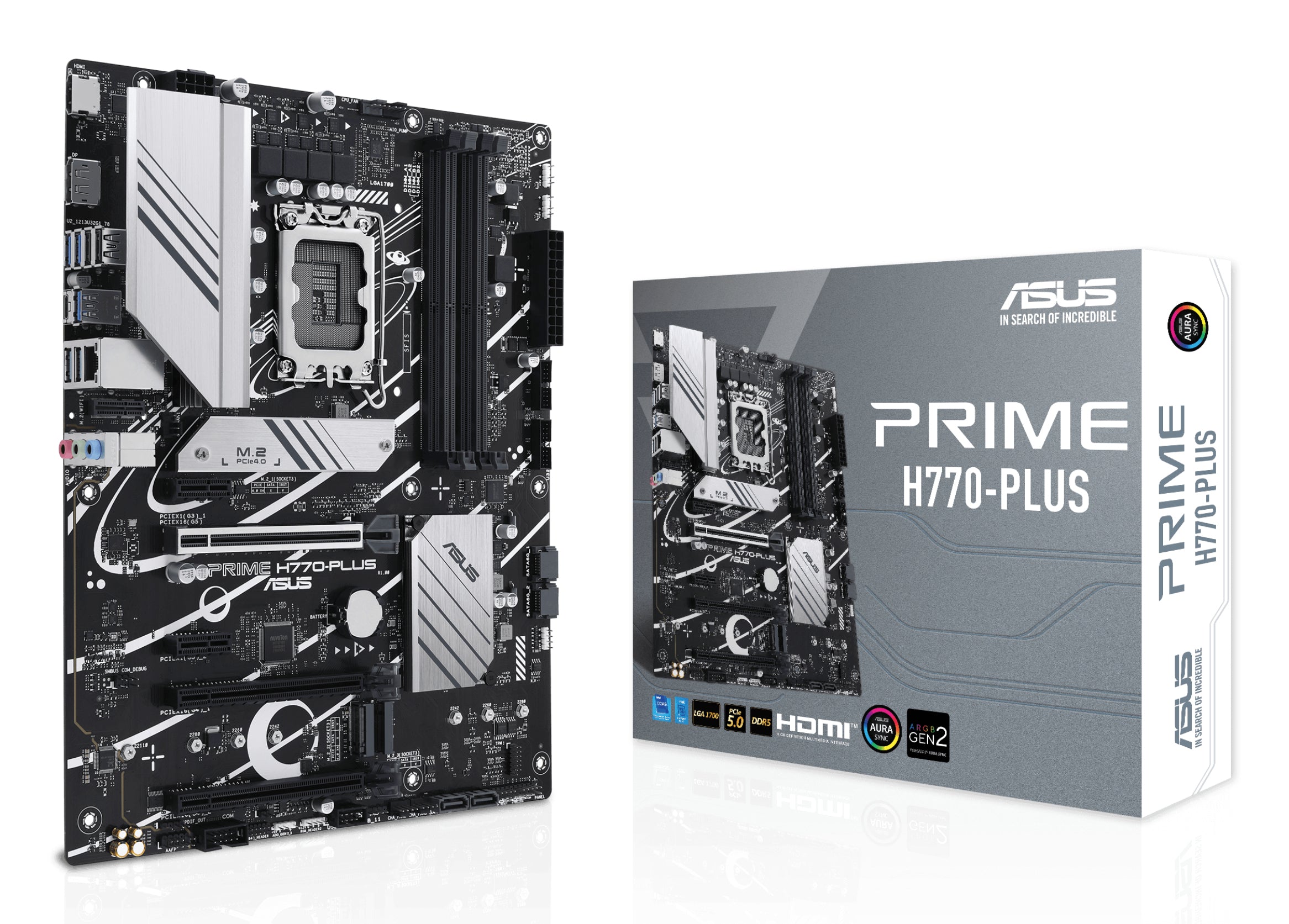

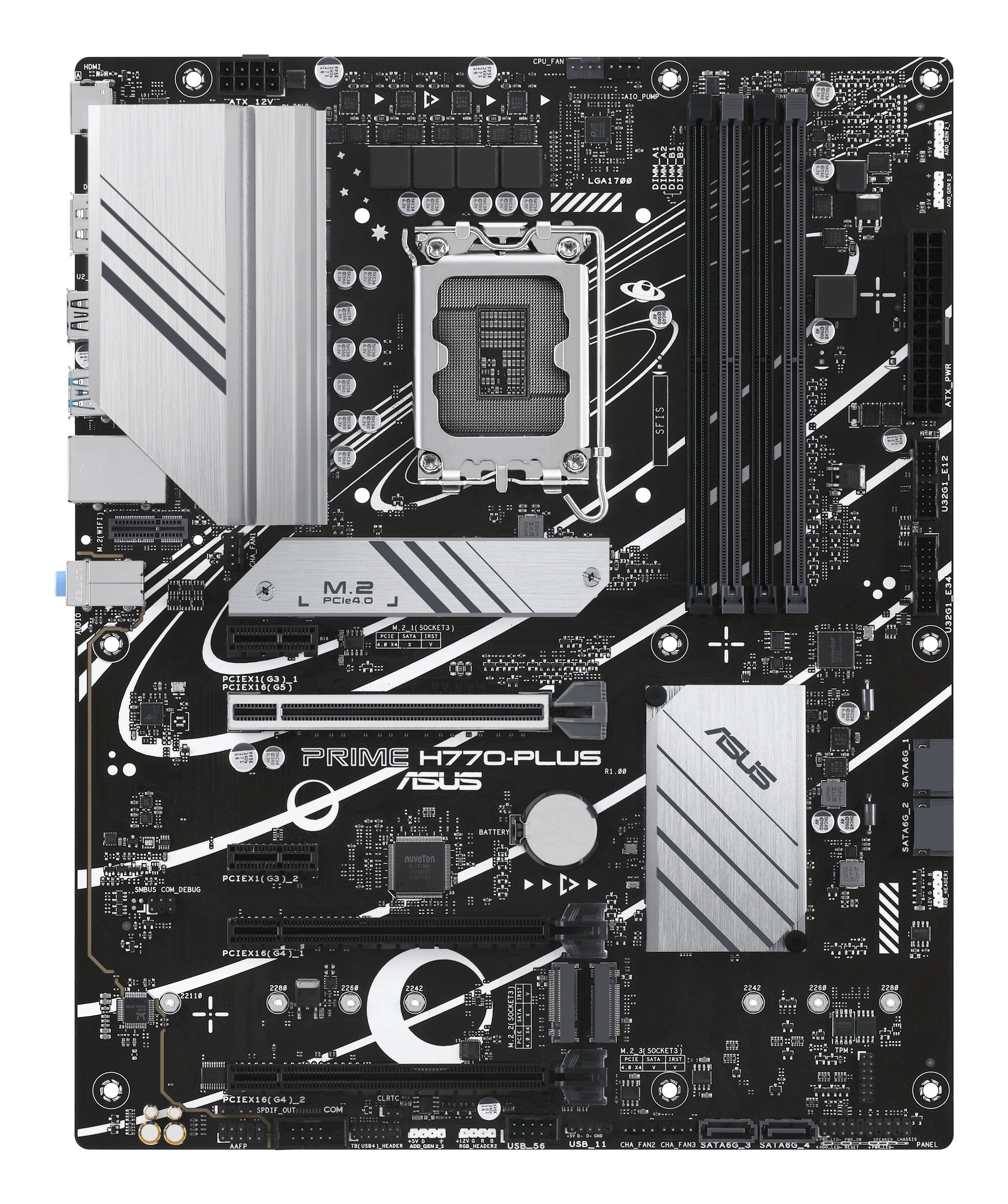

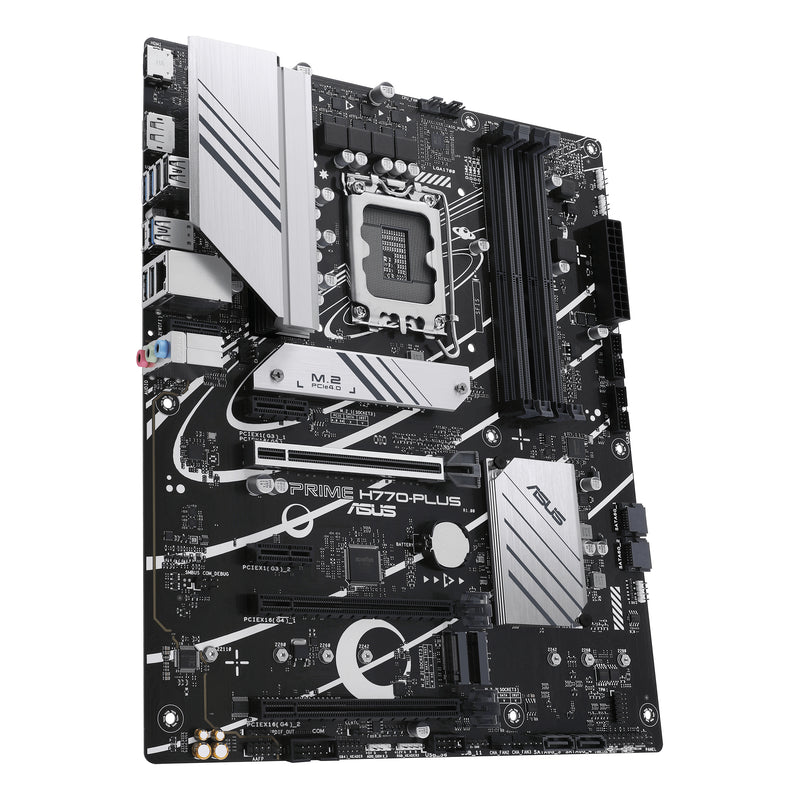

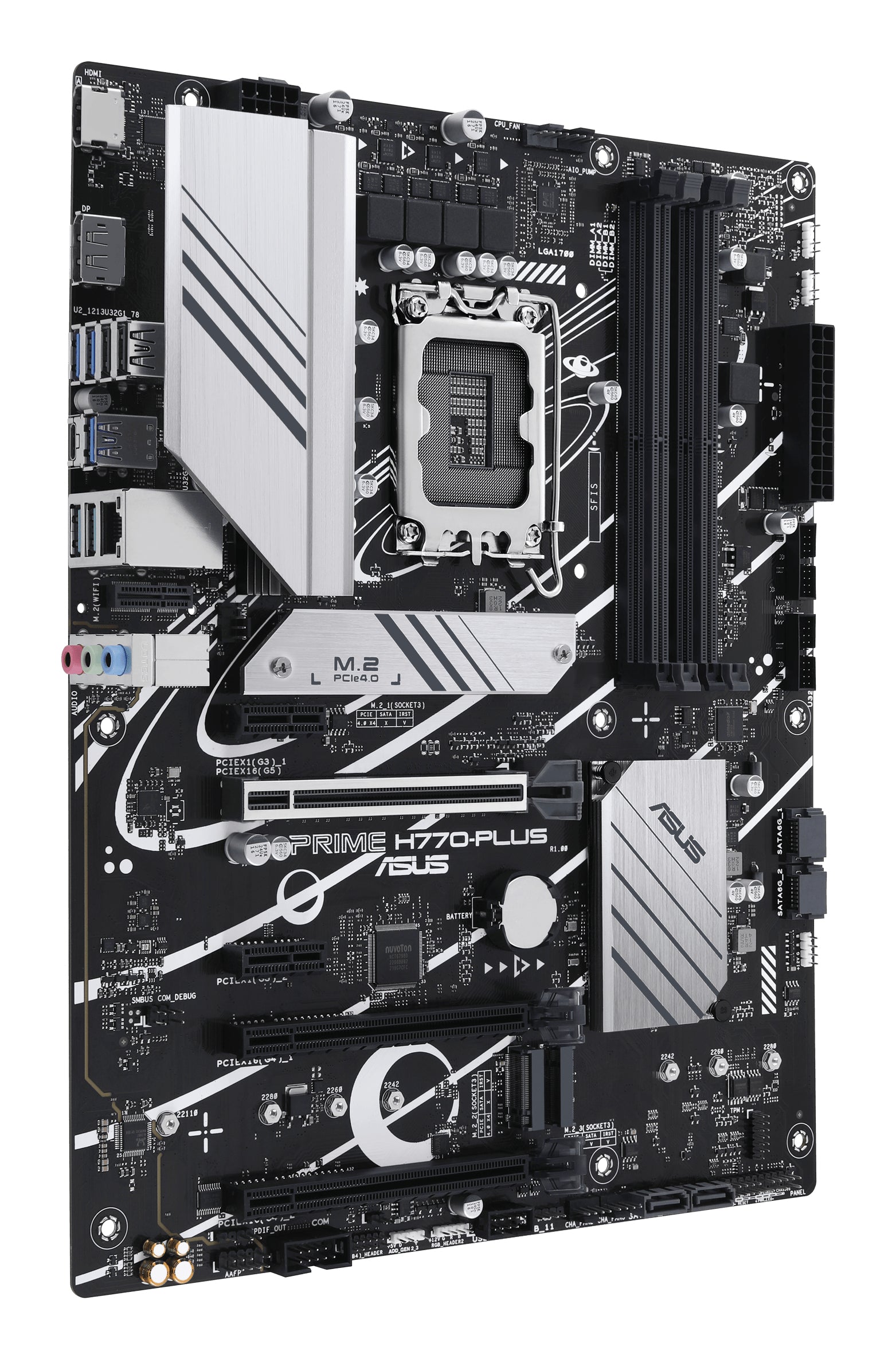

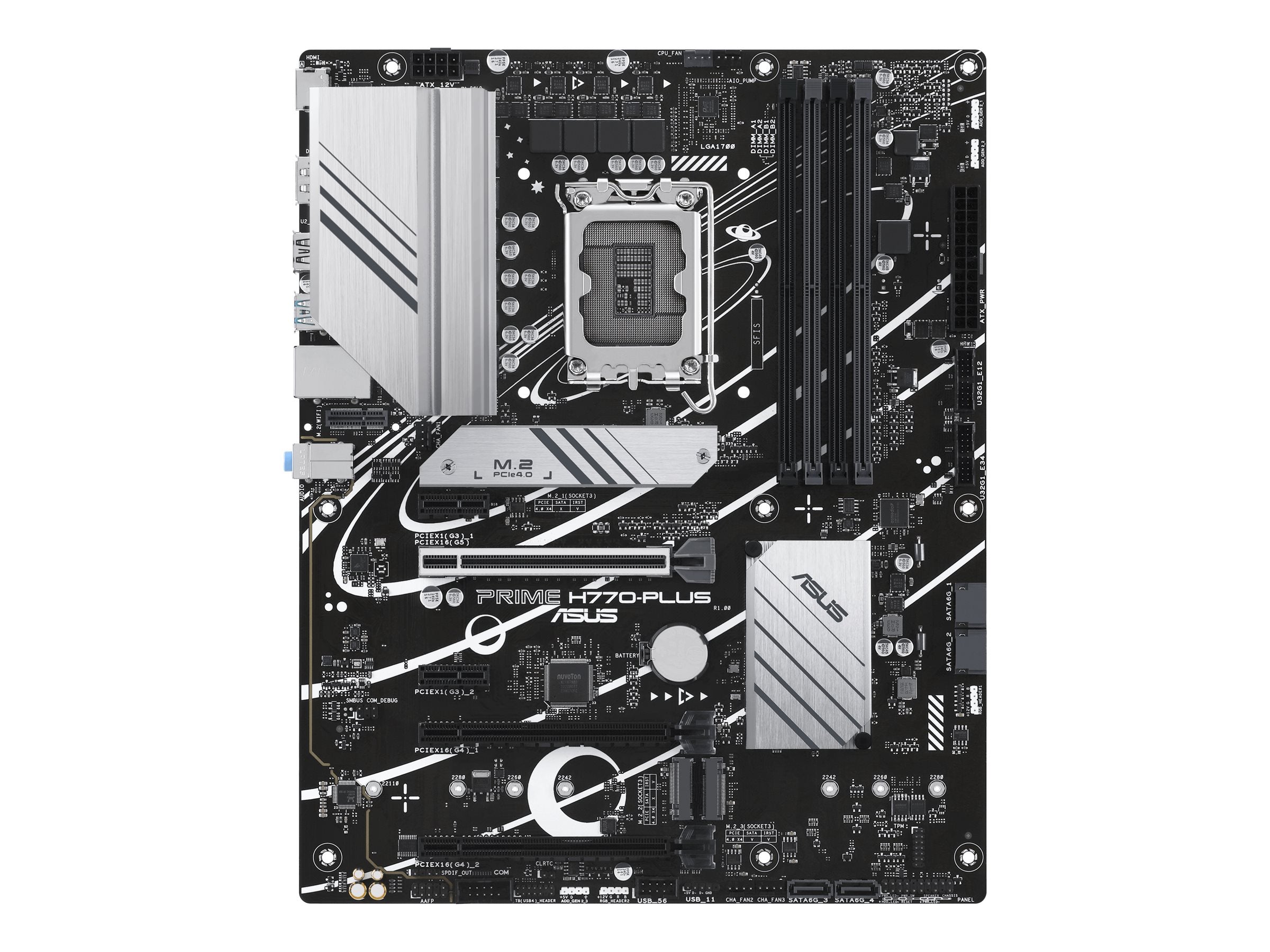

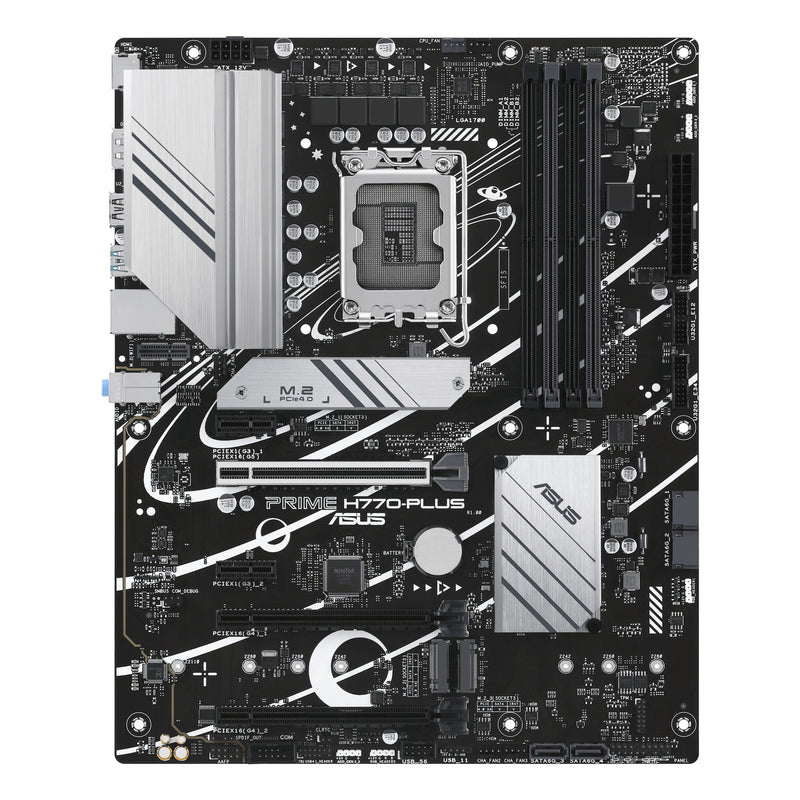

The Asus PRIME H770-PLUS is a motherboard designed for users looking to build a high-performance Intel-based PC. It supports the latest DDR5 memory and offers various connectivity options for storage and peripherals.

  • Supports Intel processors with LGA1700 socket, accommodating powerful options from Celeron to Core i9.
  • Equipped with 4 SATA connectors and M.2 slots, allowing for versatile storage configurations with both HDDs and SSDs.
  • Offers 4 memory slots with support for up to 192 GB of DDR5 RAM, enhancing multitasking and performance.
  • Includes dual-channel memory architecture for improved data transfer rates and system responsiveness.
  • Provides RAID support for enhanced data redundancy and performance, compatible with RAID levels 0, 1, and 10.
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (1)
  • Supported memory types: DDR5 DIMM
Processor (2)
  • Processor family: Intel
  • Processor socket: LGA1700
Technical details (2)
  • Net weight: 1.09 kg
  • Producer product name: PRIME H770-PLUS
Additional specifications (66)
  • Processor manufacturer: Intel
  • Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Supported processor sockets: LGA 1700
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
  • Supported memory clock speed (max): 7200 MHz
  • Maximum internal memory: 192 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 7
  • RAID support: Yes
  • RAID levels: 0, 1, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 3
  • Peripheral (Molex) power connectors (4-pin): 1
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • TPM connector: Yes
  • Thunderbolt headers: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes

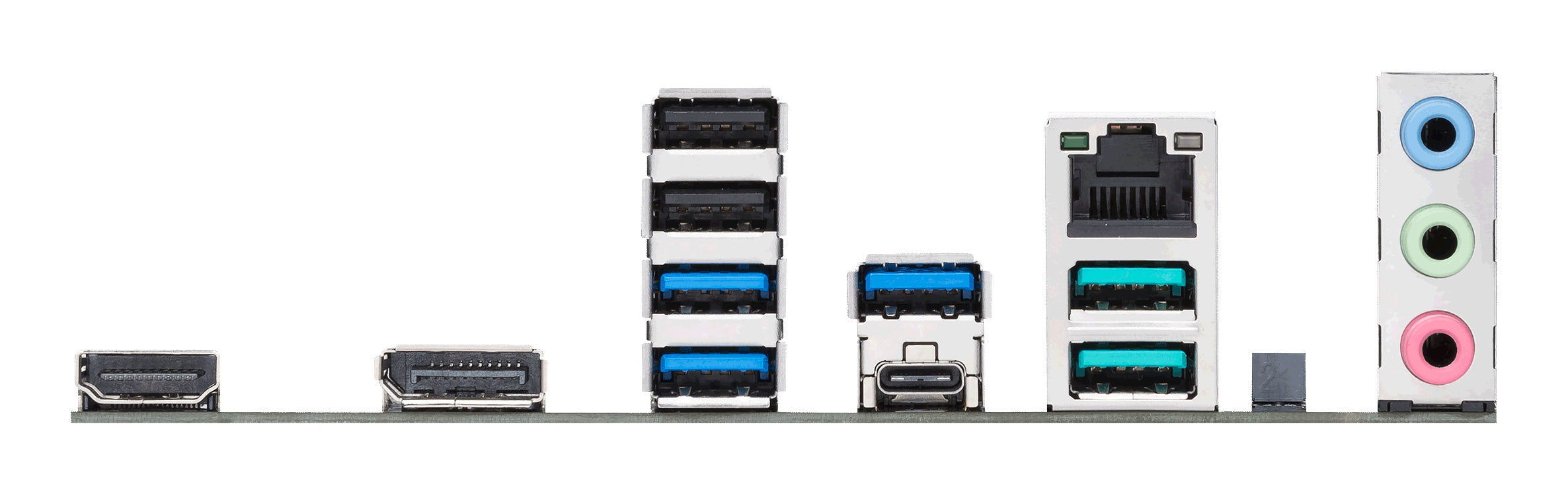

  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: No
  • Motherboard chipset: Intel H770
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: Intel
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 10, Windows 11
  • PCI Express x1 (Gen 3.x) slots: 2
  • PCI Express x16 (Gen 4.x) slots: 2
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 3
  • BIOS type: UEFI AMI
  • BIOS memory size: 192 Mbit
  • Width: 305 mm
  • Depth: 244 mm

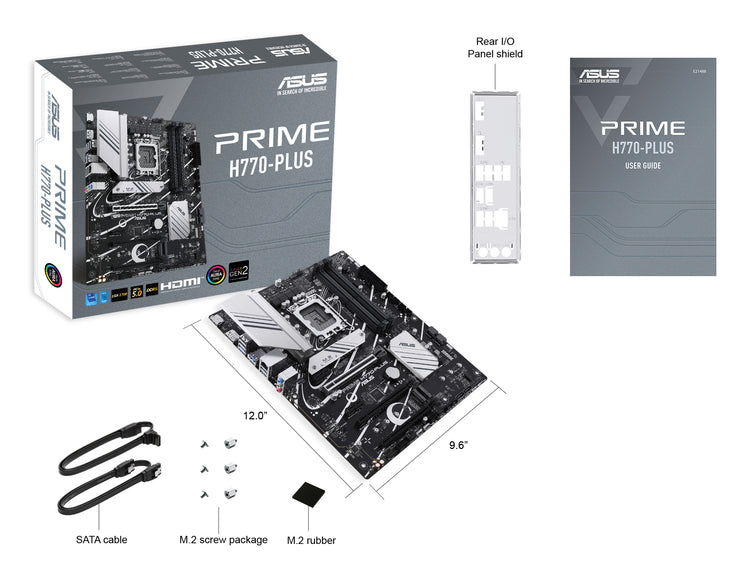

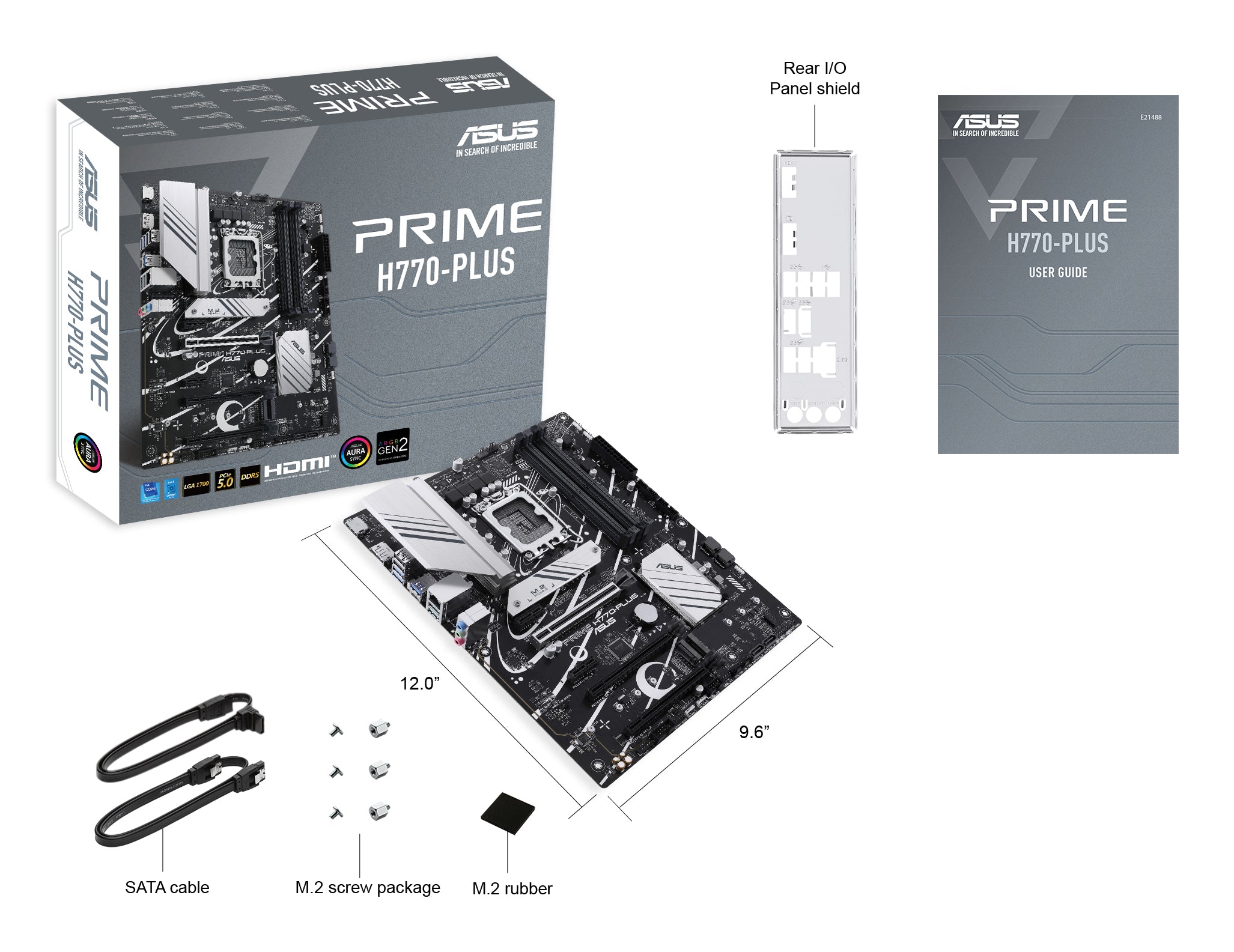

  • Cables included: SATA
  • User guide: Yes
Description

The Asus PRIME H770-PLUS is a motherboard designed for users looking to build a high-performance Intel-based PC. It supports the latest DDR5 memory and offers various connectivity options for storage and peripherals.

  • Supports Intel processors with LGA1700 socket, accommodating powerful options from Celeron to Core i9.
  • Equipped with 4 SATA connectors and M.2 slots, allowing for versatile storage configurations with both HDDs and SSDs.
  • Offers 4 memory slots with support for up to 192 GB of DDR5 RAM, enhancing multitasking and performance.
  • Includes dual-channel memory architecture for improved data transfer rates and system responsiveness.
  • Provides RAID support for enhanced data redundancy and performance, compatible with RAID levels 0, 1, and 10.
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (1)
  • Supported memory types: DDR5 DIMM
Processor (2)
  • Processor family: Intel
  • Processor socket: LGA1700
Technical details (2)
  • Net weight: 1.09 kg
  • Producer product name: PRIME H770-PLUS
Additional specifications (66)
  • Processor manufacturer: Intel
  • Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Supported processor sockets: LGA 1700
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
  • Supported memory clock speed (max): 7200 MHz
  • Maximum internal memory: 192 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 7
  • RAID support: Yes
  • RAID levels: 0, 1, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 3
  • Peripheral (Molex) power connectors (4-pin): 1
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • TPM connector: Yes
  • Thunderbolt headers: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: No
  • Motherboard chipset: Intel H770
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: Intel
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 10, Windows 11
  • PCI Express x1 (Gen 3.x) slots: 2
  • PCI Express x16 (Gen 4.x) slots: 2
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 3
  • BIOS type: UEFI AMI
  • BIOS memory size: 192 Mbit
  • Width: 305 mm
  • Depth: 244 mm
  • Cables included: SATA
  • User guide: Yes

Asus PRIME H770-PLUS, Processor family Intel, Processor socket LGA1700, DDR5 DIMM

€214,51
€214,51
Tax included.
