Description

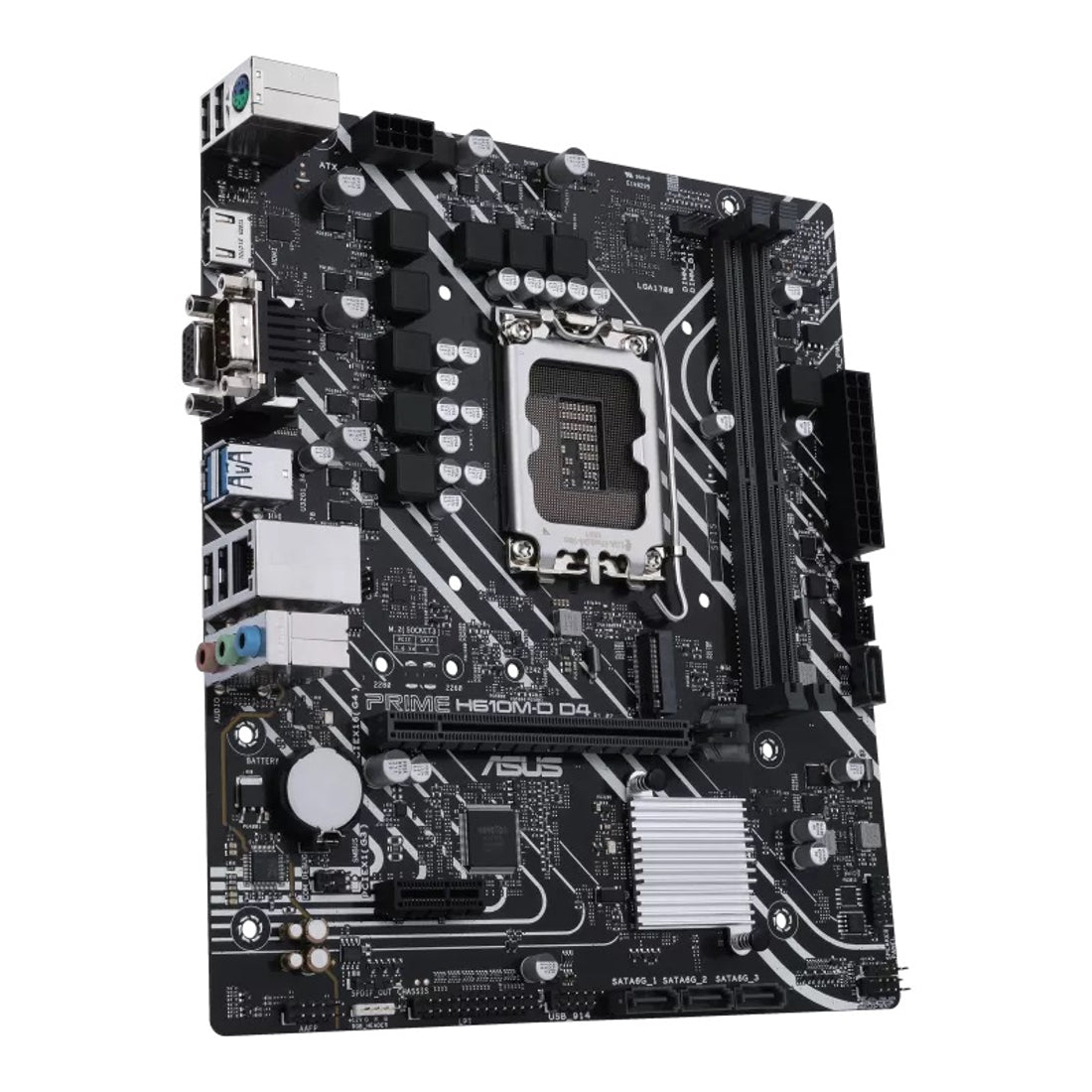

The Asus PRIME H610M-D D4 is a micro ATX motherboard designed for users looking to build a system with Intel processors. It is compatible with 12th Gen Intel Core, Pentium Gold, and Celeron processors, making it suitable for a range of computing needs from everyday tasks to more demanding applications.

Supports up to 64 GB of DDR4 memory, allowing for efficient multitasking.
Features 4 SATA connectors and M.2 interface for flexible storage options, accommodating up to 5 drives.
Includes dual-channel memory architecture to enhance system performance.
Provides connections for 2 displays, enabling multi-monitor setups.
Equipped with USB 3.2 and USB 2.0 connectors for diverse connectivity options.

Internal I/O (2)

Number of SATA connectors: 4
Supported hard disk drive interfaces: SATA, M.2

Memory (2)

Memory slots: 2
Supported memory types: DDR4 DIMM

Performance (2)

Chipset: Intel H610
Motherboard form factor: mATX

Processor (3)

Processor family: Intel
Processor socket: LGA1700
Compatible processor series: Supports 12th Gen Intel Core, Pentium Gold and Celeron processors

Technical details (2)

Producer product name: PRIME H610M-D D4
Net weight: 0.787 kg

Specifications (1)

Warranty: 36 month(s)

Additional specifications (56)

Processor manufacturer: Intel
Maximum number of SMP processors: 1
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200 MHz
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA
Number of storage drives supported: 5
Number of displays supported: 2
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Microphone in: Yes
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Top Wi-Fi standard: Not available
Motherboard chipset: Intel H610
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Harmonized System (HS) code: 84733020
Width: 234 mm
Depth: 203 mm
Height: 51 mm
Cables included: SATA
Drivers included: Yes
Weight: 842 g
