Description

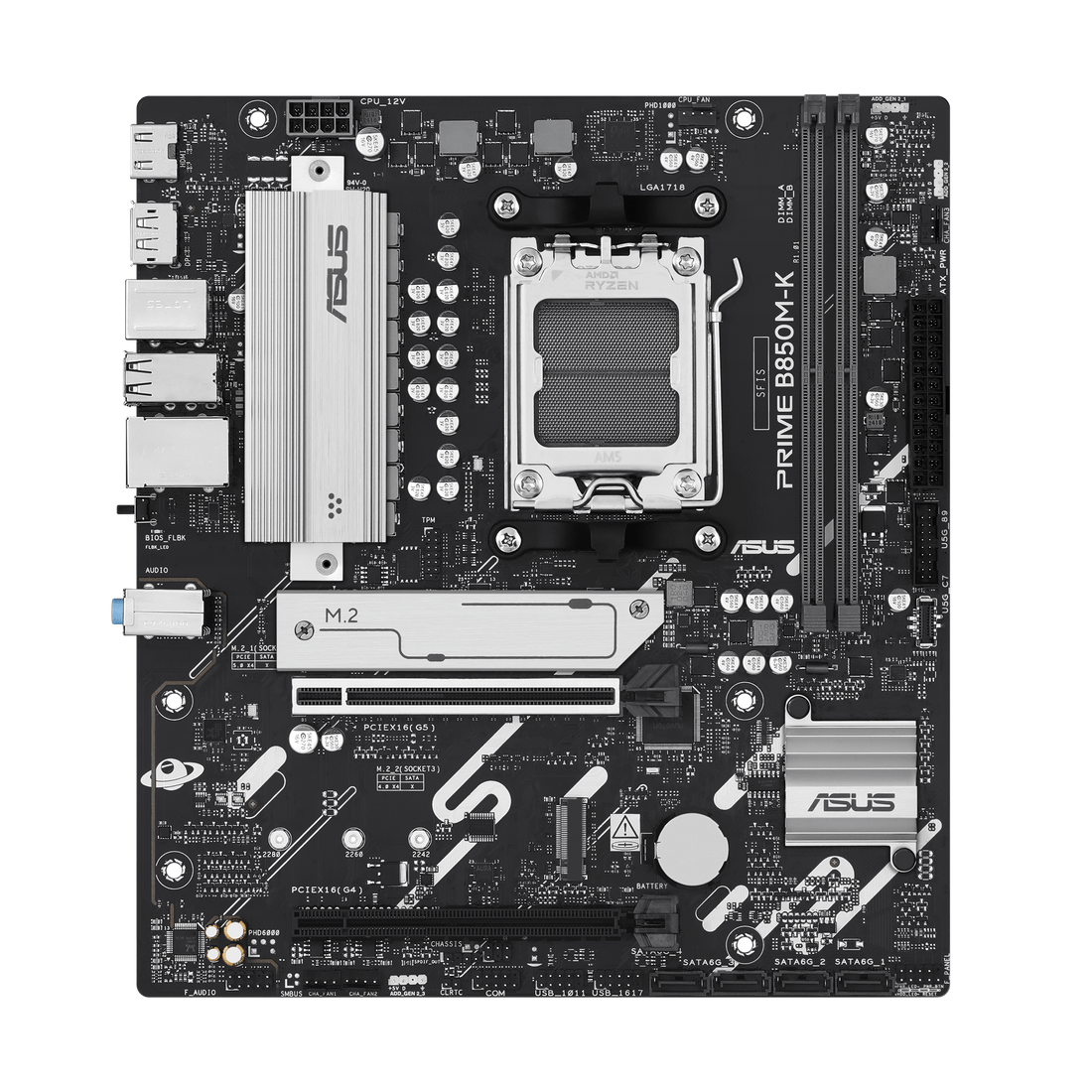

The Asus PRIME B850M-K is a motherboard designed for users building systems with AMD processors. It is suitable for those needing a robust platform that supports the latest in memory and storage technologies.

  • Supports AMD Ryzen 7000, 8000, and 9000 series processors for powerful performance.
  • Equipped with four SATA connectors and M.2 interfaces for flexible storage options.
  • Allows for up to 128 GB of DDR5 memory, providing high-speed data processing capabilities.
  • Includes dual-channel memory architecture for improved efficiency in multitasking and performance.
  • Features RAID support for enhanced data management and redundancy options.
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (1)
  • Supported memory types: DDR5
Processor (2)
  • Processor family: AMD
  • Processor socket: AM5
Technical details (2)
  • Net weight: 0.78 kg
  • Producer product name: PRIME B850M-K
Additional specifications (65)
  • Processor manufacturer: AMD
  • Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • Supported processor sockets: Socket AM5
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 1
  • Number of chassis fan connectors: 3
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • TPM connector: Yes
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • Line-in: Yes
  • Microphone in: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: No
  • Top Wi-Fi standard: Not available
  • Motherboard chipset: AMD B850
  • Audio output channels: 7.1 channels
  • Product colour: Black
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: AMD
  • Cooling type: Passive
  • Windows operating systems supported: Windows 10 x64, Windows 11
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 2
  • 1st M.2 largest key size: 2280
  • 1st M.2 highest PCI Express generation: 5.0
  • 2nd M.2 largest key size: 2280
  • 2nd M.2 highest PCI Express generation: 4.0
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • Width: 244 mm
  • Depth: 221 mm
  • Cables included: SATA
  • Screws included: Yes
Description

The Asus PRIME B850M-K is a motherboard designed for users building systems with AMD processors. It is suitable for those needing a robust platform that supports the latest in memory and storage technologies.

  • Supports AMD Ryzen 7000, 8000, and 9000 series processors for powerful performance.
  • Equipped with four SATA connectors and M.2 interfaces for flexible storage options.
  • Allows for up to 128 GB of DDR5 memory, providing high-speed data processing capabilities.
  • Includes dual-channel memory architecture for improved efficiency in multitasking and performance.
  • Features RAID support for enhanced data management and redundancy options.
Specifications (1)
  • Warranty: 36 month(s)
Internal I/O (2)
  • Number of SATA connectors: 4
  • Supported hard disk drive interfaces: SATA, M.2
Memory (1)
  • Supported memory types: DDR5
Processor (2)
  • Processor family: AMD
  • Processor socket: AM5
Technical details (2)
  • Net weight: 0.78 kg
  • Producer product name: PRIME B850M-K
Additional specifications (65)
  • Processor manufacturer: AMD
  • Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • Supported processor sockets: Socket AM5
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes
  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10
  • Parallel processing technology support: Not supported
  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 1
  • Number of chassis fan connectors: 3
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • TPM connector: Yes
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • Line-in: Yes
  • Microphone in: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: No
  • Top Wi-Fi standard: Not available
  • Motherboard chipset: AMD B850
  • Audio output channels: 7.1 channels
  • Product colour: Black
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: AMD
  • Cooling type: Passive
  • Windows operating systems supported: Windows 10 x64, Windows 11
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 2
  • 1st M.2 largest key size: 2280
  • 1st M.2 highest PCI Express generation: 5.0
  • 2nd M.2 largest key size: 2280
  • 2nd M.2 highest PCI Express generation: 4.0
  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • Width: 244 mm
  • Depth: 221 mm
  • Cables included: SATA
  • Screws included: Yes

Asus PRIME B850M-K, Processor family AMD, Processor socket AM5, DDR5

€150,03
€150,03
Tax included.
