Description

The APC Rack PDU from Schneider Electric is a power distribution unit suited for data centers or server rooms. With a compact design that fits in a zero U rack, it efficiently delivers power to multiple devices.

  • Includes 42 AC outlets, providing ample connections for numerous devices.
  • Delivers 5.7 kW of power at 208 V, suitable for high-demand equipment.
  • Constructed to operate in a wide temperature range (0 - 45 °C), ensuring reliable performance.
  • Features compliance with RoHS and multiple certification standards for safety.
  • Includes both C13 and C19 outlet types, accommodating versatile power requirements.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (1)
  • Net weight: 5.45 kg
Additional specifications (24)
  • PDU types: Basic
  • Rack capacity: 0U
  • Product colour: Black
  • AC outlets quantity: 42 AC outlet(s)
  • Power plug: NEMA L21-20P
  • AC outlet types: C13 coupler, C19 coupler
  • Output connections: -(36) IEC 320 C13. -(6) IEC 320 C19.
  • Cable length: 0.91 m
  • Nominal input voltage: 208 V
  • AC input frequency: 50 - 60 Hz
  • Nominal output voltage: 208 V
  • Load capacity: 5700 VA
  • Maximum input current per phase: 20 A
  • Maximum total current draw per phase: 20 A
  • Compliance certificates: RoHS
  • Certification: cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Width: 56 mm
  • Depth: 44 mm
  • Height: 1778 mm
  • Weight: 5.45 kg
Description

The APC Rack PDU from Schneider Electric is a power distribution unit suited for data centers or server rooms. With a compact design that fits in a zero U rack, it efficiently delivers power to multiple devices.

  • Includes 42 AC outlets, providing ample connections for numerous devices.
  • Delivers 5.7 kW of power at 208 V, suitable for high-demand equipment.
  • Constructed to operate in a wide temperature range (0 - 45 °C), ensuring reliable performance.
  • Features compliance with RoHS and multiple certification standards for safety.
  • Includes both C13 and C19 outlet types, accommodating versatile power requirements.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (1)
  • Net weight: 5.45 kg
Additional specifications (24)
  • PDU types: Basic
  • Rack capacity: 0U
  • Product colour: Black
  • AC outlets quantity: 42 AC outlet(s)
  • Power plug: NEMA L21-20P
  • AC outlet types: C13 coupler, C19 coupler
  • Output connections: -(36) IEC 320 C13. -(6) IEC 320 C19.
  • Cable length: 0.91 m
  • Nominal input voltage: 208 V
  • AC input frequency: 50 - 60 Hz
  • Nominal output voltage: 208 V
  • Load capacity: 5700 VA
  • Maximum input current per phase: 20 A
  • Maximum total current draw per phase: 20 A
  • Compliance certificates: RoHS
  • Certification: cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL
  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Width: 56 mm
  • Depth: 44 mm
  • Height: 1778 mm
  • Weight: 5.45 kg

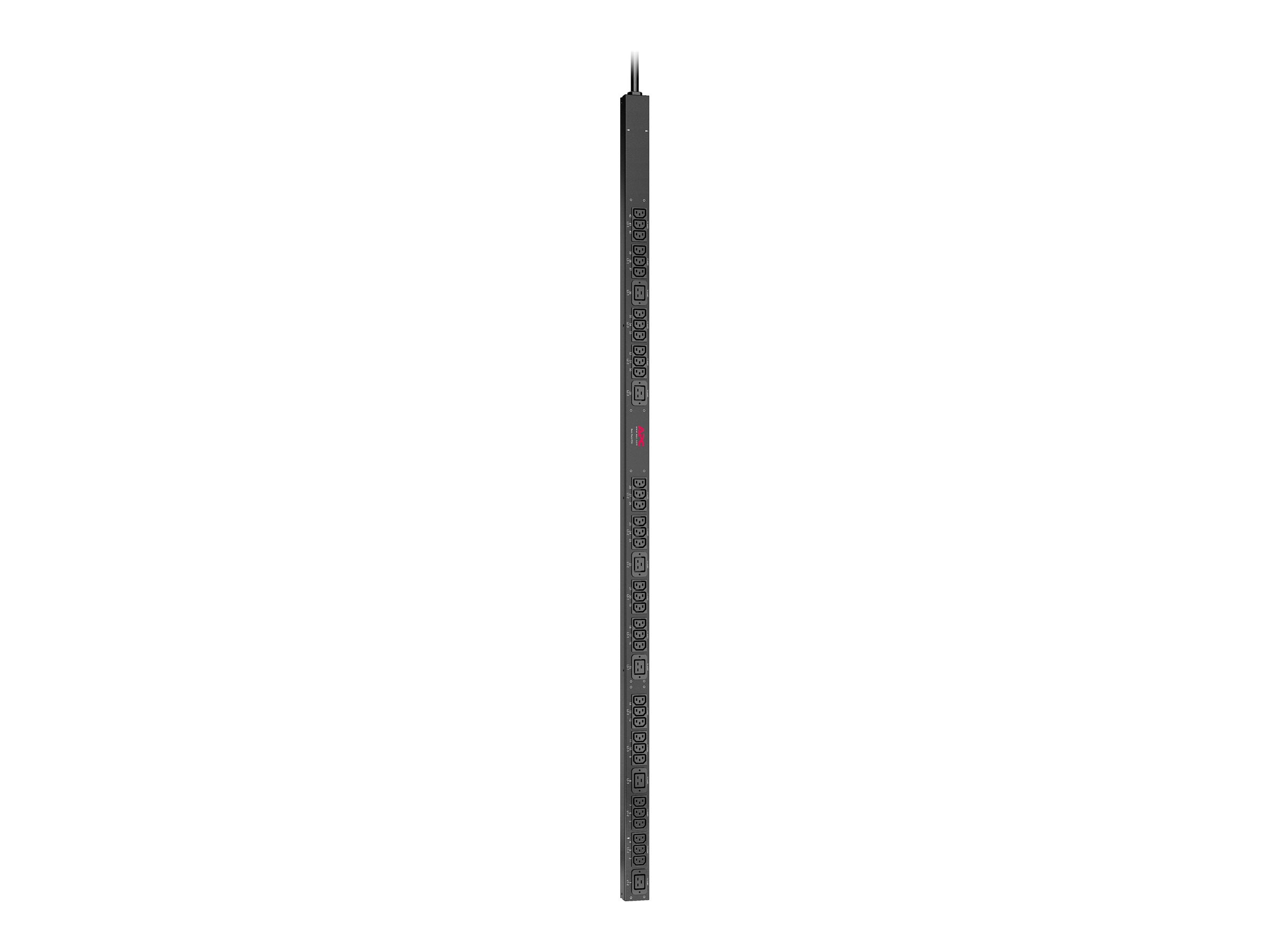

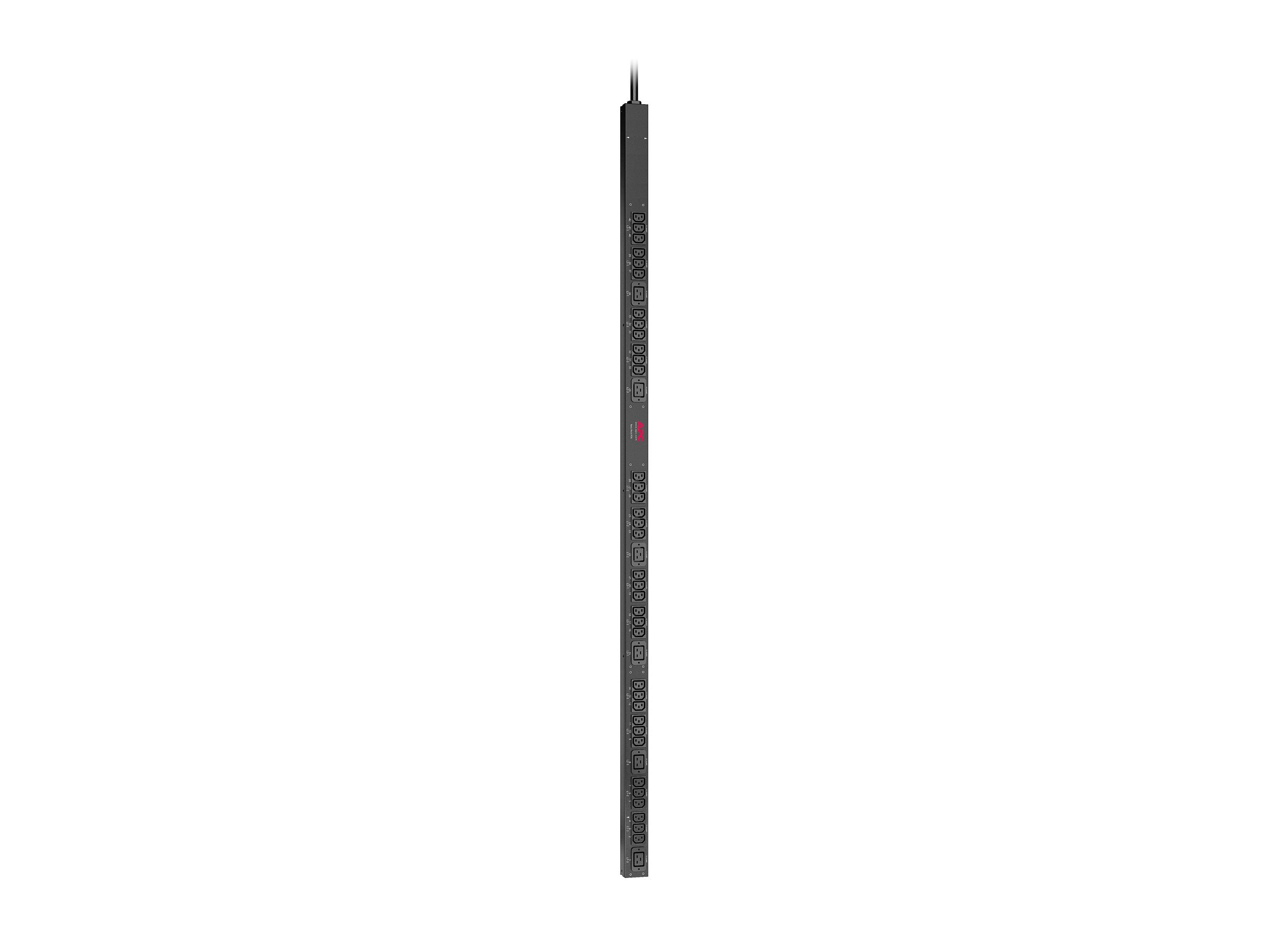

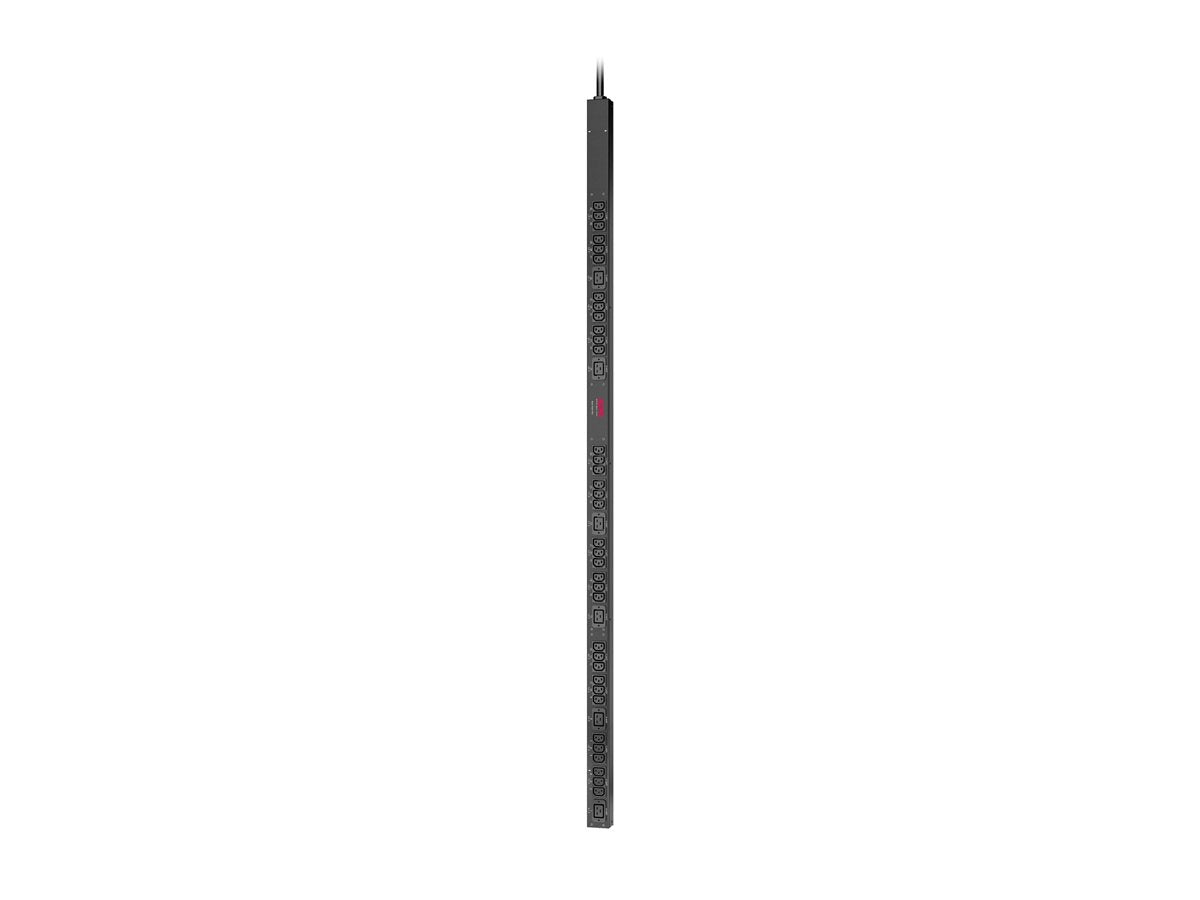

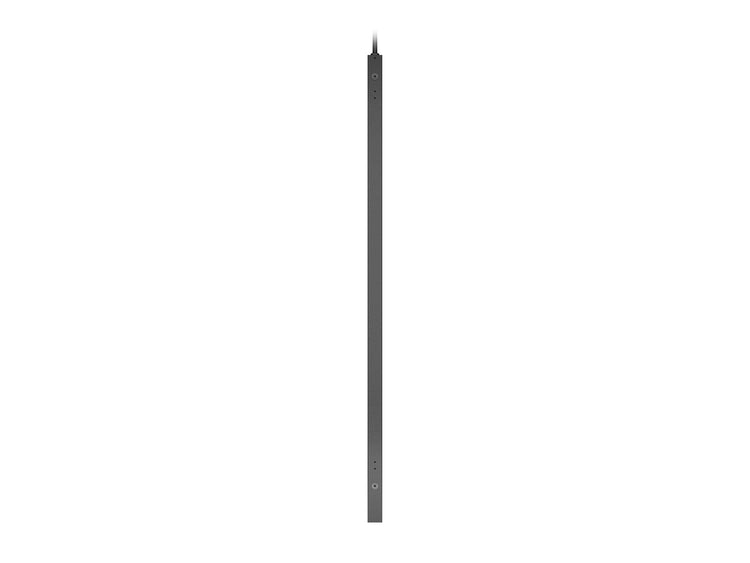

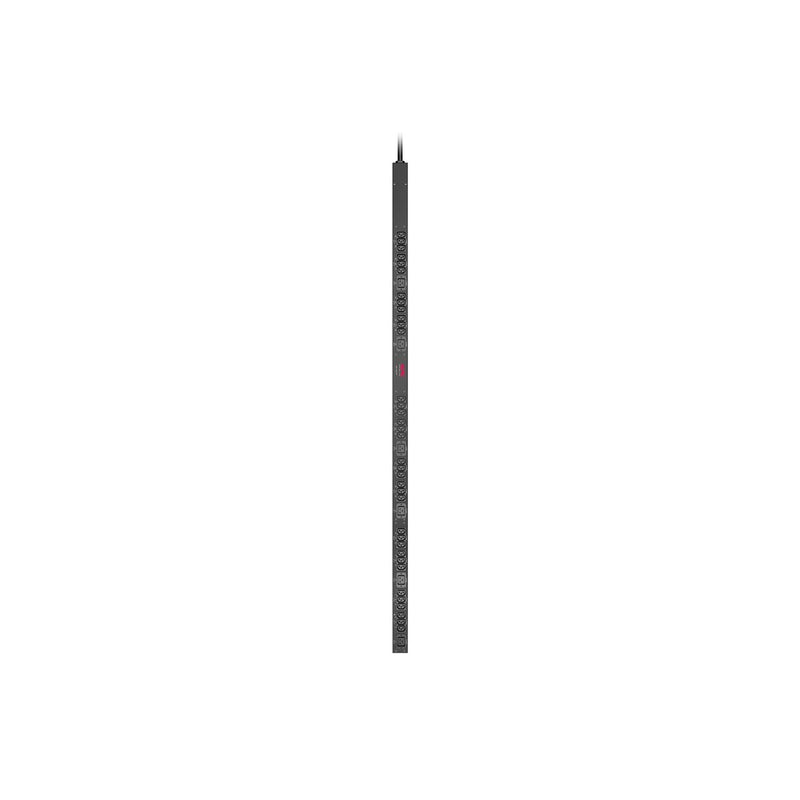

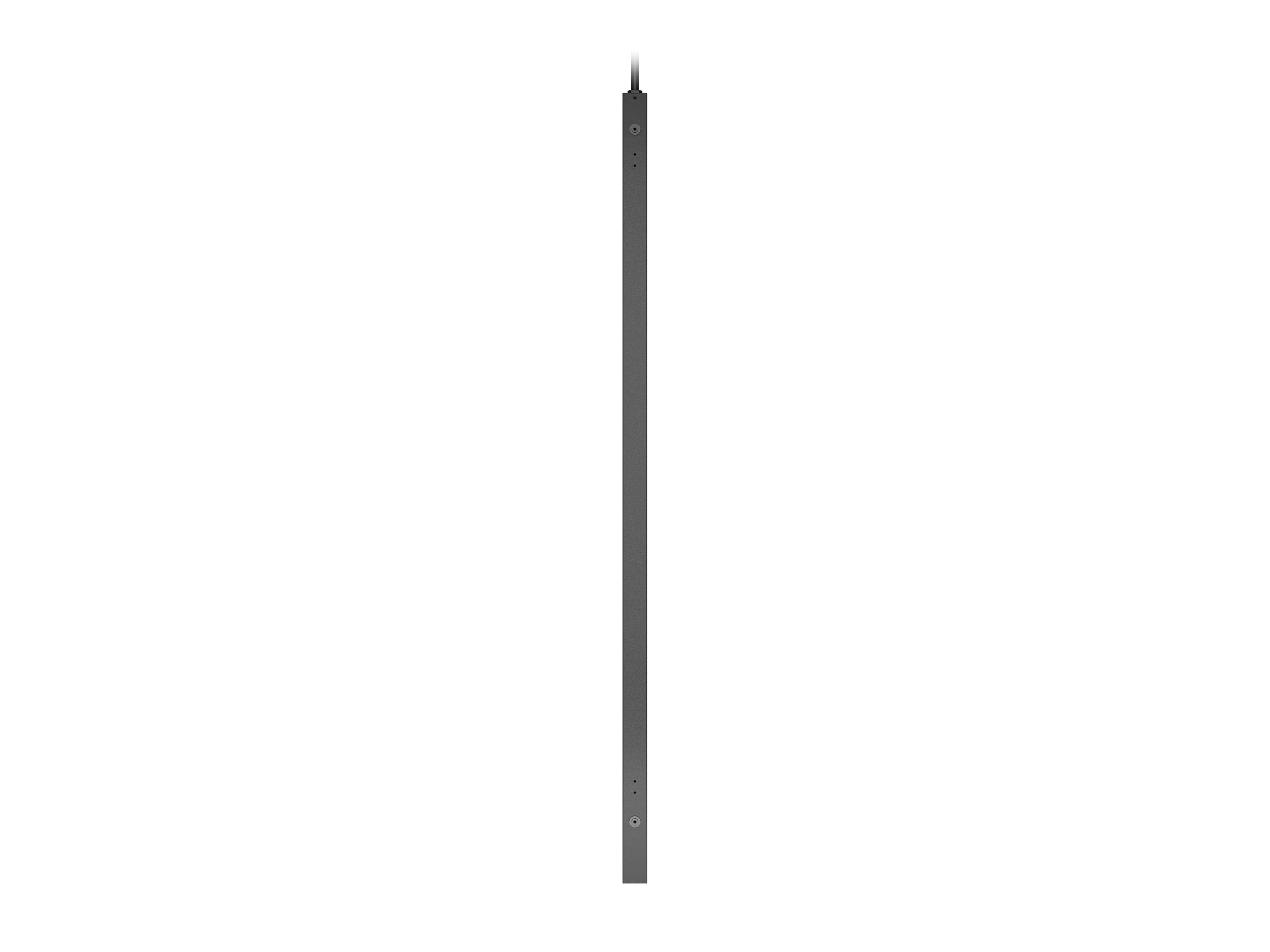

APC Rack PDU, Basic, Zero U, 5.7kW, 208V, (36)C13 & (6)C19, Schneider Electric

€499,71
€499,71
Tax included.
