About

Description

The Schneider Electric APC Easy UPS 3S 30 kVA is a reliable uninterruptible power supply (UPS) designed for businesses that require consistent power availability. This double-conversion UPS is suitable for use in critical applications, ensuring that your connected devices remain powered during outages or fluctuations.

  • 30 kVA output power capacity supports a range of equipment, providing ample power for high-demand applications.
  • Double-conversion topology offers high-quality, stable power with minimal distortion, safeguarding valuable electronic equipment.
  • Sealed Lead Acid (VRLA) battery technology ensures reliable battery performance and longevity.
  • Compact rackmount design allows for efficient use of space in server rooms or data centers.
  • Wide operating temperature and humidity ranges enable flexibility in installation environments.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (1)
  • Net weight: 293.00 kg
Additional specifications (29)
  • UPS topology: Double-conversion (Online)
  • Output power capacity: 30 kVA
  • Output power: 30000 W
  • Input operation voltage (min): 400 V
  • Input operation voltage (max): 477 V
  • Input frequency: 45/65 Hz
  • Output operation voltage (min): 230 V
  • Output operation voltage (max): 240 V
  • Output frequency: 50/60 Hz
  • Power factor: 0.99
  • Crest factor: 3:1
  • Output voltage Total Harmonic Distortion (THD): 5.5%
  • Input current Total Harmonic Distortion (THD): 5%
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery voltage: 240 V
  • Form factor: Rackmount
  • Product colour: White
  • International Protection (IP) code: IP20
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 40 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Compliance certificates: RoHS
  • Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
  • Width: 500 mm
  • Depth: 996 mm
  • Height: 1400 mm
  • Weight: 293 kg
  • Harmonized System (HS) code: 85078000
Description

The Schneider Electric APC Easy UPS 3S 30 kVA is a reliable uninterruptible power supply (UPS) designed for businesses that require consistent power availability. This double-conversion UPS is suitable for use in critical applications, ensuring that your connected devices remain powered during outages or fluctuations.

  • 30 kVA output power capacity supports a range of equipment, providing ample power for high-demand applications.
  • Double-conversion topology offers high-quality, stable power with minimal distortion, safeguarding valuable electronic equipment.
  • Sealed Lead Acid (VRLA) battery technology ensures reliable battery performance and longevity.
  • Compact rackmount design allows for efficient use of space in server rooms or data centers.
  • Wide operating temperature and humidity ranges enable flexibility in installation environments.
Specifications (1)
  • Warranty: 24 month(s)
Technical details (1)
  • Net weight: 293.00 kg
Additional specifications (29)
  • UPS topology: Double-conversion (Online)
  • Output power capacity: 30 kVA
  • Output power: 30000 W
  • Input operation voltage (min): 400 V
  • Input operation voltage (max): 477 V
  • Input frequency: 45/65 Hz
  • Output operation voltage (min): 230 V
  • Output operation voltage (max): 240 V
  • Output frequency: 50/60 Hz
  • Power factor: 0.99
  • Crest factor: 3:1
  • Output voltage Total Harmonic Distortion (THD): 5.5%
  • Input current Total Harmonic Distortion (THD): 5%
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery voltage: 240 V
  • Form factor: Rackmount
  • Product colour: White
  • International Protection (IP) code: IP20
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 40 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Compliance certificates: RoHS
  • Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
  • Width: 500 mm
  • Depth: 996 mm
  • Height: 1400 mm
  • Weight: 293 kg
  • Harmonized System (HS) code: 85078000

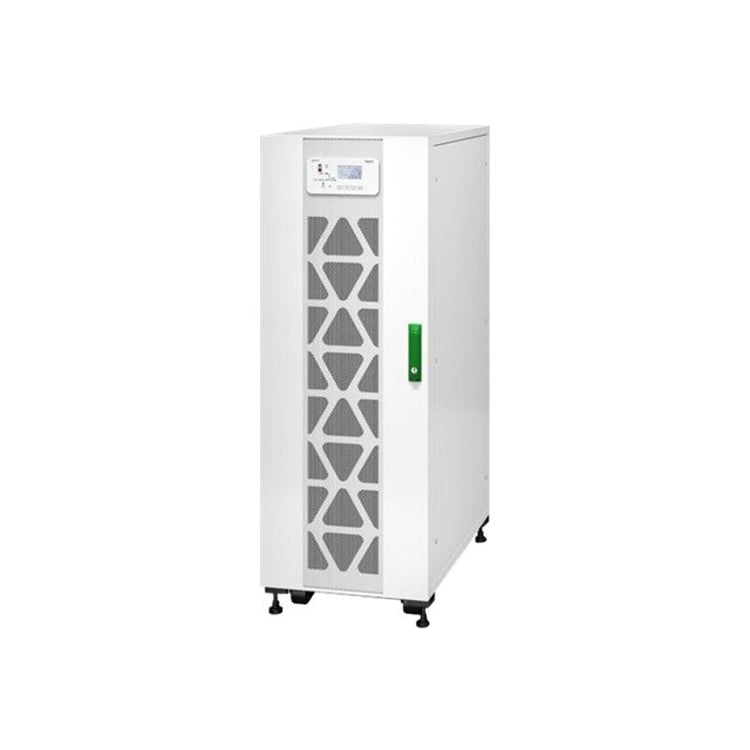

APC Easy UPS 3S 30 kVA 400V 3:1 UPS, 4 internal 7Ah modular battery strings, Schneider Electric

€12.078,83
€12.078,83
Tax included.
