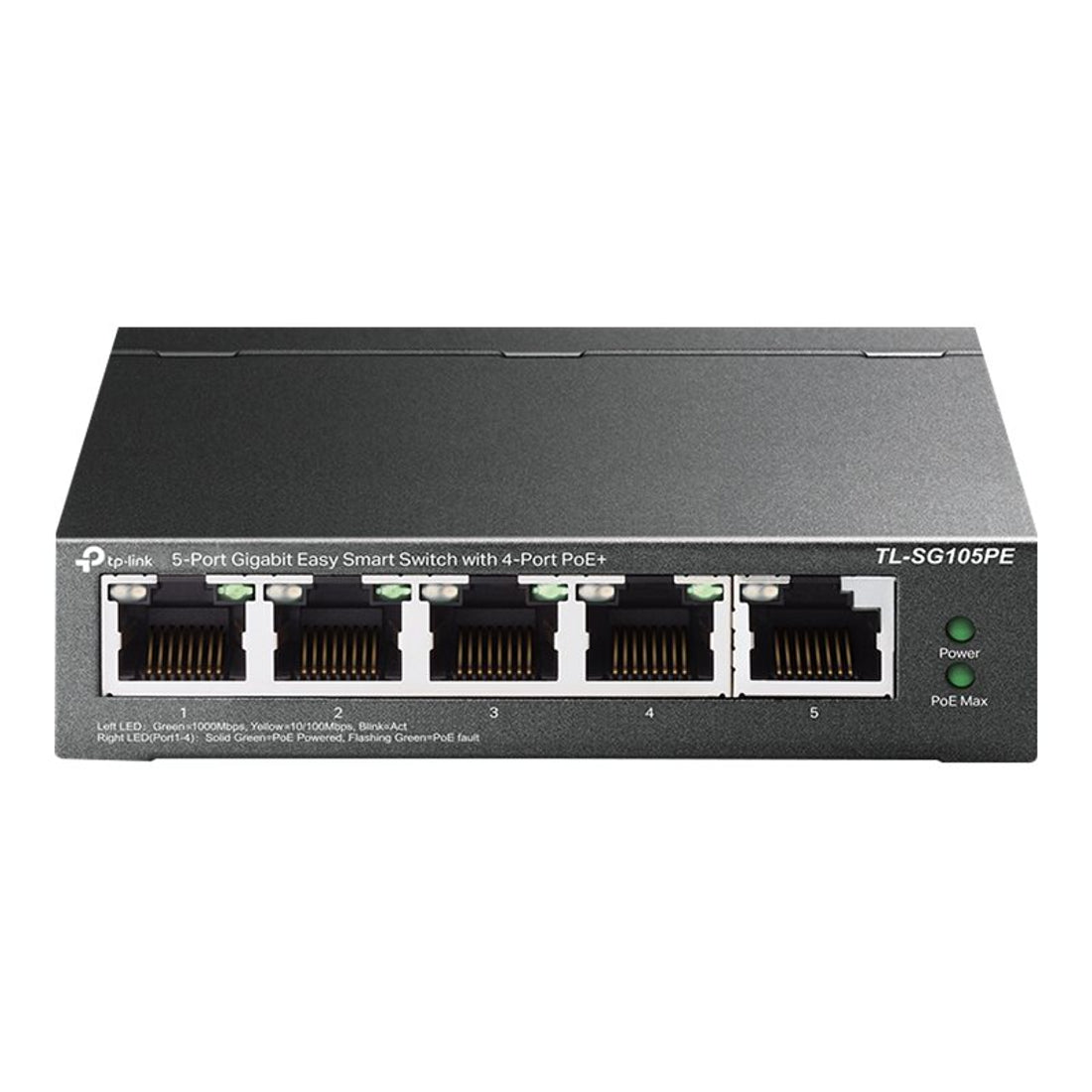

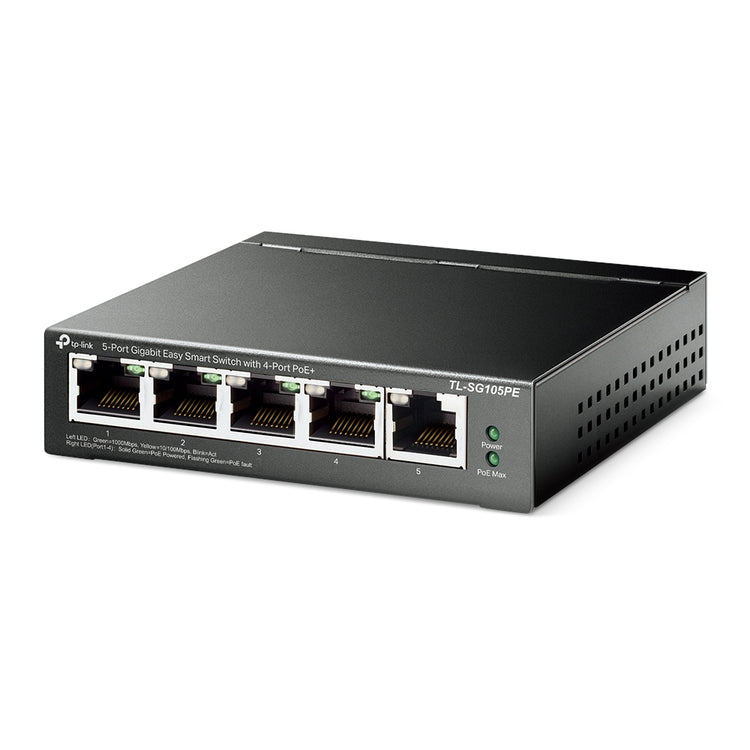

The TP-LINK TL-SG105PE is an unmanaged desktop switch suited for home or small office environments. It offers simple plug-and-play connectivity and features Power over Ethernet (PoE) capabilities for easy installation of network devices.

  • Four PoE+ ports provide up to 30W per port, allowing you to power devices such as IP cameras and access points directly through the Ethernet cable.
  • Five Gigabit Ethernet ports ensure fast network connections at data rates of 10/100/1000 Mbit/s.
  • Web-based management simplifies monitoring and configuration, making it user-friendly for those without technical expertise.
  • Quality of Service (QoS) support helps prioritize network traffic, ensuring optimal performance for sensitive applications like video conferencing.
  • Port mirroring and flow control support enhance network performance and troubleshooting capabilities.
Specifications (3)
  • Producer product family: Switch
  • Producer product name: TL-SG105PE
  • Warranty: 60 month(s)
Design (1)
  • Form factor: Desktop
Management features (1)
  • Switch type: Unmanaged
Other features (2)
  • Power supply type: External
  • Ethernet LAN (RJ-45) ports: 5
Ports & interfaces (3)
  • PoE+ ports quantity: 4
  • POE: PoE 802.3 af and PoE+ 802.3 at
  • Predominant port type: 10/100 Mbps (RJ-45)
Power over Ethernet (PoE) (2)
  • Power over Ethernet (PoE) power per port: 30 W
  • Power over Ethernet (PoE): Yes
Features (2)
  • Mesh Support: No
  • Mobile Broadband: No mobile broadband
Performance (1)
  • Ethernet LAN data rates: 10/100/1000 Mbit/s
Technical details (1)
  • Net weight: 0.541 kg
Additional specifications (52)
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 5
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Virtual LAN features: Port-based VLAN, Tagged VLAN
  • Number of VLANs: 4000
  • Switching capacity: 10 Gbit/s
  • Forwarding rate: 7.44 Mpps
  • MAC address table: 2000 entries
  • Store-and-forward: Yes
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 16000
  • Packet buffer memory: 1 MB
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Rack mounting: No
  • Product colour: Black
  • LED indicators: Activity, Link, PoE, Power, Speed, Status
  • Fanless: Yes
  • Power source: DC
  • Power supply included: Yes

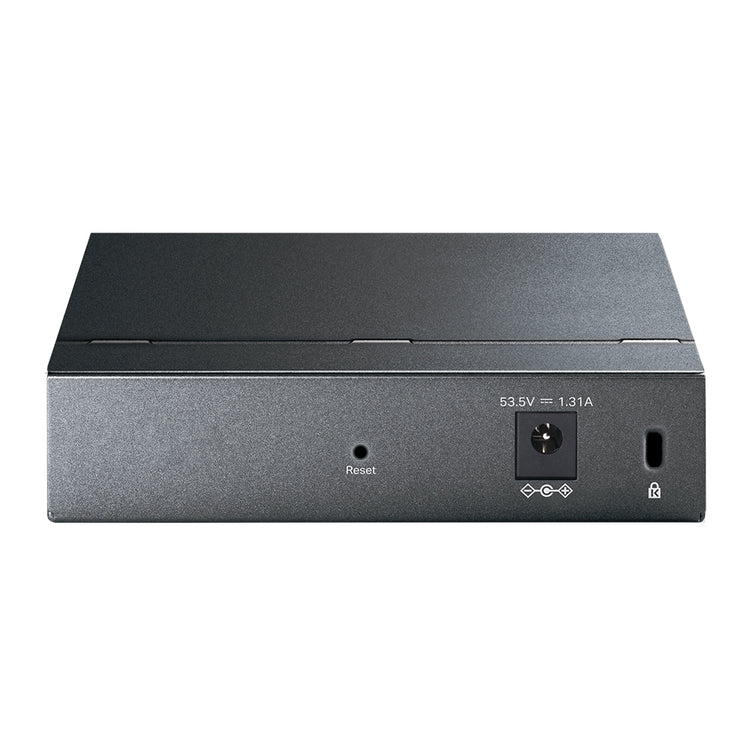

  • Input current: 1.31 A
  • Input voltage: 53.5 V
  • Power consumption (max): 75.16 W
  • Power over Ethernet plus (PoE+) ports quantity: 4
  • Total Power over Ethernet (PoE) budget: 65 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 95%
  • Heat dissipation: 256.3 BTU/h
  • Width: 99.8 mm
  • Depth: 98 mm
  • Height: 25 mm
  • User guide: Yes
  • Certification: FCC, CE, RoHS
  • Harmonized System (HS) code: 85176990
