The TP-LINK SM5110LSA-10 is a compact SFP+ module designed for users needing high-speed fiber optic networking solutions. It's suitable for network professionals looking to enhance their systems with efficient data transfer capabilities.

  • Achieves a maximum data transfer rate of 10.3 Gbit/s, enabling fast connections.
  • Supports single-mode fiber for efficient long-distance networking up to 10,000 meters.
  • Equipped with Digital Diagnostics Monitoring (DDM) for real-time performance insights.
  • Hot-swappable design allows for easy installation and replacement without downtime.
  • Operates within a wide temperature range from 0 °C to 70 °C, ensuring reliability in various environments.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 0.06 kg
Additional specifications (26)
  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 10312 Mbit/s
  • Interface type: SFP+
  • Single-mode fiber (SMF) supported: Yes
  • Fiber optic connector: LC (UPC)
  • Fiber cable diameters supported (core/cladding): 9/125 µm
  • Maximum transfer distance: 10000 m
  • Tx wavelength (max): 1330 nm
  • Rx wavelength (max): 1270 nm
  • Networking standards: IEEE 802.3ae
  • Digital Diagnostics Monitoring (DDM): Yes
  • Product colour: Silver
  • Hot-swap: Yes
  • Input voltage: 3.3 V
  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
  • Minimum operating temperature: 0 °C
  • Maximum operating temperature: 70 °C
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Width: 57 mm
  • Depth: 14 mm
  • Height: 12 mm
  • Quantity per pack: 1 pc(s)
  • Manual: Yes
Egenskaper

The TP-LINK SM5110LSA-10 is a compact SFP+ module designed for users needing high-speed fiber optic networking solutions. It's suitable for network professionals looking to enhance their systems with efficient data transfer capabilities.

  • Achieves a maximum data transfer rate of 10.3 Gbit/s, enabling fast connections.
  • Supports single-mode fiber for efficient long-distance networking up to 10,000 meters.
  • Equipped with Digital Diagnostics Monitoring (DDM) for real-time performance insights.
  • Hot-swappable design allows for easy installation and replacement without downtime.
  • Operates within a wide temperature range from 0 °C to 70 °C, ensuring reliability in various environments.
Specifications (1)
  • Warranty: 60 month(s)
Technical details (1)
  • Net weight: 0.06 kg
Additional specifications (26)
  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 10312 Mbit/s
  • Interface type: SFP+
  • Single-mode fiber (SMF) supported: Yes
  • Fiber optic connector: LC (UPC)
  • Fiber cable diameters supported (core/cladding): 9/125 µm
  • Maximum transfer distance: 10000 m
  • Tx wavelength (max): 1330 nm
  • Rx wavelength (max): 1270 nm
  • Networking standards: IEEE 802.3ae
  • Digital Diagnostics Monitoring (DDM): Yes
  • Product colour: Silver
  • Hot-swap: Yes
  • Input voltage: 3.3 V
  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
  • Minimum operating temperature: 0 °C
  • Maximum operating temperature: 70 °C
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Width: 57 mm
  • Depth: 14 mm
  • Height: 12 mm
  • Quantity per pack: 1 pc(s)
  • Manual: Yes

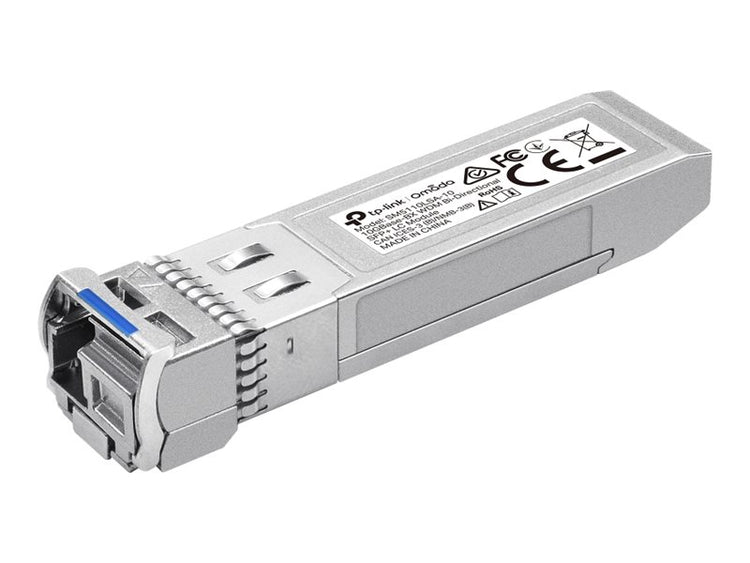

TP-LINK SM5110LSA-10 Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module

$56.00
$56.00
Skatt inkludert.
