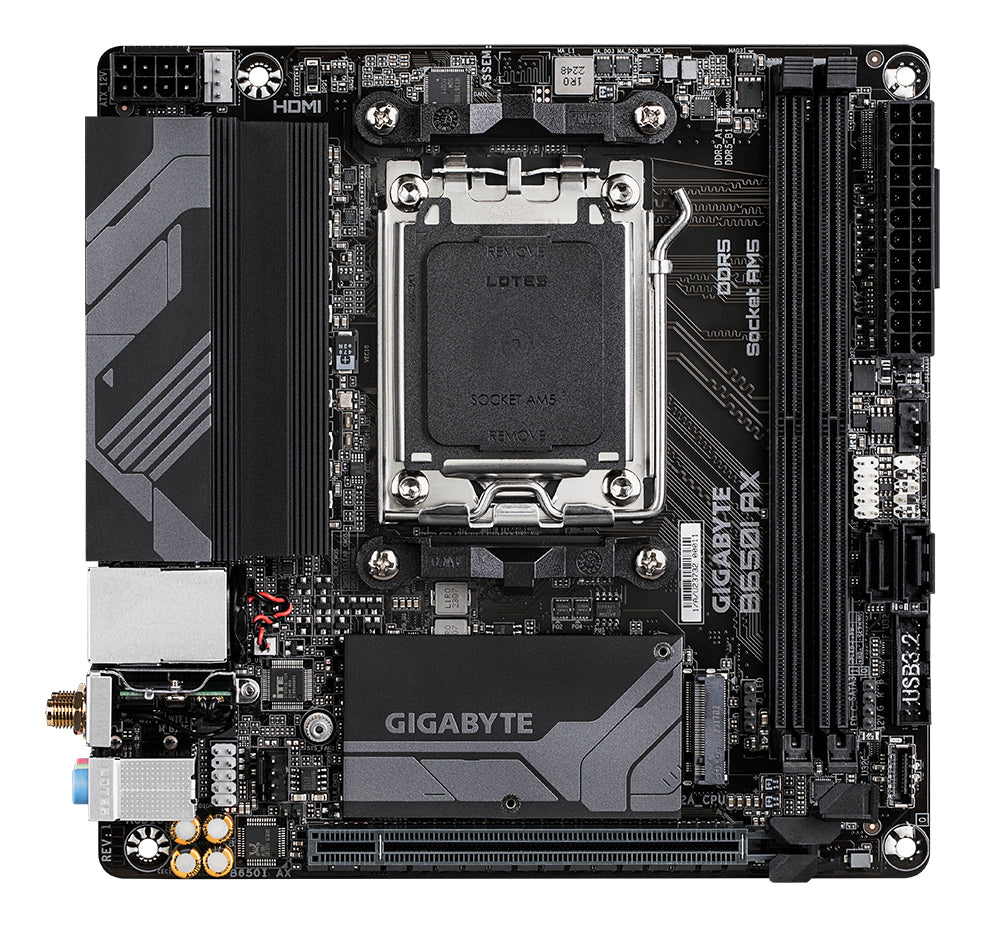

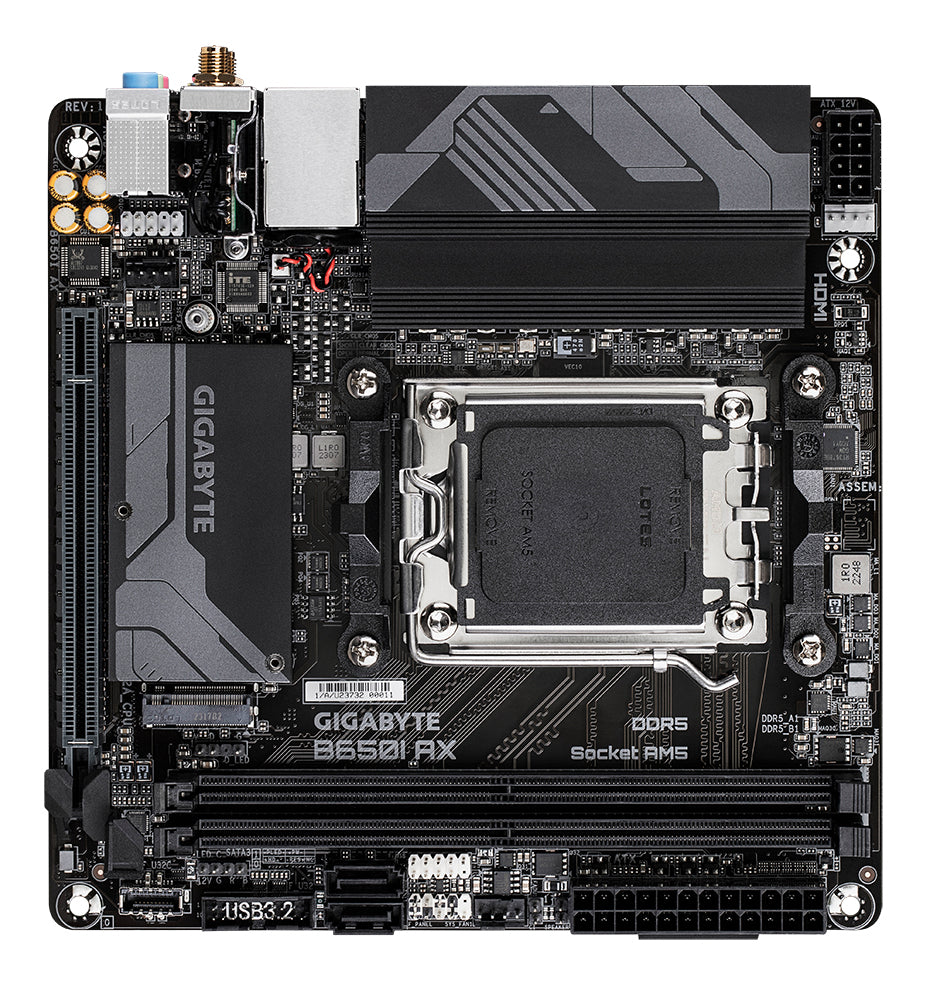

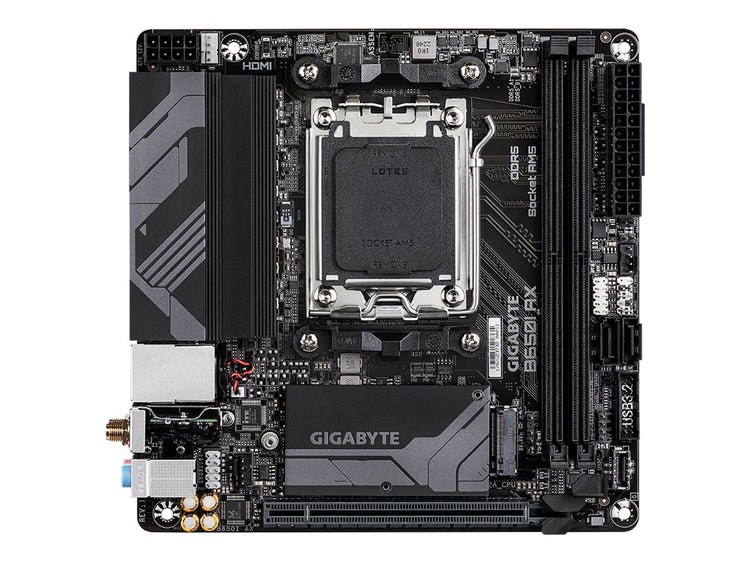

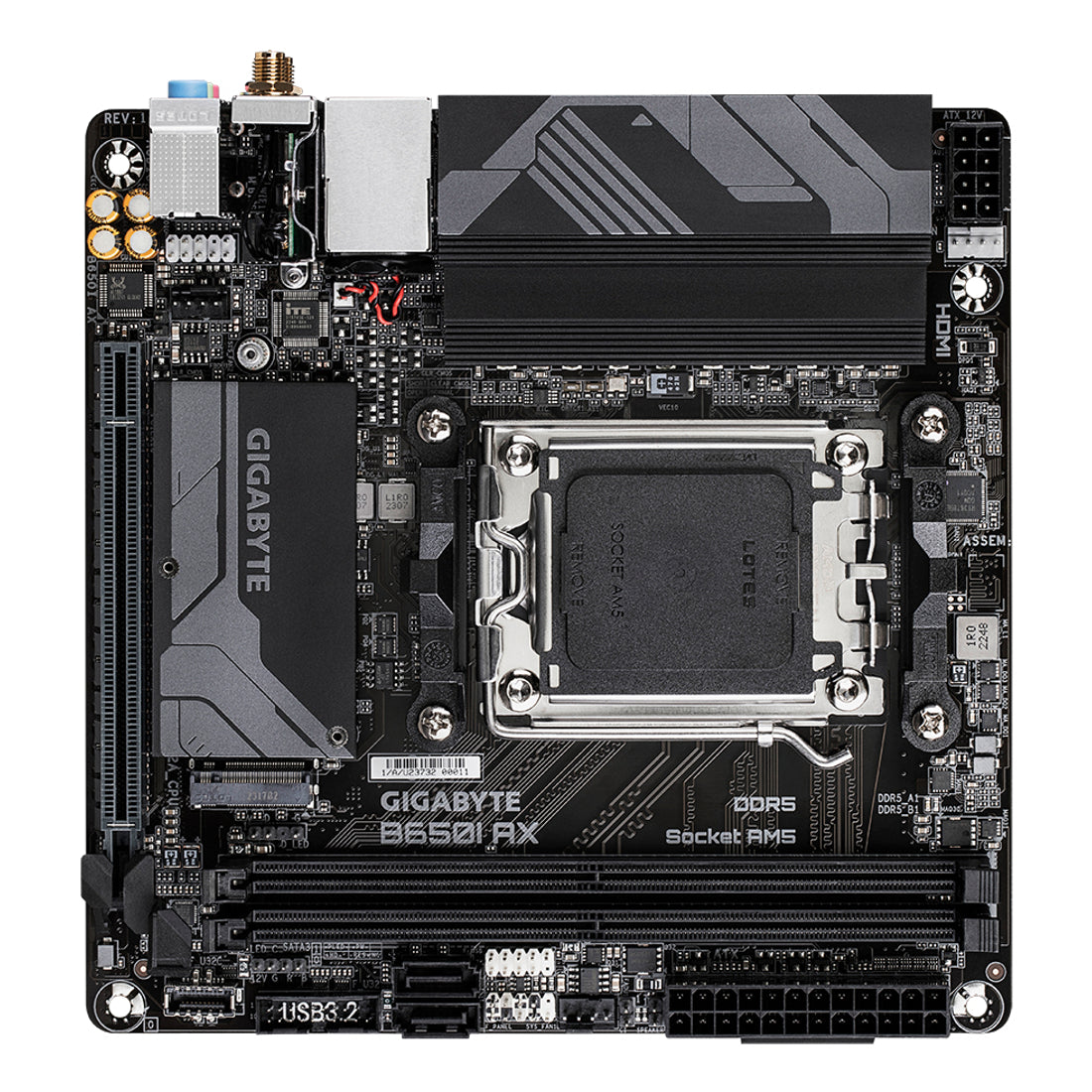

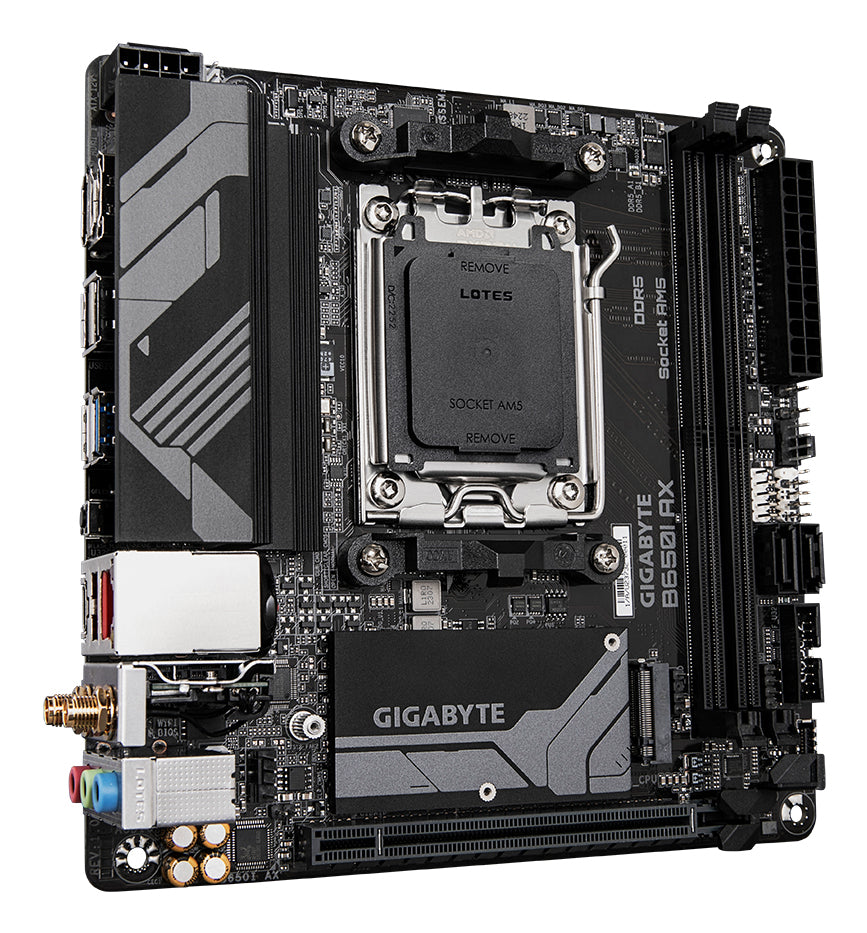

The Gigabyte B650I AX 1.0 is a mini-ITX motherboard designed for users looking to build a powerful and compact AMD-based system. It supports the latest AMD Ryzen processors and DDR5 memory, making it suitable for gamers and productivity enthusiasts alike.
- Supports AMD Ryzen 7000, 8000, and 9000 series processors, allowing for high-performance computing.
- Equipped with two SATA connectors and M.2 support for versatile storage options with HDDs and SSDs.
- Offers dual-channel DDR5 memory support with speeds up to 6400 MHz, enhancing overall system responsiveness.
- RAID support enables data redundancy or performance enhancement using different RAID levels.
- Maximum internal memory capacity of 128 GB across two DIMM slots, accommodating demanding applications.
Internal I/O (2)
- Number of SATA connectors: 2
- Supported hard disk drive interfaces: SATA, M.2
Memory (1)
- Supported memory types: DDR5 DIMM
Processor (2)
- Processor family: AMD
- Processor socket: AM5
Technical details (2)
- Producer product name: B650I AX 1.0
- Net weight: 0.5 kg
Specifications (1)
- Warranty: 36 month(s)
Additional specifications (95)
- Processor manufacturer: AMD
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400 MHz
- Supported memory clock speed (max): 6400 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 2
- Number of storage drives supported: 3
- RAID support: Yes
- RAID levels: 0, 1
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
- Discrete graphics support: Yes
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- Number of EATX power connectors: 1
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 2
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 2

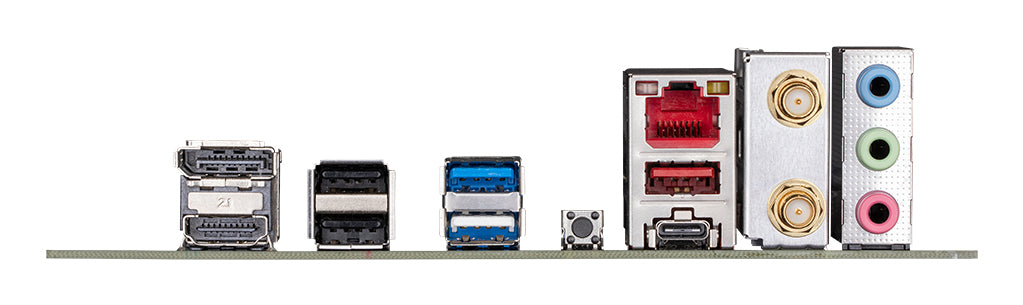

- USB 2.0 ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- WiFi-AP antenna jack: 2
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Realtek RTL8852CE
- Bluetooth: Yes
- Bluetooth version: 5.3
- Motherboard chipset: AMD B650
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Brown
- PC health monitoring: Fan, Temperature, Voltage
- Component for: PC
- Motherboard form factor: mini ITX
- Motherboard chipset family: AMD
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 4.0
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System Management BIOS (SMBIOS) version: 2.7
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
- Width: 170 mm
- Depth: 170 mm
- Height: 35 mm
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
- Warranty period: 3 year(s)
