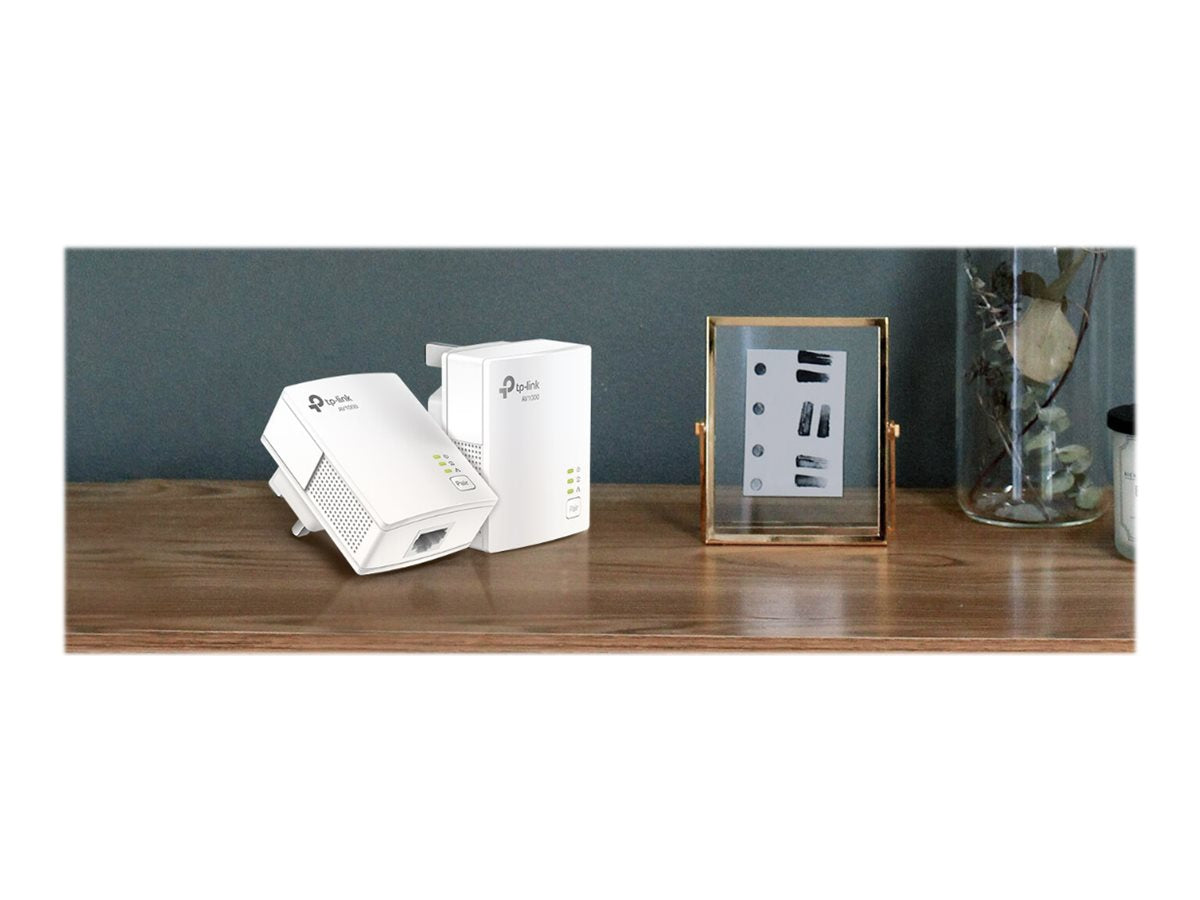

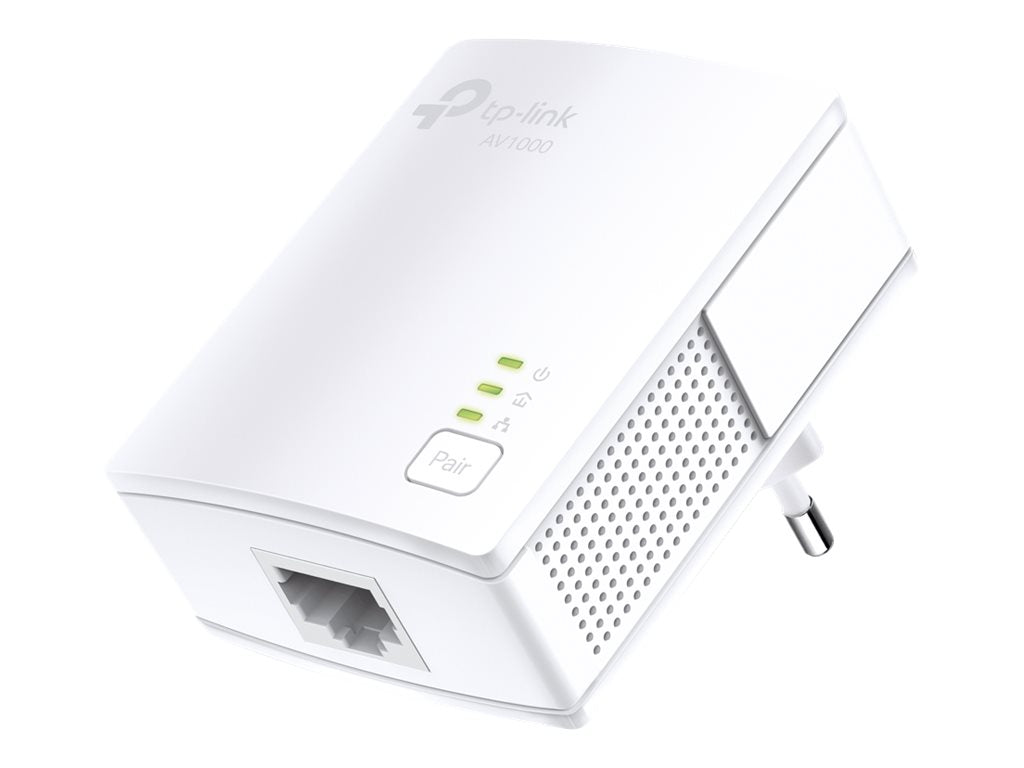

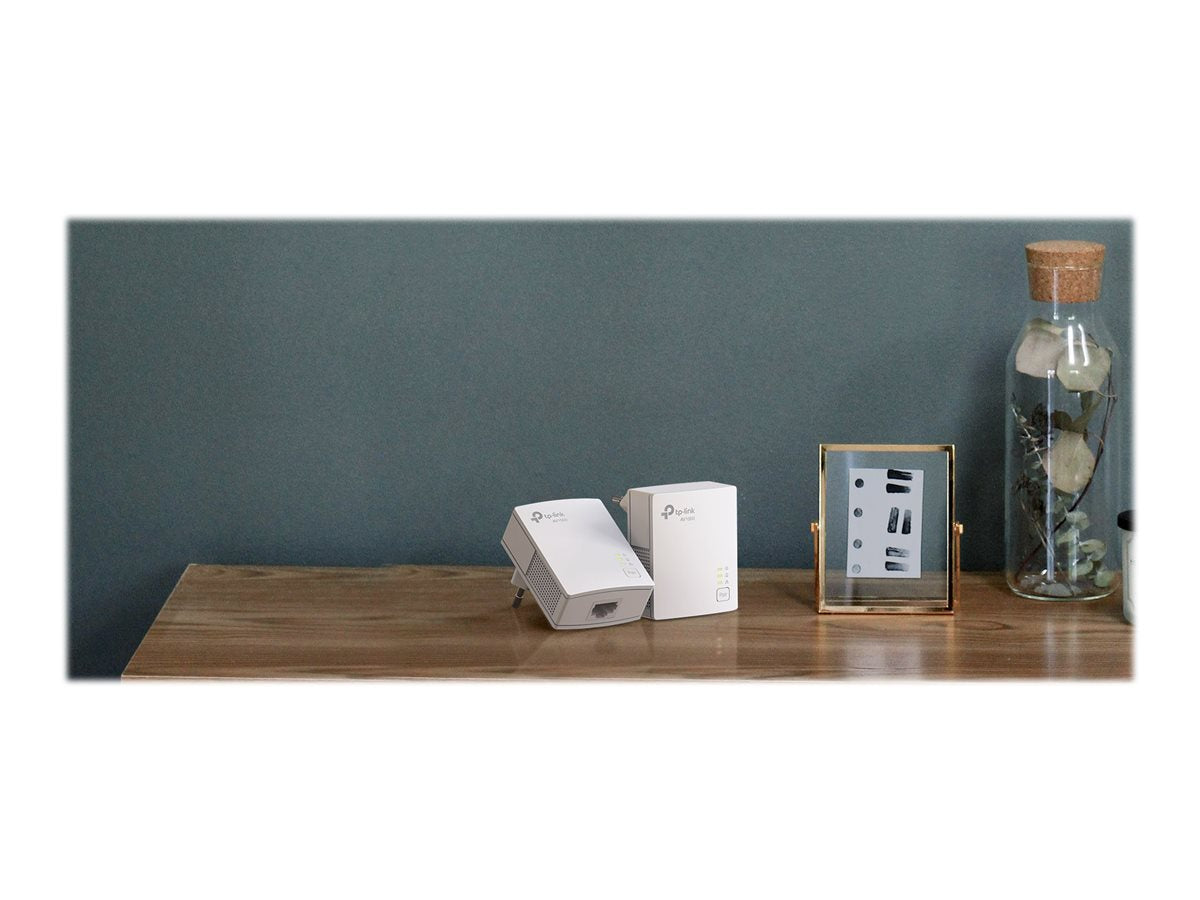

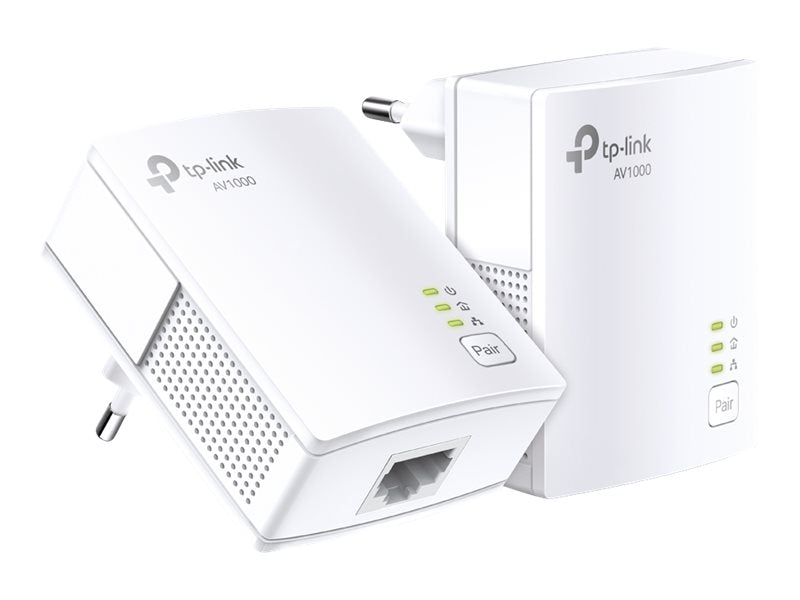

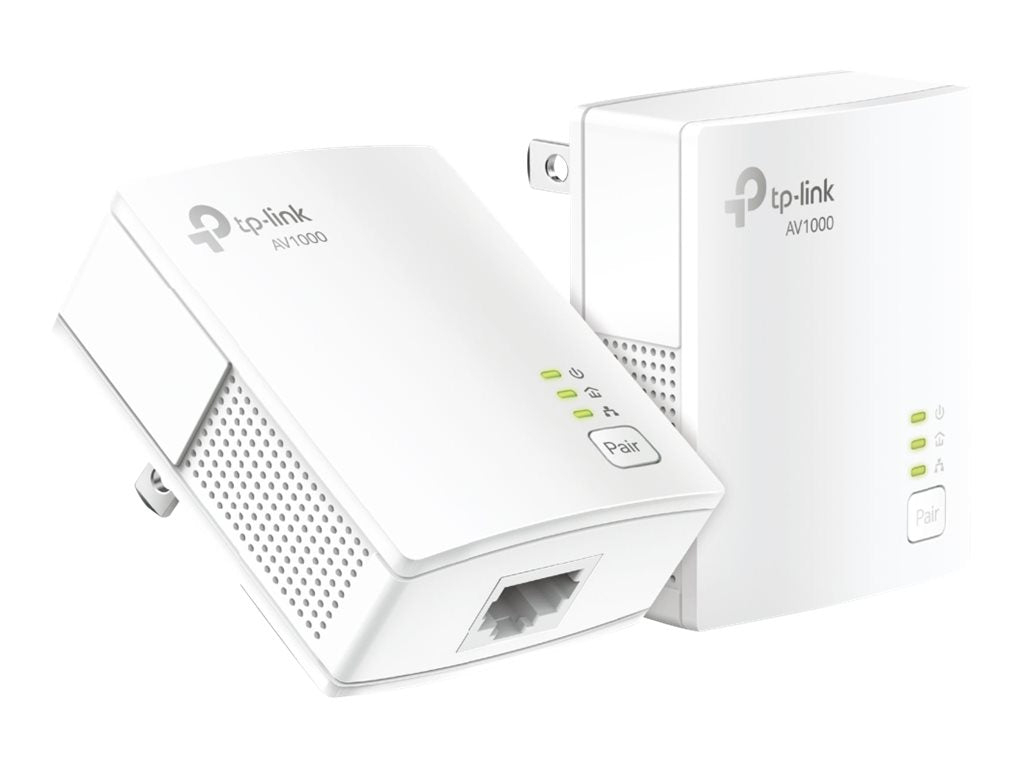

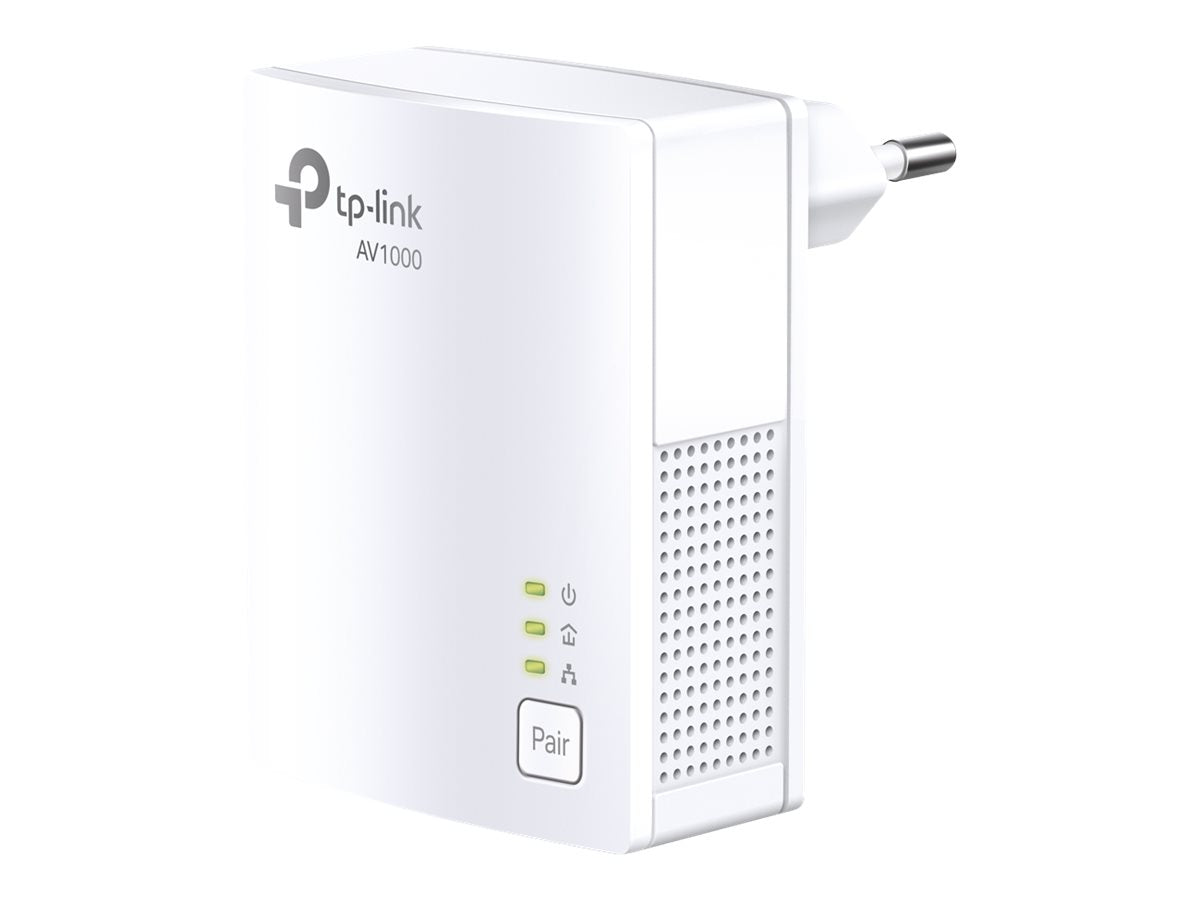

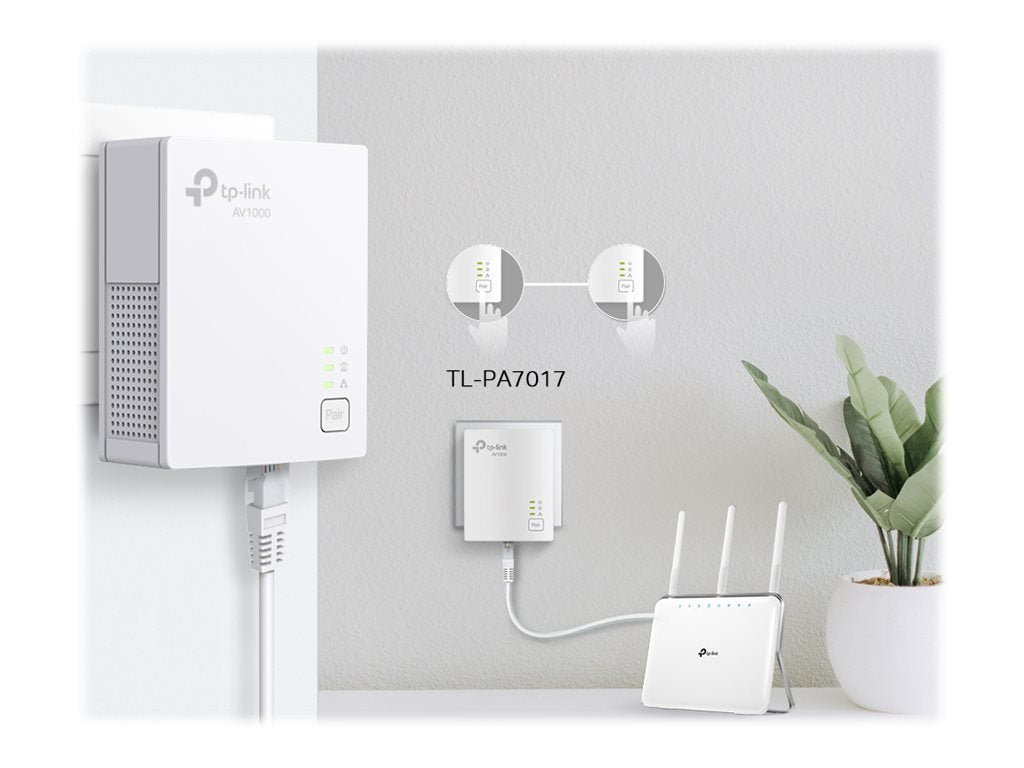

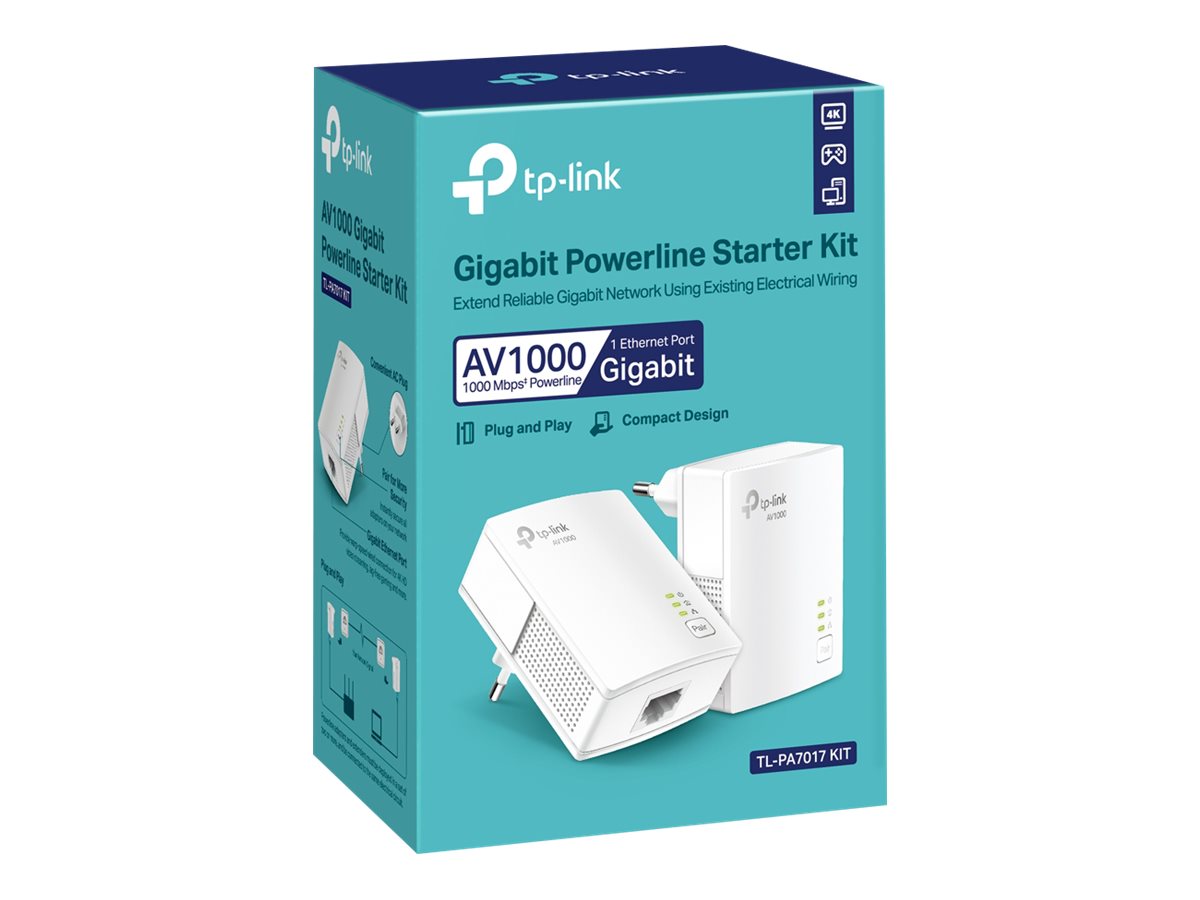

The TP-LINK Gigabit Powerline Starter Kit TL-PA7017 KIT provides a reliable wired connection throughout your home. With a maximum data transfer rate of 1000 Mbit/s and an Ethernet LAN port, it allows for seamless connectivity without Wi-Fi.

• Gigabit data transfer rate of up to 1000 Mbit/s
• Includes 1 Ethernet LAN (RJ-45) port
• Compatible with IEEE 802.3, IEEE 802.3ab, and IEEE 802.3u standards
• Features an extra power socket for additional device connectivity
• Plug and Play setup for easy installation

Specifications

• Producer product family: Gigabit Powerline Starter Kit
• Producer product name: TL-PA7017 KIT
• Warranty: 36 month(s)

Bandwidth

• Data transfer rate (max): 1000 Mbit/s

Ports & interfaces

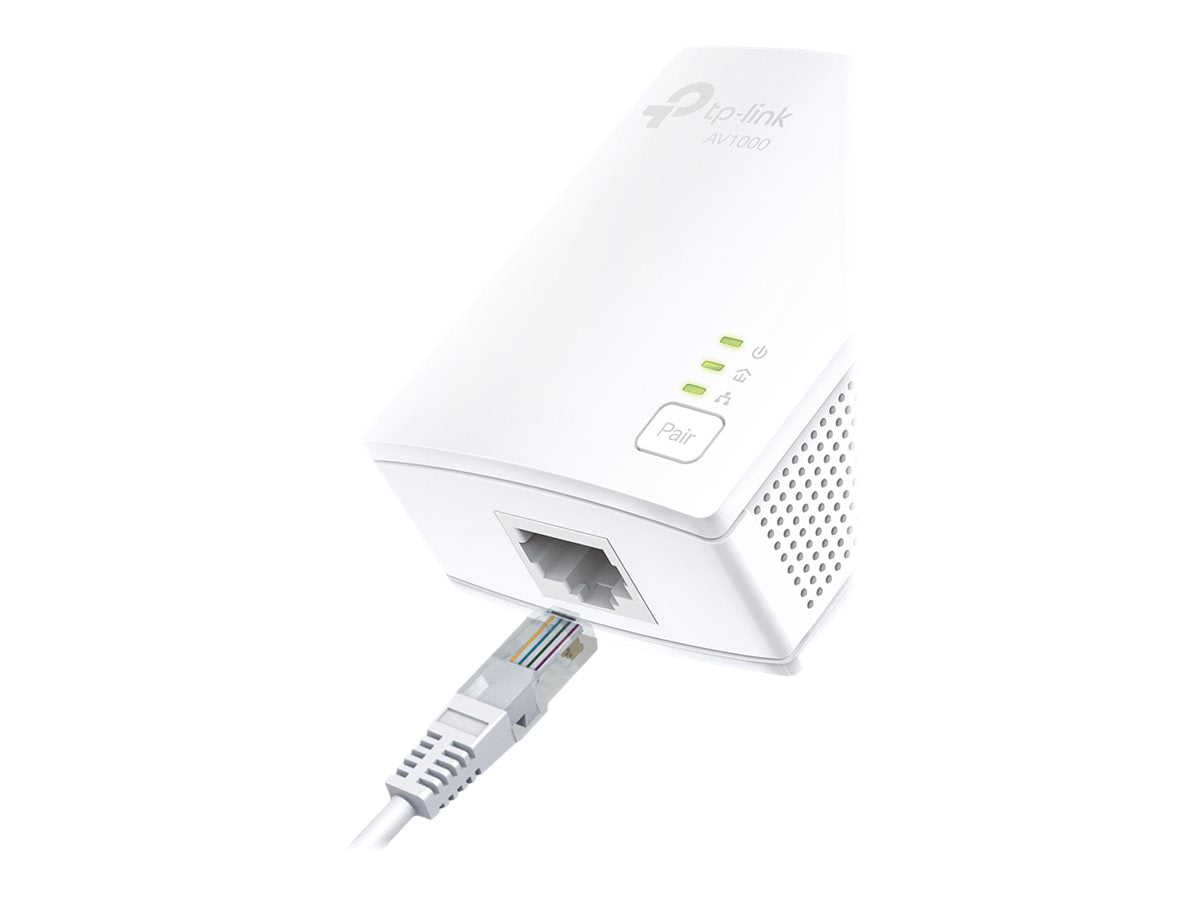

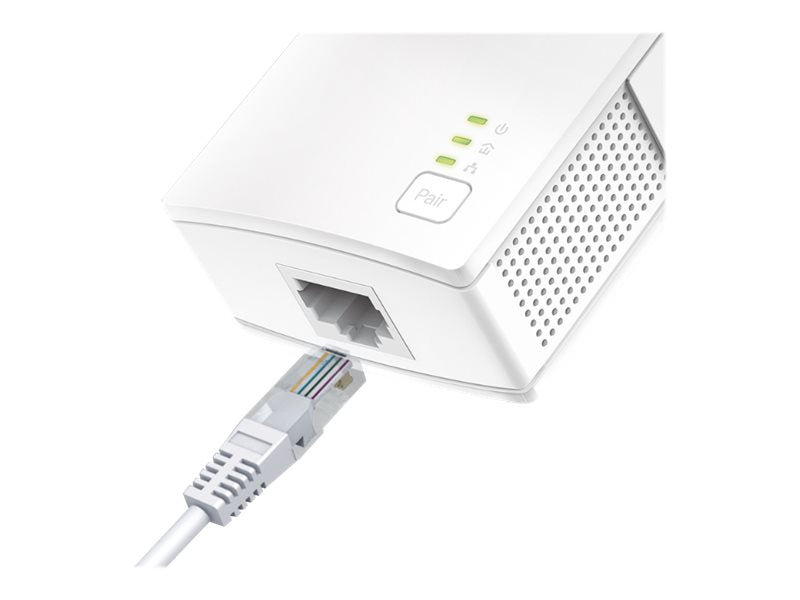

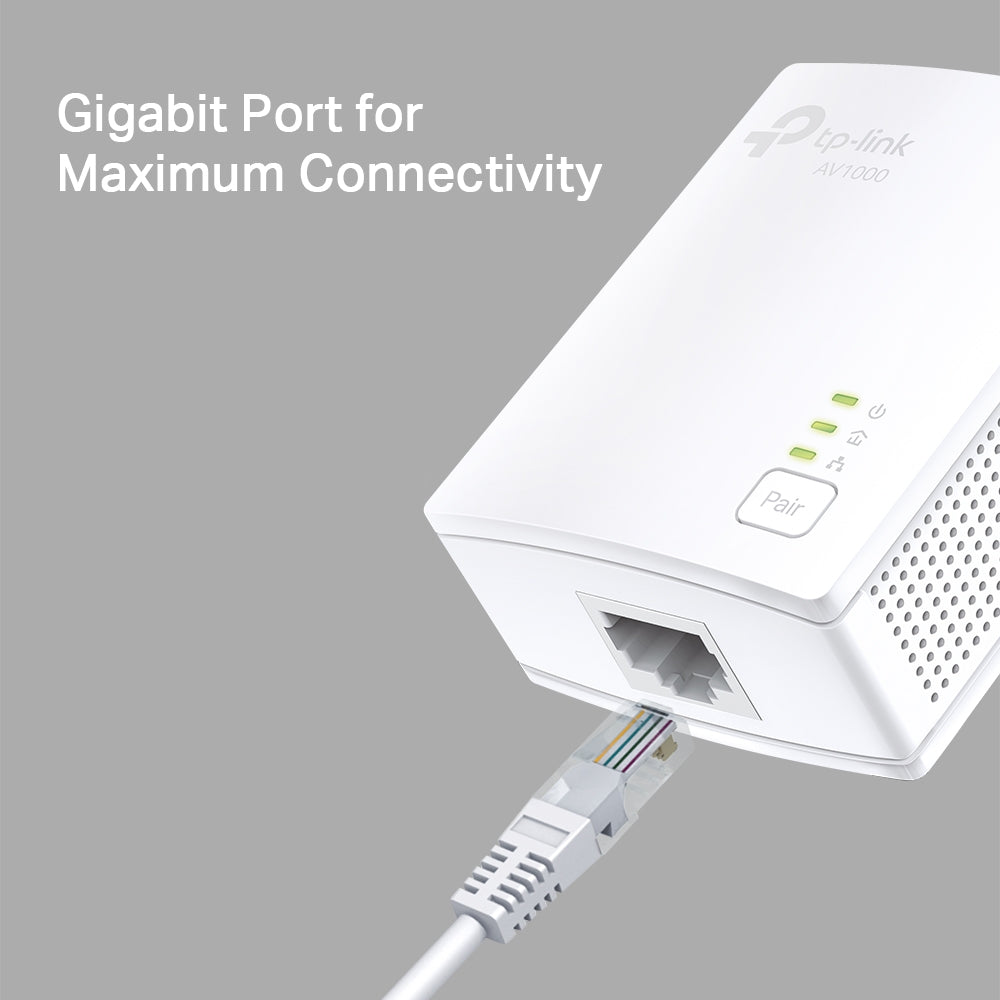

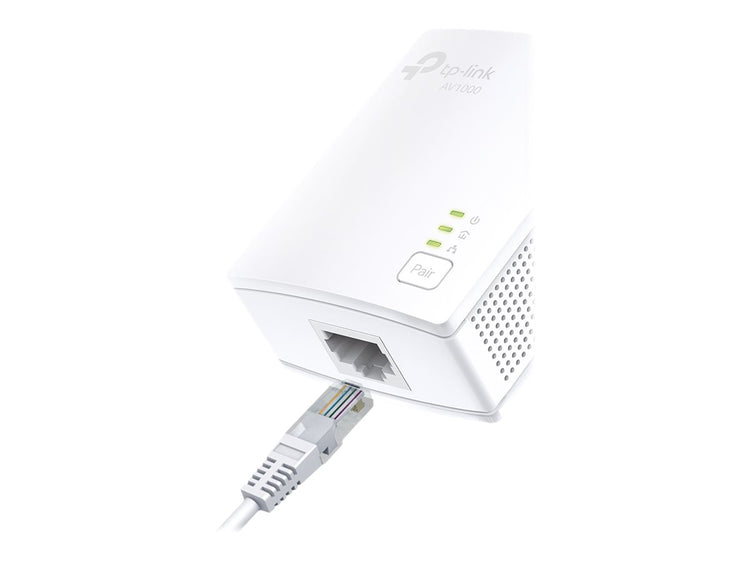

• Ethernet LAN (RJ-45) ports: 1

Technical details

• Ethernet LAN data rates: 10/100/1000 Mbit/s
• Extra socket: Yes
• Net weight: 0.231 kg

Wireless LAN features

• Wi-Fi band: No Wi-Fi

Additional specifications

• Maximum data transfer rate: 1000 Mbit/s
• Ethernet LAN: Yes
• Ethernet LAN interface type: Gigabit Ethernet
• Wi-Fi: No
• Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

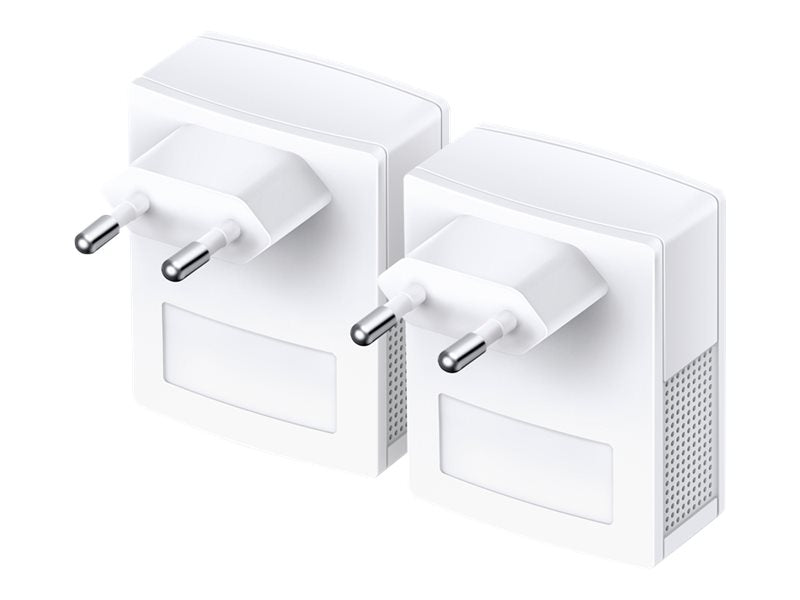

• Power plug: Type F
• Built-in power socket: No
• PowerLine standard: HomePlug AV2
• Modulation: OFDM
• Security algorithms: 128-bit AES
• Maximum operating distance: 300 m
• Plug and Play: Yes
• Power consumption (typical): 2.3 W
• Power consumption (standby): 0.5 W
• AC input voltage: 220 V
• AC input frequency: 50 Hz
• Antenna type: Internal
• LED indicators: LAN, PLC, Power
• Product colour: White
• Certification: CE
• Windows operating systems supported: Yes
• Linux operating systems supported: Yes
• Mac compatibility: Yes
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Width: 65 mm
• Depth: 28.5 mm
• Height: 52 mm
• Compliance certificates: RoHS

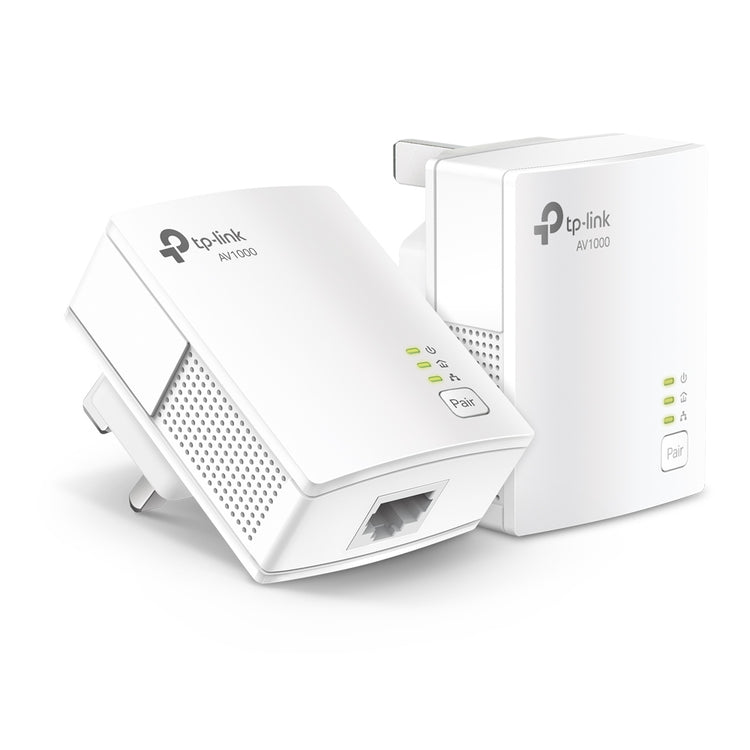

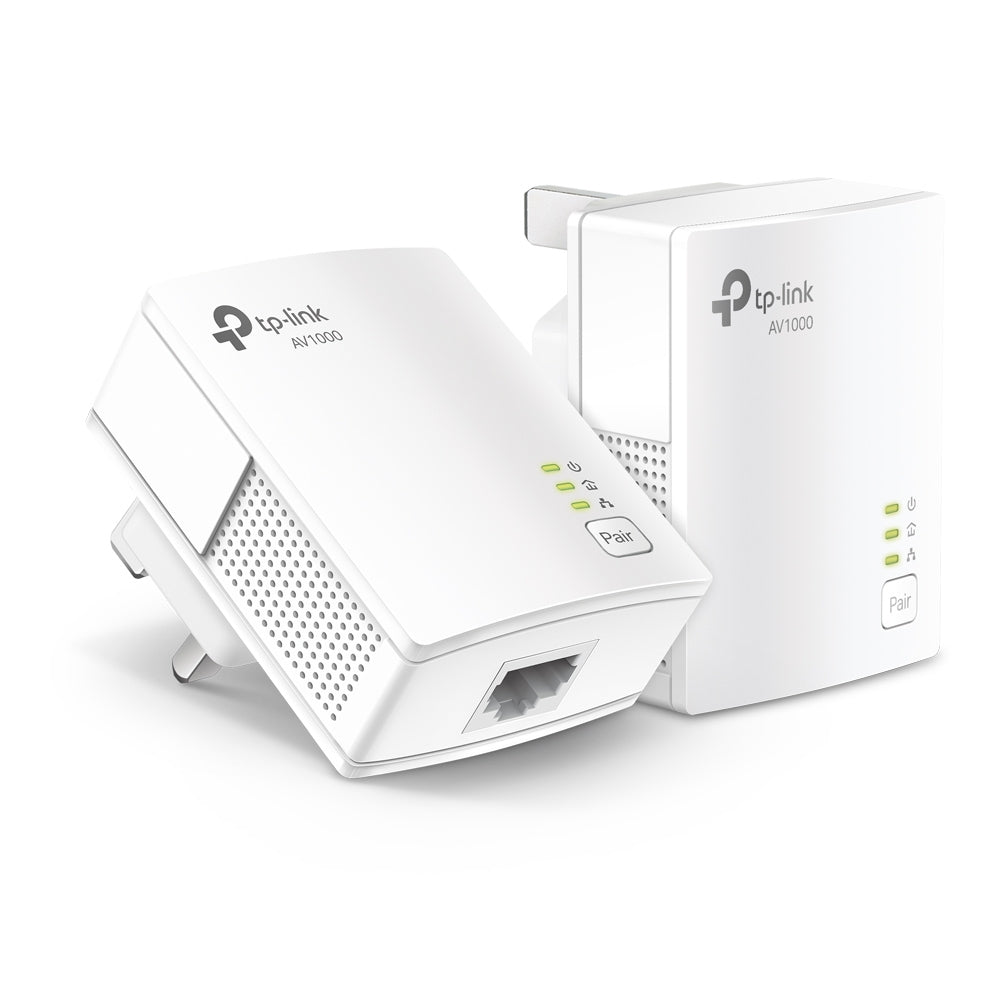

• Quantity per pack: 2 pc(s)
• Quick installation guide: Yes
• Cables included: LAN (RJ-45)
• Harmonized System (HS) code: 85171800
