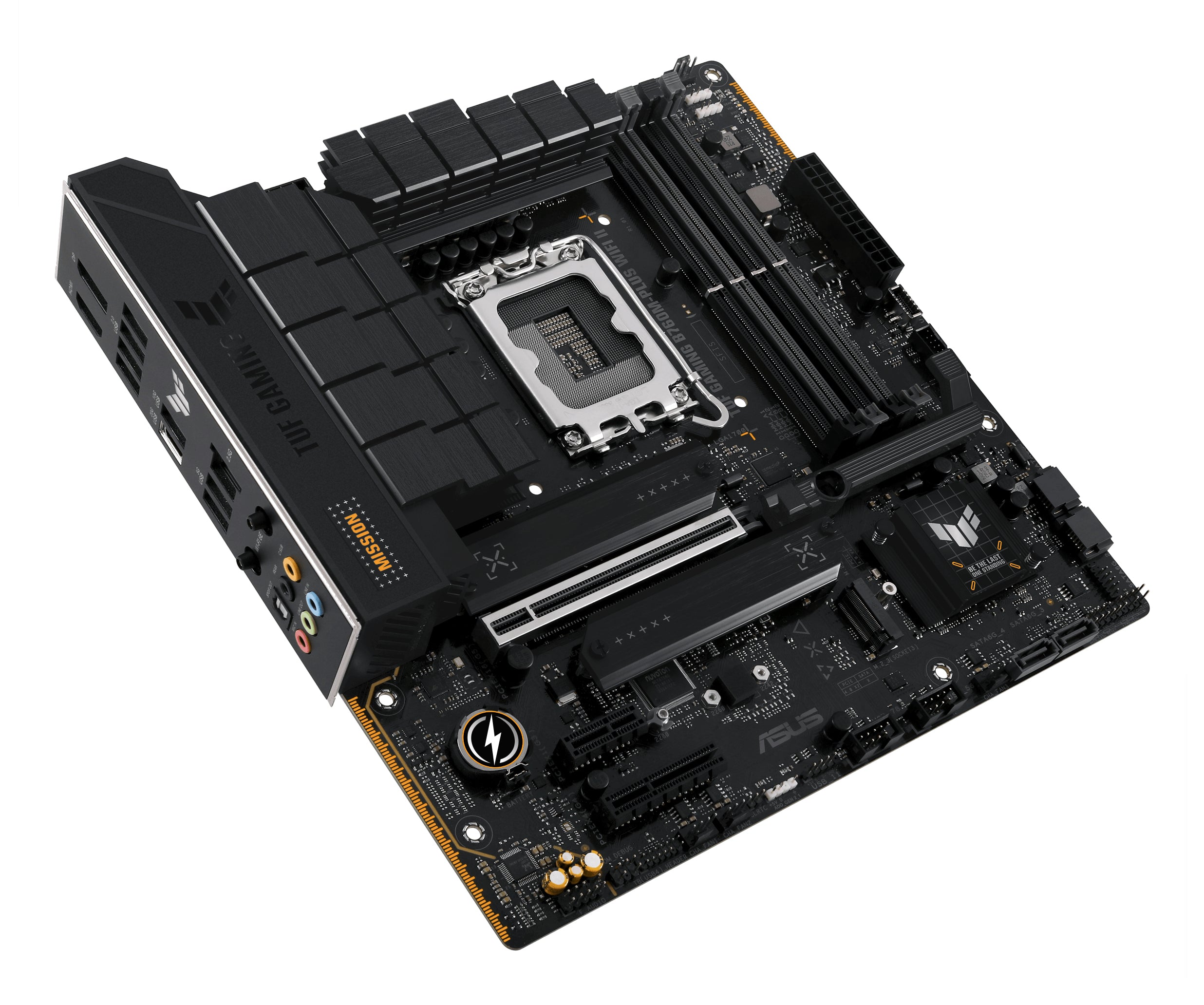

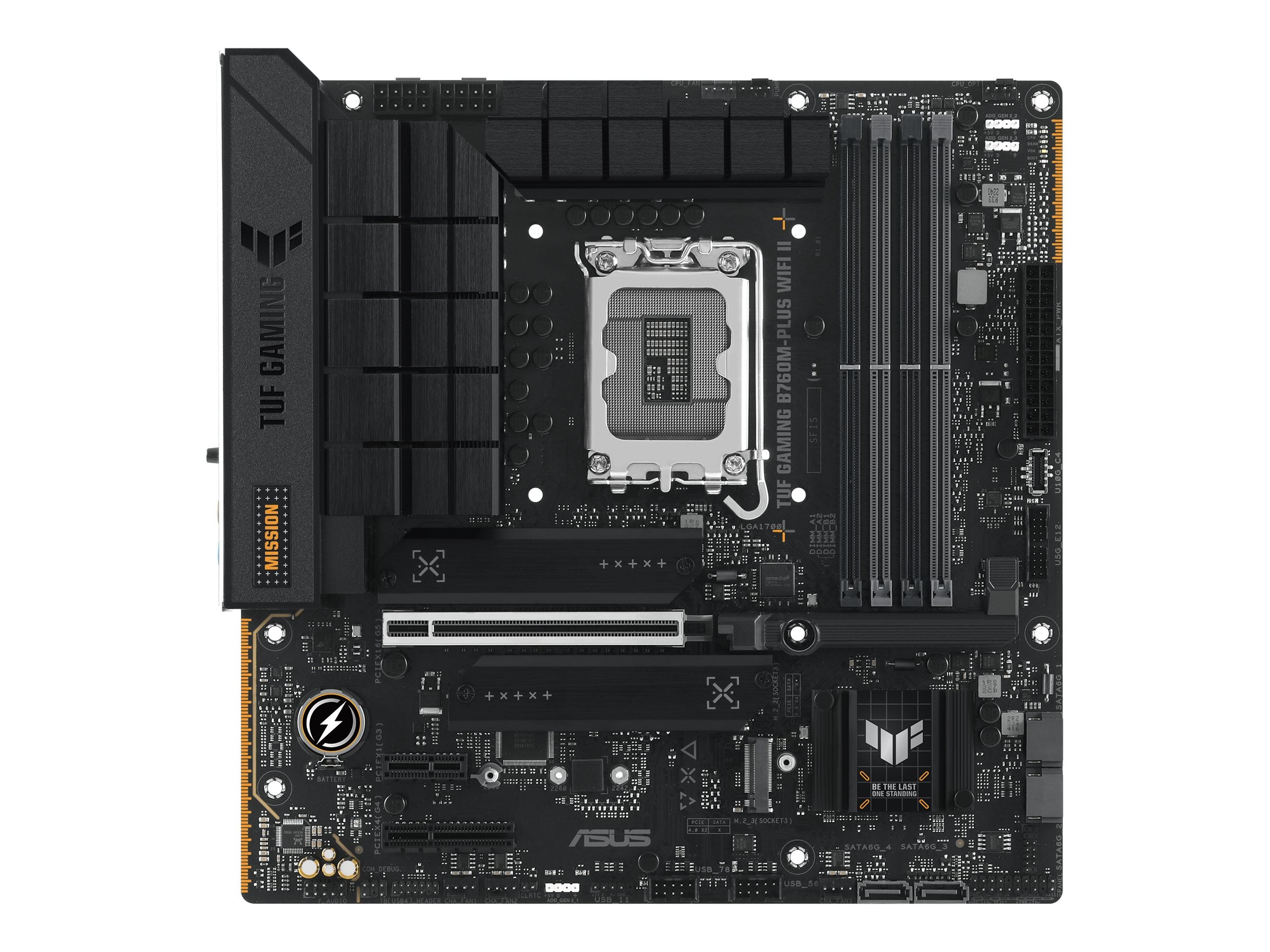

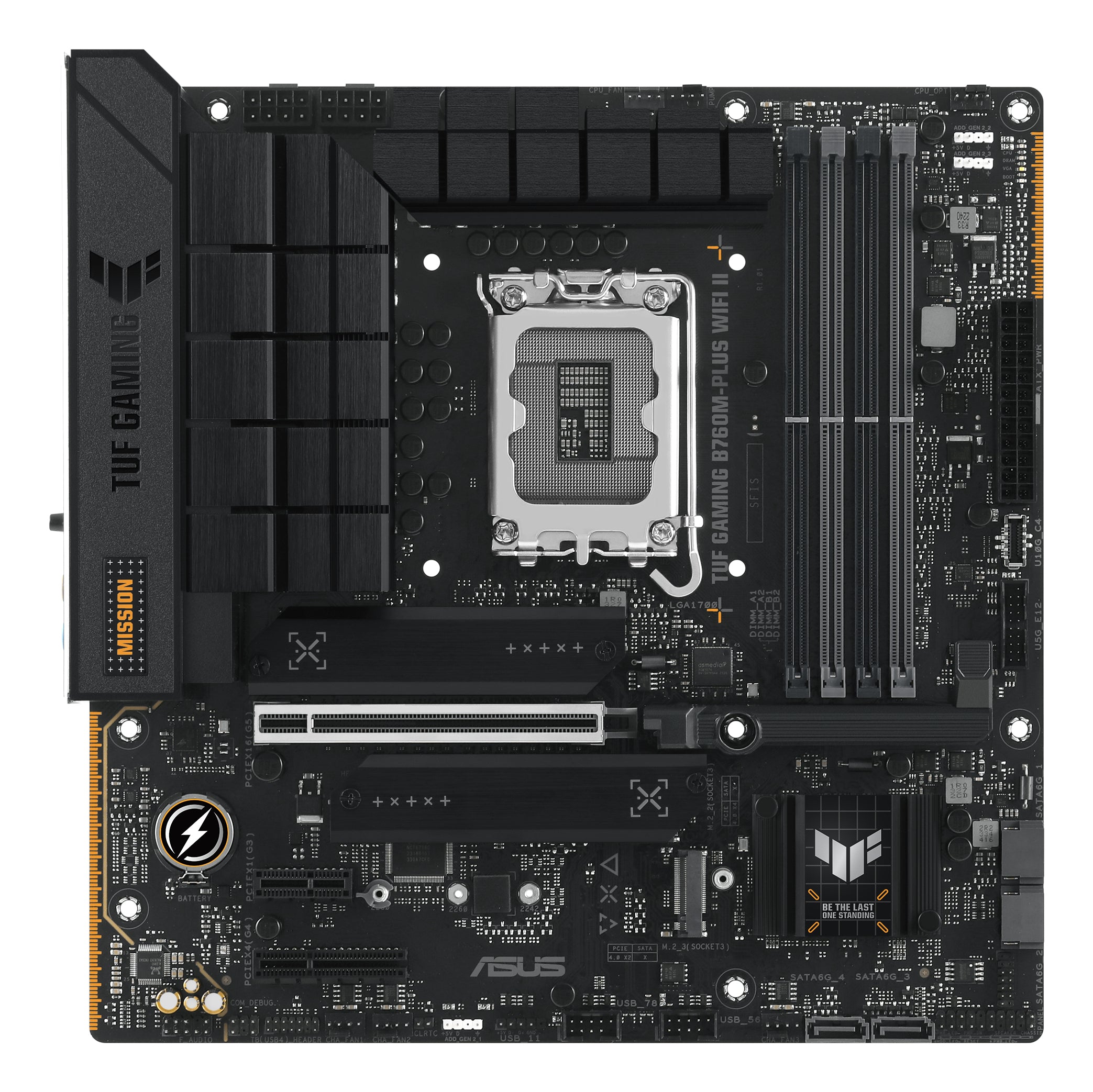

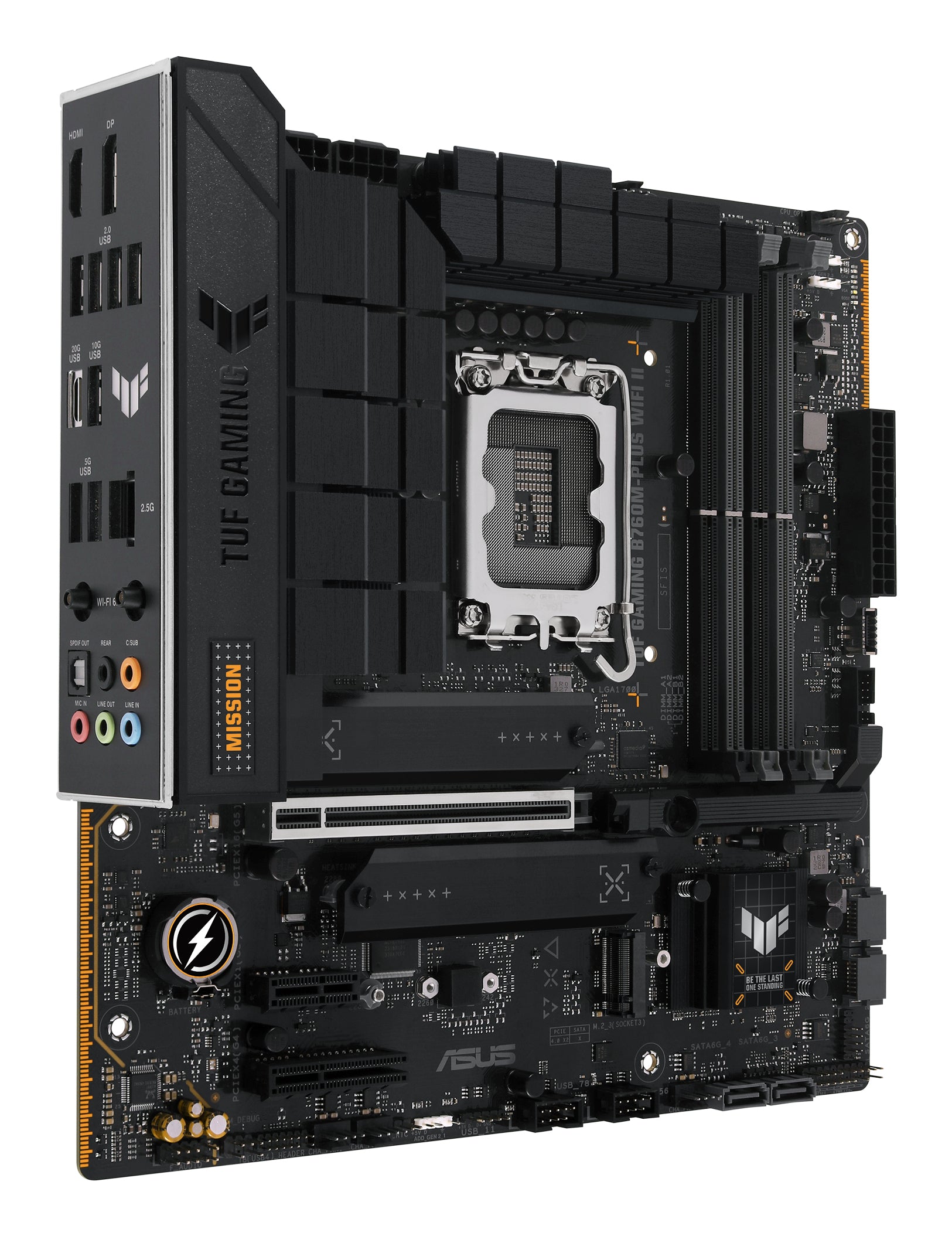

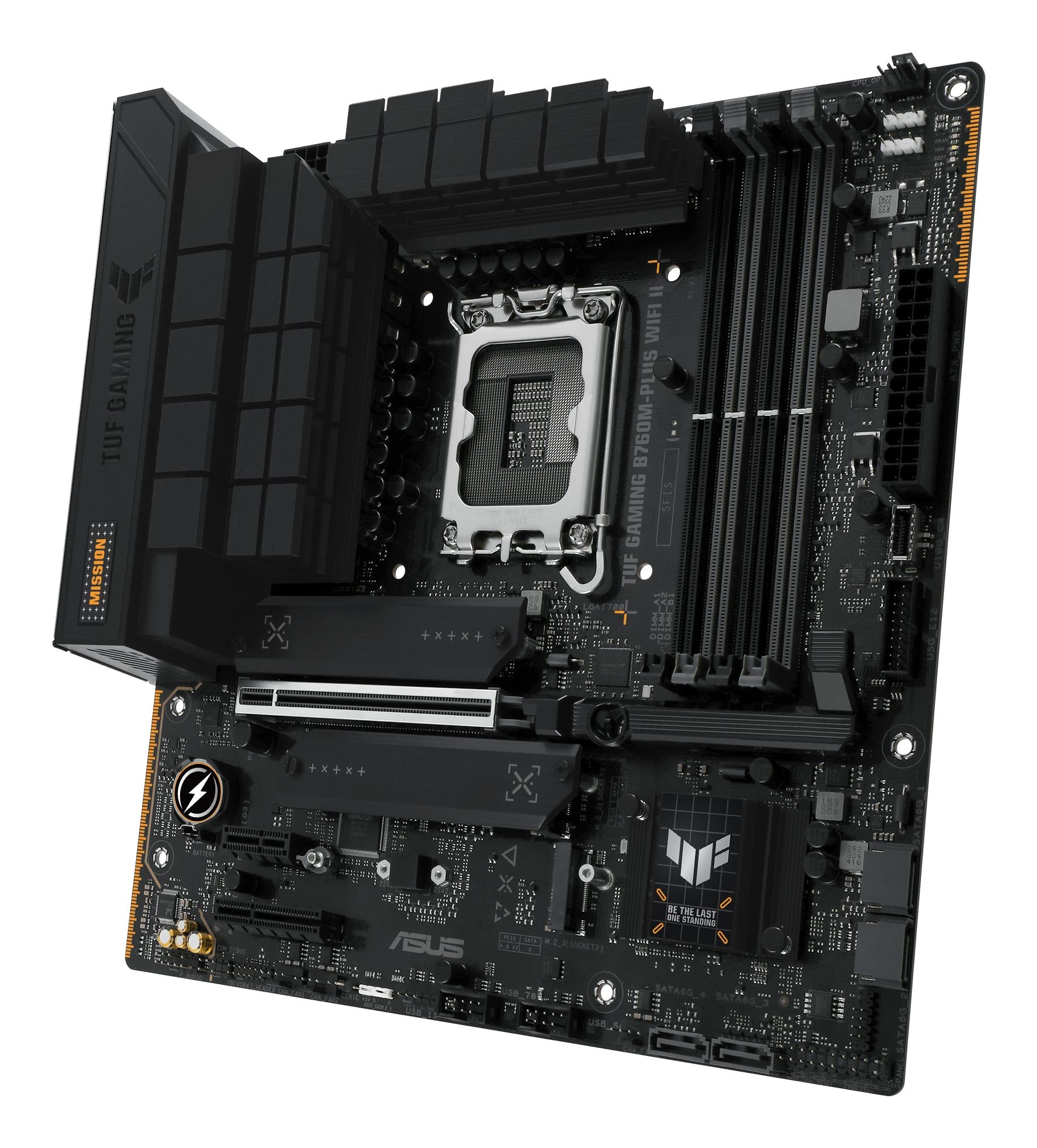

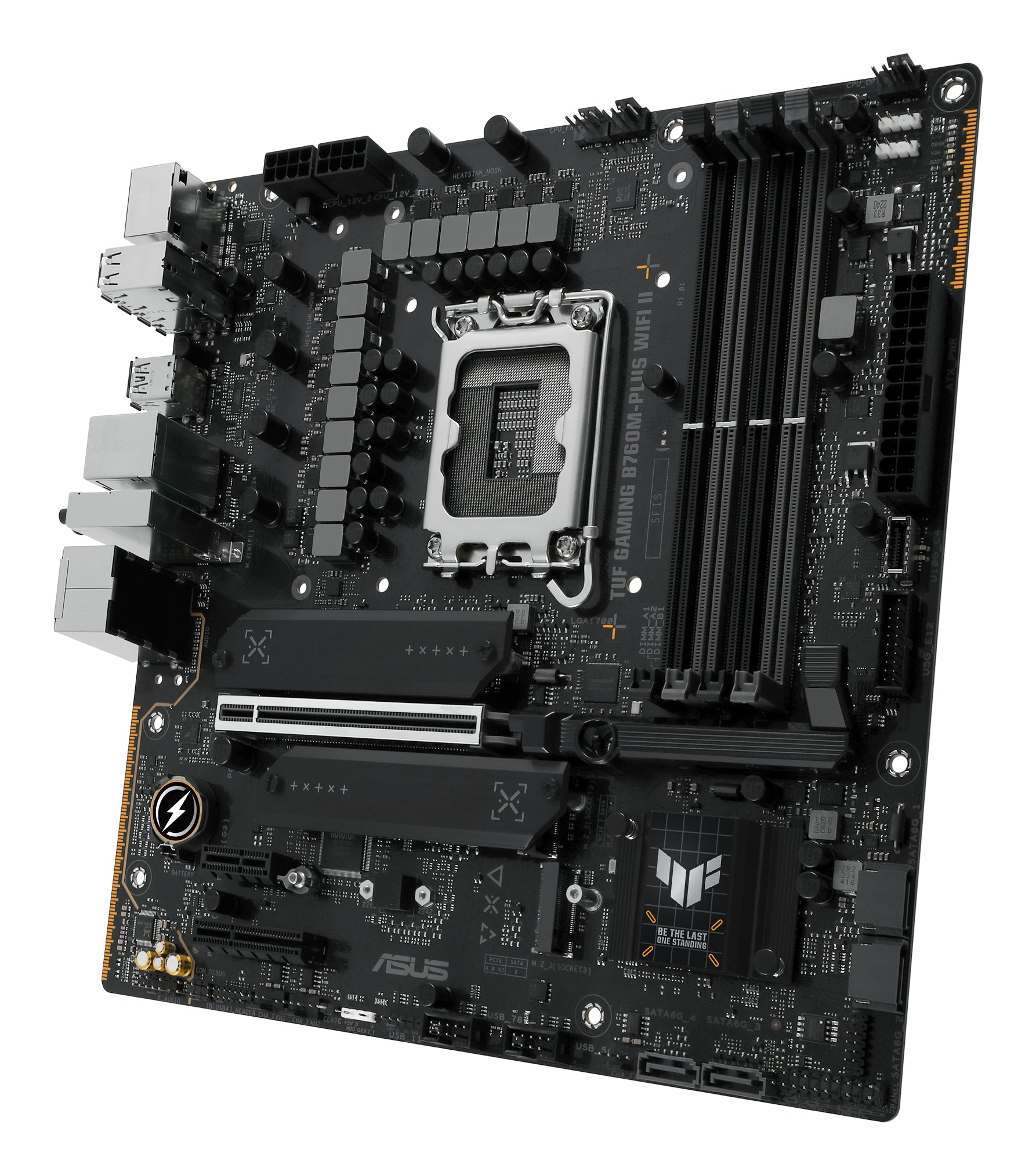

The Asus motherboard features a processor family from Intel B760 with a single LGA1700 socket. It supports up to 192 GB of DDR5 memory across 4 DIMM slots and offers various storage interfaces including SATA-600 and M.2.

• 4 DIMM slots for DDR5 memory, supporting speeds up to 7800 MHz
• 4 SATA connectors and 3 M.2 slots for versatile storage options
• Compatible with a range of Intel processors, including Core™ i3 to i9
• Supports RAID configurations for enhanced data management
• USB connectivity includes 3 USB 2.0 and 2 USB 3.2 ports

Internal I/O

• Number of SATA connectors: 4
• Supported hard disk drive interfaces: SATA-600 (RAID), 3 x M.2

Memory

• Supported memory types: 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered

Processor

• Processor family: Intel B760
• Processor socket: 1 x LGA1700 Socket

Specifications

• Warranty: 36 month(s)

Technical details

• Net weight: 0.78 kg

Additional specifications

• Processor manufacturer: Intel
• Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
• Supported processor sockets: LGA 1700
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: Non-ECC
• Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7800 MHz
• Supported memory clock speed (max): 7800 MHz
• Maximum internal memory: 192 GB
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, SATA III
• Number of HDDs supported: 4
• Number of storage drives supported: 7
• RAID support: Yes
• RAID levels: 0, 1, 5, 10
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 3
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 3
• Chassis intrusion connector: Yes
• EPS power connector (8-pin): Yes
• Thunderbolt headers: 1
• 12V power connector: Yes
• RGB LED pin header: Yes

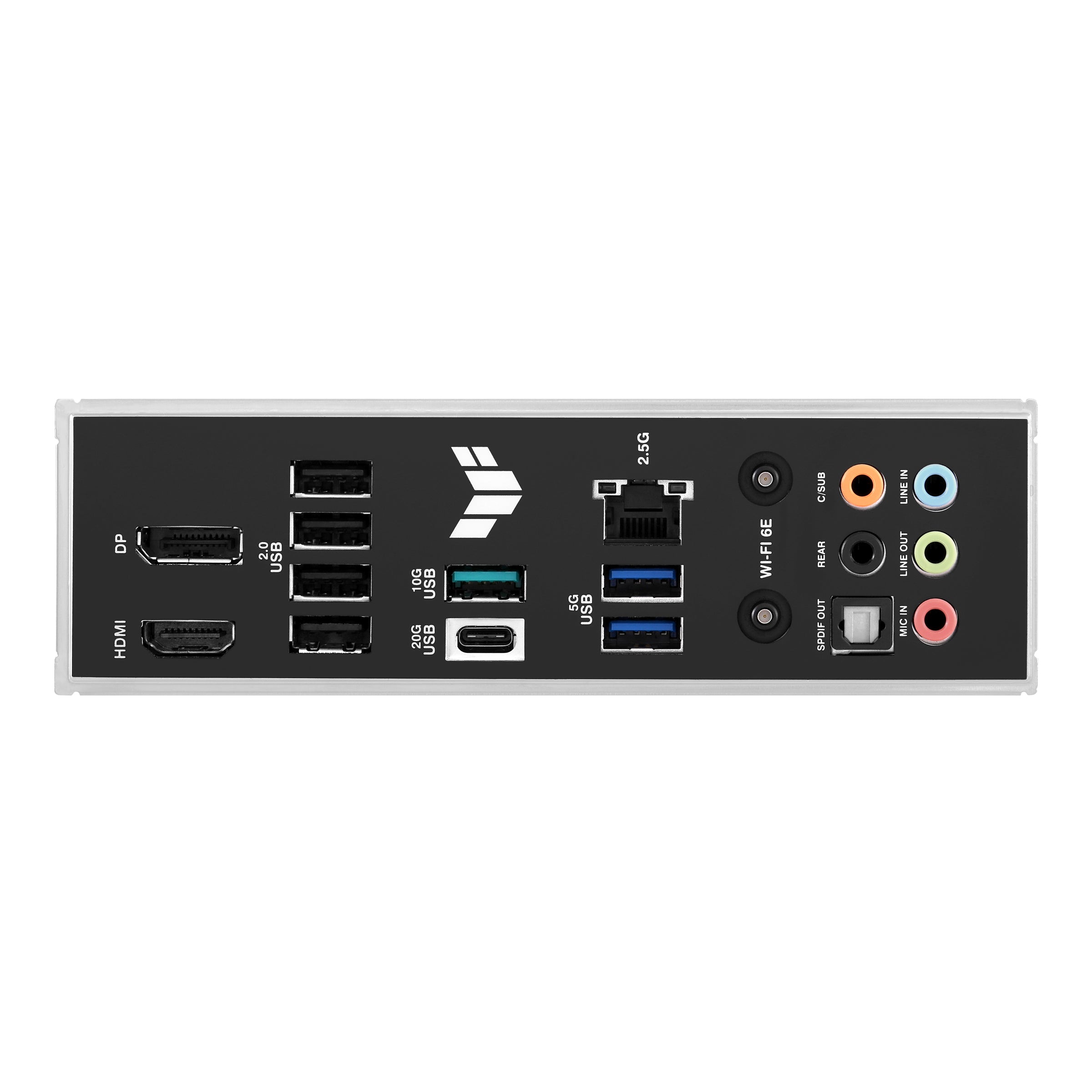

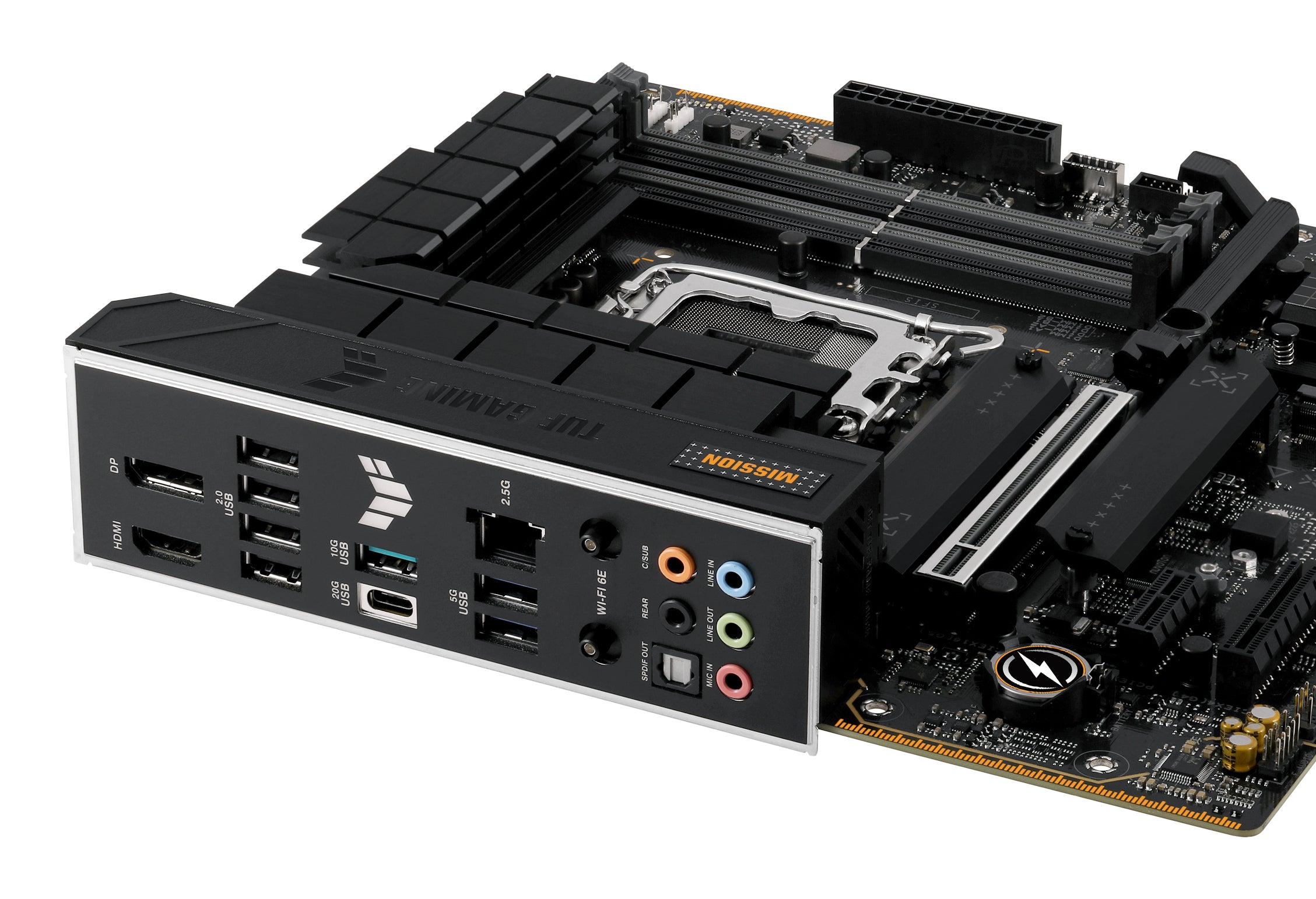

• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Headphone outputs: 1
• Line-in: Yes
• Microphone in: Yes
• S/PDIF out port: Yes

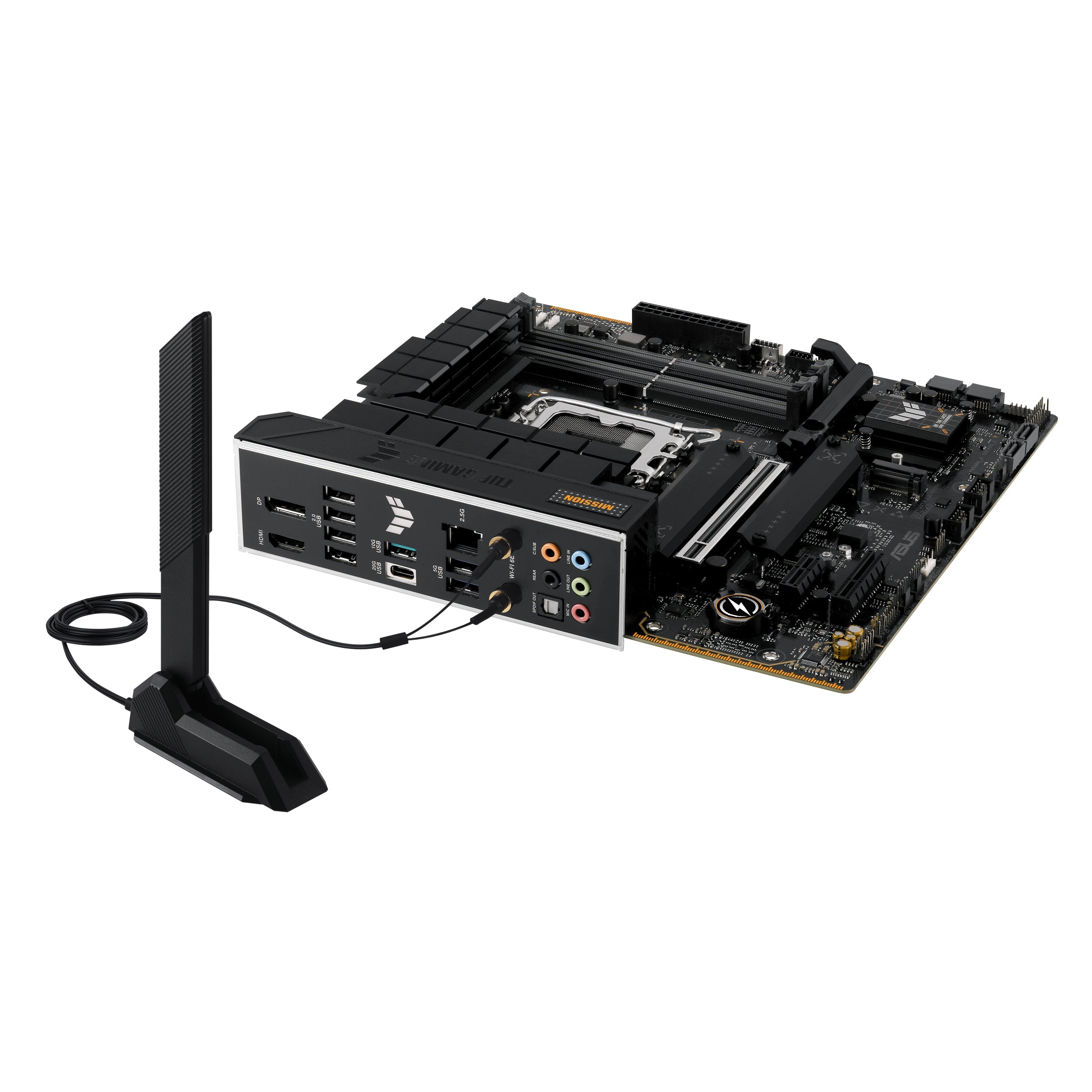

• WiFi-AP antenna jack: 2
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Bluetooth: Yes
• Bluetooth version: 5.3
• Motherboard chipset: Intel B760
• Audio output channels: 7.1 channels
• Product colour: Black
• Component for: PC
• Motherboard form factor: micro ATX
• Motherboard chipset family: Intel
• Cooling type: Passive
• Power source type: ATX
• Windows operating systems supported: Windows 10, Windows 11
• PCI Express x1 (Gen 3.x) slots: 1
• PCI Express x4 (Gen 4.x) slots: 1
• PCI Express x16 (Gen 5.x) slots: 1
• Number of M.2 (M) slots: 3
• BIOS type: UEFI AMI
• BIOS memory size: 128 Mbit
• Width: 244 mm
• Depth: 244 mm
• Cables included: SATA
• User guide: Yes
• Weight: 982 g
