Bosch YOUseries Sander cordless multi sander: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch YOUseries Sander: 16 positions on 1 sheet

Bosch YOUseries Sander parts list (1 sheet)

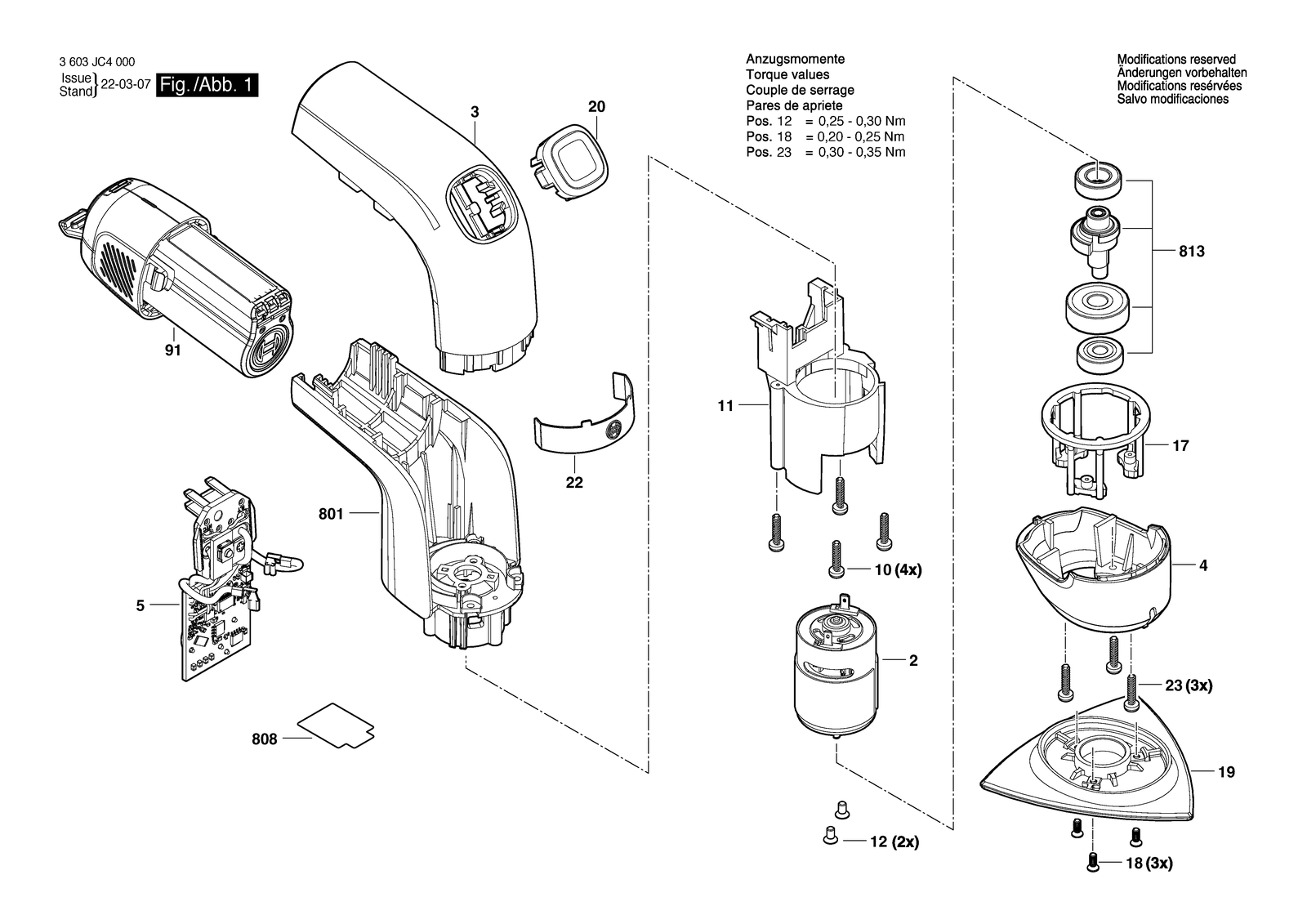

Bosch YOUseries Sander parts diagram, sheet 1
No.Part numberPart name
102609003106Torx Oval-Head Screw
111600A0193SAir Guide Plate
122603435098Torx Flat-Head Screw
171600A0131PVibration Foot
181619X01931Screw
191600A016YDSander Plate
21607022604DC motor 3,6V
201600A013T0Trigger cap
221600A013SZClip
231603435099Torx Oval-Head Screw D2,5X16
31600A013SXHandle
41600A013SYCover
51600A0160YElectronic Module
808160111A6MCNameplate
808160111A76RNameplate
911607A3508WBattery Pack PBA 3,6V 4,0AH
