Bosch YOUdrill

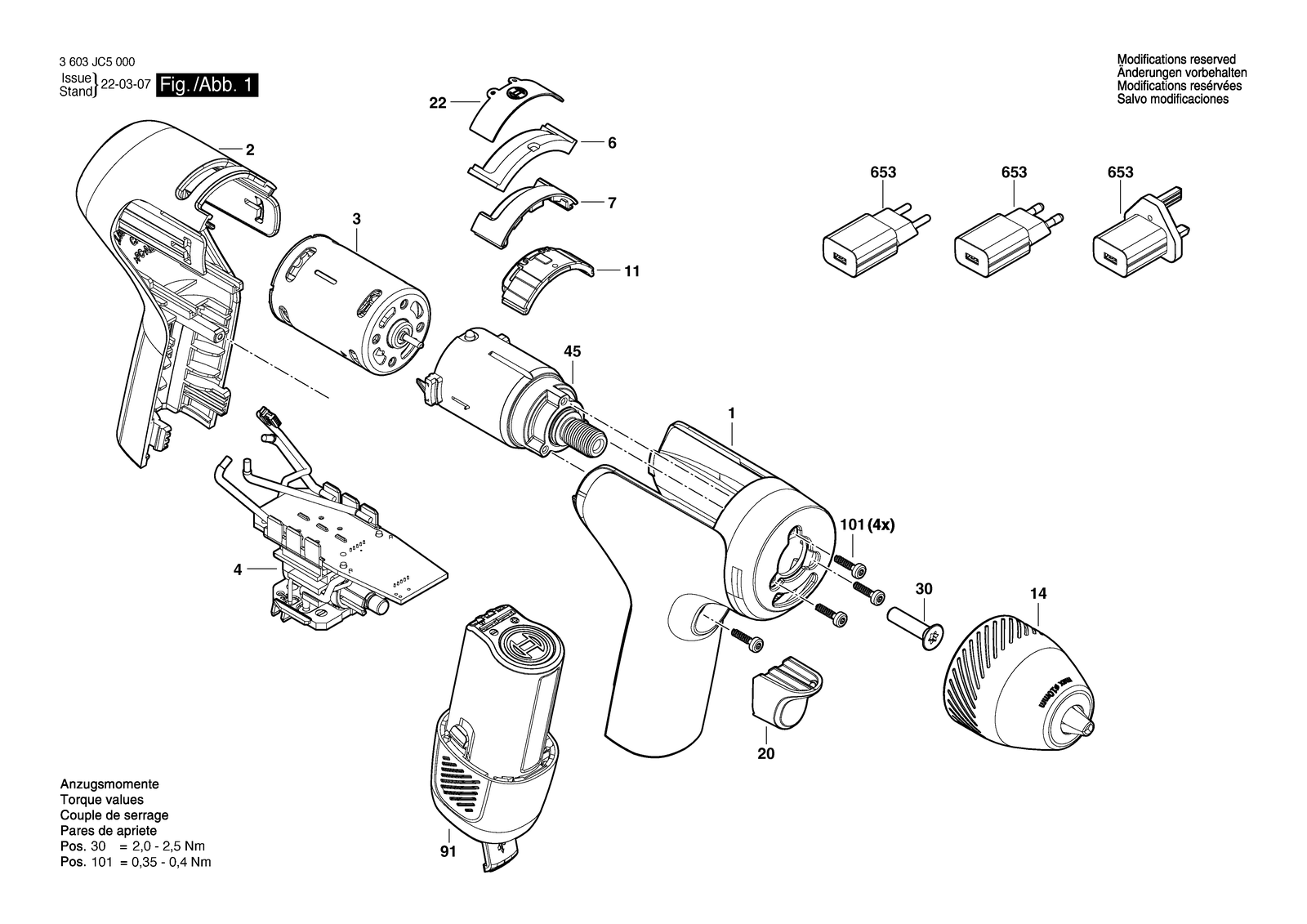

Bosch YOUdrill cordless drill driver: exploded parts diagram, 1 sheet, 17 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch YOUdrill: 17 positions on 1 sheet
Bosch YOUdrill parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A01U7N | Housing |
| 1 | 1600A01U7R | Housing |
| 101 | 2609003106 | Torx Oval-Head Screw |
| 11 | 1600A01A4W | Support Plate |
| 14 | 1600A0164H | Keyless Chuck |
| 2 | 16058065RX | Housing |
| 20 | 1600A013RZ | Trigger cap |
| 22 | 1600A013RJ | Clip |
| 3 | 1607022687 | DC motor |
| 30 | 2609110721 | Countersunk-Head Screw M5X20 |
| 4 | 1600A015Y6 | Electronic Module |
| 45 | 1600A014JS | Gear Box |
| 6 | 16055002FE | Cover |
| 653 | 2609120713 | Charger EU 100-240V 5V 1A |
| 653 | 2609120718 | Charger GB 100-240V 5V 1A |
| 7 | 1600A018TT | Front Plate |
| 91 | 1607A3508W | Battery Pack PBA 3,6V 4,0AH |
