Bosch WKS 230 E
Bosch WKS 230 E angle grinder: exploded parts diagram, 3 sheets, 130 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

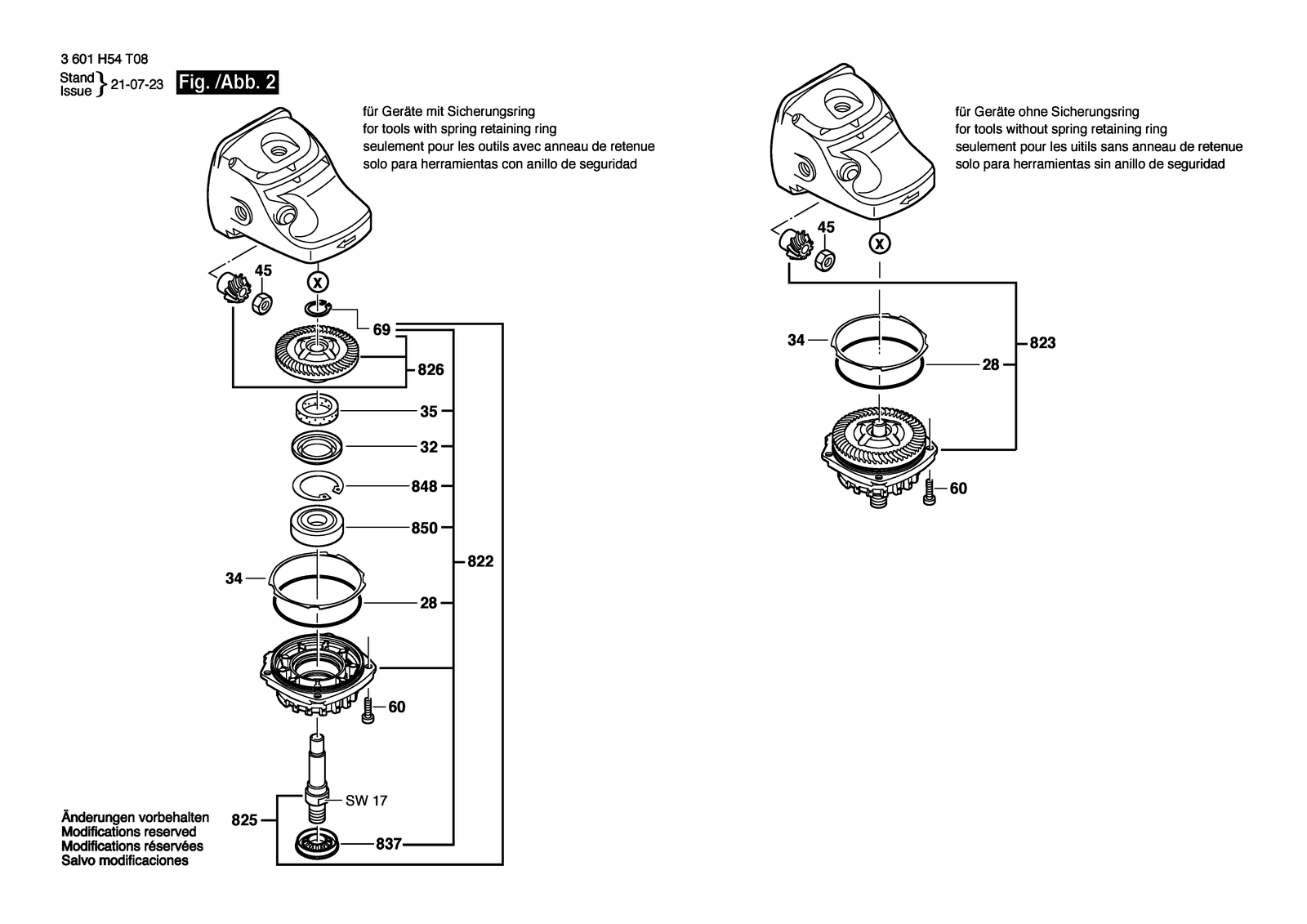

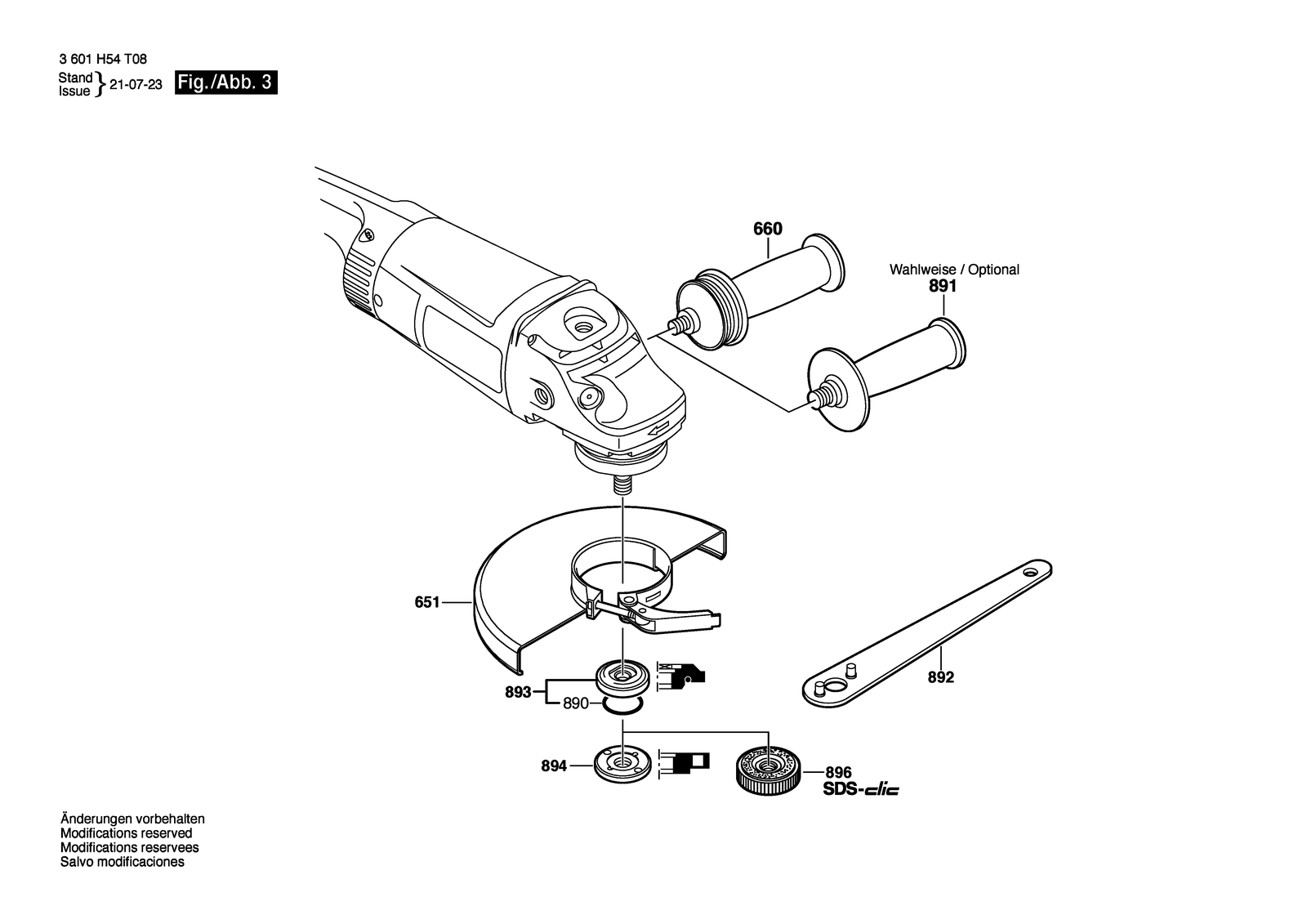

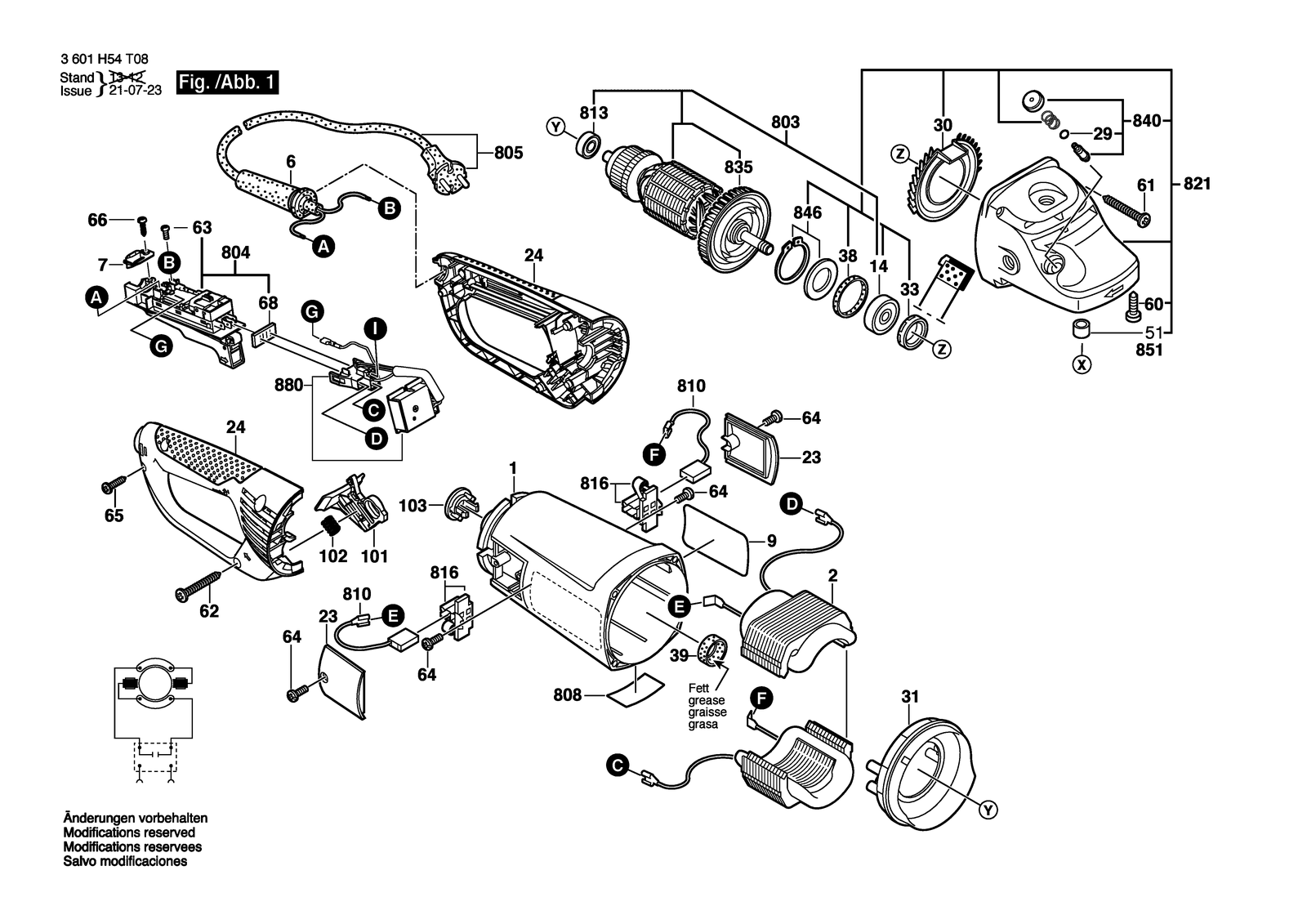

All parts of Bosch WKS 230 E: 130 positions on 3 sheets
Bosch WKS 230 E parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108245 | Motor Housing Marine Blue |
| 1 | 1605108211 | Motor Housing Orange |
| 101 | 1601990014 | Catch Slide |
| 101 | 1601990014 | Catch Slide |
| 102 | 1604616022 | Compression Spring |
| 102 | 1604616022 | Compression Spring |
| 103 | 1602388035 | Cable routing |
| 103 | 1602388035 | Cable routing |
| 14 | 1600905028 | Groove ball bearing |
| 14 | 1600905028 | Groove ball bearing |
| 2 | 160422057K | Field |
| 2 | 160422057K | Field |
| 23 | 1605500243 | Sealing cap |
| 23 | 1605500245 | Sealing cap Orange |
| 24 | 1605132153 | Handle |
| 24 | 1605132152 | Handle |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 28 | 1600210033 | O-Ring 79,0X1,78 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 29 | 1600210045 | O-Ring 8,0X1,0 MM |
| 30 | 1600591029 | Air Distributor |
| 30 | 1600591029 | Air Distributor |
| 31 | 1600591075 | Air-Deflector Ring |
| 31 | 1600591075 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 33 | 1600290064 | Rotary shaft lip seal Blue 16 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 34 | 1600190038 | Shim Thick 0,25 MM |
| 34 | 1600190039 | Shim Thick 0,35 MM |
| 34 | 1600190040 | Shim Thick 0,4 MM |
| 35 | 1600205034 | Felt Washer |
| 35 | 1600205034 | Felt Washer |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 38 | 1600206020 | Rubber Ring Wide 7 MM |
| 39 | 1600206030 | Rubber Ring |
| 39 | 1600206030 | Rubber Ring |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0X100 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 60 | 1603435023 | Thread-forming tap. Screw Tt M5X18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 62 | 1603415006 | Oval-Head Screw |
| 62 | 1603415006 | Oval-Head Screw |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 63 | 1603410014 | Pan head screw M4X10 MM |
| 64 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 64 | 1603435042 | Plastic-Cutting Screw ST3,9X12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 651 | 1600A01T5K | Protective Cover |
| 651 | 1600A01T5K | Protective Cover |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 660 | 1602025059 | Auxiliary Handle M 14 |
| 660 | 1602025043 | Auxiliary Handle Gray M 14 |
| 68 | 1601006011 | Sealing Plate |
| 68 | 1601006011 | Sealing Plate |
| 69 | 2916650905 | Spring retaining ring |
| 69 | 2916650905 | Spring retaining ring |
| 7 | 1601302018 | Fastening Clamp |
| 7 | 1601302018 | Fastening Clamp |
| 803 | 1604010BC1 | Armature |
| 803 | 1604010BC1 | Armature |
| 804 | 1607000C14 | On-Off Switch Gray |
| 804 | 1607000C14 | On-Off Switch Gray |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 805 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 808 | 160111A3H3 | Nameplate |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607014171 | Carbon-Brush Set |
| 813 | 1600905011 | Groove ball bearing 8X22X7 |
| 813 | 1600905011 | Groove ball bearing 8X22X7 |
| 816 | 1604336048 | Brush Holder |
| 816 | 1604336048 | Brush Holder |
| 821 | 1607000C39 | Gear Housing |
| 821 | 1607000C3A | Gear Housing |
| 822 | 1607000C24 | Bearing Flange Ø230 MM |
| 822 | 1607000C24 | Bearing Flange Ø230 MM |
| 823 | 16058080B4 | Bearing Flange |
| 823 | 16058080B4 | Bearing Flange |
| 825 | 1607000CU5 | Grinding Spindle |
| 825 | 1607000CU5 | Grinding Spindle |
| 826 | 1607000CV1 | Bevel Gear Set |
| 826 | 1607000CV1 | Bevel Gear Set |
| 835 | 1600A00J93 | Fan |
| 835 | 1600A00J93 | Fan |
| 840 | 1607000C10 | Push-Button |
| 840 | 1607000354 | Push-Button |
| 846 | 1607000C3E | Retaining Washer |
| 846 | 1607000C3E | Retaining Washer |
| 848 | 1600119010 | Spring retaining ring |
| 848 | 1600119010 | Spring retaining ring |
| 850 | 1600900079 | Groove ball bearing 17 X 40 X 12 |
| 850 | 1600900079 | Groove ball bearing 17 X 40 X 12 |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 851 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 880 | 1607233319 | Electronics Module |
| 880 | 1607233319 | Electronics Module |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 890 | 1600210039 | O-Ring 20,35X1,78 MM |
| 891 | 16020250A1 | Auxiliary Handle |
| 891 | 16020250A1 | Auxiliary Handle |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 893 | 2605703014 | Clamping Flange Ø22,3XØ42 MM |
| 894 | 1603345043 | Round Nut M14 |
| 894 | 1603345043 | Round Nut M14 |
| 896 | 1600A016PT | Fast Locking Flange |
| 896 | 1600A016PT | Fast Locking Flange |
| 9 | 1601118S63 | Manufacturer's nameplate BAG 230-1 Clb |
| 9 | 1601118S66 | Manufacturer's nameplate WKS 230 E |
