Makita VR001G
Makita VR001G: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita VR001G: 27 positions on 1 sheet

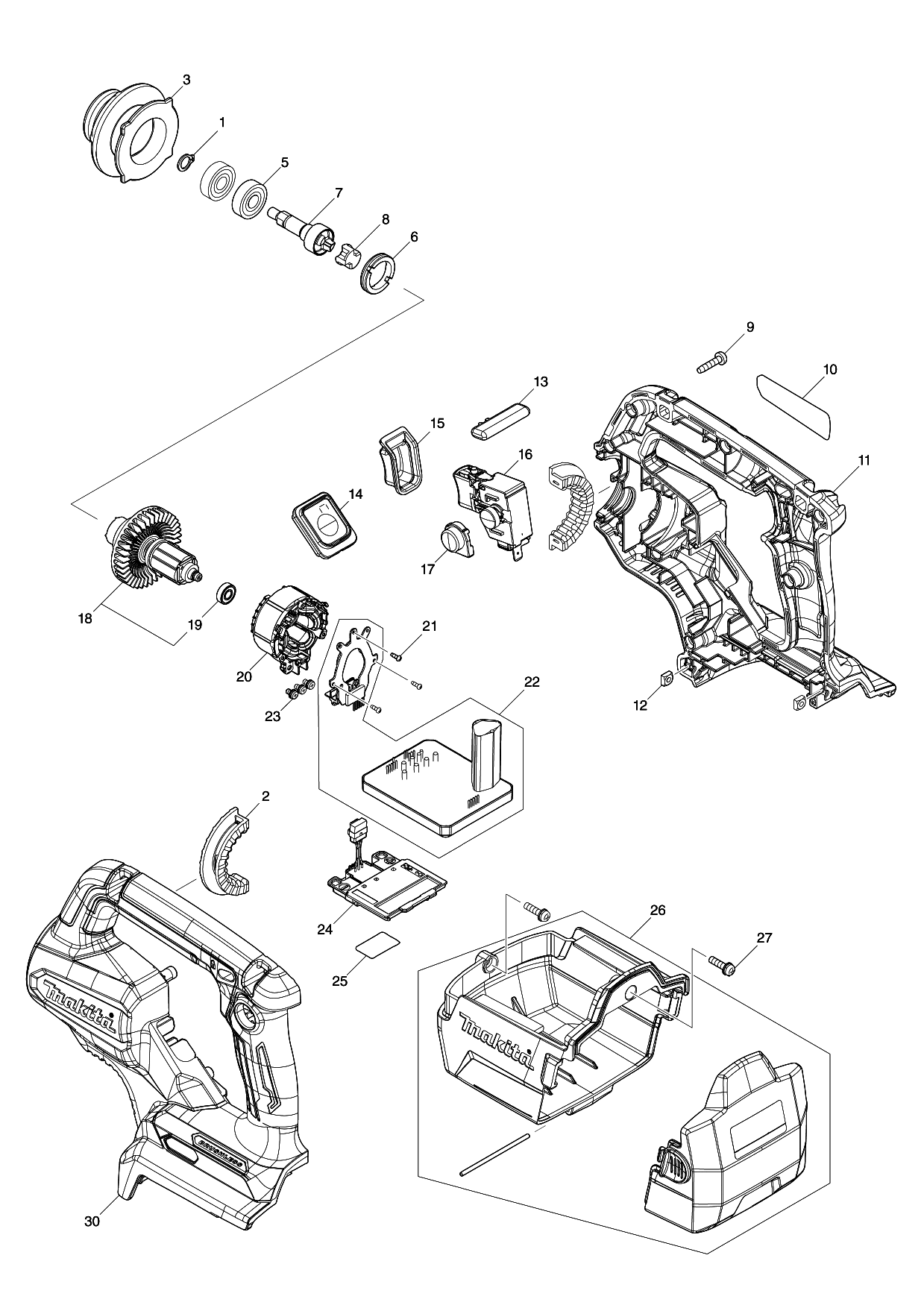

Sheet 1: Makita VR001G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 961005-4 | Makita 961005-4 Retaining Ring S-9 BGA450 BGA452 9047 9047S 9049 9049S 9057S |
| 2 | 422910-5 | |
| 3 | 313434-1 | |
| 5 | 210051-7 | Makita 210051-7 BALLBEARING 609LLB, HR2453 |
| 6 | 285053-2 | |
| 7 | 141K76-5 | |
| 8 | 424833-3 | Makita 424833-3 SPACER |
| 9 | 266045-0 | Makita 266045-0 TAPPING SCREW.FLANGE.PT.4 X20 |
| 10 | 858L48-6 | |
| 11 | 183V84-6 | |
| 12 | 252173-7 | Makita 252173-7 SQUARE NUT, BTD123F |
| 13 | 458822-6 | Makita 458822-6 LOCK LEVER, DUT130 |
| 14 | 141K86-2 | |
| 15 | 422966-8 | |
| 16 | 651493-0 | Makita 651493-0 SWITCH |
| 17 | 458819-5 | Makita 458819-5 LOCK ON BUTTON COVER, DUT130 |
| 18 | 136692-0 | |
| 19 | 210039-7 | |
| 20 | 629B21-1 | |
| 21 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 22 | 620H52-9 | |
| 23 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 24 | 632P65-6 | Makita 632P65-6 TERMINAL UNIT |
| 25 | 858L51-7 | |
| 26 | 136704-9 | |
| 27 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 30 | 183V84-6 |
