Bosch VENTARO 1400
Bosch VENTARO 1400 all purpose vacuum cleane: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

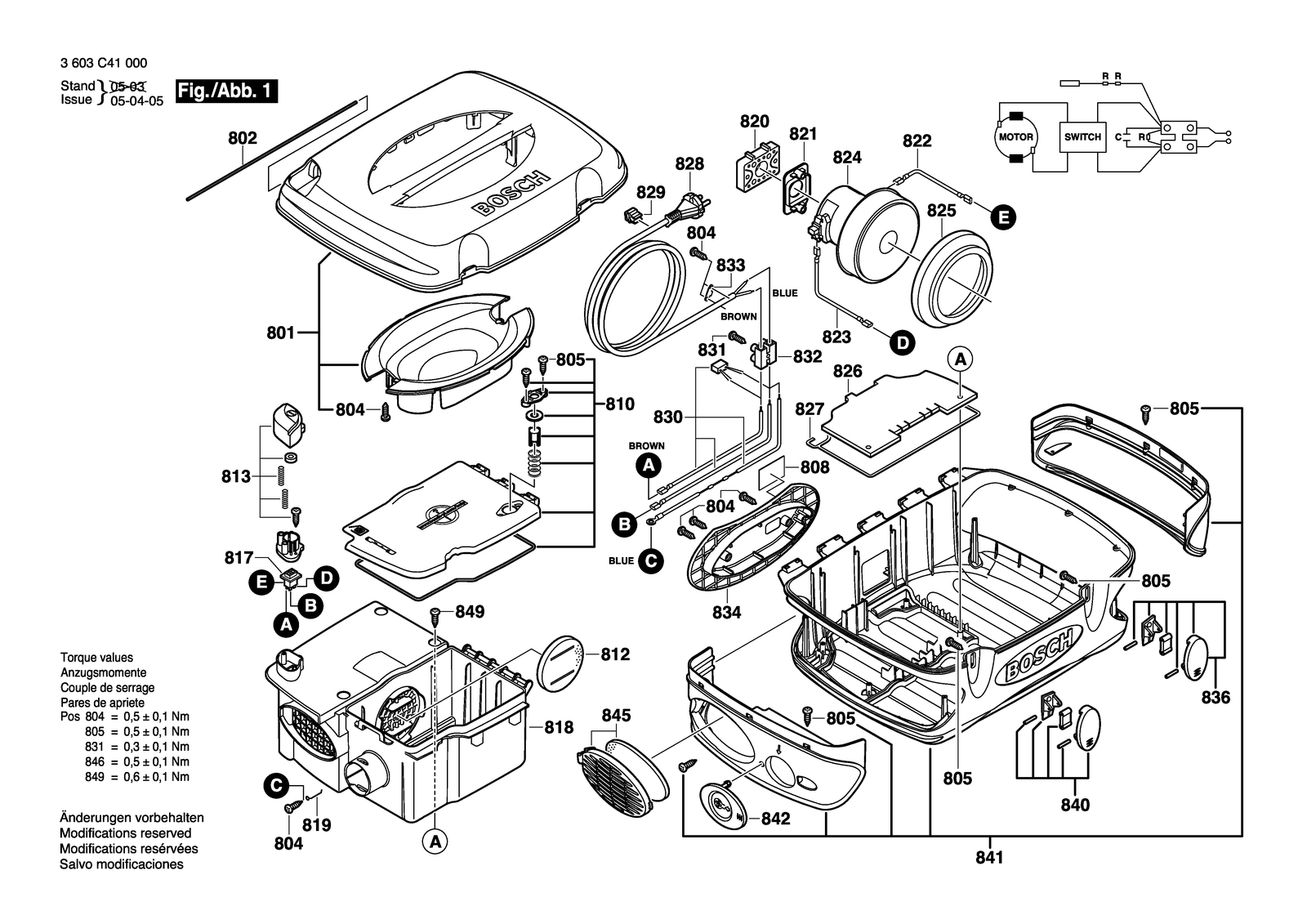

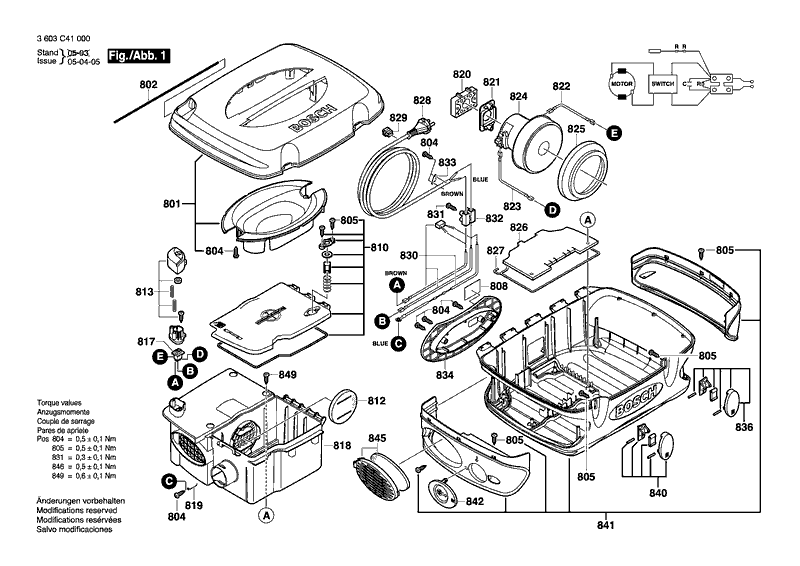

All parts of Bosch VENTARO 1400: 40 positions on 1 sheet
Bosch VENTARO 1400 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 801 | 2609200326 | Housing Cover |
| 802 | 2609200327 | Hinge Bolt |
| 804 | 2609200328 | Screw |
| 805 | 2609200357 | Screw |
| 808 | 2601115270 | Marking Plate |
| 808 | 2601116920 | Marking Plate |
| 808 | 2601116956 | Marking Plate |
| 808 | 2601116957 | Marking Plate |
| 810 | 2609200361 | Dust-Protection Cover |
| 812 | 2609200330 | Suction Filter |
| 813 | 2609200331 | Switch-Pawl |
| 817 | 2609200349 | On-Off Switch |
| 818 | 2609200332 | Motor Housing |
| 819 | 2609200333 | Anti-Static Set |
| 820 | 2609200334 | Motor Cradle |
| 821 | 2609200335 | Motor Flange |
| 822 | 2609200336 | Motor Cable |
| 823 | 2609200337 | Motor Cable |
| 824 | 2609200338 | Motor |
| 824 | 2609200362 | Motor |
| 825 | 2609200339 | Motor Flange |
| 826 | 2609200340 | Insulating Part |
| 827 | 2609200341 | Seal Fastener |
| 828 | 2609200342 | Power supply cord |
| 828 | 2609200355 | Power supply cord |
| 828 | 2609200356 | Power supply cord |
| 828 | 2609200363 | Power supply cord |
| 829 | 2609200343 | Cable Clip |
| 830 | 2609200344 | Suppression Filter |
| 830 | 2609200364 | Suppression Capacitor |
| 831 | 2609200345 | Screw |
| 832 | 2609200346 | Connecting terminal |
| 833 | 2609200347 | Cable Clip |
| 834 | 2609200348 | Cable Coiler |
| 836 | 2609200350 | Locking Set |
| 840 | 2609200354 | Locking Set |
| 841 | 2609200351 | Housing Base |
| 842 | 2609200352 | Adapter Insert |
| 845 | 2609200353 | Filter Unit |
| 849 | 2609200358 | Screw |
