Makita VC3012L: exploded parts diagram, 1 sheet, 60 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita VC3012L: 60 positions on 1 sheet

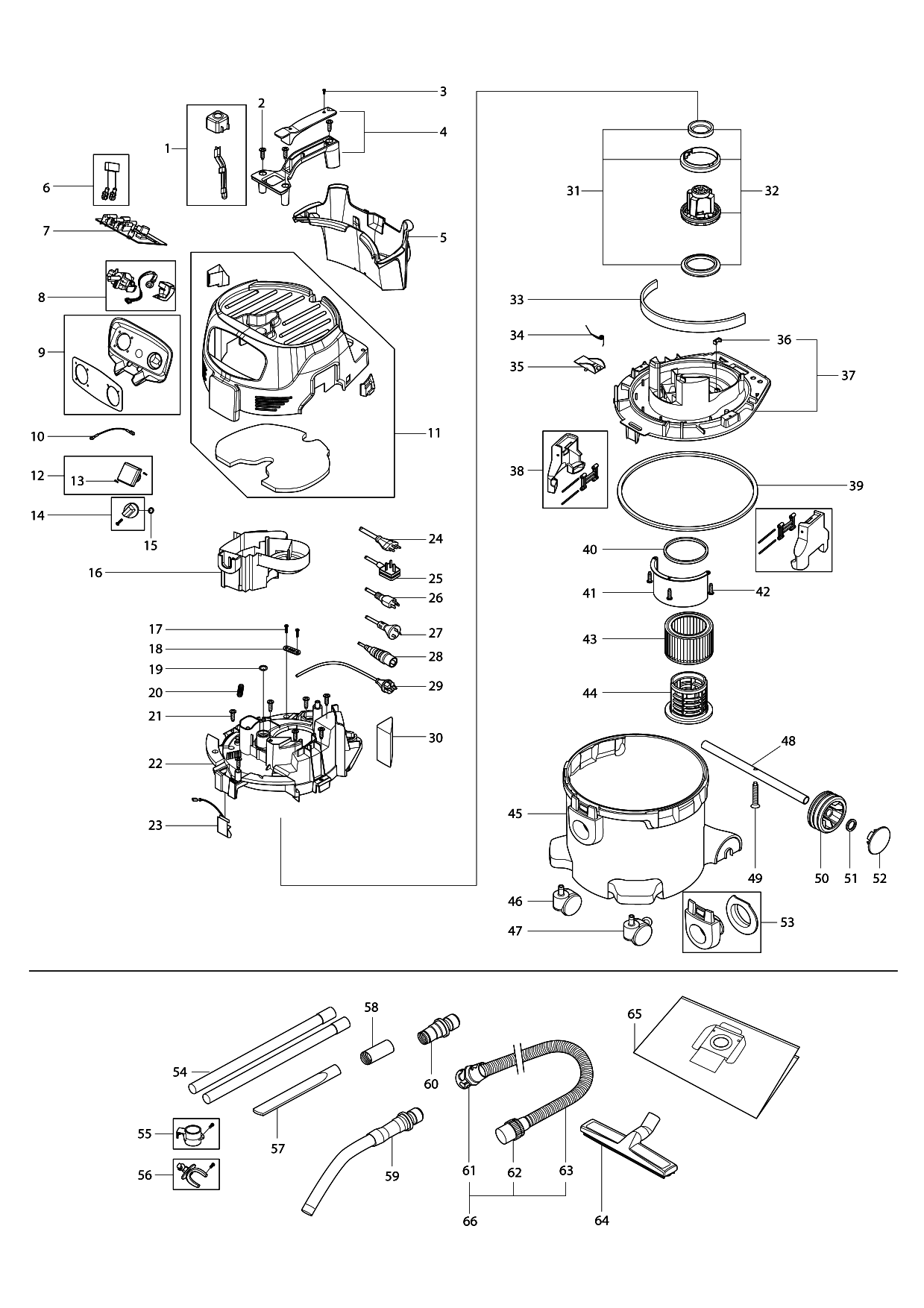

Sheet 1: Makita VC3012L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | W107417282 | Makita W107417282 DEDUSTING KNOB WITH ROD(KIT) |
| 2 | W302004029 | Makita W302004029 SCREW 5X18 |
| 3 | W302004032 | Makita W302004032 SCREW 3,5X18 |
| 5 | W302004026 | Makita W302004026 TOOLBOX |
| 6 | W107404542 | Makita W107404542 CAPACITOR 0,1 µF |
| 7 | W107413467 | Makita W107413467 ELECTRONIC AUTO ON/OFF, VC3012L |
| 8 | W107413449 | Makita W107413449 SWITCH KIT WITH POTENTIOMETER AND COVER |
| 9 | W107417283 | Makita W107417283 SWITCHCASE VC3012L |
| 10 | W107400264 | Makita W107400264 WIRE GR/YE |
| 11 | W107417284 | Makita W107417284 COVER MAKITA VC3012L/M (KIT) |
| 13 | W302004032 | Makita W302004032 SCREW 3,5X18 |
| 14 | W909100222 | Makita W909100222 TURNING BUTTON447L |
| 15 | W9868 | Makita W9868 O-RING 10X2,5 443 |
| 16 | W302004015 | Makita W302004015 AIRFLOW CHANNEL |
| 17 | W302004032 | Makita W302004032 SCREW 3,5X18 |
| 18 | W302004030 | Makita W302004030 STRAP FOR CORD |
| 19 | W302004061 | Makita W302004061 O-RING 25X2 NBR 70 |
| 20 | W302004031 | Makita W302004031 TERMINAL STRIP 6-POL 16A |
| 21 | W302004029 | Makita W302004029 SCREW 5X18 |
| 22 | W302004009 | Makita W302004009 CLAMPING PLATE VC3012 |
| 23 | W302004023 | Makita W302004023 CONTACT SPRING WITH WIRE |
| 24 | ||
| 25 | ||
| 26 | ||
| 27 | ||
| 28 | ||
| 29 | W107400573 | Makita W107400573 POWERCABLE447L |
| 30 | W302004045 | Makita W302004045 SOUND ABSORBER FOR AIR OUTLET |
| 33 | W302004010 | Makita W302004010 SOUND ABSORBER FOR BASE PLATE |
| 34 | W909100083 | Makita W909100083 TORSION SPRINGVC2010L |
| 35 | W302000344 | Makita W302000344 DEDUSTING FLAPVC2010L |
| 36 | W107401937 | |
| 38 | W107400301 | Makita W107400301 CONTAINER CLAMP, VC3012 |
| 39 | W107400056 | Makita W107400056 GASKET FOR CONTAINER, VC3012 |
| 40 | W302000460 | Makita W302000460 FILTER GASKET446L |
| 41 | W302004016 | Makita W302004016 DEFLECTOR PLATE |
| 42 | W302004029 | Makita W302004029 SCREW 5X18 |
| 43 | P-70219 | Makita P-70219 Filterelement for 446L VC3012L VC3511 VC3011L VC2010L VC2511 |
| 44 | W107402646 | |
| 45 | W107417285 | Makita W107417285 CONTAINER MAKITA VC3012 |
| 46 | W46298 | Makita W46298 CASTER 443 |
| 47 | W302000557 | Makita W302000557 CASTOR 60 WITH BRAKE |
| 48 | W302004022 | Makita W302004022 WHEEL AXLE |
| 49 | W107400063 | Makita W107400063 SCREW 5X35 |
| 50 | W302000465 | Makita W302000465 WHEEL446L |
| 51 | W47302 | Makita W47302 RING447L |
| 52 | W107417286 | Makita W107417286 WHEEL CAP MAKITA BLUE |
| 53 | W107402742 | Makita W107402742 FITTING WITH CLAMPING PLATE(KIT) |
| 54 | P-70437 | Makita P-70437 Tubes Stainless 36x505mm, 2pcs for 446L, 447L |
| 55 | W302004027 | Makita W302004027 TUBE HOLDER-HOOK (KIT) |
| 56 | W302004018 | Makita W302004018 TUBE HOLDER-SNAP (KIT) |
| 57 | W6084 | Makita W6084 CORNER NOZZLE 443 |
| 58 | W14682 | |
| 59 | P-70346 | Makita P-70346 HAND TUBE CURVED. VC3012 |
| 60 | P-70378 | |
| 61 | W46947 | Makita W46947 Hose connector for Click system AS ø32mm |
| 62 | W30928 | Makita W30928 HOSE SLEEVE 32/50 AS |
| 63 | W107417287 | |
| 64 | P-81789 | Makita P-81789 FLOOR NOZZLE 36X260MM. VC2012,VC2512,VC3011 |
| 65 | P-70219 | Makita P-70219 Filterelement for 446L VC3012L VC3511 VC3011L VC2010L VC2511 |
