Makita VC2512L

Makita VC2512L: exploded parts diagram, 1 sheet, 35 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita VC2512L: 35 positions on 1 sheet

Sheet 1: Makita VC2512L parts diagram

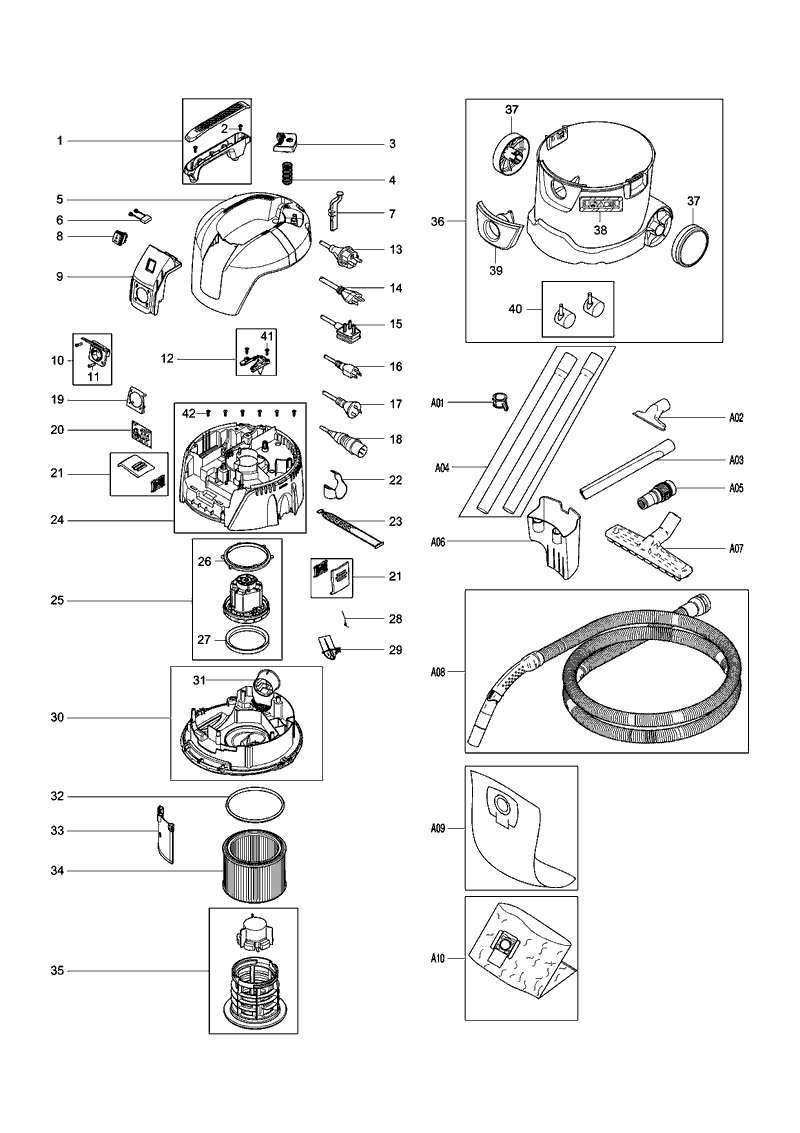

Makita VC2512L parts diagram, sheet 1
No.Part numberPart name
2W302003704Makita W302003704 SCREW 5X18VC2010L
3W107409153Makita W107409153 DEDUSTING KNOB BLACK
4W107411345Makita W107411345 SPRING FOR DEDUSTING KNOB
5W107411996Makita W107411996 COVER >MAKITA
6W107404542Makita W107404542 CAPACITOR 0,1 µF
7W107409141Makita W107409141 KIT DEDUSTING ROD
8W107409135Makita W107409135 Switch I-0-Tool for VC3011L VC2512L VC2012
9W107411997Makita W107411997 INTERFACE >MAKITA
11W302004032Makita W302004032 SCREW 3,5X18
13W107402641Makita W107402641 CONNECTING CABLE
14
15
16
17
18
19W302002052Makita W302002052 PLUG SOCKET PLATEVC2010L
20W107409188Makita W107409188 Electronic 220-240V
21W107409130Makita W107409130 KIT LOCKING CLAMP
22W107402799Makita W107402799 HOSA CLAMP
23W107409131Makita W107409131 RUBBER STRAP
26W107409163Makita W107409163 UPPER MOTOR SEALING
27W107409164Makita W107409164 LOWER MOTOR SEALING
28W909100083Makita W909100083 TORSION SPRINGVC2010L
29W107409129Makita W107409129 DEDUSTING FLAP
31W107409167Makita W107409167 AIR OUTLET
32W107409165Makita W107409165 SEALING FILTER
33W107409159Makita W107409159 DEFLECTOR SHIELD
34P-70219Makita P-70219 Filterelement for 446L VC3012L VC3511 VC3011L VC2010L VC2511
35W302002042Makita filter clamping disc W302002042
37W107409170Makita W107409170 WHEEL D130
38W302004200Makita W302004200 LABEL >DUST CLASS L
39W107409169Makita W107409169 INLET FITTING
40W140642250
41W302003704Makita W302003704 SCREW 5X18VC2010L
42W302003704Makita W302003704 SCREW 5X18VC2010L
