Makita VC2510L
Makita VC2510L: exploded parts diagram, 2 sheets, 78 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita VC2510L: 78 positions on 2 sheets
Sheet 1: Makita VC2510L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 452451-7 | Makita 452451-7 BASE HOOK, 483 |
| 2 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 4 | 451340-3 | Makita 451340-3 GRIP |
| 5 | 891977-8 | |
| 6 | 423393-2 | |
| 7 | 266060-4 | Makita 266060-4 TAPPING SCREW, UB1101 |
| 8 | 869050-2 | |
| 9 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 10 | 451343-7 | Makita 451343-7 SWITCH HOLEER, M442 |
| 11 | 650623-0 | Makita 650623-0 SWITCH 1703.4101, 439 |
| 12 | 686023-8 | |
| 13 | 631922-9 | Makita 631922-9 SUB CONTROLLER, 483 |
| 14 | 961013-5 | Makita 961013-5 STOP RING E-7, LS1016 |
| 15 | 961062-2 | Makita 961062-2 STOP RING E-12, 439 |
| 17 | 655117-0 | Makita 655117-0 OUTLET, VC1310L |
| 24 | 891982-5 | |
| 25 | 213054-0 | Makita 213054-0 O-RING 9, M442 |
| 26 | 451344-5 | Makita 451344-5 SWITCH DIAL, 483 |
| 27 | 213176-6 | Makita 213176-6 O-RING 14, M442 |
| 28 | 451342-9 | Makita 451342-9 SWITCH LEVER, M442 |
| 30 | 266630-9 | Makita 266630-9 COUNTERSUNK TAPPING SCREW4*16, VC2510L |
| 31 | 620033-5 | Makita 620033-5 CONTROLLER, VC1310L |
| 32 | 695350-2 | Makita 695350-2 POWER SUPPLY CORD |
| 33 | 682575-7 | Makita 682575-7 CORD GUARD |
| 34 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 35 | 687149-9 | Makita 687149-9 CORD CLAMP |
| 36 | 688131-1 | Makita 688131-1 Line Filter for HR2432 |
| 38 | 423395-8 | |
| 39 | 423279-0 | Makita 423279-0 SEAL RING 70 |
| 40 | 451338-0 | Makita 451338-0 MOTOR COVER, M442 |
| 41 | 241512-6 | Makita 241512-6 FAN62 |
| 42 | 424228-0 | Makita 424228-0 RUBBER RING F, M442 |
| 44 | 911283-6 | Makita 911283-6 PAN HEAD SCREW M5X60, M442 |
| 45 | 195483-8 | Makita 195483-8 CARBON BRUSH CB-173 |
| 46 | 452106-4 | Makita 452106-4 END BELL |
| 47 | 643610-6 | Makita 643610-6 BRUSH HOLDER 6.5*13.5 |
| 48 | 911118-1 | Makita 911118-1 HEX. BOLT M4*12, 5277NB |
| 49 | 687010-0 | Makita 687010-0 BAND, 5704R |
| 50 | 267715-4 | Makita 267715-4 WAVE WASHER 20, MUB062 |
| 51 | 211092-6 | Makita 211092-6 Ball Bearing for 629DDW UB1101 |
| 52 | 517849-6 | Makita 517849-6 ARMATURE ASSY 240V, VC3210L |
| 53 | 211087-9 | Makita 211087-9 Ball Bearing 6200DDW JR3000V GA9020 BO4510 30 x 10 x 9 mm |
| 54 | 526204-1 | Makita 526204-1 FIELD ASSY 240V, VC3210L |
| 55 | 452105-6 | Makita 452105-6 BASE, M442 |
| 56 | 316795-8 | Makita 316795-8 FLANGE |
| 57 | 241910-4 | Makita 241910-4 FAN 125, M442 |
| 58 | 325747-8 | Makita 325747-8 SPACER, M442 |
| 59 | 346114-4 | Makita 346114-4 RETVRN VANE, M442 |
| 60 | 241910-4 | Makita 241910-4 FAN 125, M442 |
| 61 | 316799-0 | Makita 316799-0 FLAT WASHER 10 |
| 62 | 931403-6 | Makita 931403-6 HEX NUT, 2012NB |
| 63 | 346115-2 | Makita 346115-2 FAN COVER, M442 |
| 89 | 891978-6 |

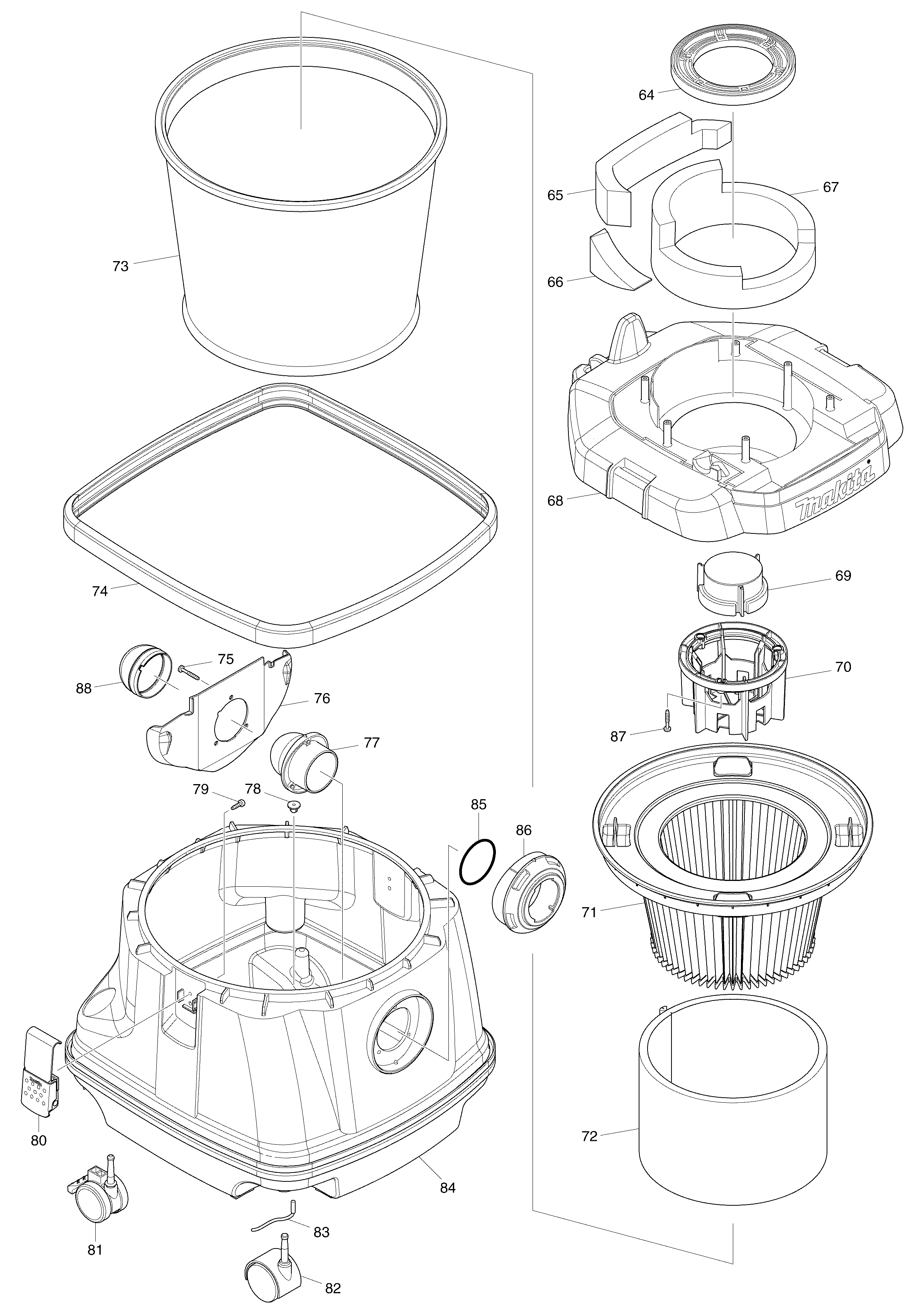

Sheet 2: Makita VC2510L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 64 | 424229-8 | Makita 424229-8 SUPPORT RING, M442 |
| 65 | 423396-6 | Makita 423396-6 BLOCK FILTER, M442 |
| 66 | 423399-0 | Makita 423399-0 SIDE BLOCK TLITER, M442 |
| 67 | 423397-4 | Makita 423397-4 BAND DAMPER, M442 |
| 68 | 451453-0 | Makita 451453-0 TANK COVER, 438 |
| 69 | 141019-1 | Makita 141019-1 FLOAT COMPLETE, VC1310L |
| 70 | 452446-0 | Makita 452446-0 FLOAT CAGE, VC1310L |
| 71 | 195441-4 | Makita 195441-4 POWDER FILTER SET, VC3210L |
| 72 | 424377-3 | Makita 424377-3 DAMPER, VC1310L |
| 73 | A-50544 | |
| 74 | 424250-7 | Makita 424250-7 BUMPER, 439 |
| 75 | 266257-5 | Makita 266257-5 TAPPING SCREW 4*28, 9565C |
| 76 | 417190-6 | Makita 417190-6 HOLDER PLATE, 435 |
| 77 | 451455-6 | Makita 451455-6 HOLDER, 439 |
| 78 | 421468-1 | Makita 421468-1 CORD, M442 |
| 79 | 266192-7 | Makita 266192-7 TAPPING SCREW 4*14, N5900B |
| 80 | 168537-4 | Makita 168537-4 HOOK, M442 |
| 81 | 168540-5 | Makita 168540-5 CASTER 50, 438 |
| 82 | 168425-5 | Makita 168425-5 CASTER 50, 470 |
| 83 | 649150-2 | Makita 649150-2 EARTH LINE, 430 |
| 84 | 451457-2 | Makita 451457-2 TANK, 438 |
| 85 | 213655-4 | Makita 213655-4 O-RING 56, 483 |
| 86 | 451454-8 | Makita 451454-8 INLET, 438 |
| 87 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 88 | 424382-0 | Makita 424382-0 RUBBER HOLDER, VC1310L |
