Makita VC2000L
Makita VC2000L: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita VC2000L: 32 positions on 1 sheet

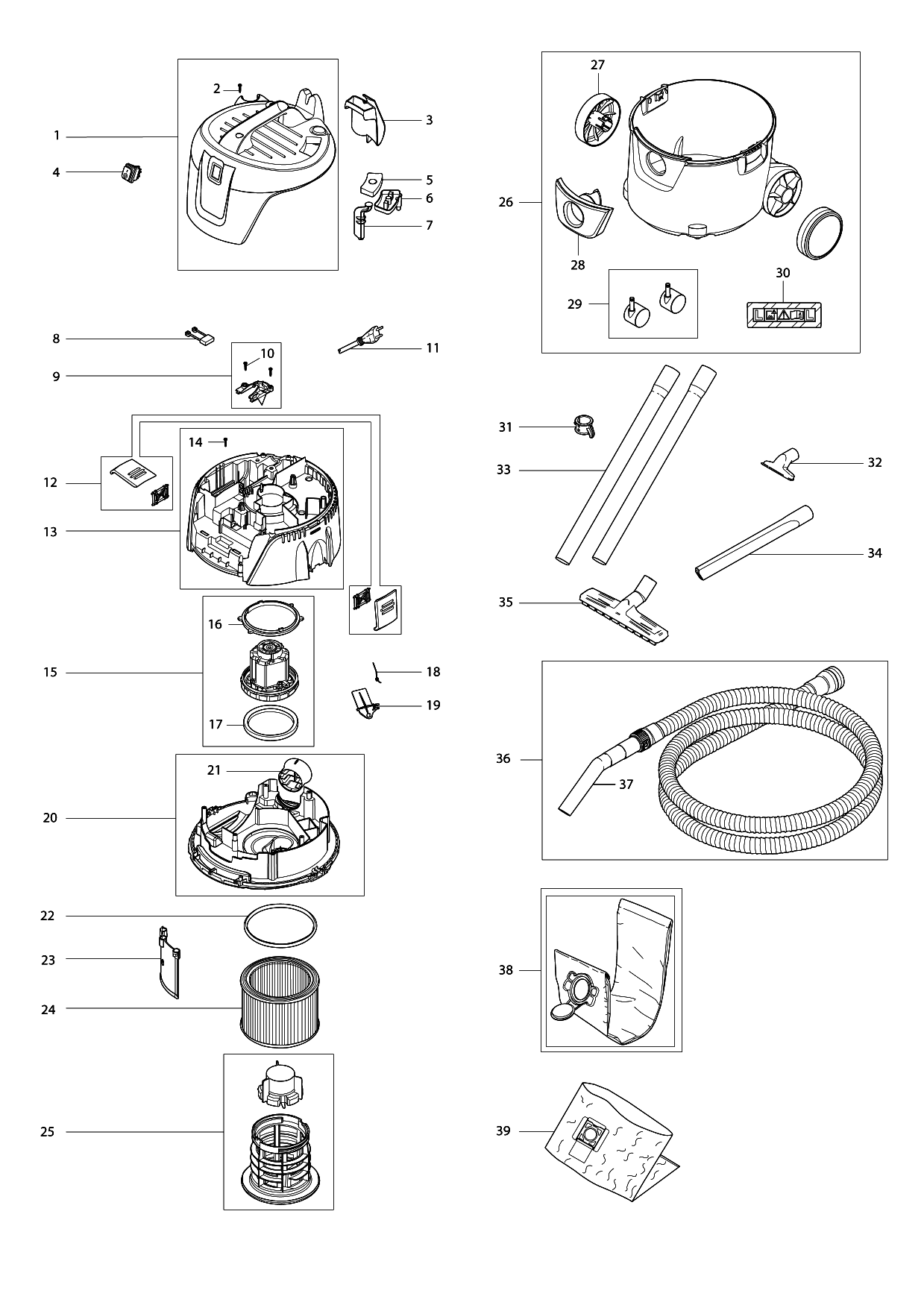

Sheet 1: Makita VC2000L parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | W302003704 | Makita W302003704 SCREW 5X18VC2010L |
| 3 | W107409981 | |
| 4 | W107404540 | |
| 5 | W107409183 | |
| 6 | W107409127 | |
| 7 | W107409128 | |
| 8 | W107404542 | Makita W107404542 CAPACITOR 0,1 µF |
| 10 | W302003704 | Makita W302003704 SCREW 5X18VC2010L |
| 11 | W302002394 | |
| 12 | W107409130 | Makita W107409130 KIT LOCKING CLAMP |
| 14 | W302003704 | Makita W302003704 SCREW 5X18VC2010L |
| 16 | W107409163 | Makita W107409163 UPPER MOTOR SEALING |
| 17 | W107409164 | Makita W107409164 LOWER MOTOR SEALING |
| 18 | W909100083 | Makita W909100083 TORSION SPRINGVC2010L |
| 19 | W107409129 | Makita W107409129 DEDUSTING FLAP |
| 21 | W107409167 | Makita W107409167 AIR OUTLET |
| 22 | W107409165 | Makita W107409165 SEALING FILTER |
| 23 | W107409159 | Makita W107409159 DEFLECTOR SHIELD |
| 24 | P-70219 | Makita P-70219 Filterelement for 446L VC3012L VC3511 VC3011L VC2010L VC2511 |
| 25 | W107402646 | |
| 27 | W107409170 | Makita W107409170 WHEEL D130 |
| 28 | W107409169 | Makita W107409169 INLET FITTING |
| 29 | W140642250 | |
| 30 | W302004200 | Makita W302004200 LABEL >DUST CLASS L |
| 31 | W107409979 | Makita W107409979 TUBE HOLDER KIT3011L |
| 32 | W000014295 | |
| 33 | P-72942 | Makita P-72942 Suction Tubes Set of 2 pcs 36x520mm |
| 34 | W000029541 | |
| 35 | W107402706 | Makita W107402706 FLOOR NOZZLE Ø36x260mm. VC2012, VC2512, VC3011 |
| 37 | W107413340 | Makita W107413340 BENT END - ASSY - KIT |
| 38 | P-72899 | Makita P-72899 Pack of 5 Filter Dust Bag for VC2010L |
| 39 | P-70297 | Makita P-70297 5pcs Dust Plastic Sack 446L, 446, VC3012L, VC2512L, VC2012L |
