Makita VC010G: exploded parts diagram, 2 sheets, 92 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita VC010G: 92 positions on 2 sheets
Sheet 1: Makita VC010G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 2 | 183R12-7 | |
| 3 | 141R09-2 | |
| 4 | 631973-2 | Makita 631973-2 SWITCH UNIT, CL141FD |
| 5 | 183R12-7 | |
| 6 | 327555-3 | |
| 7 | 632R23-4 | |
| 8 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 9 | 141R11-5 | |
| 10 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 11 | 632R22-6 | |
| 12 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 13 | 412455-1 | |
| 14 | 213663-5 | Makita 213663-5 O RING 55 |
| 15 | 141R13-1 | |
| 16 | 413R48-5 | |
| 17 | 232627-0 | |
| 18 | 265678-8 | |
| 19 | 137100-4 | |
| 21 | 141R15-7 | |
| 22 | 127522-6 | |
| 23 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 24 | 412444-6 | |
| 25 | 8143R7-2 | |
| 27 | 412464-0 | |
| 28 | 231309-1 | Makita 231309-1 COMPRESSION SPRING 5, JR307CT |
| 29 | 412463-2 | |
| 30 | 162A02-1 | |
| 31 | 137101-2 | |
| 32 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 33 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 34 | 413R47-7 | |
| 35 | 422A29-6 | Makita 422A29-6 SEAL RING B |
| 36 | 632R24-2 | |
| 37 | 632R30-7 | |
| 38 | 422A26-2 | |
| 39 | 162808-1 | |
| 40 | 412446-2 | |
| 41 | 234391-9 | Makita 234391-9 COMPRESSION SPRING 8 |
| 42 | 422A27-0 | |
| 43 | 413R44-3 | |
| 44 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 45 | 141R06-8 | |
| 46 | 422A23-8 | |
| 47 | 347B39-7 | |
| 48 | 252268-6 | |
| 49 | 253752-4 | Makita 253752-4 FLAT WASHER 8, 2414NB |
| 50 | 240243-4 | |
| 51 | 313062-2 | Makita 313062-2 FLANGE |
| 52 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 53 | 413R40-1 | |
| 54 | 422A22-0 | Makita 422A22-0 SUPPORT |
| 55 | 619704-9 | |
| 56 | 629C29-1 | |
| 57 | 652069-6 | Makita 652069-6 FLAT HEAD SCREW M3x6 |
| 58 | 632R64-0 | Makita 632R64-0 LEAD UNIT, HR005G |
| 59 | 620H32-5 | |
| 60 | 266490-9 | Makita 266490-9 TAPPING SCREW 2X6 |
| 61 | 620M72-3 | |
| 62 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 63 | 1830D9-6 | |
| 64 | 1830D9-6 | |
| 79 | 632P49-4 | Makita 632P49-4 TERMINAL UNIT |

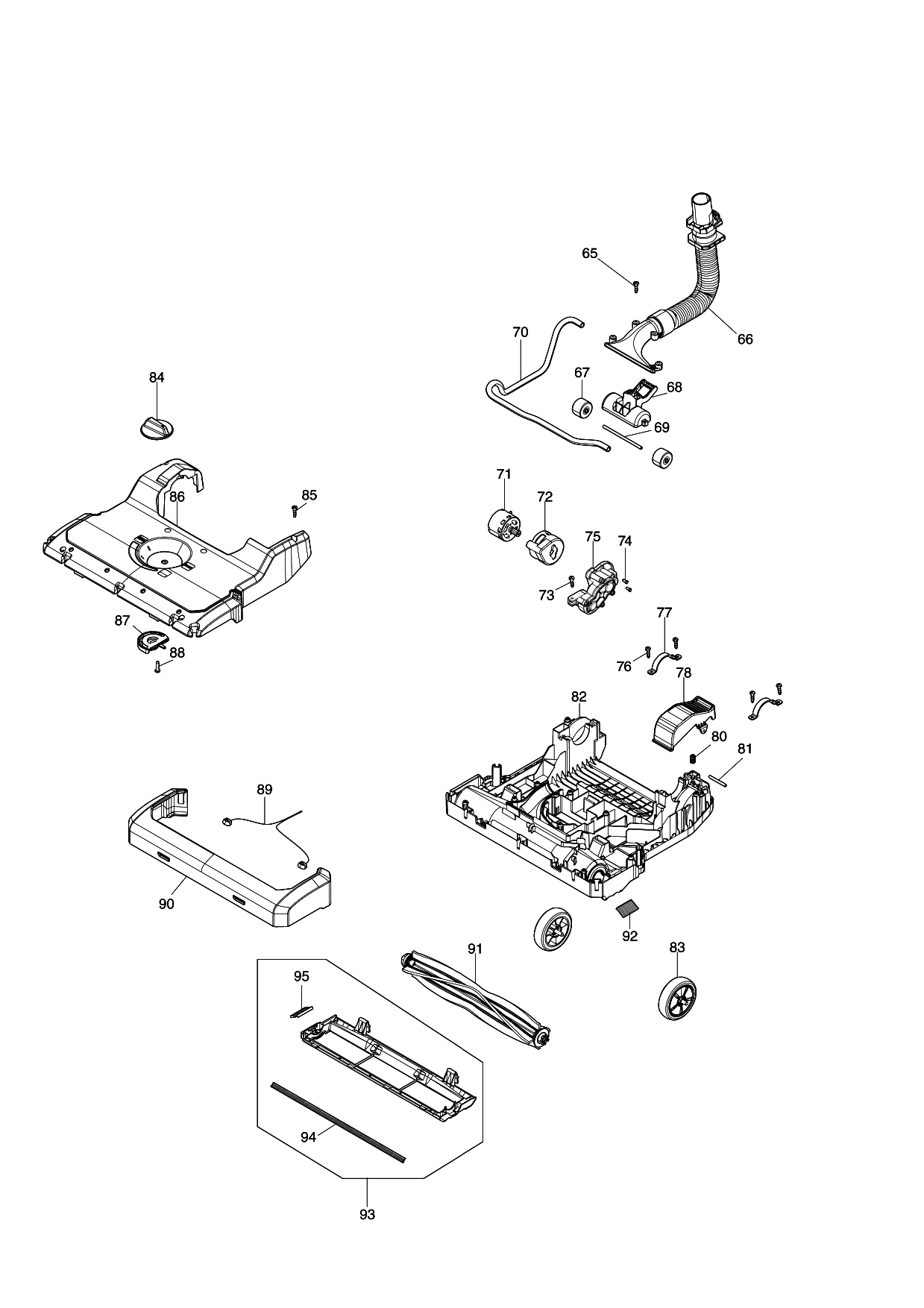

Sheet 2: Makita VC010G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 65 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 66 | 141R14-9 | |
| 67 | 412434-9 | |
| 68 | 413R55-8 | |
| 69 | 256954-1 | |
| 70 | 422A32-7 | |
| 71 | 629A11-8 | |
| 72 | 422A33-5 | Makita 422A33-5 TUBE JOINT |
| 73 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 74 | 265199-0 | Makita 265199-0 PAN HEAD SCREW, 4075D |
| 75 | 122G23-1 | |
| 76 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 77 | 347719-3 | |
| 78 | 413J90-8 | |
| 80 | 234339-1 | Makita 234339-1 COMPRESSION SPRING 6 |
| 81 | 256965-6 | |
| 82 | 141R04-2 | |
| 83 | 140S28-1 | |
| 84 | 412438-1 | |
| 85 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 86 | 413R41-9 | |
| 87 | 413R56-6 | |
| 88 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 89 | 620M58-7 | |
| 90 | 422A24-6 | Makita 422A24-6 BUMPER |
| 91 | 1914B1-8 | |
| 92 | 422577-9 | |
| 94 | 422A31-9 | |
| 95 | 413R52-4 |
