Bosch VAC090A

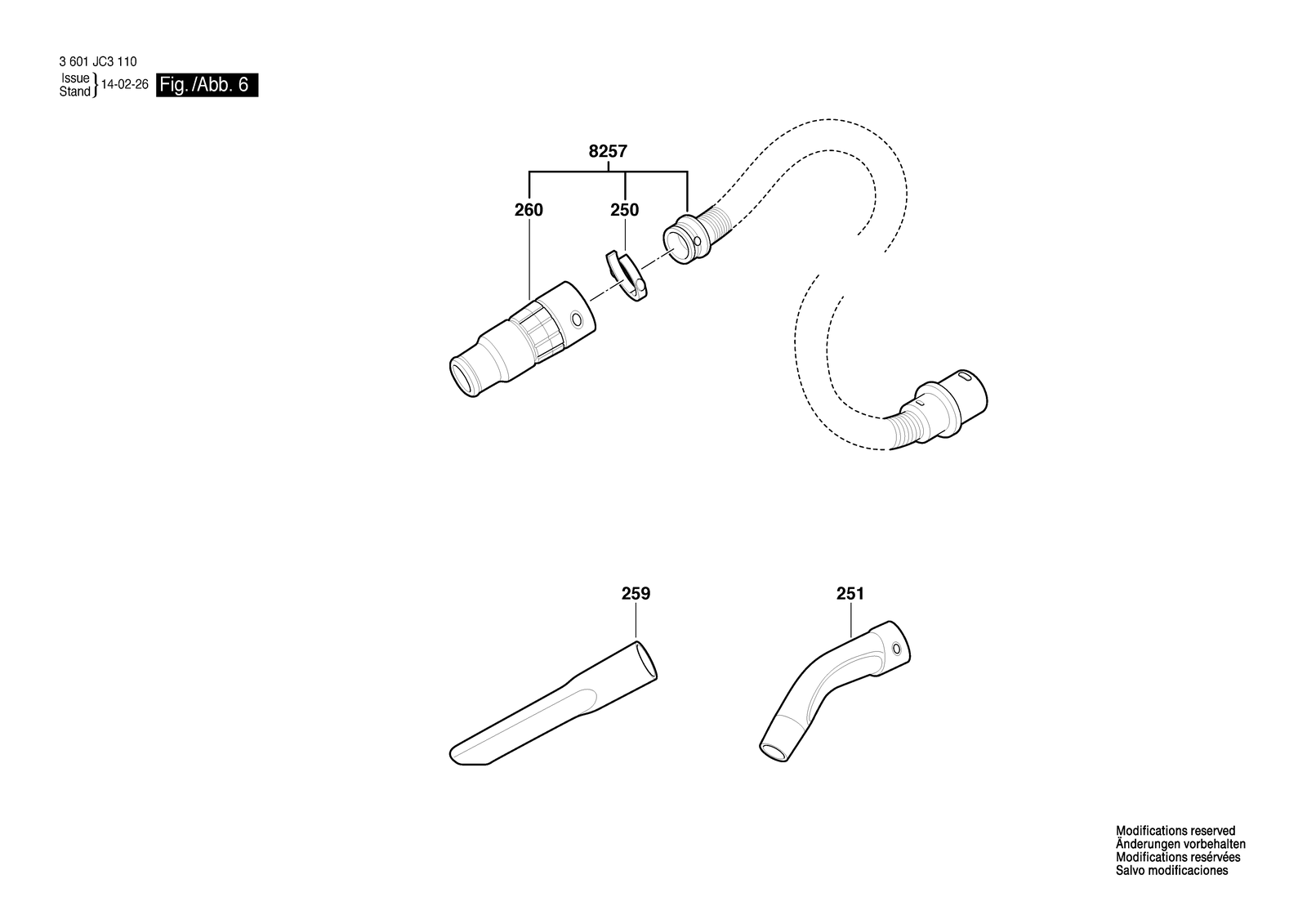

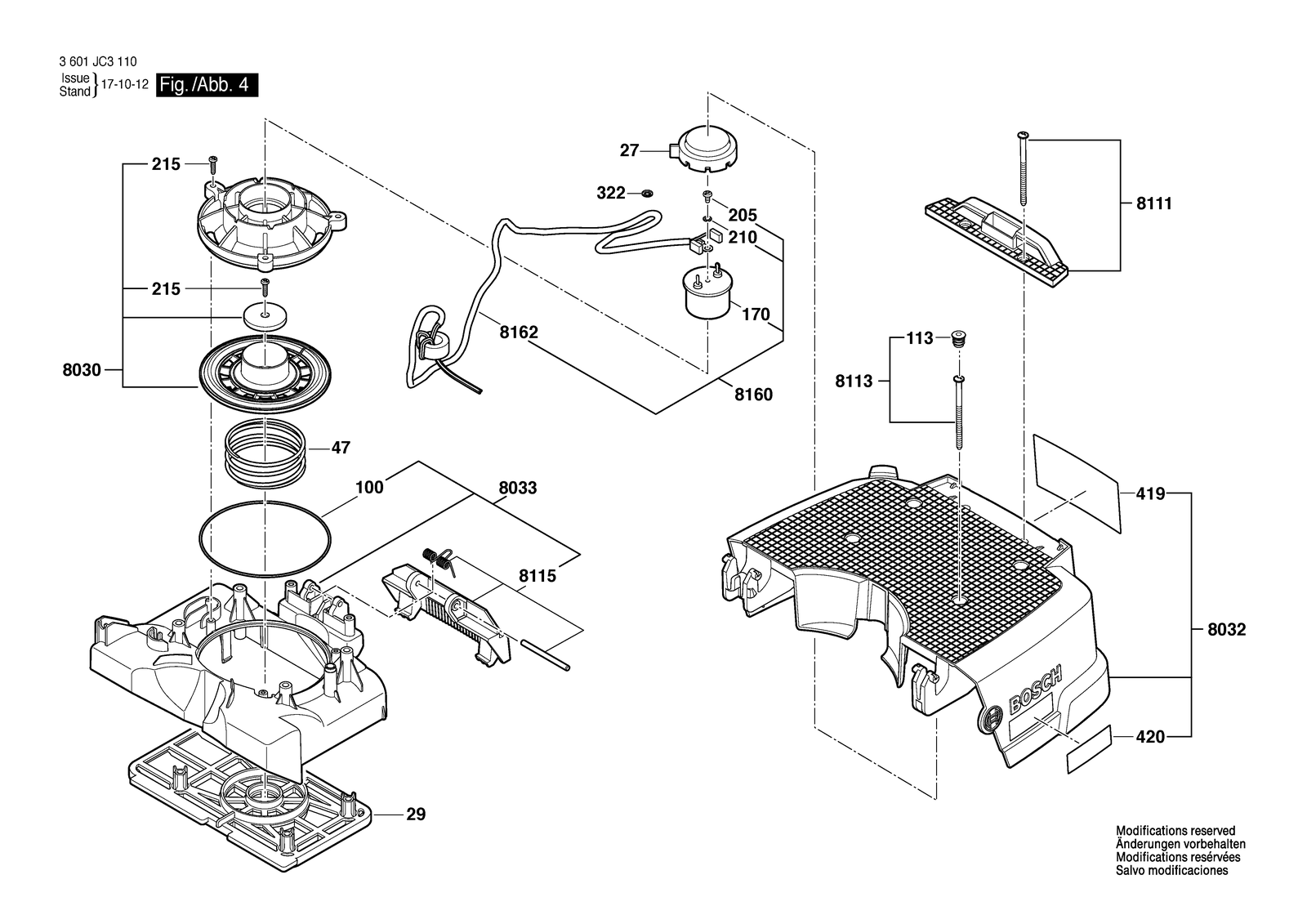

Bosch VAC090A all purpose vacuum cleane: exploded parts diagram, 6 sheets, 77 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch VAC090A: 77 positions on 6 sheets
Bosch VAC090A parts list (6 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 2609200392 | O-Ring |
| 105 | 2609200450 | Caster Wheel |
| 106 | 2609200451 | Caster Wheel |
| 113 | 2609200406 | Plug |
| 154 | 2610033210 | Power supply cord |
| 162 | 2610033211 | Cable |
| 170 | 2609200555 | Magnet |
| 190 | 1600A01317 | Filter |
| 190 | 2607432025 | Filter |
| 199 | 2609200422 | Screw |
| 201 | 2609200410 | Screw |
| 205 | 2609200400 | Screw |
| 206 | 2609200414 | Positioning Element |
| 210 | 2609200399 | Serrated Lock-Washer |
| 215 | 2609200397 | Lens Head Screw |
| 23 | 2609200453 | Support |
| 24 | 2609200425 | Locking Piece |
| 25 | 2609200452 | Support |
| 250 | 2609200454 | Clamping Ring |
| 251 | 2609200497 | Suction Pipe |
| 259 | 2609200462 | Nozzle |
| 260 | 2609200496 | Socket |
| 27 | 2609200401 | Magnet |
| 28 | 2609200423 | Clamping Piece |
| 29 | 2609200390 | Support |
| 300 | 2609200445 | Rotary Knob |
| 307 | 2610033191 | Warning Label |
| 308 | 2609200438 | Screw |
| 313 | 2610033193 | Cable |
| 320 | 2609200456 | Bolt |
| 322 | 2609200461 | Fastening Part |
| 37 | 2609200427 | Sensor |
| 414 | 2610033194 | Label |
| 416 | 2610033204 | Label |
| 417 | 2610033206 | Warning Label |
| 419 | 2610034323 | Warning Label |
| 420 | 2610027618 | Label |
| 422 | 2610033205 | Warning Label |
| 47 | 2609200483 | Spring |
| 72 | 2609200420 | Seal |
| 80 | 2610033209 | Motor Housing |
| 8020 | 1607000D8X | Support |
| 8021 | 2609200388 | Switch |
| 8022 | 2610034324 | Contact |
| 8030 | 1607000F51 | Valve Plate |
| 8031 | 2609200493 | Housing |
| 8032 | 2610033218 | Housing Cover |
| 8033 | 2609200391 | Cover |
| 8034 | 2610033020 | Housing |
| 8035 | 2610033230 | Dust Chamber |
| 8036 | 2609200458 | Axle |
| 8039 | 2609200444 | Handle |
| 8049 | 2610027614 | Nameplate |
| 8049 | 2610047951 | Nameplate |
| 8058 | 2609200449 | Bumper |
| 8068 | 2609200431 | Seal Kit |
| 8090 | 2609200413 | Sound Insulation Mat |
| 8092 | 2610033195 | Sound Insulation Mat |
| 8093 | 2610033232 | Sound Insulation Mat |
| 8103 | 2610033229 | Wheel |
| 8107 | 2610033213 | Motor |
| 8110 | 2609200435 | Holder |
| 8111 | 2609200407 | Holder |
| 8113 | 2609200405 | Fastening parts kit |
| 8115 | 2609200393 | Filter Cover |
| 8160 | 2610033226 | Magnet |
| 8161 | 2610033212 | Cable |
| 8162 | 1600A01A4P | Cable |
| 8175 | 2609200561 | Wafer |
| 8257 | 2608000A09 | Hose |
| 8301 | 2610033199 | Control Panel |
| 8303 | 2610033197 | Socket |
| 8305 | 2609200383 | Wafer |
| 8321 | 2609200428 | Spring Housing |
| 8417 | 2609200387 | Foil keyboard |
| 85 | 2609200436 | Hose Holder |
| 99 | 2609200424 | Cord |
