Makita UX01G
Makita UX01G: exploded parts diagram, 1 sheet, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UX01G: 70 positions on 1 sheet

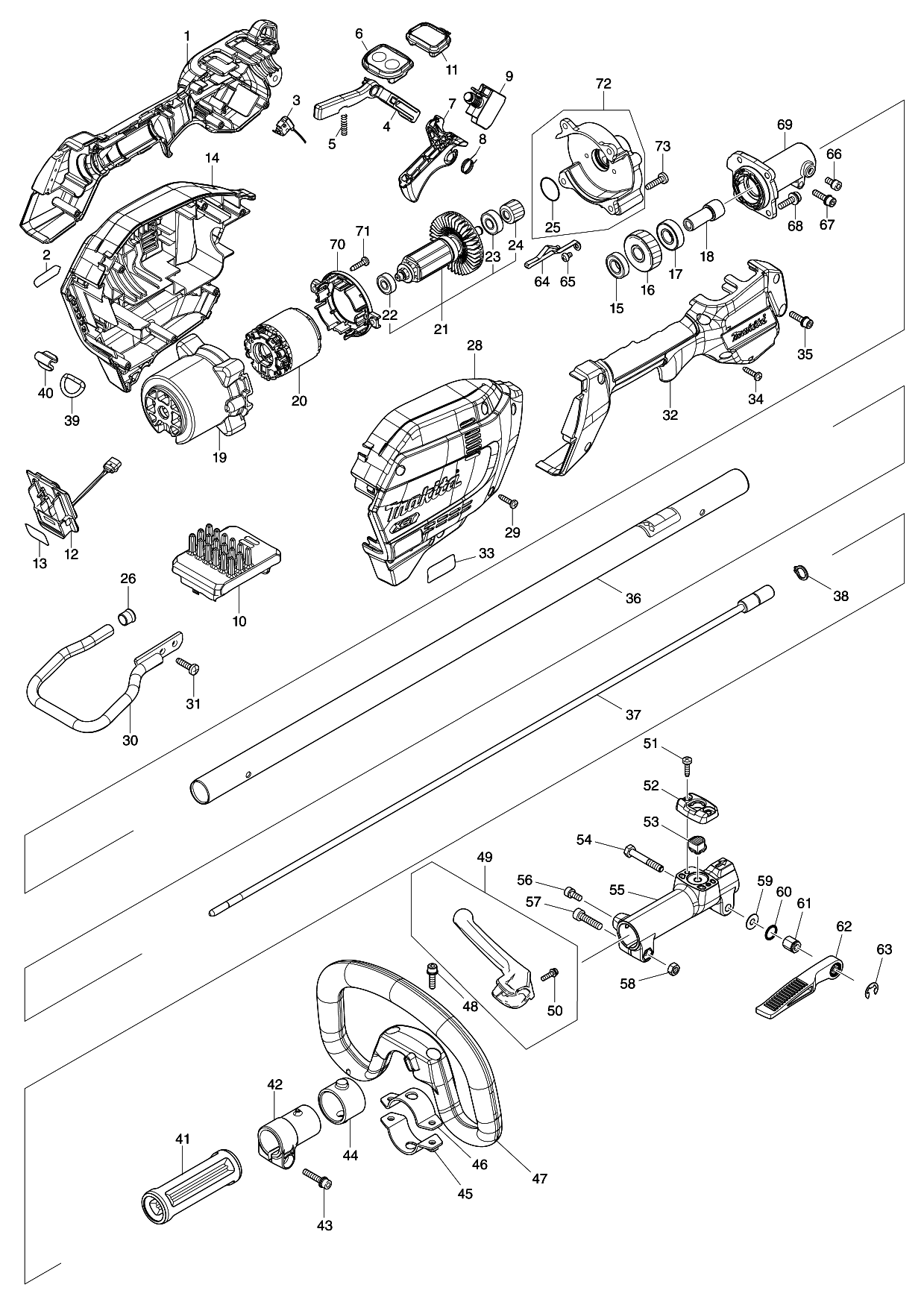

Sheet 1: Makita UX01G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183N26-2 | |
| 2 | 8025F3-0 | |
| 3 | 632G61-0 | Makita 632G61-0 SWITCH UNIT |
| 4 | 459759-0 | |
| 5 | 233101-1 | Makita 233101-1 COMPRESSION SPRING 4, AN611 |
| 6 | 140W64-1 | |
| 7 | 459758-2 | |
| 8 | 233622-3 | |
| 9 | 651436-2 | |
| 10 | 620D96-5 | |
| 11 | 140W63-3 | |
| 12 | 632P49-4 | Makita 632P49-4 TERMINAL UNIT |
| 13 | 8026A4-9 | |
| 14 | 183R88-4 | |
| 15 | 211150-8 | Makita 211150-8 BALL BEARING 6901ZZ, 6935FD |
| 16 | 227848-7 | |
| 17 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 18 | 325811-5 | Makita 325811-5 SPINDLE HUBBBC231U |
| 19 | 412961-6 | |
| 20 | 629A25-7 | |
| 21 | 519647-4 | |
| 22 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 23 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 24 | 227834-8 | |
| 25 | 213961-7 | Makita 213961-7 O RING 22, MT813 |
| 26 | 422230-7 | |
| 28 | 183R88-4 | |
| 29 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 30 | 347752-5 | |
| 31 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 32 | 183N26-2 | |
| 33 | 8025Y8-3 | |
| 34 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 35 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 36 | 140W68-3 | |
| 37 | 141238-9 | Makita 141238-9 SHAFT B COMPLETE, UX360D |
| 38 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 39 | 327742-4 | |
| 40 | 347783-4 | |
| 41 | 451601-1 | Makita 451601-1 SPACER 24 |
| 42 | 457269-1 | Makita 457269-1 PIPE HOLDER 24 |
| 43 | 922244-1 | Makita 922244-1 H.S.H. BOLTE M5X25 WITH WG, UX360D |
| 44 | 424942-8 | Makita 424942-8 DAMPER |
| 45 | 347114-7 | Makita 347114-7 LOWER CLAMP 35 |
| 46 | 347113-9 | Makita 347113-9 UPPER CLAMP 35 |
| 47 | 457772-2 | Makita 457772-2 LOOP HANDLE |
| 48 | 922234-4 | |
| 50 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 51 | 266034-5 | Makita 266034-5 TAPPING SCREW, CT 4x16MM |
| 52 | 452840-6 | Makita 452840-6 RELEASE BUTTON CAER EX2650LH |
| 53 | 452839-1 | Makita 452839-1 RELEASE BUTTON EX2650LH |
| 54 | 265596-0 | Makita 265596-0 HEX.BOLT M6X40 EX2650L |
| 55 | 318750-6 | OLDN Genuine Makita 318750-6 JOINT 24 EX2650L |
| 56 | 922211-6 | Makita 922211-6 HEX SOCKET HEAD BOLT M5*12, MEM427 |
| 57 | 922342-1 | Makita 922342-1 HEX. SOCKET HEAD BOLT M6X |
| 58 | 931302-2 | Makita 931302-2 HEX NUT M6, 2414NB |
| 59 | 253332-6 | Makita 253332-6 THIN WASHER, MUH352 |
| 60 | 213105-9 | Makita 213105-9 O RING 11, 6409 |
| 61 | 252159-1 | Makita 252159-1 HEX NUT M6, CS550D |
| 62 | 272268-0 | Makita 272268-0 LEVER EX2650L |
| 63 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 64 | 347751-7 | |
| 65 | 911102-6 | Makita 911102-6 PAN HEAD SCREW M4X6 |
| 66 | 922211-6 | Makita 922211-6 HEX SOCKET HEAD BOLT M5*12, MEM427 |
| 67 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 68 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 69 | 140Y38-4 | |
| 70 | 459764-7 | |
| 71 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 73 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
