Makita UV3600
Makita UV3600: exploded parts diagram, 2 sheets, 109 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UV3600: 109 positions on 2 sheets

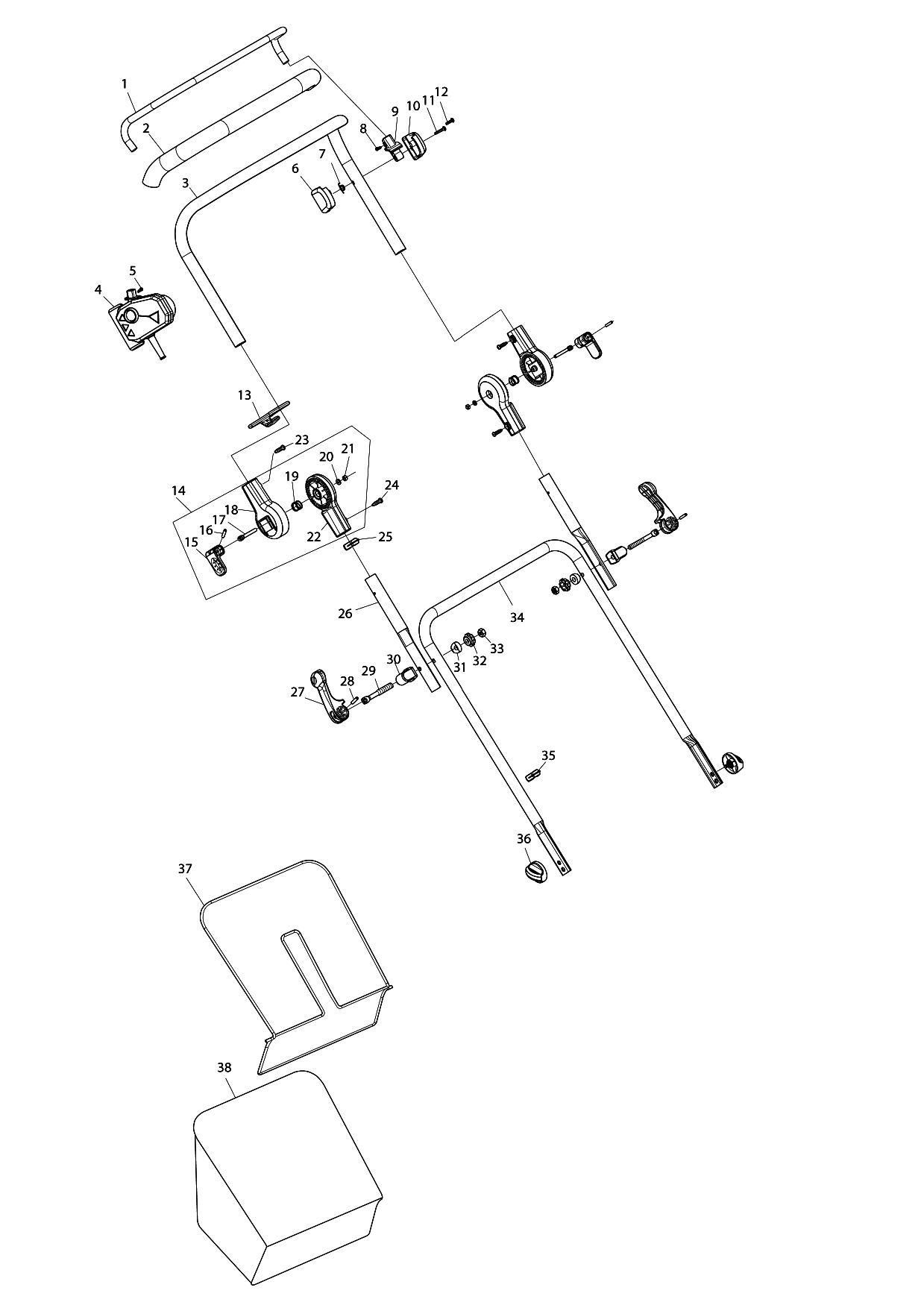

Sheet 1: Makita UV3600 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 652023784 | Makita 652023784 SWITCH LEVER |
| 2 | 652023789 | Makita 652023789 SOFT FOAM GRIP |
| 3 | 652023790 | Makita 652023790 UPPER HANDLE |
| 4 | 652024722 | |
| 5 | 652024721 | Makita 652024721 SCREW 3.5X10 |
| 6 | 652023795 | Makita 652023795 RIGHT HANDLE SUPPORT |
| 7 | YA00000737 | |
| 8 | 652024721 | Makita 652024721 SCREW 3.5X10 |
| 9 | 652023794 | Makita 652023794 LEFT PLUG-IN OF HANDLE |
| 10 | 652023793 | Makita 652023793 LEFT HANDLE SUPPORT |
| 11 | 652023792 | Makita 652023792 SELF-TAPPING SCREW |
| 12 | YA00000676 | |
| 13 | 652023811 | Makita 652023811 CABLE HANGER |
| 15 | 652024723 | |
| 16 | 652023800 | Makita 652023800 PIN |
| 17 | 652023799 | Makita 652023799 PIN |
| 18 | 652023797 | Makita 652023797 LEFT CONNECTOR |
| 19 | 652023798 | Makita 652023798 COMPRESSION SPRING |
| 20 | 652023803 | Makita 652023803 WASHER |
| 21 | 652023804 | Makita 652023804 SELF-LOCKING NUT |
| 22 | 652023802 | Makita 652023802 RIGHT CONNECTOR |
| 23 | 652023796 | Makita 652023796 SELF-TAPPING SCREW |
| 24 | 652023796 | Makita 652023796 SELF-TAPPING SCREW |
| 25 | 652023810 | Makita 652023810 CABLE CLIP |
| 26 | 652023805 | Makita 652023805 MIDDLE HANDLE |
| 27 | 652024725 | |
| 28 | 652024727 | Makita 652024727 PIN |
| 29 | 652024728 | Makita 652024728 QUICK NIP GAP |
| 30 | 652024729 | |
| 31 | 652024730 | Makita 652024730 PLASTIC WASHER |
| 32 | 652024731 | Makita 652024731 QUICK NIP KNOB |
| 33 | 652024732 | Makita 652024732 NUT M8 |
| 34 | 652024733 | Makita 652024733 LOWER HANDLE |
| 35 | 652023810 | Makita 652023810 CABLE CLIP |
| 36 | 652024078 | Makita 652024078 WASHER |
| 37 | 652024724 | Makita 652024724 COLLECTION BAG SUPPORT |
| 38 | 652025252 | Makita 652025252 GRASS CATCHER BAG |
Sheet 2: Makita UV3600 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 39 | 652023766 | Makita 652023766 SELF-TAPPING SCREW |
| 40 | 652023766 | Makita 652023766 SELF-TAPPING SCREW |
| 41 | YA00000676 | |
| 42 | 652023792 | Makita 652023792 SELF-TAPPING SCREW |
| 43 | 652023903 | Makita 652023903 MOTOR COVER HANDLE |
| 44 | 652023766 | Makita 652023766 SELF-TAPPING SCREW |
| 45 | 652023829 | |
| 46 | 652023766 | Makita 652023766 SELF-TAPPING SCREW |
| 47 | 652023766 | Makita 652023766 SELF-TAPPING SCREW |
| 48 | YA00000631 | |
| 49 | YA00000631 | |
| 50 | 652023766 | Makita 652023766 SELF-TAPPING SCREW |
| 51 | 652024748 | |
| 52 | 652023856 | Makita 652023856 MOTOR ASS'Y |
| 53 | 652024743 | Makita 652024743 CONNECTION WIRE L=85 |
| 54 | 652024744 | Makita 652024744 CONNECTION WIRE L=220 |
| 55 | YA00000630 | |
| 56 | 652023815 | Makita 652023815 REAR FLAP |
| 57 | 652023820 | Makita 652023820 REAR FLAP SPRING |
| 58 | 652024726 | Makita 652024726 REAR COVER SHAFT |
| 59 | 652023814 | Makita 652023814 NUT |
| 60 | 652025253 | Makita 652025253 DECK |
| 61 | 652023982 | Makita 652023982 CABLE PRESSBOARD |
| 62 | 652023766 | Makita 652023766 SELF-TAPPING SCREW |
| 63 | 652023827 | |
| 64 | 652023825 | Makita 652023825 SCREW 3x22 |
| 65 | 652023826 | Makita 652023826 TERMINAL SET |
| 66 | 652023828 | |
| 67 | 652023904 | Makita 652023904 REAR WHEEL COVER |
| 68 | 652023831 | Makita 652023831 RETAINING RING |
| 69 | 652023835 | Makita 652023835 REAR WHEEL |
| 70 | 652024735 | Makita 652024735 REAR WHEEL AXLE |
| 71 | 652023831 | Makita 652023831 RETAINING RING |
| 72 | 652024742 | Makita 652024742 SCREW 3X12 |
| 73 | 652024736 | |
| 74 | YA00000655 | Makita YA00000655 SELF LOCKING SCREWS |
| 75 | 652023906 | Makita 652023906 REINFORCEMENT PLATE |
| 76 | 652024737 | Makita 652024737 SHAFT SLEEVE |
| 77 | 652023661 | Makita 652023661 SELF-TAPPING SCREW |
| 78 | 652024740 | Makita 652024740 CLUMP WEIGHT |
| 79 | YA00000675 | |
| 80 | 652024739 | Makita 652024739 CLUMP WEIGHT |
| 81 | 652023854 | Makita 652023854 PRESSURE BOARD |
| 82 | 652023792 | Makita 652023792 SELF-TAPPING SCREW |
| 83 | 652023940 | |
| 84 | 652023939 | Makita 652023939 3 IN 1 SELF-TAPPING SCREW 4X20 |
| 85 | 652023937 | Makita 652023937 FLAT WASHER |
| 86 | 652023936 | Makita 652023936 SPRING PAD |
| 87 | 652023935 | Makita 652023935 BOLT M6X45 |
| 88 | 652023846 | Makita 652023846 HEX. BOLT M8 |
| 89 | 652023845 | Makita 652023845 FRONT AXLE SLEEVE |
| 90 | 652023844 | Makita 652023844 SLEEVE |
| 91 | 652023843 | Makita 652023843 SELF-LOCKING NUT M8 |
| 92 | 652023804 | Makita 652023804 SELF-LOCKING NUT |
| 93 | 652023841 | Makita 652023841 HEIGHT ADJ. LEAF SPRING |
| 94 | 652024741 | Makita 652024741 HANDLE |
| 95 | 652023837 | Makita 652023837 HANDLE HALF LOWER |
| 96 | 652023836 | Makita 652023836 HANDLE HALF UPPER |
| 97 | 652023840 | Makita 652023840 MACHINE SCREW M5x12 |
| 98 | 652023840 | Makita 652023840 MACHINE SCREW M5x12 |
| 99 | 652023804 | Makita 652023804 SELF-LOCKING NUT |
| 100 | 652023842 | Makita 652023842 AXLE BEARING |
| 101 | 652023905 | Makita 652023905 FRONT WHEEL COVER |
| 102 | 652023831 | Makita 652023831 RETAINING RING |
| 103 | 652024745 | |
| 104 | 652026437 | Makita 652026437 FRONT WHEEL KPL. |
| 105 | 652024745 | |
| 106 | 652023848 | Makita 652023848 FRONT WHEEL AXLE SLEEVE |
| 107 | 652024747 | Makita 652024747 FRONT WHEEL AXLE |
| 108 | 652023850 | Makita 652023850 BOTTOM COVER |
| 109 | 652023851 | Makita 652023851 SELF-TAPPING SCREW |
| 110 | 652024746 | Makita 652024746 Scarifying Roller UV3600 |
