Makita UV3200
Makita UV3200: exploded parts diagram, 1 sheet, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UV3200: 66 positions on 1 sheet

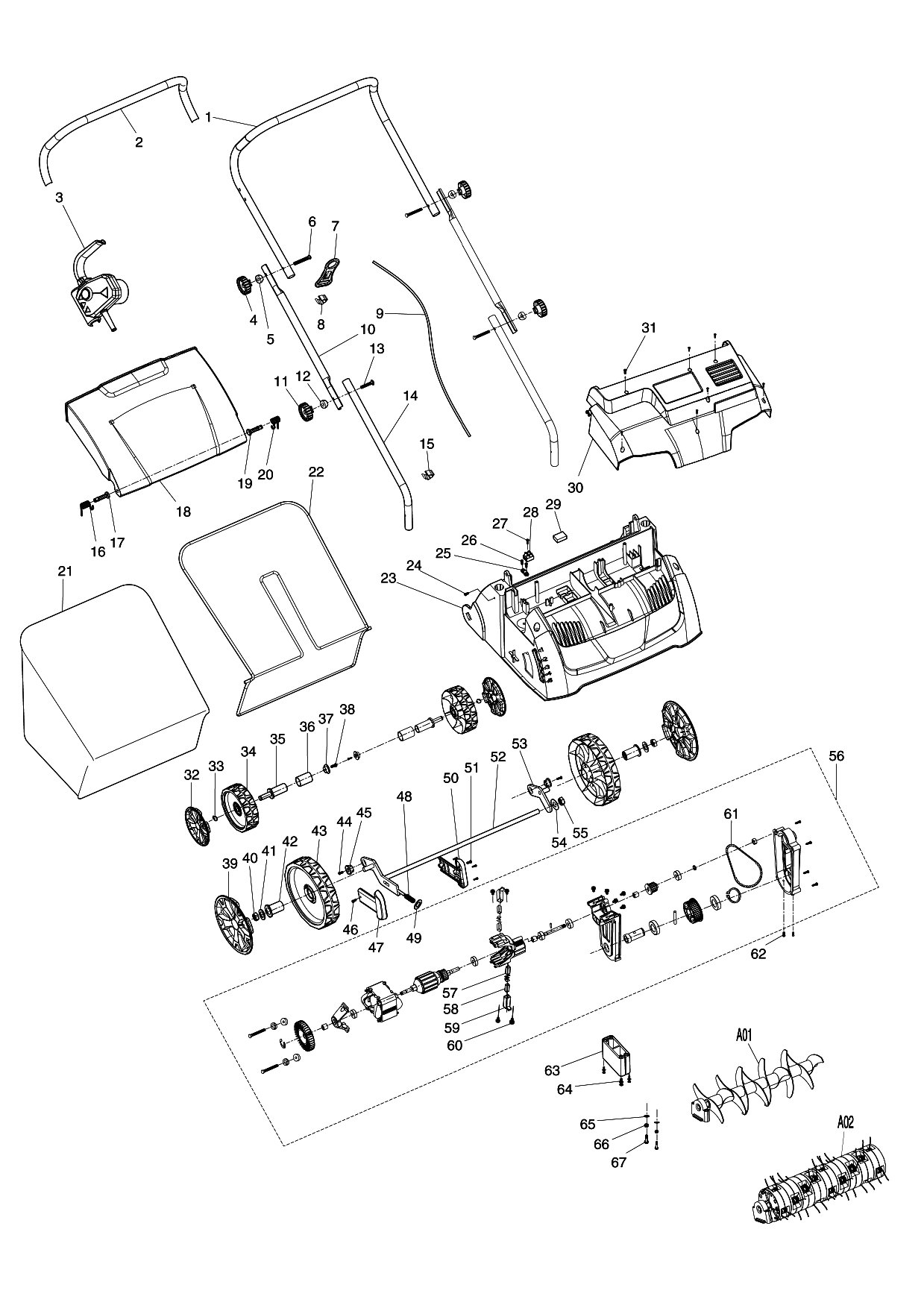

Sheet 1: Makita UV3200 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 652023913 | Makita 652023913 UPPER HANDLE |
| 2 | 652024706 | Makita 652024706 HANDLE SHEATH |
| 3 | 652024703 | |
| 4 | 652024072 | Makita 652024072 KNOB |
| 5 | 652024730 | Makita 652024730 PLASTIC WASHER |
| 6 | 652023808 | Makita 652023808 SCREW |
| 7 | 652023811 | Makita 652023811 CABLE HANGER |
| 8 | 652024705 | Makita 652024705 CABLE CLIP |
| 9 | 652023787 | Makita 652023787 CONNECTION CABLE |
| 10 | 652023912 | Makita 652023912 MIDDLE HANDLE |
| 11 | 652024072 | Makita 652024072 KNOB |
| 12 | 652024730 | Makita 652024730 PLASTIC WASHER |
| 13 | 652023808 | Makita 652023808 SCREW |
| 14 | 652023911 | Makita 652023911 LOWER HANDLE |
| 15 | 652024705 | Makita 652024705 CABLE CLIP |
| 16 | 652023990 | Makita 652023990 REAR FLAP TORSION SPRING -LEFT |
| 17 | 652023989 | Makita 652023989 PLASTIC PIN |
| 18 | 652023994 | Makita 652023994 REAR FLAP |
| 19 | 652023989 | Makita 652023989 PLASTIC PIN |
| 20 | 652023991 | Makita 652023991 REAR FLAP TORSION SPRING RIGHT |
| 21 | 652025250 | LOST Makita 652025250 GRASS CATCHER BAG |
| 22 | 652024707 | Makita 652024707 COLLECTION BAG SUPPORT |
| 23 | 652025251 | Makita 652025251 DECK |
| 24 | 652026446 | Makita 652026446 SCREW |
| 25 | 652023982 | Makita 652023982 CABLE PRESSBOARD |
| 26 | 652026443 | Makita 652026443 SCREW |
| 27 | 652023983 | Makita 652023983 SELF-TAPPING SCREW |
| 28 | 652023826 | Makita 652023826 TERMINAL SET |
| 29 | 652024708 | Makita 652024708 PCB ASS'Y |
| 30 | 652023993 | Makita 652023993 MOTOR COVER |
| 31 | 652024720 | |
| 32 | 652023904 | Makita 652023904 REAR WHEEL COVER |
| 33 | 652023934 | |
| 34 | 652023986 | Makita 652023986 REAR WHEEL |
| 35 | 652023988 | Makita 652023988 BIG BAND PULLEY AXLE |
| 36 | 652023987 | Makita 652023987 REAR WHEEL AXLE SLEEVE |
| 37 | 652023985 | Makita 652023985 REAR AXLE CAP |
| 38 | 652026442 | Makita 652026442 SCREW |
| 39 | 652023905 | Makita 652023905 FRONT WHEEL COVER |
| 40 | 652023973 | Makita 652023973 SELF-LOCKING NUT |
| 41 | 652023937 | Makita 652023937 FLAT WASHER |
| 42 | 652023981 | Makita 652023981 FRONT WHEEL AXLE |
| 43 | 652023980 | Makita 652023980 FRONT WHEEL |
| 44 | 652024712 | Makita 652024712 SCREW |
| 45 | 652023979 | Makita 652023979 FRONT AXLE CAP |
| 46 | 652026443 | Makita 652026443 SCREW |
| 47 | 652023978 | Makita 652023978 HEIGHT ADJUSTMENT HANDLE |
| 48 | 652023977 | Makita 652023977 HEIGHT ADJUSTMENT SPRING |
| 49 | 652023803 | Makita 652023803 WASHER |
| 50 | 652023976 | Makita 652023976 HEIGHT ADJUSTMENT HANDLE RIGHT COVER |
| 51 | 652026443 | Makita 652026443 SCREW |
| 52 | 652023975 | Makita 652023975 WHEEL AXLE ASS'Y |
| 53 | 652023974 | Makita 652023974 CONNECTION PLATE |
| 54 | 941201-0 | Makita 941201-0 FLAT WASHER 8, 5007NB |
| 55 | 652024713 | Makita 652024713 NUT |
| 57 | 652023960 | Makita 652023960 CARBON BRUSH (2 PCS.) |
| 58 | 652023959 | Makita 652023959 BRUSH HOLDER |
| 59 | 652024716 | Makita 652024716 BRUSH HOLDER |
| 60 | 652023957 | Makita 652023957 3 IN 1 SCREW M4X12 |
| 61 | 652023947 | Makita 652023947 DRIVE BELT 16 X 410 |
| 62 | 652026444 | Makita 652026444 3 IN 1 SCREW |
| 63 | 652024717 | Makita 652024717 LOWER BEARING HOLDER |
| 64 | 652023939 | Makita 652023939 3 IN 1 SELF-TAPPING SCREW 4X20 |
| 65 | 652023937 | Makita 652023937 FLAT WASHER |
| 66 | 652023936 | Makita 652023936 SPRING PAD |
| 67 | 652023935 | Makita 652023935 BOLT M6X45 |
