Makita UT1200: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UT1200: 33 positions on 1 sheet

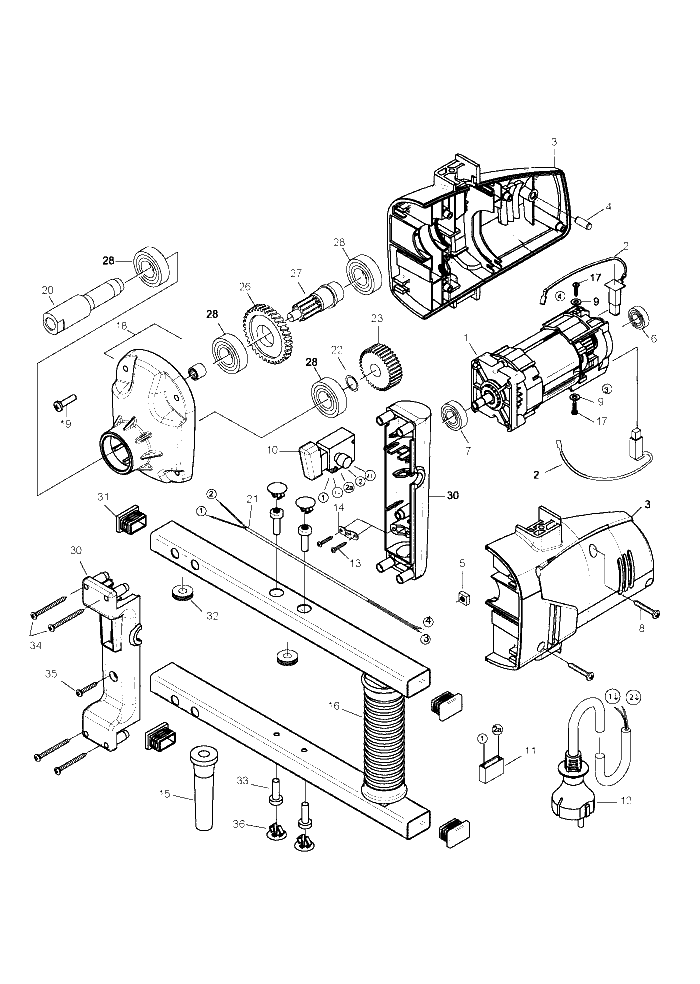

Sheet 1: Makita UT1200 parts diagram

Makita UT1200 parts diagram, sheet 1
No.Part numberPart name
1EE7701C100Makita EE7701C100 MOTOR ASSYUT121
2EE80700032DISC New Genuine Makita EE80700032 Carbon Brush 5 x 8 for UT121
3EE80900408
4EE80901055Makita EE80901055 PLUG 6x15UT121
5EE80201031Makita EE80201031 SQUARE NUT M5UT121
6EE80410025Makita EE80410025 BALL BEARING 626 2RSUT121
7EE80410026Makita EE80410026 BALL BEARING 608 2RSUT121
8EE80201229Makita EE80201229 SCREW 4,2x19 TORXUT121
9EE80201371
10EE80600510
11EE80500008
12EE80600060
13EE80201270Makita EE80201270 TAPPING SCREW 4,2X13 UT120X
14EE85000020Makita EE85000020 CLIPUT121
15EE83000004Makita EE83000004 CABLE BUSHINGUT121
16EE77M01590
17EE80201251
18EE77M01400
19EE80201204Makita EE80201204 OVAL HEAD SCREW M5X2UT121
20EE77011420Makita EE77011420 SPINDLEUT121
21EE77M01186
22EE80200504Makita EE80200504 WASHER 15UT121
23EE77018430Makita EE77018430 HELICAL GEARUT121
26EE7701C471Makita EE7701C471 HELICAL GEARUT121
27EE77011500Makita EE77011500 SHAFTUT121
28EE80410043Makita EE80410043 BALL BEARING 6003 2RUT121
30EE80900098
31EE80900000
32EE83000051
33EE80201525
34EE80201267Makita EE80201267 TAPPING SCREW 4,8X45 UT120X
35EE80201280Makita EE80201280 TAPPING SCREW 4,8X22 UT120X
36EE80900201
