Bosch USH 27

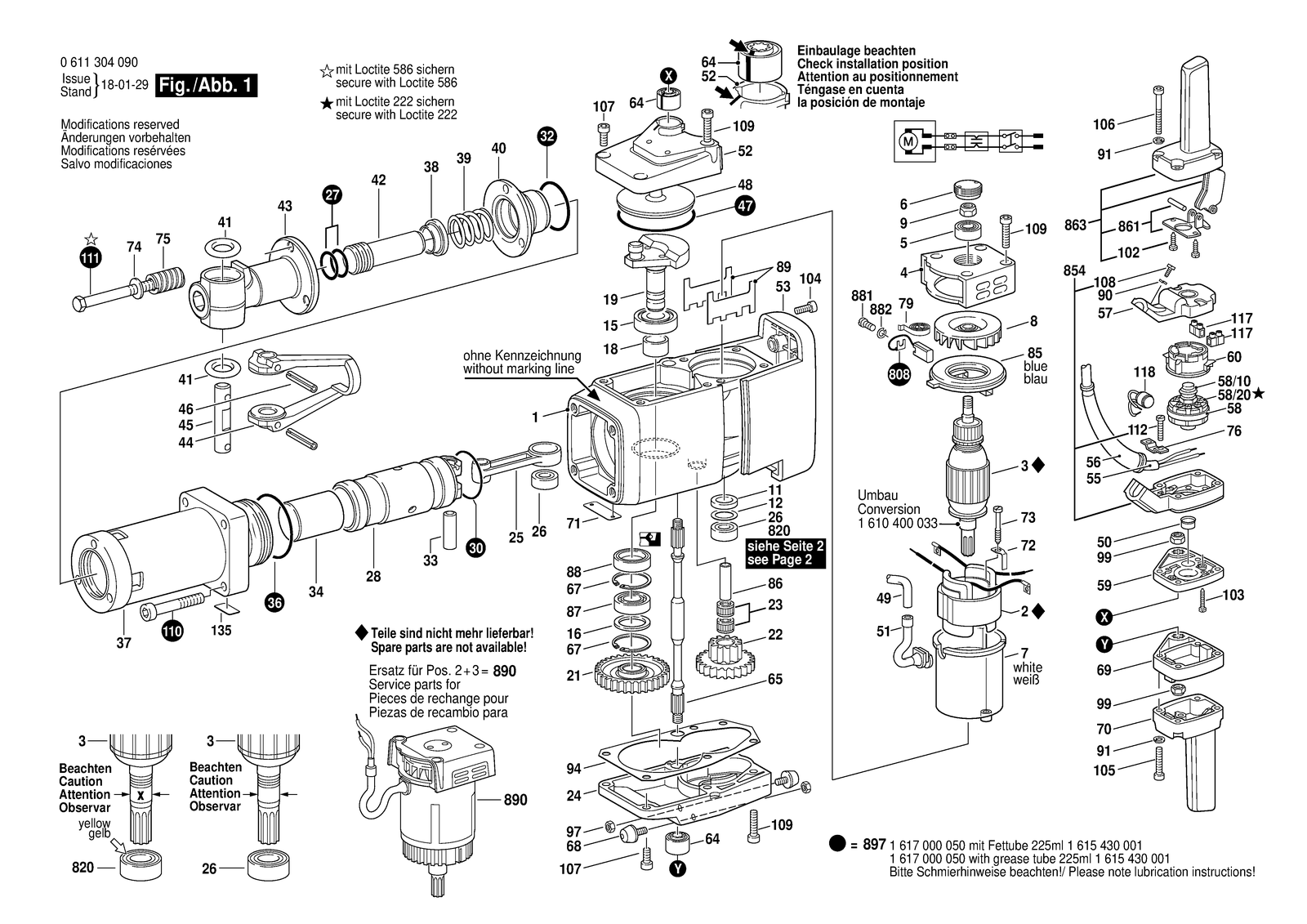

Bosch USH 27 road breaker: exploded parts diagram, 2 sheets, 113 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch USH 27: 113 positions on 2 sheets
Bosch USH 27 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615106039 | Motor Housing |
| 102 | 2910211025 | Tapping Screw DIN 7971-BZ4,2X13 |
| 103 | 2910211022 | Tapping Screw DIN 7971-BZ3,9X25 |
| 104 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
| 105 | 2910141205 | Hex Socket Head Cap Screw DIN 912-M6X30-8.8 |
| 106 | 2910141215 | Hex Socket Head Cap Screw DIN 912-M6X55-8.8 |
| 107 | 2910141242 | Hex Socket Head Cap Screw DIN 912-M8X20-8.8 |
| 108 | 2910211220 | Tapping Screw DIN 7971-B 3,9X19 |
| 109 | 2910141248 | Hex Socket Head Cap Screw DIN 912-M8X35-8.8 |
| 11 | 1610108013 | Felt Washer |
| 110 | 2910141356 | Hex Socket Head Cap Screw DIN-M12X70-8.8 |
| 111 | 2914550034 | Microencapsulated Screw DIN EN-24014-M12X110-12.9 |
| 111 | 3613450500 | Hex Screw M12X110-SW19 |
| 112 | 2910211236 | Tapping Screw DIN 7971-ST4,8X25-C |
| 117 | 1901091110 | Strip Terminal |
| 118 | 1617328002 | Suppression Filter |
| 12 | 1610102616 | Supporting Disc Thick 1,0 MM |
| 135 | 3611119512 | Reference Plate Caution |
| 15 | 1610910012 | Cyl. Roller Bearing DIN 5412-62X30X16 |
| 16 | 1610102010 | Shim Thick 2,5 MM |
| 18 | 1610300034 | Spacer Bushing |
| 19 | 1616110027 | Eccentric Shaft |
| 2 | 1614220079 | Field 220V |
| 21 | 1616318009 | Cylindrical Gear Z=45 |
| 22 | 1616328036 | Cylindrical Gear Z=19/52 |
| 23 | 1610913005 | Needle-Roller Assembly |
| 24 | 1615500255 | Gear Cover |
| 25 | 1612001040 | Connecting Rod |
| 26 | 1610910035 | Needle-Roller Bearing D20XD37X17 |
| 27 | 1610210033 | O-Ring 36,0X5,0 MM |
| 28 | 1618700043 | Hammer Piston |
| 3 | 1617000849 | Un. Flange-Mtd. Motor 220-240V |
| 30 | 1614601039 | Retaining ring Ø54,2XØ2,8 |
| 30 | 1900210143 | O-Ring 40X3MM |
| 32 | 1900210156 | O-Ring 60X4 MM |
| 33 | 3613101500 | Piston Pin |
| 34 | 1618710039 | Striker |
| 36 | 1900210166 | O-Ring 80X3 MM |
| 37 | 1615806054 | Guide Tube |
| 38 | 1610220009 | Guide Bushing |
| 39 | 1614619005 | Compression Spring |
| 4 | 1615805058 | Flanged Bearing |
| 40 | 1615700017 | Intermediate Flange |
| 41 | 1610210008 | O-Ring 17,3X17,7 MM |
| 42 | 1613123003 | Striker Pin |
| 43 | 1617000428 | Toolholder |
| 44 | 1618045026 | Retaining Bracket |
| 45 | 1613103004 | Locking Bolt |
| 46 | 2917760187 | Slotted Spring Pin 8X55 DIN 1481 |
| 47 | 1900210172 | O-Ring 100X3 MM |
| 48 | 1610516007 | Sealing cap |
| 49 | 1610707000 | Insulation Tubing |
| 5 | 1610900015 | Groove ball bearing 12X37X12 |
| 50 | 3600421500 | Protection Sleeve |
| 51 | 1610703019 | Cord guard |
| 52 | 1615500256 | Fan Cover |
| 53 | 1600A00C0N | Covering hood |
| 55 | 1617000723 | Power supply cord |
| 56 | 1610703011 | Grommet |
| 57 | 1615500212 | Switch Cover |
| 58 | 1617200108 | Switch |
| 58/10 | 1610591001 | Protective Cap |
| 58/20 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 59 | 1612310010 | Intermediate Plate |
| 6 | 1615500214 | Screw Plug |
| 60 | 1615500330 | Insulating Cap |
| 64 | 1616334000 | Rubber Torsion-Bar |
| 65 | 1613060005 | Toothed Shaft |
| 650/1 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 650/2 | 1907950009 | Offset Screwdriver DIN 911 SW10 |
| 650/3 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 650/4 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 67 | 2916660023 | Spring retaining ring DIN 472 52X2MM |
| 68 | 1613465001 | Rubber Buffer |
| 69 | 1612310011 | Intermediate Plate |
| 7 | 1615108006 | Insulating Housing |
| 70 | 1615132011 | Handle |
| 700 | 1618660000 | Pointed Chisel 400 MM |
| 701 | 1618661000 | Wide chisel 400 MM X 80 MM |
| 702 | 1618662000 | Broad chisel 400 MM X 125 MM |
| 703 | 1618639005 | Anchor Nail Driver SW28 |
| 703/1 | 1618669001 | Toolholder |
| 703/2 | 1618049001 | Riveter |
| 703/3 | 1613120016 | Locating bolt |
| 71 | 160111A3H3 | Nameplate |
| 72 | 1601331032 | Holding Bracket |
| 73 | 1603435008 | Tapping Screw BZ4,8X63 MM |
| 74 | 2916160009 | Disc Spring DIN 2093-A25X12,2X1,5 |
| 75 | 3614640501 | Compression Spring |
| 76 | 1611302011 | Fastening Clamp |
| 79 | 1614652001 | Spiral Spring |
| 8 | 1616610056 | Fan |
| 808 | 1617014111 | Carbon-Brush Set |
| 85 | 1614336002 | Brush Holder |
| 854 | 1617000858 | Switch Housing |
| 86 | 1610300033 | Bearing bolt |
| 861 | 1617000429 | Fixing plate |
| 863 | 1617000A10 | Parts Set Black |
| 87 | 1900900307 | Groove ball bearing 6205 DIN 625 |
| 88 | 1610283004 | Rotary shaft lip seal |
| 881 | 1613490005 | Torx Oval-Head Screw M4X10 |
| 882 | 1610151007 | Spring Lock Washer |
| 89 | 1611099004 | Insulating Plate |
| 890 | 1617000849 | Un. Flange-Mtd. Motor 220-240V |
| 895 | 1615430007 | Grease 1000 Ml |
| 897 | 1617000050 | Wear and Tear Part Set |
| 898 | 1615430001 | Grease Tube 225 Ml |
| 9 | 1613313000 | Hex Nut DIN 985-M12X1 |
| 90 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 91 | 2916690005 | Spring Lock Washer M6 |
| 94 | 1611015021 | Sealing Plate |
| 97 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 99 | 3613313500 | Hex Nut DIN 985-10-M10X1 |
