Makita UR3500
Makita UR3500: exploded parts diagram, 1 sheet, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UR3500: 80 positions on 1 sheet

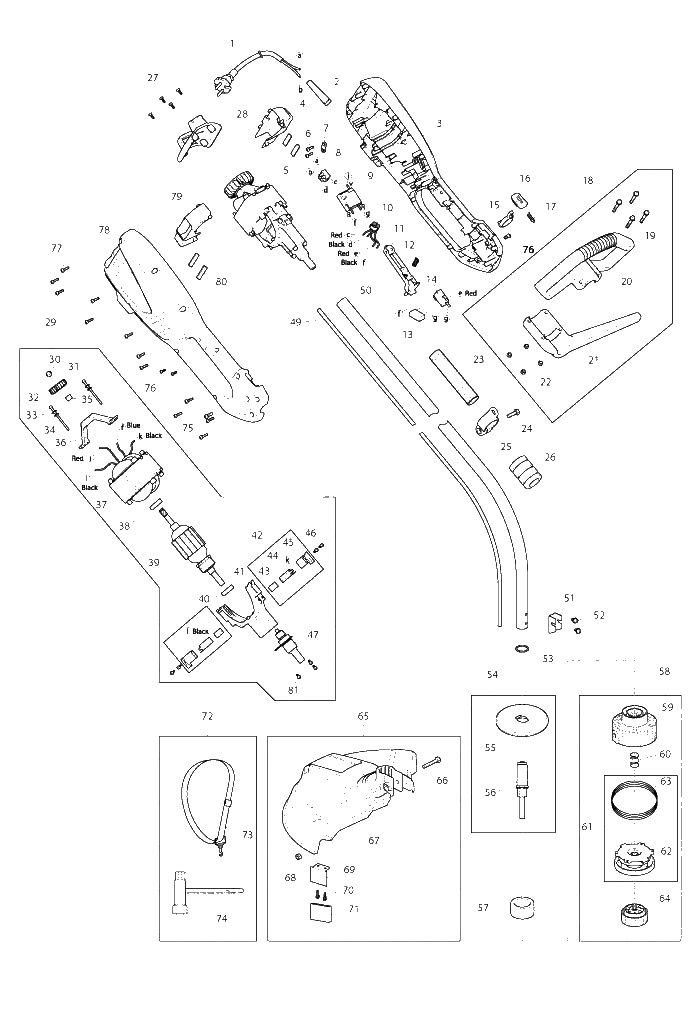

Sheet 1: Makita UR3500 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | YA00000497 | |
| 2 | YA00000516 | |
| 3 | YA00000617 | |
| 4 | YA00000562 | Makita YA00000562 LEFT VOLUTE CASE |
| 5 | YA00000514 | Makita YA00000514 RUBBER PAD |
| 6 | YA00000456 | |
| 7 | YA00000547 | |
| 8 | YA00000501 | |
| 9 | YA00000500 | |
| 10 | YA00000499 | Makita YA00000499 INDUCTANCE |
| 11 | YA00000554 | Makita YA00000554 SWITCH TRIGGER |
| 12 | YA00000513 | |
| 13 | YA00000498 | |
| 14 | YA00000555 | Makita YA00000555 SWITCH |
| 15 | YA00000539 | Makita YA00000539 SPACING COLLAR |
| 16 | YA00000525 | Makita YA00000525 PUSH BUTTON |
| 17 | YA00000511 | |
| 19 | YA00000445 | |
| 20 | YA00000564 | Makita YA00000564 AUX HANDLE COVER |
| 21 | YA00000563 | Makita YA00000563 AUX HANDLE SUPPORT |
| 22 | YA00000462 | |
| 23 | YA00000522 | |
| 24 | YA00000449 | |
| 25 | YA00000541 | |
| 26 | YA00000521 | |
| 27 | YA00000453 | |
| 28 | YA00000560 | Makita YA00000560 REAR COVER |
| 30 | YA00000463 | |
| 31 | YA00000507 | Makita YA00000507 IMPELLER |
| 32 | YA00000538 | |
| 33 | YA00000523 | |
| 34 | YA00000524 | |
| 35 | YA00000531 | Makita YA00000531 AXLE SLEEVE |
| 36 | YA00000526 | Makita YA00000526 REAR BRACKET |
| 37 | YA00000506 | Makita YA00000506 STATOR ASSY |
| 38 | YA00000431 | Makita YA00000431 608 BEARING |
| 39 | YA00000509 | |
| 40 | YA00000430 | Makita YA00000430 BEARING |
| 41 | YA00000484 | |
| 43 | YA00000504 | Makita YA00000504 CARBON BRUSH |
| 44 | YA00000502 | |
| 45 | YA00000503 | |
| 46 | YA00000455 | |
| 47 | YA00000483 | Makita YA00000483 SHAFT ASSY |
| 49 | YA00000551 | Makita YA00000551 FLEXIBLE SHAFT |
| 50 | YA00000495 | Makita YA00000495 TUBE ASSY |
| 51 | YA00000527 | |
| 52 | YA00000447 | |
| 53 | YA00000534 | Makita YA00000534 SEALING RING |
| 55 | YA00000432 | Makita YA00000432 SAFETY GUARD |
| 56 | YA00000482 | |
| 57 | YA00000568 | Makita YA00000568 DUST PROOF RING |
| 59 | YA00000488 | |
| 60 | YA00000512 | Makita YA00000512 COMPRESSION SPRING |
| 62 | YA00000476 | Makita YA00000476 SPOOL COVER ASSY |
| 63 | YA00000436 | Makita YA00000436 NYLON LINE |
| 64 | YA00000486 | |
| 66 | YA00000448 | |
| 67 | YA00000544 | |
| 68 | YA00000463 | |
| 69 | YA00000529 | Makita YA00000529 BLADE |
| 70 | YA00000457 | |
| 71 | YA00000518 | Makita YA00000518 BLADE COVER |
| 73 | YA00000435 | |
| 74 | YA00000437 | |
| 75 | YA00000451 | |
| 76 | YA00000454 | |
| 77 | YA00000452 | |
| 78 | YA00000617 | |
| 79 | YA00000561 | Makita YA00000561 RIGHT VOLUTE HOUSING |
| 80 | YA00000514 | Makita YA00000514 RUBBER PAD |
| 81 | YA00000455 | |
| 18 | YA00000494 | |
| 29 | YA00000492 | |
| 42 | YA00000489 | Makita YA00000489 CARBON BRUSH ASSY |
| 54 | YA00000485 | Makita YA00000485 OUTPUT SHAFT ASSY |
| 58 | YA00000474 | |
| 61 | YA00000475 | |
| 65 | YA00000491 | |
| 72 | YA00000493 |
