Makita UR007G
Makita UR007G: exploded parts diagram, 1 sheet, 81 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UR007G: 81 positions on 1 sheet

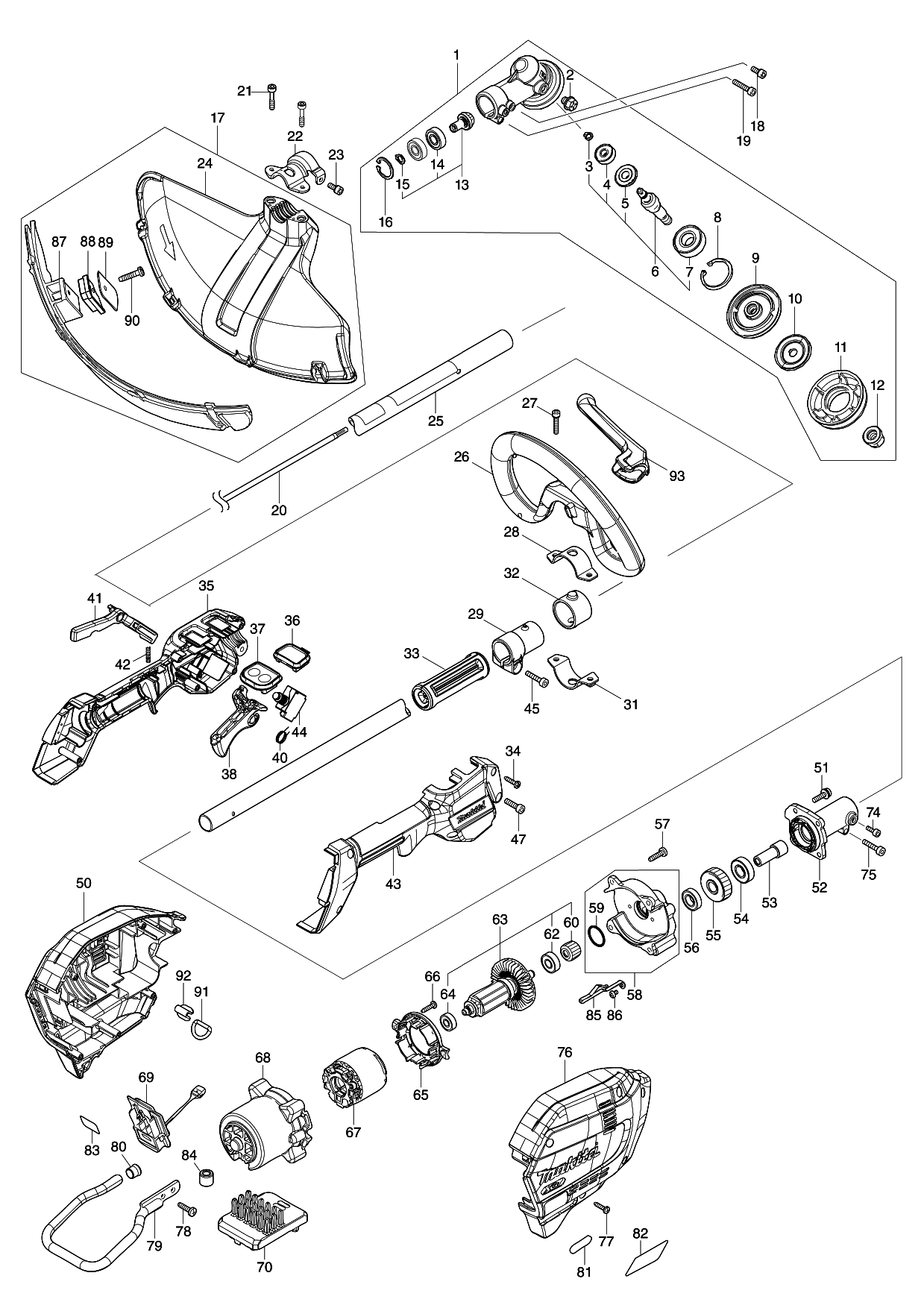

Sheet 1: Makita UR007G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 265590-2 | Makita 265590-2 HEX. BOLT M8X10, EBH250U |
| 3 | 232350-7 | Makita 232350-7 RING SPRING 6, EM404MP, EM406MP |
| 4 | 210030-5 | Makita 210030-5 BALL BEARING 627ZZ, MT811 |
| 5 | 221484-1 | |
| 6 | 136233-2 | Makita 136233-2 CUTTER SHAFT ASSY |
| 7 | 211228-7 | Makita 211228-7 BALL BEARING 6202DDW, GA9010 |
| 8 | 257432-4 | Makita 257432-4 RETAINING RING R-35, EM404MP, EM406MP |
| 9 | 144312-2 | Makita 144312-2 RECEIVE WASHER COMPLETE, EM404MP, EM406MP |
| 10 | 347104-0 | Makita 347104-0 CLAMP WASHER, EM2900 |
| 11 | 457274-8 | |
| 12 | 252236-9 | Makita 252236-9 HEX.LOCK NUT M10-17, EM404MP |
| 13 | 136235-8 | Makita 136235-8 SPIRAL BEVEL GEAR ASSY |
| 14 | 210049-4 | Makita 210049-4 BALL BEARING 609ZZ, EBH251U |
| 15 | 257986-1 | |
| 16 | 257987-9 | |
| 18 | 922216-6 | Makita 922216-6 HEX.SOCKET HEAD BOLT M5*14 W, JR3000V |
| 19 | 922242-5 | Makita 922242-5 HEX. SOCKET HEAD BOLT M5X |
| 20 | 327056-1 | OTHR Makita 327056-1 SHAFT, MEM427 |
| 21 | 251513-6 | Makita 251513-6 HEX. SOCKET HEAD BOLT M5*25, EM404MP, EM406MP |
| 22 | 347107-4 | Makita 347107-4 PROTECTOR CLAMP 24, EM404MP, EM406MP |
| 23 | 922216-6 | Makita 922216-6 HEX.SOCKET HEAD BOLT M5*14 W, JR3000V |
| 24 | 457271-4 | Makita 457271-4 PROTECTOR U 450, EM404MP |
| 25 | 140S82-5 | |
| 26 | 457267-5 | |
| 27 | 922234-4 | |
| 28 | 347113-9 | Makita 347113-9 UPPER CLAMP 35 |
| 29 | 457269-1 | Makita 457269-1 PIPE HOLDER 24 |
| 31 | 347114-7 | Makita 347114-7 LOWER CLAMP 35 |
| 32 | 424942-8 | Makita 424942-8 DAMPER |
| 33 | 451601-1 | Makita 451601-1 SPACER 24 |
| 34 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 35 | 183S36-9 | |
| 36 | 141D25-0 | |
| 37 | 140W06-5 | |
| 38 | 459758-2 | |
| 40 | 233622-3 | |
| 41 | 459759-0 | |
| 42 | 233101-1 | Makita 233101-1 COMPRESSION SPRING 4, AN611 |
| 43 | 183S36-9 | |
| 44 | 651492-2 | |
| 45 | 922244-1 | Makita 922244-1 H.S.H. BOLTE M5X25 WITH WG, UX360D |
| 47 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 50 | 183R88-4 | |
| 51 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 52 | 140Y38-4 | |
| 53 | 325811-5 | Makita 325811-5 SPINDLE HUBBBC231U |
| 54 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 55 | 227848-7 | |
| 56 | 211150-8 | Makita 211150-8 BALL BEARING 6901ZZ, 6935FD |
| 57 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 59 | 213961-7 | Makita 213961-7 O RING 22, MT813 |
| 60 | 227834-8 | |
| 62 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 63 | 519647-4 | |
| 64 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 65 | 459764-7 | |
| 66 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 67 | 629A25-7 | |
| 68 | 412961-6 | |
| 69 | 632P49-4 | Makita 632P49-4 TERMINAL UNIT |
| 70 | 620F26-8 | |
| 74 | 922211-6 | Makita 922211-6 HEX SOCKET HEAD BOLT M5*12, MEM427 |
| 75 | 922233-6 | Makita 922233-6 HEX SOCKET HEAD BOLT M5X2 |
| 76 | 183R88-4 | |
| 77 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 78 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 79 | 347752-5 | |
| 80 | 422230-7 | |
| 81 | 8025F3-0 | |
| 82 | 811X91-8 | |
| 83 | 811X97-6 | |
| 84 | 688163-8 | Makita 688163-8 Line Filter for BHS630 |
| 85 | 347751-7 | |
| 86 | 911102-6 | Makita 911102-6 PAN HEAD SCREW M4X6 |
| 87 | 144316-4 | Makita 144316-4 PROTECTOR U EXT.420-450 COMP, EM404MP |
| 88 | 459765-5 | |
| 89 | 347115-5 | Makita 347115-5 CUTTER, EM404MP, EM406MP |
| 90 | 266459-3 | Makita 266459-3 TAPPING SCREW 5*25, 5477NB |
| 91 | 327742-4 | |
| 92 | 347783-4 | |
| 93 | 144315-6 | Makita 144315-6 BARRIER COMPLETE |
