Makita UR002G
Makita UR002G: exploded parts diagram, 2 sheets, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita UR002G: 82 positions on 2 sheets

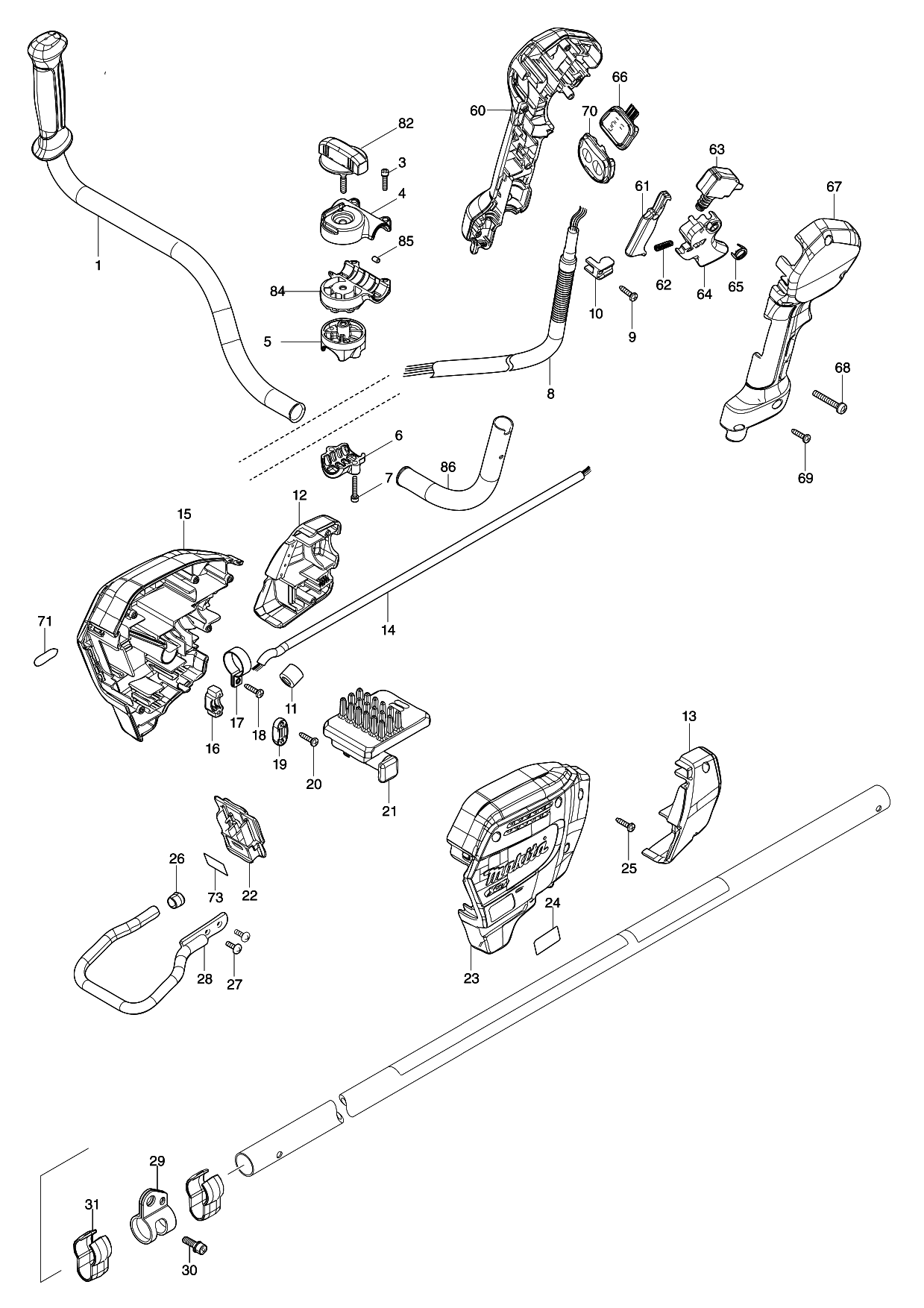

Sheet 1: Makita UR002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 140L83-1 | Makita 140L83-1 HANDLE 19 COMPLETE |
| 3 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 4 | 318272-6 | Makita 318272-6 HANDLE HOLDER 1 ,RBC420 |
| 5 | 318273-4 | Makita 318273-4 HANDLE HOLDER, DUR365U |
| 6 | 318274-2 | Makita 318274-2 HANDLE HOLDER 1 , DUR365U |
| 7 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 8 | 699132-4 | |
| 9 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 10 | 687260-7 | Makita 687260-7 CORD CLAMP, HR2470 |
| 11 | 688163-8 | Makita 688163-8 Line Filter for BHS630 |
| 12 | 183S35-1 | |
| 13 | 183S35-1 | |
| 14 | 699159-4 | |
| 15 | 183S34-3 | |
| 16 | 687051-6 | Makita 687051-6 STRAIN RELIEF |
| 17 | 346248-3 | Makita 346248-3 PIPE CLAMP 24 |
| 18 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 19 | 687124-5 | Makita 687124-5 CORD CLAMP, MT951 |
| 20 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 21 | 620E46-6 | |
| 22 | 632P49-4 | Makita 632P49-4 TERMINAL UNIT |
| 23 | 183S34-3 | |
| 24 | 811A45-7 | |
| 25 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 26 | 422230-7 | |
| 27 | 266420-0 | Makita 266420-0 TAPPING SCREW 5*20, HR2810 |
| 28 | 347752-5 | |
| 29 | 347116-3 | Makita 347116-3 HANGER |
| 30 | 922212-4 | Makita 922212-4 HEX. SOCKET HEAD BOLT M5X |
| 31 | 457458-8 | Makita 457458-8 CLAMP, DUR187U |
| 60 | 183S64-4 | |
| 61 | 459146-3 | |
| 62 | 233101-1 | Makita 233101-1 COMPRESSION SPRING 4, AN611 |
| 63 | 651492-2 | |
| 64 | 459145-5 | |
| 65 | 233540-5 | Makita 233540-5 TORSION SPRING 11, EBH250U |
| 66 | 141B31-3 | |
| 67 | 183S64-4 | |
| 68 | 911258-5 | Makita 911258-5 PAN HEAD SCREW M5X35 WR, 2414NB |
| 69 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 70 | 140W06-5 | |
| 71 | 8012U4-2 | |
| 73 | 811A49-9 | |
| 82 | 162965-5 | |
| 84 | 312B85-9 | |
| 85 | 263005-3 | Makita 263005-3 RUBBER PIN 6, LS1040 |
| 86 | 327861-6 |

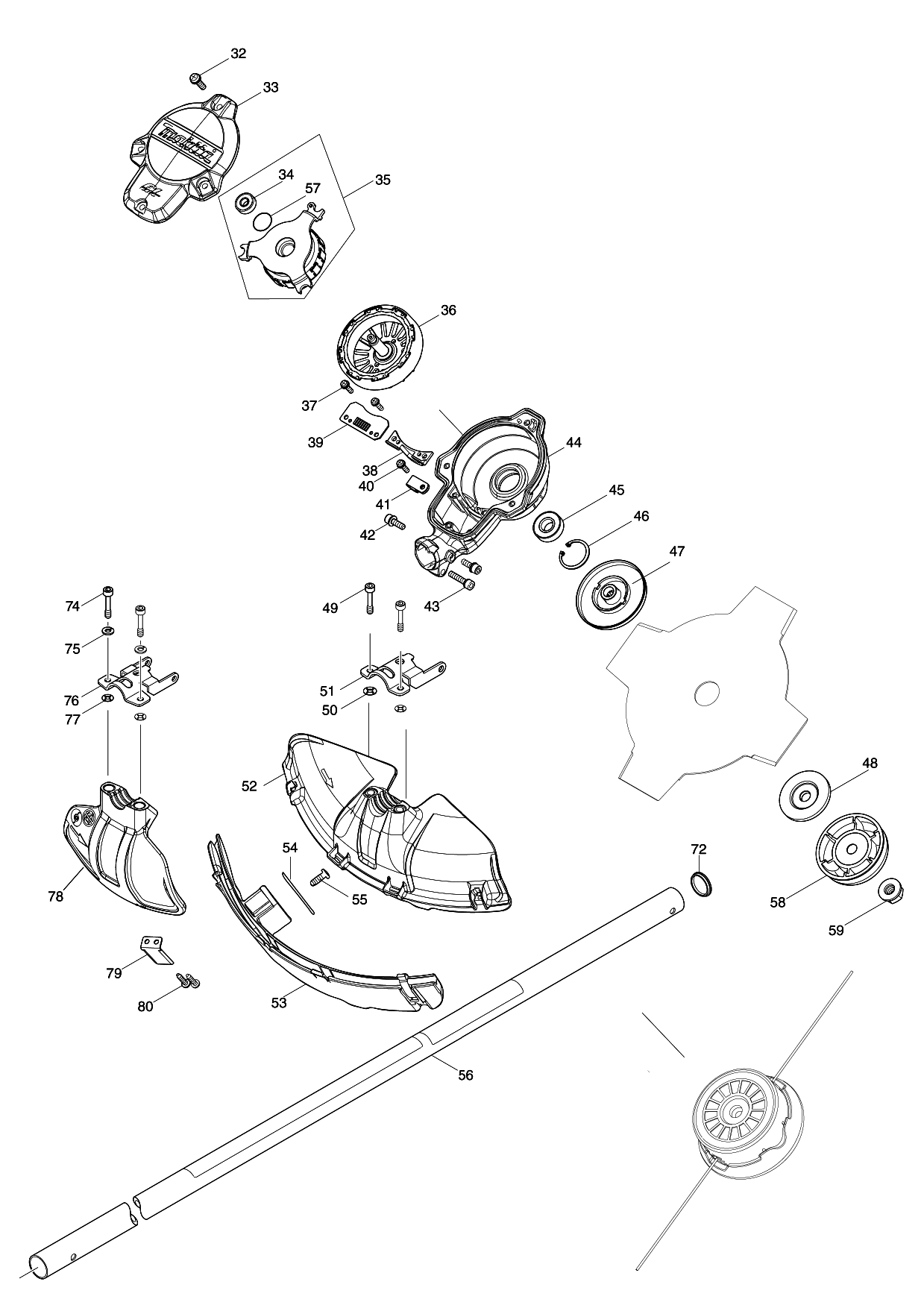

Sheet 2: Makita UR002G parts diagram
| No. | Part number | Part name |
|---|---|---|
| 32 | 911233-1 | Makita 911233-1 PAN HEAD SCREW M5X20, EBH251 |
| 33 | 413335-4 | |
| 34 | 210062-2 | Makita 210062-2 BALL BEARING 607ZZ, MT952 |
| 36 | 619462-7 | Makita 619462-7 Rotor for DUR365, TEC 8872 |
| 37 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 38 | 455628-3 | Makita 455628-3 INNER COVER |
| 39 | 620E48-2 | |
| 40 | 911128-8 | Makita 911128-8 P.H.SCREW M4*16 WITH WR, MUH308 |
| 41 | 687042-7 | Makita 687042-7 CORD CLAMP, 2012NB |
| 42 | 922223-9 | Makita 922223-9 SOCKET HEAD BOLT, MEM427 |
| 43 | 922241-7 | Makita 922241-7 Bolt M5X25 for JR300VT |
| 44 | 141A05-8 | |
| 45 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 46 | 962106-1 | Makita 962106-1 RETAINING RING R-28, GD0800C |
| 47 | 140L84-9 | |
| 48 | 346084-7 | Makita 346084-7 CLAMP WASHER, EBH250U |
| 49 | 266896-1 | Makita 266896-1 HEX. SOCKET HEAD BOLT M5X20 |
| 50 | 261156-6 | Makita 261156-6 POLYPROPYLENE WASHER 4 |
| 51 | 346785-7 | Makita 346785-7 PROTECTOR CLAMP |
| 52 | 413336-2 | |
| 53 | 141A09-0 | |
| 54 | 347115-5 | Makita 347115-5 CUTTER, EM404MP, EM406MP |
| 55 | 266388-0 | Makita 266388-0 TAPPING SCREW 5*70, UC3020A |
| 56 | 141B05-4 | |
| 57 | 213325-5 | Makita 213325-5 O RING19, TD0100 |
| 58 | 168526-9 | Makita 168526-9 CUP COMPLETE, EBH250U |
| 59 | 264025-0 | Makita 264025-0 HEX.NUT M10-17, EBH250U |
| 72 | 422727-6 | |
| 74 | ||
| 75 | ||
| 76 | ||
| 77 | ||
| 78 | ||
| 79 | ||
| 80 |
