Bosch UniversalVerticut 1100

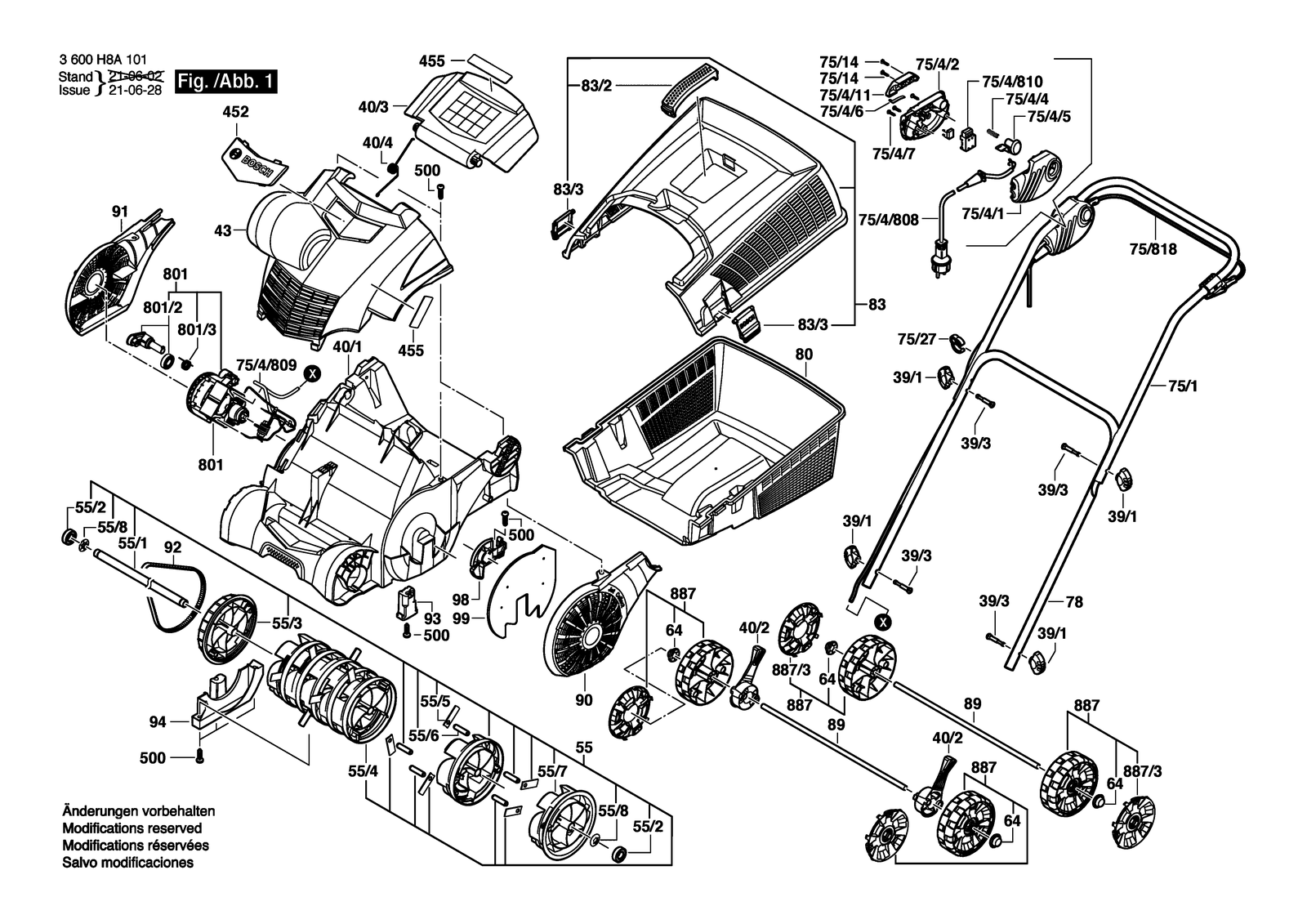

Bosch UniversalVerticut 1100 verticutter: exploded parts diagram, 1 sheet, 54 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalVerticut 1100: 54 positions on 1 sheet
Bosch UniversalVerticut 1100 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 39/1 | F016F05692 | Wing Nut |
| 39/3 | F016F05693 | Trunnion |
| 40/1 | F016F05676 | Chassis |
| 40/2 | F016F05694 | Positioning Lever |
| 40/3 | F016F05695 | Guard Flap |
| 40/4 | F016F05696 | Spring |
| 43 | F016F05677 | Motor Hood |
| 452 | F016F05675 | Company Logo |
| 455 | F016F05731 | Sticker |
| 500 | F016F05708 | Self-Cutting Screw |
| 55 | F016F05739 | Cutter |
| 55/1 | F016F05697 | Rotor Shaft |
| 55/2 | F016F05691 | Bearing |
| 55/3 | F016F05698 | Pulley |
| 55/4 | F016F05727 | Blade Holder |
| 55/5 | F016F05728 | Knife |
| 55/6 | F016F05729 | Slotted Spring Pin |
| 55/7 | F016F05730 | End cap |
| 55/8 | F016F05699 | Shield |
| 64 | F016F05700 | Ratchet Cap |
| 75/1 | F016F05685 | Handle |
| 75/14 | F016F05708 | Self-Cutting Screw |
| 75/27 | F016F05710 | Cable Clip |
| 75/4/1 | F016F05701 | Switch Housing |
| 75/4/11 | F016F05709 | Clamping Piece |
| 75/4/2 | F016F05702 | Switch Housing |
| 75/4/4 | F016F05704 | Compression Spring |
| 75/4/5 | F016F05705 | Push-Button |
| 75/4/6 | F016F05707 | Leaf Spring |
| 75/4/7 | F016F05708 | Self-Cutting Screw |
| 75/4/808 | F016F05718 | Power supply cord EU |
| 75/4/808 | F016F05719 | Power supply cord Gb |
| 75/4/808 | F016F05720 | Power supply cord Ch |
| 75/4/809 | F016F05743 | Connection Cable |
| 75/4/810 | F016F05717 | On-Off Switch |
| 75/818 | F016F05750 | Control Bar |
| 78 | F016F05687 | Handle |
| 80 | F016F05711 | Collection box |
| 801 | F016F05684 | Motor |
| 801/2 | F016F05690 | Tensioner arm |
| 801/3 | F016F05716 | Spring |
| 83 | F016F05682 | Collector Box Top |
| 83/2 | F016F05683 | Handle |
| 83/3 | F016F05680 | Latch |
| 887 | F016F05751 | Wheel |
| 887/3 | F016F05723 | Cover |
| 89 | F016F05712 | Axle |
| 90 | F016F05678 | Grille |
| 91 | F016F05679 | Grille |
| 92 | F016F05713 | Drive Belt |
| 93 | F016F05714 | Bearing Holder |
| 94 | F016F05715 | Bearing Holder |
| 98 | F016F05689 | Clamping Piece |
| 99 | F016F05688 | Air Filter |
