Bosch UniversalSaw 18V-100

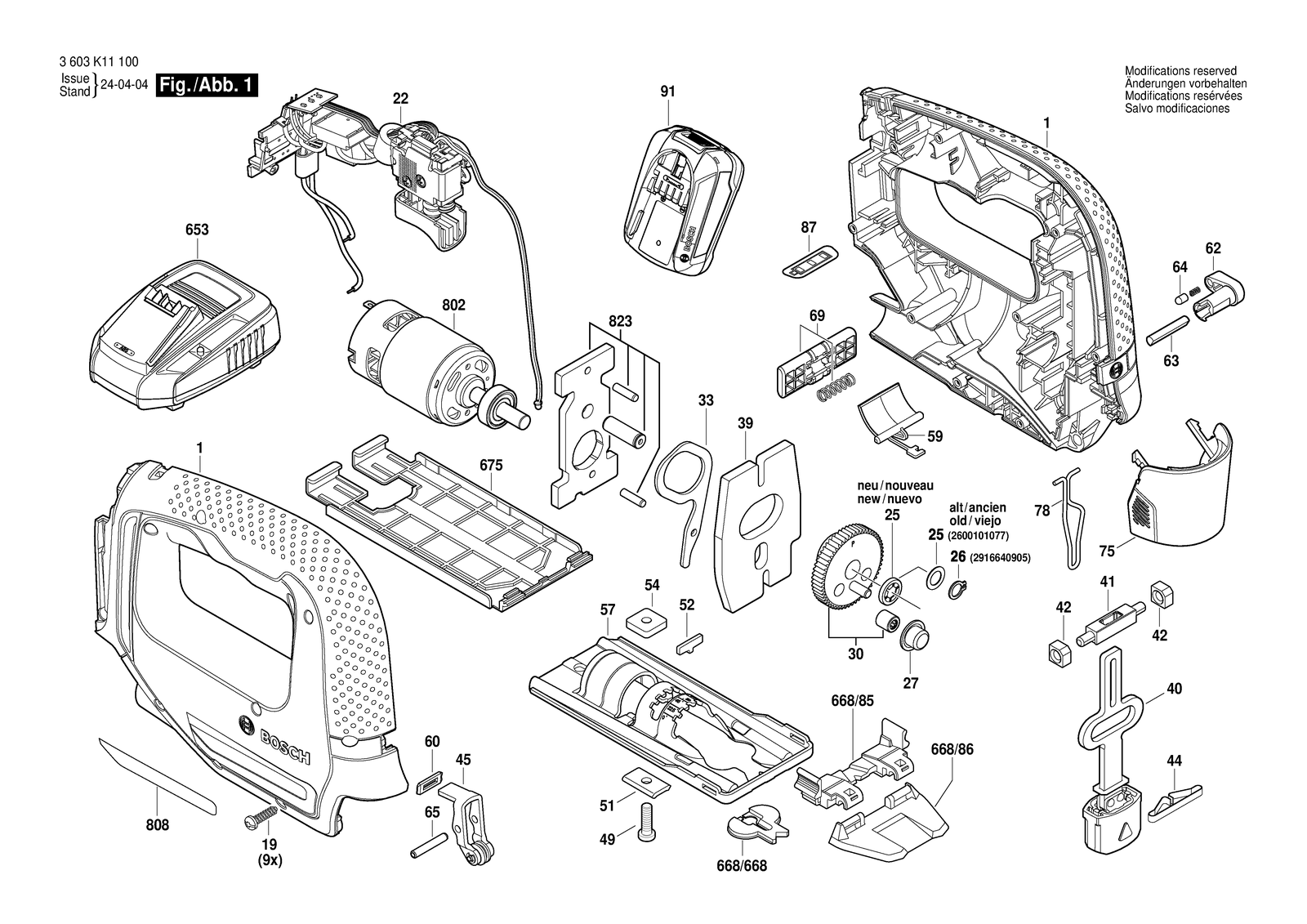

Bosch UniversalSaw 18V-100 cordless jigsaw: exploded parts diagram, 1 sheet, 41 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalSaw 18V-100: 41 positions on 1 sheet
Bosch UniversalSaw 18V-100 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 160580665F | Housing |
| 19 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 22 | 2607202529 | Switch Assembly |
| 25 | 1600A023S8 | Retaining Washer |
| 27 | 2600914022 | Needle bearing |
| 30 | 2609003655 | Eccentric Cog Wheel |
| 33 | 2609003444 | Fork Lever |
| 39 | 2609003452 | Counterweight |
| 40 | 1600A024JN | Lifting Rod |
| 41 | 2609003638 | Plain bearing |
| 42 | 2609003450 | Insert |
| 44 | 2604613004 | Compression Spring |
| 45 | 2609001608 | Roller Lever |
| 49 | 1600A02343 | Torx socket button screw M6X20 Zn/ni |
| 51 | 2601030019 | Profile Beading |
| 52 | 2601030166 | Adjusting Pin |
| 54 | 2600040004 | Fixing plate |
| 57 | 2609003347 | Base Plate |
| 59 | 2609004225 | Spring Plate |
| 60 | 2601015077 | Sealing Plate |
| 62 | 1600A022BJ | Change-Over Switch |
| 63 | 2609003508 | Control Shaft |
| 64 | 1600A01BV3 | Ratchet Cap |
| 65 | 2609002725 | Straight Pin |
| 653 | 2607226517 | Charger EU AL 18V-20 230V 2A |
| 653 | 2607226519 | Charger UK AL 18V-20 230V 2A |
| 668/668 | 2601016065 | Splintering Protector |
| 668/85 | 2609003509 | Support |
| 668/86 | 2609003510 | Window |
| 675 | 1617S020JG | Pad |
| 69 | 1600A022BF | Lever |
| 75 | 1600A023TM | Covering hood |
| 78 | 2609003350 | Protecting Cover Black |
| 802 | 2609004731 | DC motor 18V |
| 808 | 160111A8RF | Nameplate |
| 823 | 1600A0339J | Bearing Bracket |
| 87 | 160111C3WT | Sticker |
| 91 | 1607A350JM | Battery Pack PBA 18V/1,5 Ah W-a |
| 91 | 1607A350RP | Battery Pack PBA 18V 2,0AH W-b |
| 91 | 1607A350RU | Battery Pack PBA 18V 2,5AH W-b 45WH |
| 91 | 1607A351C9 | Battery Pack |
