Bosch UniversalRotak 650
Bosch UniversalRotak 650 lawnmower: exploded parts diagram, 2 sheets, 91 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

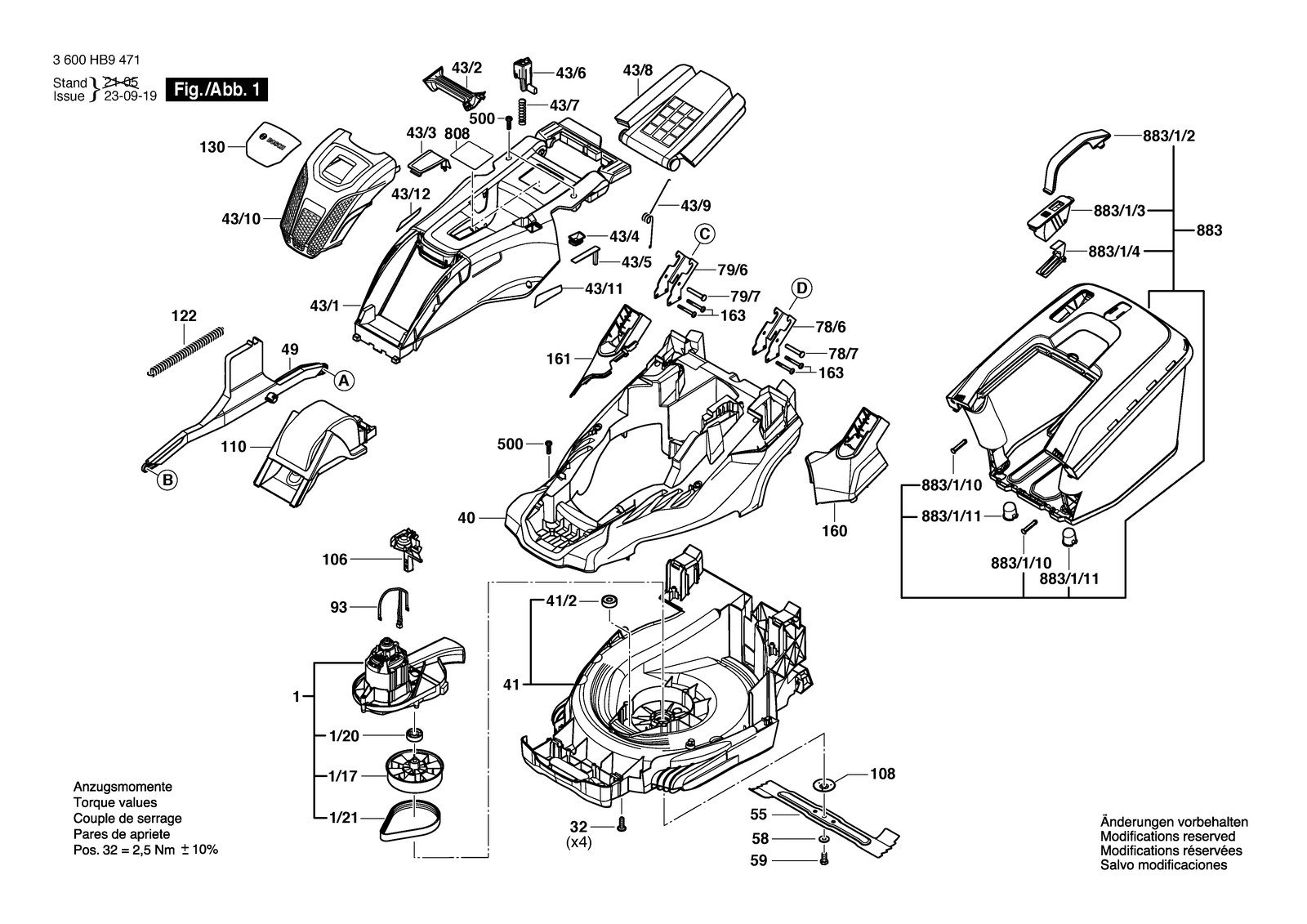

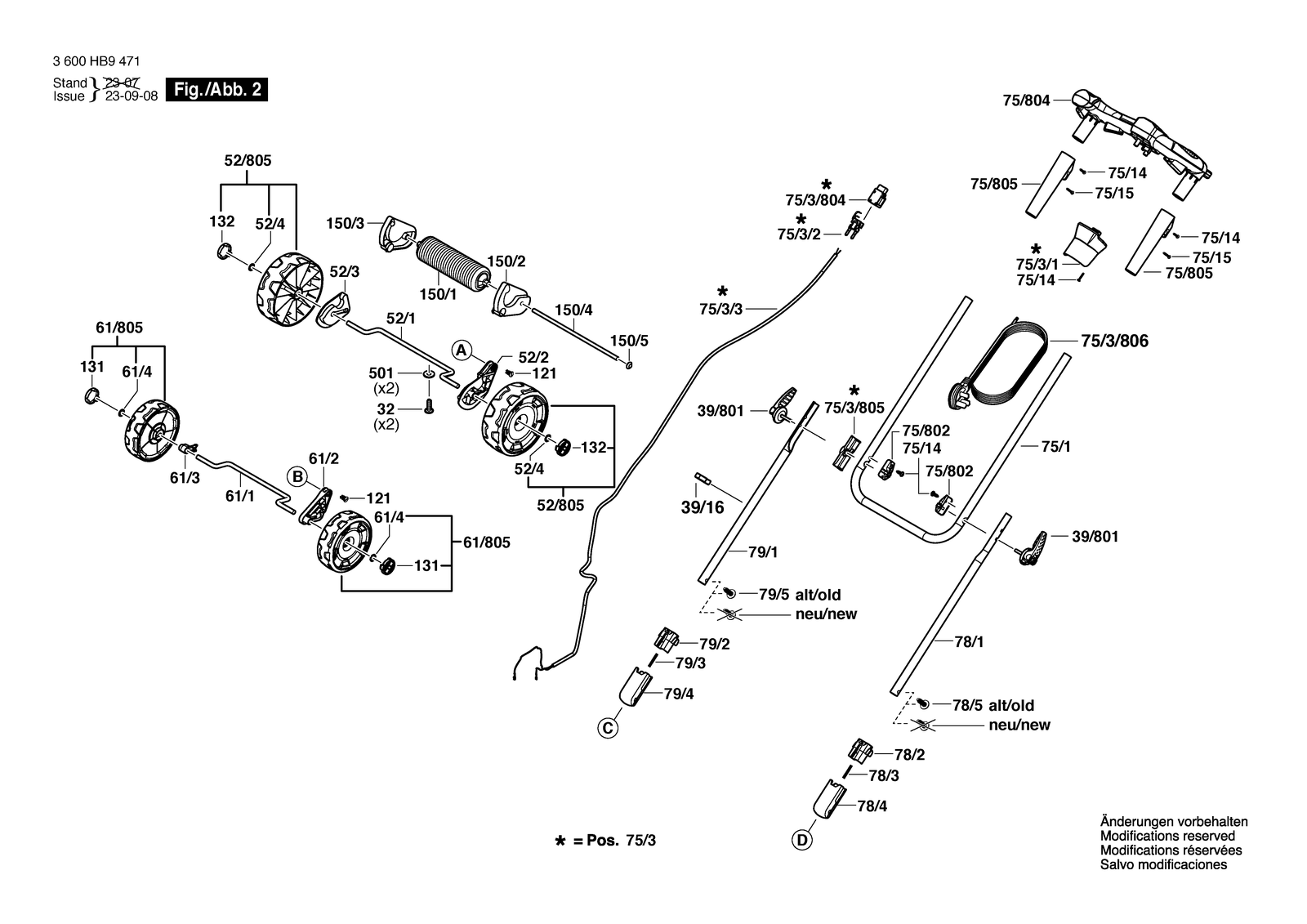

All parts of Bosch UniversalRotak 650: 91 positions on 2 sheets
Bosch UniversalRotak 650 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1617S0211N | Motor |
| 1/17 | F016L65108 | Drive Shaft |
| 1/20 | F016L64594 | Bearing |
| 1/21 | F016L65109 | Drive Belt |
| 106 | F016L90419 | Wire Guide |
| 108 | F016L67627 | Bearing cover |
| 110 | F016L90086 | Baffle |
| 121 | F016L91066 | Clip |
| 122 | F016L90072 | Spring |
| 130 | F016L90876 | Front cover Dark Grey P2 |
| 131 | F016L68116 | Cover |
| 132 | F016L68116 | Cover |
| 150/1 | F016L90413 | Roller |
| 150/2 | F016L90414 | Roller Carrier |
| 150/3 | F016L90415 | Roller Carrier |
| 150/4 | F016L90025 | Spindle |
| 150/5 | F016T48990 | Securing Cap Black Ø8 MM |
| 160 | F016L90060 | Cover |
| 161 | F016L90061 | Cover |
| 163 | 1613490011 | Torx Oval-Head Screw M6X50 |
| 32 | F016L37433 | Self-Cutting Screw |
| 39/16 | F016L66895 | Cable Clip Rotak II |
| 39/801 | F016105363 | Clamping Lever |
| 40 | F016L90982 | Mower deck 42/46 |
| 41 | F016L90443 | Housing 42 CM |
| 41/2 | F016L64387 | Bearing 6003-ZZ |
| 43/1 | F016L90017 | Motor Hood |
| 43/10 | F016L90400 | Grille |
| 43/11 | 160111C3G3 | Sticker Powerdrive L |
| 43/11 | F016L90076 | Sticker Prosilence L |
| 43/12 | 160111C3G4 | Sticker Powerdrive R |
| 43/12 | F016L90077 | Sticker Prosilence R |
| 43/2 | F016L90018 | Carrying Handle |
| 43/3 | F016L90081 | Cover |
| 43/4 | F016L90432 | Transparent Cover |
| 43/5 | F016L90433 | Indicator |
| 43/6 | 1600A022AC | Button |
| 43/7 | F016L91168 | Button Spring |
| 43/8 | F016L90022 | Guard Flap |
| 43/9 | F016L90868 | Spring |
| 49 | F016L90028 | Linkage part |
| 500 | F016L68124 | Torx head screw |
| 501 | 8716107299 | Plain Washer |
| 52/1 | F016L90007 | Axle |
| 52/2 | F016L90033 | Link Piece |
| 52/3 | F016L90037 | Link Piece |
| 52/4 | F016L68095 | Ratchet Cap |
| 52/805 | F016104422 | Wheel |
| 55 | F016L69572 | Cutter Blade 40 CM |
| 58 | F016L18181 | Locking washer 1/2" |
| 59 | F04N004003 | Hex Screw |
| 61/1 | F016L90006 | Axle 42/46 |
| 61/2 | F016L90032 | Link Piece |
| 61/3 | F016L90036 | Spacer |
| 61/4 | F016L68095 | Ratchet Cap |
| 61/805 | F016104421 | Wheel |
| 75/1 | F016L90608 | Handle |
| 75/14 | F016L36542 | Screw M5X8 Csk Hd. |
| 75/15 | F016L68124 | Torx head screw |
| 75/3 | F016L91147 | Wiring unit |
| 75/3/1 | F016L67217 | Switch Housing |
| 75/3/2 | F016L67220 | Switch Housing |
| 75/3/3 | F016L91145 | Connection Cable |
| 75/3/804 | F016104162 | Switch Kit |
| 75/3/805 | F016104213 | Cable Guide |
| 75/3/806 | F016104504 | Power supply cord UK 10M |
| 75/802 | F016105314 | Nut Holder |
| 75/804 | F016105448 | Switch assembly |
| 75/805 | F016104361 | Sleeve |
| 78/1 | F016L91139 | Handle |
| 78/2 | F016L90063 | Release mechanism |
| 78/3 | F016L90841 | Compression Spring |
| 78/4 | F016L90062 | Release mechanism |
| 78/5 | F016L36542 | Screw M5X8 Csk Hd. |
| 78/6 | F016L90082 | Bracket |
| 78/7 | F016L90014 | Pivot Pin |
| 79/1 | F016L91139 | Handle |
| 79/2 | F016L90063 | Release mechanism |
| 79/3 | F016L90841 | Compression Spring |
| 79/4 | F016L90062 | Release mechanism |
| 79/5 | F016L36542 | Screw M5X8 Csk Hd. |
| 79/6 | F016L90082 | Bracket |
| 79/7 | F016L90014 | Pivot Pin |
| 808 | 160111A7BG | Nameplate |
| 883 | F016105378 | Collection box |
| 883/1/10 | F016L91107 | Pin |
| 883/1/11 | F016L91108 | Socket insert |
| 883/1/2 | F016L90040 | Handle |
| 883/1/3 | F016L90557 | Cover |
| 883/1/4 | F016L91038 | Pivot Plate |
| 93 | F016103605 | Thermal protector |
