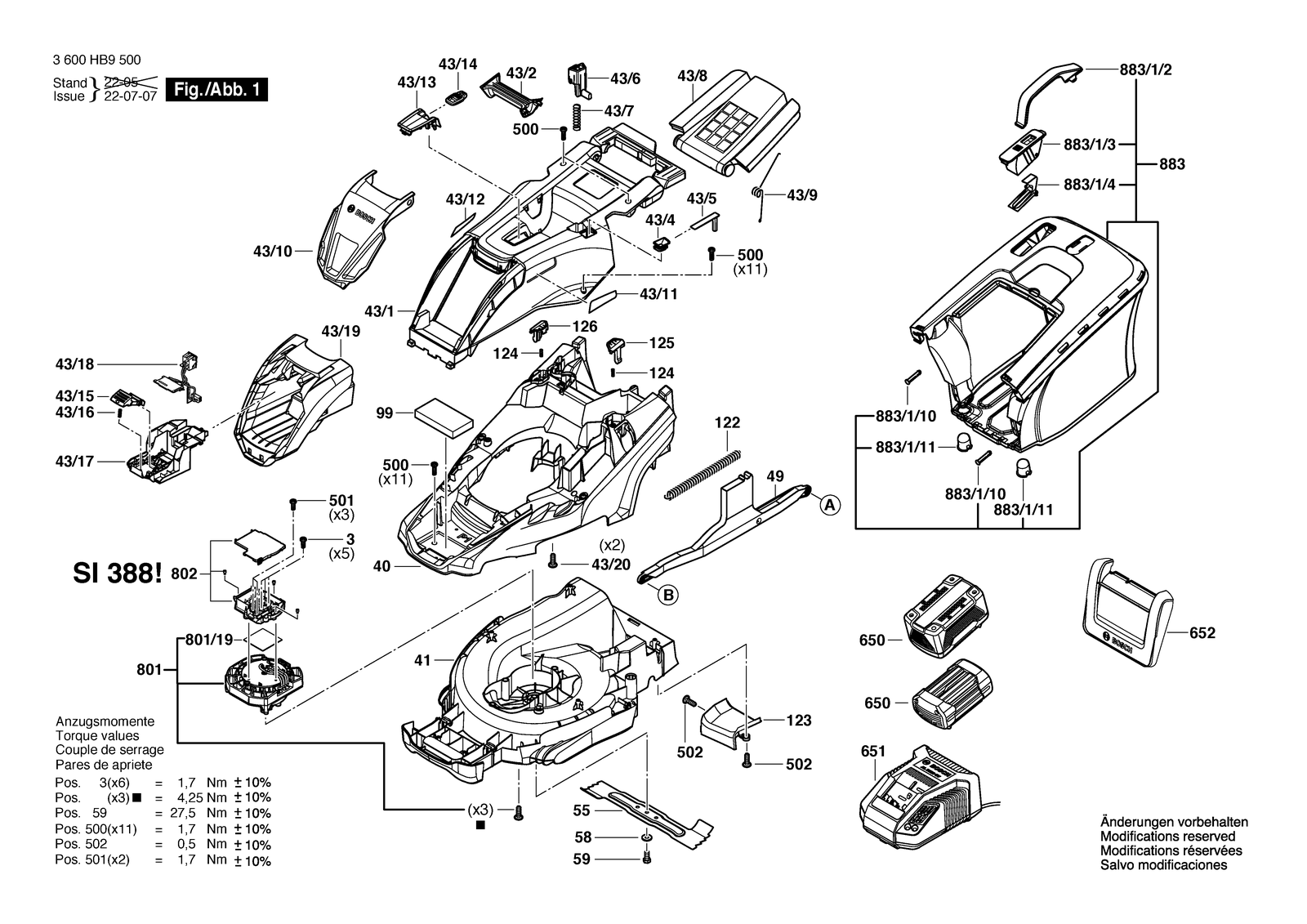

Bosch UniversalRotak 36-550 lawnmower: exploded parts diagram, 2 sheets, 84 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalRotak 36-550: 84 positions on 2 sheets
Bosch UniversalRotak 36-550 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 121 | F016L91066 | Clip |
| 122 | F016L59327 | Spring |
| 123 | F016L90553 | Plastic Insert |
| 124 | F016L90701 | Button Spring |
| 125 | F016L90197 | Button |
| 126 | F016L90198 | Button |
| 131 | F016L91046 | Cover Ø59 MM |
| 132 | F016L91047 | Cover Ø 71 MM |
| 3 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 39/16 | F016L66895 | Cable Clip Rotak II |
| 39/801 | F016105363 | Clamping Lever |
| 40 | F016L90981 | Mower deck |
| 41 | F016L69357 | Housing 36 CM |
| 43/1 | F016L90017 | Motor Hood |
| 43/10 | F016L91059 | Grille |
| 43/11 | 160111C3G3 | Sticker Powerdrive L |
| 43/11 | F016L90076 | Sticker Prosilence L |
| 43/12 | 160111C3G4 | Sticker Powerdrive R |
| 43/12 | F016L90077 | Sticker Prosilence R |
| 43/13 | F016L90021 | Cover Panel |
| 43/14 | F016L90054 | Key |
| 43/15 | F016L90773 | Release Lever |
| 43/16 | F016L90701 | Button Spring |
| 43/17 | F016L90777 | Switch Support |
| 43/18 | F016L90833 | Wiring Harness |
| 43/19 | F016L90057 | Battery Housing |
| 43/2 | F016L90018 | Carrying Handle |
| 43/20 | F016L68124 | Torx head screw |
| 43/4 | F016L90432 | Transparent Cover |
| 43/5 | F016L90434 | Indicator |
| 43/6 | 1600A022AC | Button |
| 43/7 | F016L91168 | Button Spring |
| 43/8 | F016L90022 | Guard Flap |
| 43/9 | F016L90868 | Spring |
| 49 | F016L90027 | Linkage part |
| 500 | F016L68124 | Torx head screw |
| 501 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 502 | F016L37433 | Self-Cutting Screw |
| 52/1 | F016L90005 | Axle |
| 52/2 | F016L90033 | Link Piece |
| 52/3 | F016L90037 | Link Piece |
| 52/4 | F016L68095 | Ratchet Cap |
| 52/805 | F016105108 | Wheel |
| 55 | F016L90158 | Cutter Blade 36 CM |
| 58 | F016L66173 | Spring Washer 1/2" |
| 59 | F016L66141 | Bolt M10X30 |
| 61/1 | F016L90004 | Axle |
| 61/2 | F016L90032 | Link Piece |
| 61/3 | F016L90036 | Spacer |
| 61/4 | F016L68095 | Ratchet Cap |
| 61/805 | F016105110 | Wheel |
| 650 | 1607A350PZ | Battery Pack GBA 36V 2,0AH H-b |
| 650 | 1607A350R2 | Battery Pack GBA 36V 4,0AH H-c |
| 650 | 1607A350RC | Battery Pack GBA 36V 6.0AH H-c |
| 650 | 2607336913 | Battery Pack 36V 2,0 Ah LI |
| 651 | 2607226273 | Fast Charger EU AL 36V-20/36V |
| 652 | F016L90829 | Deflector Plate |
| 75/1 | F016L90608 | Handle |
| 75/14 | F016L36542 | Screw M5X8 Csk Hd. |
| 75/15 | F016L68124 | Torx head screw |
| 75/3 | F016L90849 | Wiring unit |
| 75/3/1 | F016L67218 | Connector Housing |
| 75/3/2 | F016L90847 | Connection Cable |
| 75/3/803 | F016104163 | Switch Kit |
| 75/3/804 | F016104213 | Cable Guide |
| 75/802 | F016105314 | Nut Holder |
| 75/804 | F016105448 | Switch assembly |
| 75/805 | F016104361 | Sleeve |
| 78/1 | F016L91163 | Bracket |
| 78/2 | F016L90890 | Handle |
| 78/3 | F016L36542 | Screw M5X8 Csk Hd. |
| 79/1 | F016L91164 | Bracket |
| 79/2 | F016L90891 | Handle |
| 79/3 | F016L36542 | Screw M5X8 Csk Hd. |
| 801 | 1607000E85 | DC motor |
| 801/19 | 1600A01Z1R | Thermal Conduction Foil |
| 802 | F016105439 | Electronics Module |
| 883 | F016105377 | Collection box |
| 883/1/10 | F016L91107 | Pin |
| 883/1/11 | F016L91108 | Socket insert |
| 883/1/2 | F016L90040 | Handle |
| 883/1/3 | F016L90557 | Cover |
| 883/1/4 | F016L91038 | Pivot Plate |
| 99 | F016L69400 | Balance Weights |
