Bosch UniversalOrbit 18V-20 random orbital sander: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalOrbit 18V-20: 12 positions on 1 sheet

Bosch UniversalOrbit 18V-20 parts list (1 sheet)

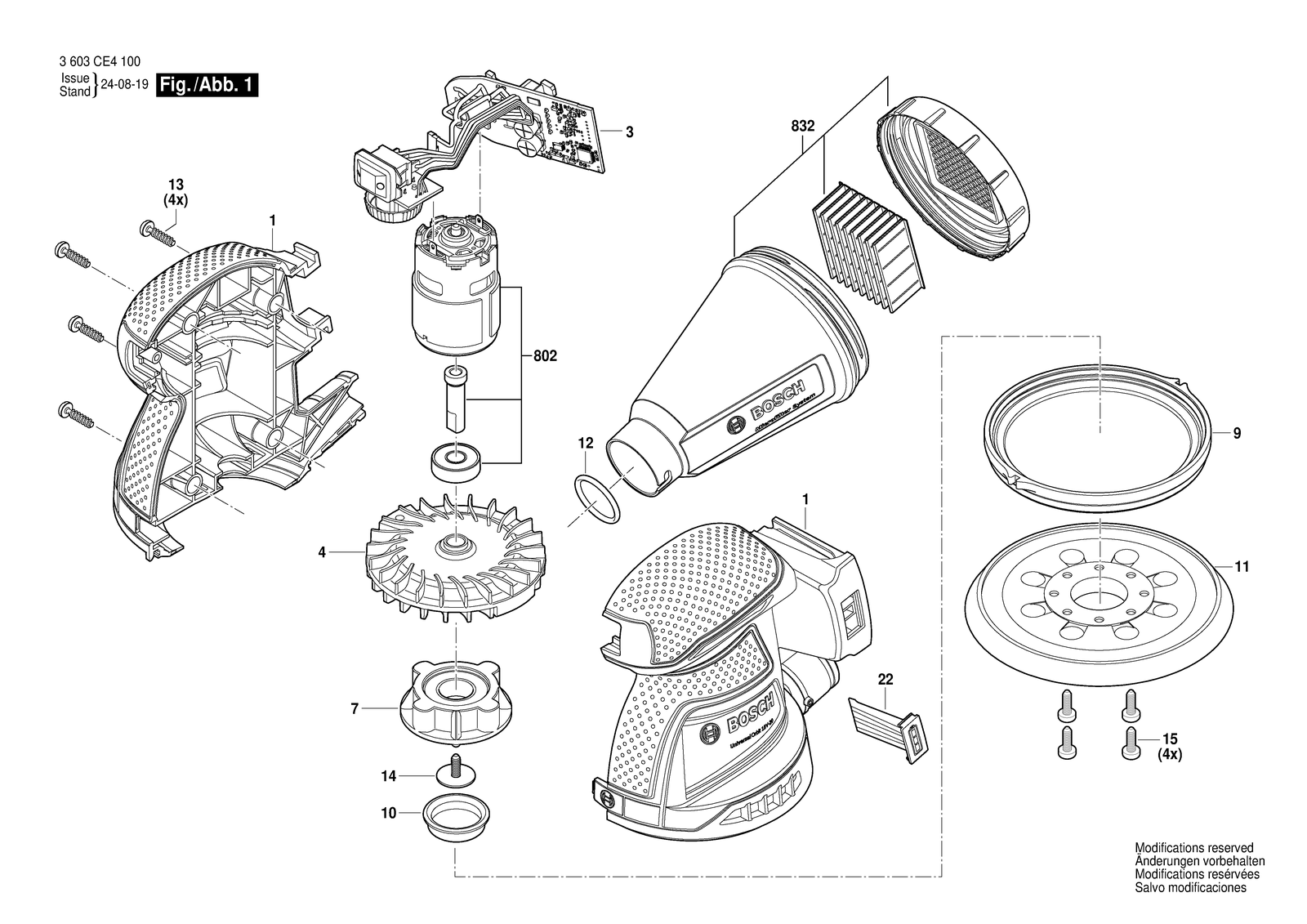

Bosch UniversalOrbit 18V-20 parts diagram, sheet 1
No.Part numberPart name
11617S020K6Housing
102609000008Cover Disc
111617S020K5Backing Pad
121617S006VZO-Ring
132603490022Screw 4X16
142610918116Torx Oval-Head Screw
152610386516Torx Oval-Head Screw M4X12
31617S020K8Electronic Assembly
42609000020Fan
71617S0221RBearing Flange
8021617S020K7DC motor
91600A00JE7Friction Ring
