Bosch UniversalMulti 12

Bosch UniversalMulti 12 multipurpose tool: exploded parts diagram, 2 sheets, 25 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalMulti 12: 25 positions on 2 sheets

Bosch UniversalMulti 12 parts list (2 sheets)

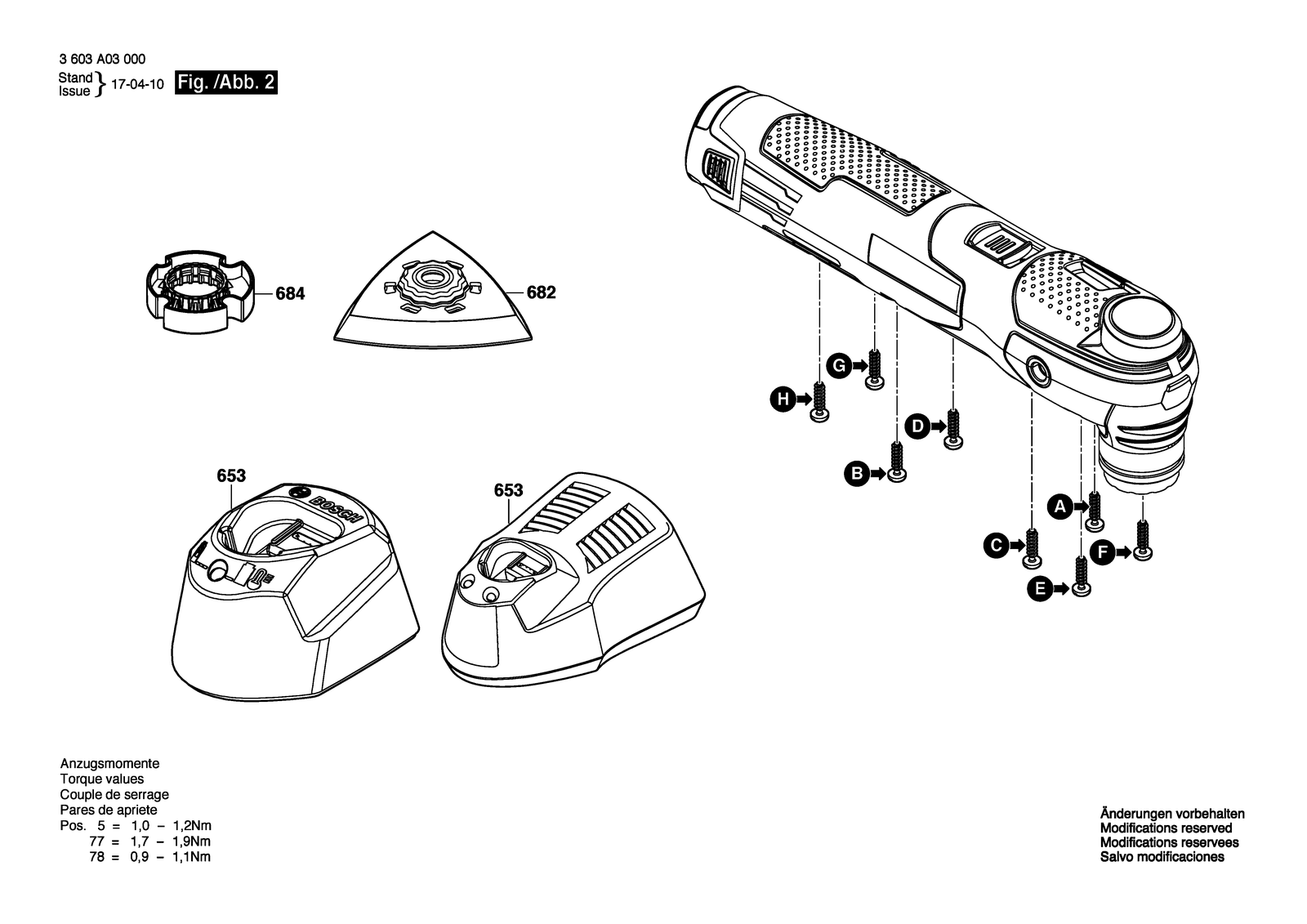

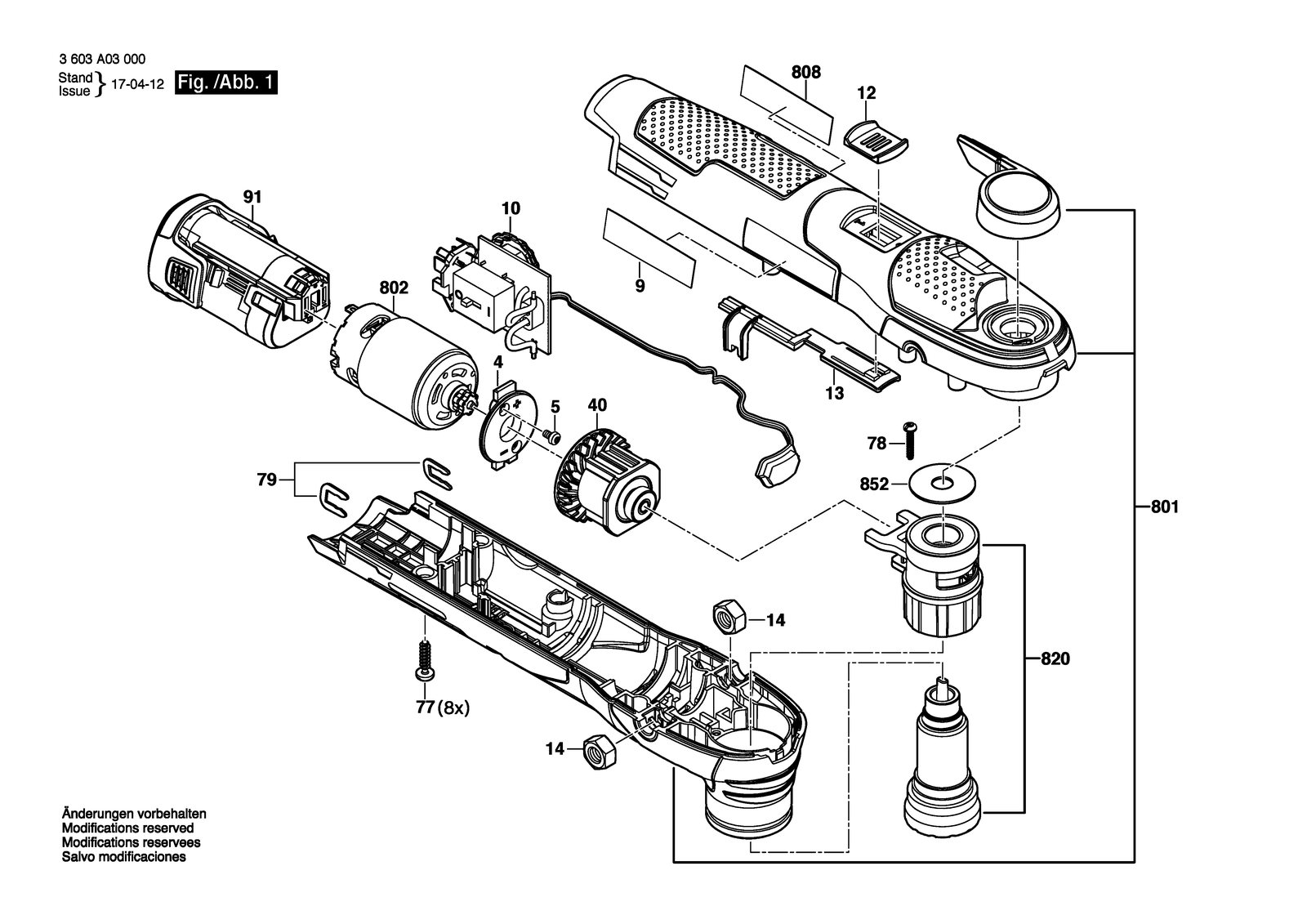

Bosch UniversalMulti 12 parts diagram, sheet 1Bosch UniversalMulti 12 parts diagram, sheet 2
No.Part numberPart name
101600A00P9RElectronic Assembly
122609005541Slide Button
131600A00H7WSlider
142915011009Hex Nut DIN 934-M8-8-A
41600A00K1AFlange
401600A00MW8Clutch Housing
52603414048Torx SH cap screw M3X5-8.8-Z
6532607225135Fast Charger UK AL1130CV 230V/12V/3A
6532607225143Fast Charger J 100/10,8V, 30 Min.
6532607226101Fast Charger EU GAL 1230 CV 230/12V
6821600A008LTSander Plate
6841600A0087VDepth gauge
772603490022Screw 4X16
782609110201Torx Flat-Head Screw 3X16
792609110838Clip
80116058065JSHousing
802160702266GDC motor
808160111A4LYNameplate
808160111A587Nameplate
8201600A00Y5FToolholder
8521607000C6DFelt Disc
9160111C1RJManufacturer's nameplate UNIVERSALMULTI12
9160111C22XManufacturer's nameplate UNIVERSALMULTI12
911607A3515XBattery Pack
912607337023Battery Pack PBA 10,8V 2,0AH O-b
