Bosch UniversalImpact 800

Bosch UniversalImpact 800 percussion drill: exploded parts diagram, 2 sheets, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalImpact 800: 33 positions on 2 sheets

Bosch UniversalImpact 800 parts list (2 sheets)

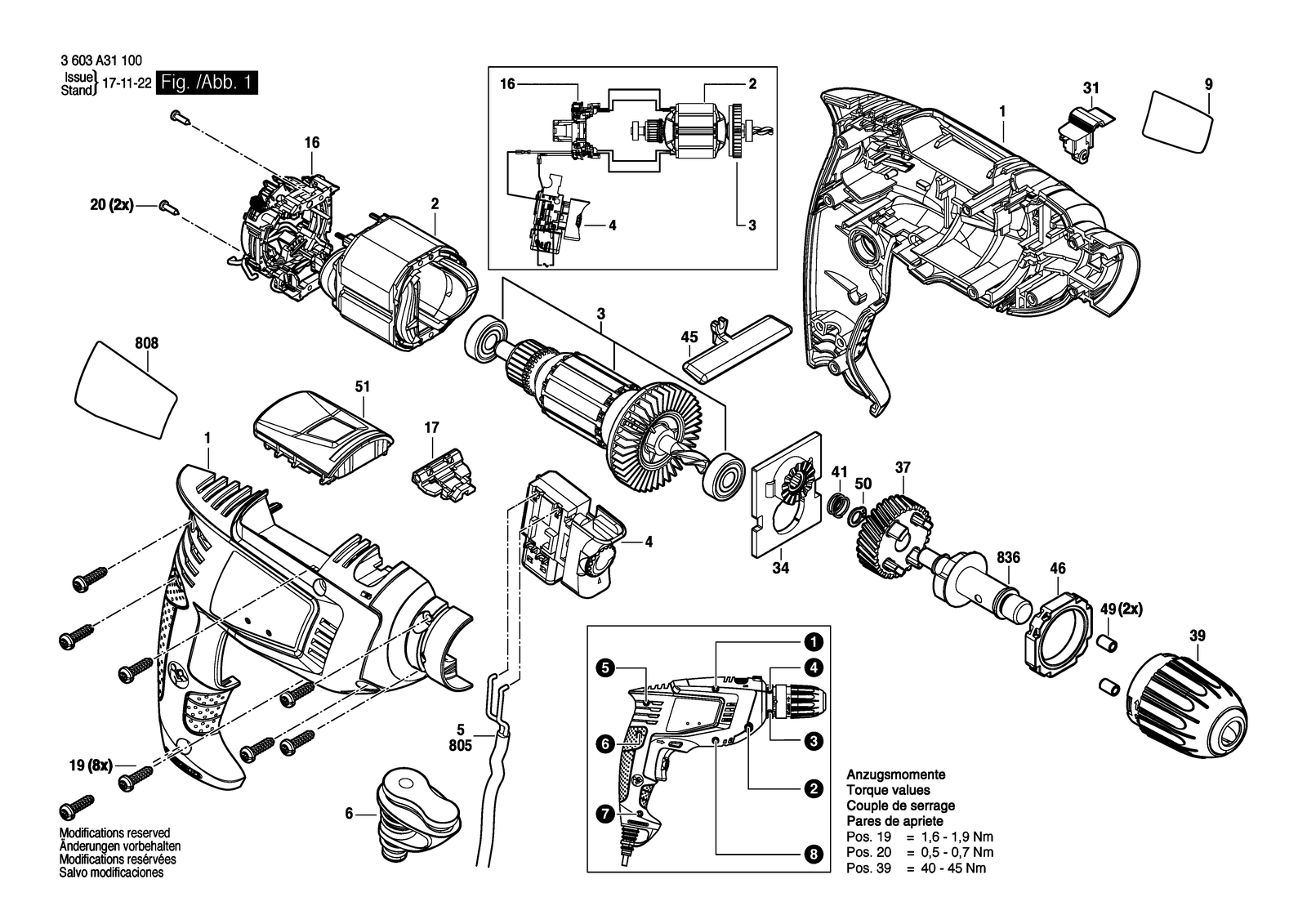

Bosch UniversalImpact 800 parts diagram, sheet 1Bosch UniversalImpact 800 parts diagram, sheet 2
No.Part numberPart name
11600A0085EHousing
161600A004KYBrush Holder
171600A00Z5UTurn Element
192603490022Screw 4X16
22609003196Field 220-240V
202910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
32609007835Armature
311600A00D25Change-Over Switch
341600A004SABearing Bracket
37160630000GToothed Gear
391600A02A90Chuck
4160720037ESwitch
412609002581Compression Spring
451600A00DC0Change-Over Switch
462609003189Retaining snap ring
492609007046Cylindrical Roller
51604460433Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460297Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F
502916640005Spring retaining ring DIN 471-8X0,8 Fst
5116055002AXCover
62609006376Grommet Ø6,4-Ø7,2X76 MM
654160202508WAuxiliary Handle
6552609005615Depth-Gauge
8051607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
808160111A3Y3Nameplate
808160111A3Y4Nameplate
808160111A3Y5Nameplate
808160111A4Y5Nameplate
8361600A011KASpindle
9160111C0PNManufacturer's nameplate Universalimpact 800
9160111C1ZCManufacturer's nameplate Universalimpact 8000
9160111C1ZDManufacturer's nameplate Psb Universal +
