Bosch UniversalImpact 730
Bosch UniversalImpact 730 percussion drill: exploded parts diagram, 2 sheets, 33 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

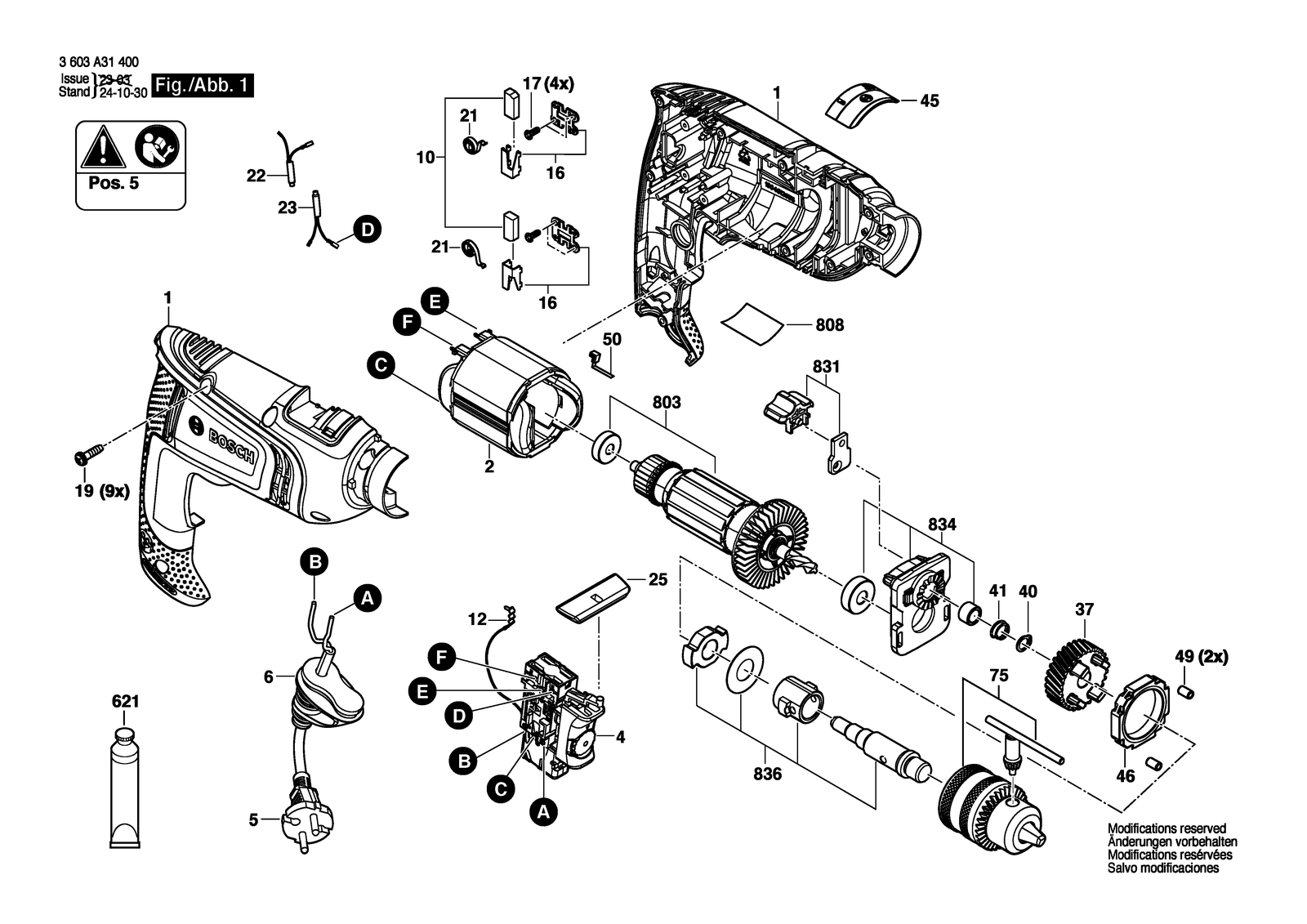

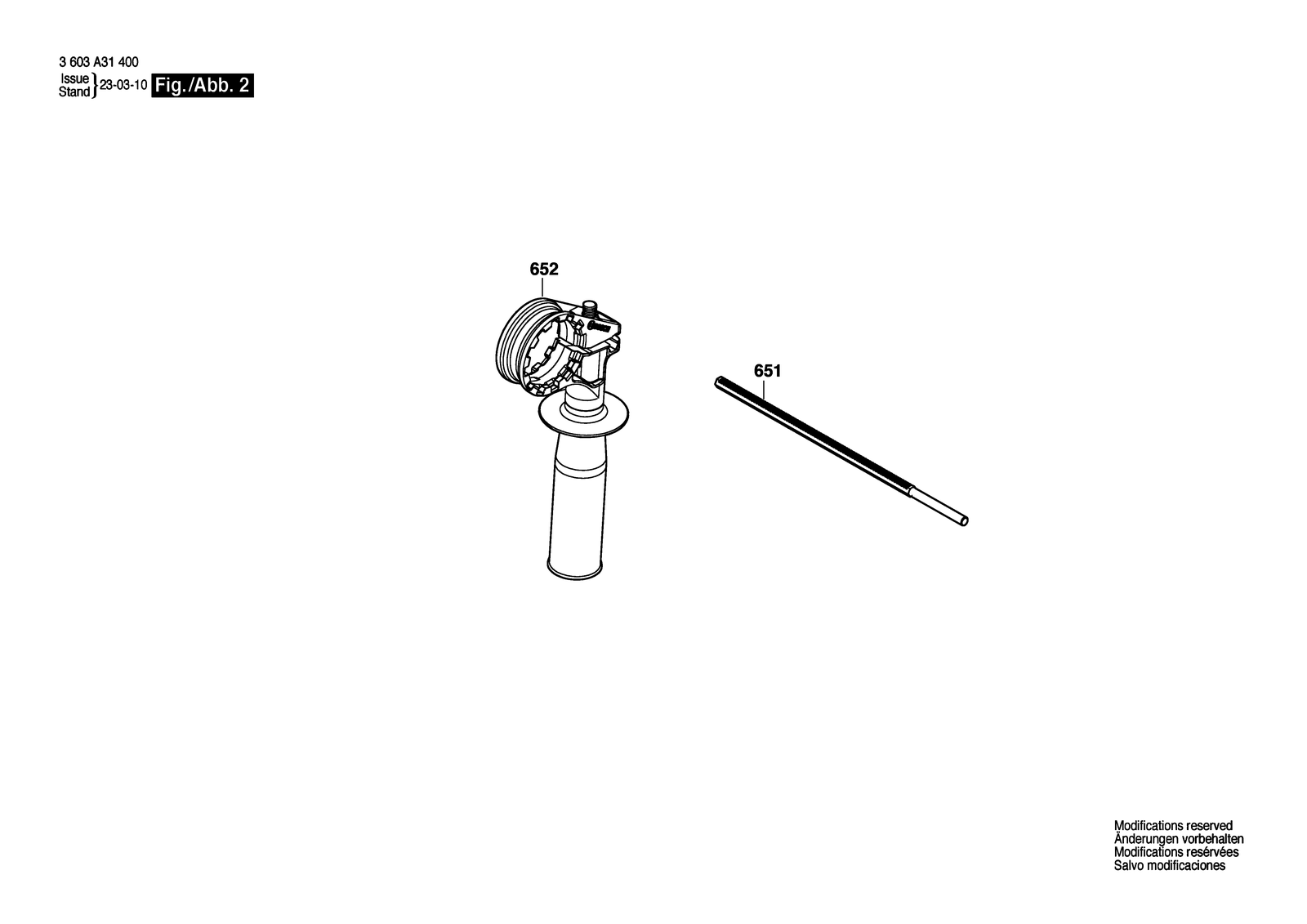

All parts of Bosch UniversalImpact 730: 33 positions on 2 sheets
Bosch UniversalImpact 730 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1607000F3K | Housing |
| 10 | 1607014193 | Carbon-Brush Set |
| 12 | 160720038R | Clamp |
| 16 | 1600A02D10 | Brush Holder |
| 17 | 16034300B3 | Screw |
| 19 | 16034300B2 | Screw |
| 2 | 16042205A2 | Field |
| 21 | 1600A02D11 | Spiral Spring |
| 22 | 1600A02D14 | Inductor |
| 23 | 1600A02D15 | Inductor |
| 25 | 1600A02D13 | Lever |
| 37 | 160630001P | Toothed Gear |
| 4 | 160720038K | Switch |
| 40 | 1600150041 | Spring retaining ring |
| 41 | 1604612055 | Compression Spring |
| 45 | 1600A02D0V | Cover |
| 46 | 1600A02D0U | Retaining snap ring |
| 49 | 1600A02D0T | Cylindrical Roller |
| 5 | 16044607AE | Power supply cord |
| 5 | 16044607B7 | Power supply cord |
| 50 | 1600A02D12 | Measuring Prod |
| 6 | 160070305H | Grommet |
| 621 | 3605430003 | Grease Tube Albida |
| 651 | 1600A02D17 | Depth-Gauge |
| 652 | 16020250B0 | Auxiliary Handle |
| 75 | 2609000990 | Key Chuck |
| 803 | 1604010BT6 | Armature |
| 808 | 160111AA38 | Nameplate |
| 808 | 160111AA39 | Nameplate |
| 808 | 160111AA3A | Nameplate |
| 831 | 1600A02P7U | Change-Over Switch |
| 834 | 1600A02P7V | Bearing Bracket |
| 836 | 1600A02P7W | Spindle |
