Bosch UniversalImpact 650

Bosch UniversalImpact 650 percussion drill: exploded parts diagram, 2 sheets, 24 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalImpact 650: 24 positions on 2 sheets

Bosch UniversalImpact 650 parts list (2 sheets)

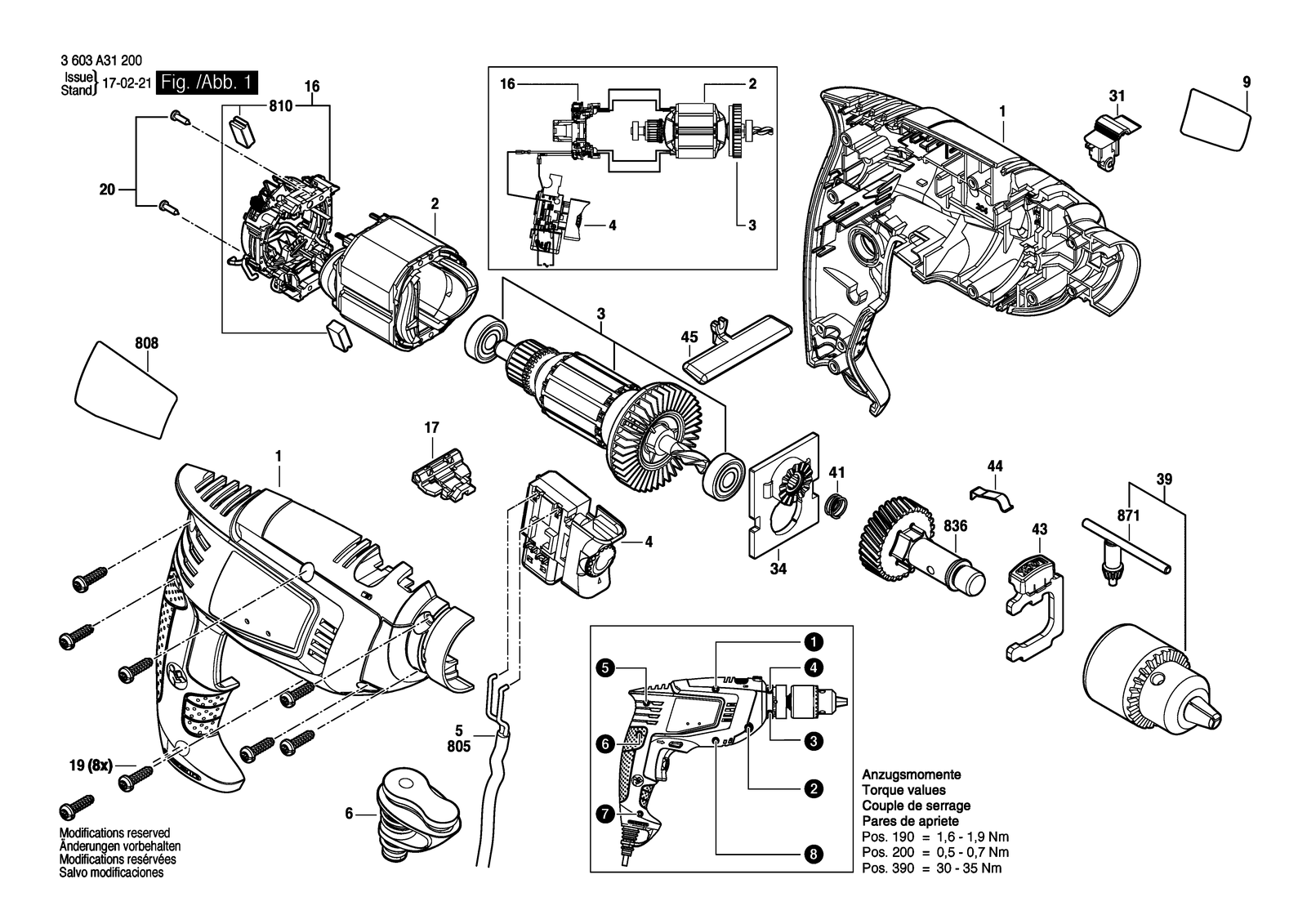

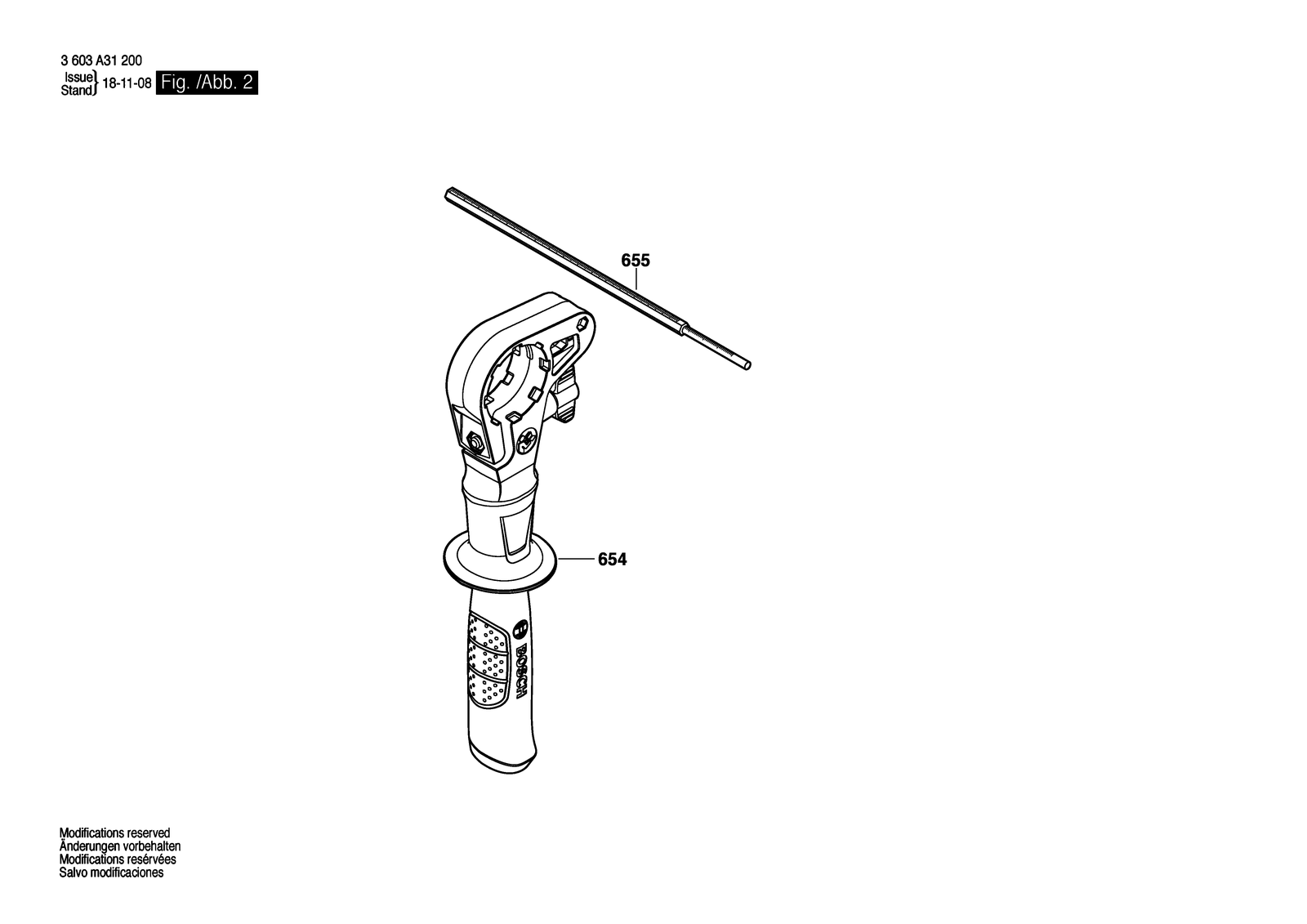

Bosch UniversalImpact 650 parts diagram, sheet 1Bosch UniversalImpact 650 parts diagram, sheet 2
No.Part numberPart name
116051082C4Housing Section
161600A00B66Brush Holder
171600A004KKTurn Element
192603490022Screw 4X16
22609005073Field 220-240V
202910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
32609007819Armature
311600A00D25Change-Over Switch
341600A004SABearing Bracket
392609000990Key Chuck
42609007834Switch
412604616006Compression Spring
431600A00MW7Knob
442609003176Leaf Spring
451600A00DC0Change-Over Switch
62609006376Grommet Ø6,4-Ø7,2X76 MM
654160202508WAuxiliary Handle
6552609005615Depth-Gauge
8051607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
808160111A4XFNameplate
8102609003994Carbon-Brush Set 220-240V
8361600A01214Spindle
8712607950007Chuck Wrench SG2
9160111C1W0Manufacturer's nameplate Universalimpact 650
