Bosch UniversalImpact 18V-60 cordless impact drill: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalImpact 18V-60: 28 positions on 1 sheet

Bosch UniversalImpact 18V-60 parts list (1 sheet)

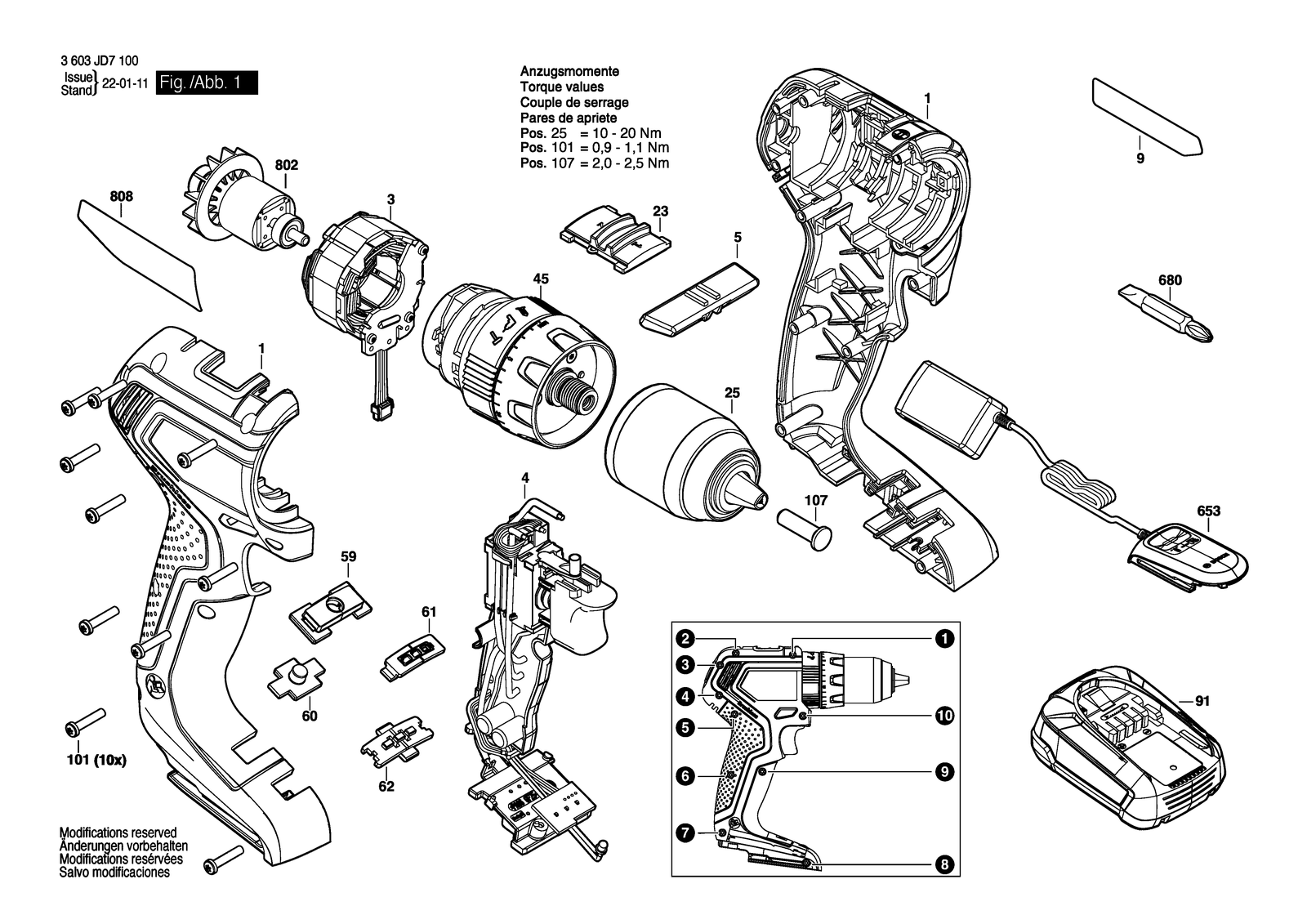

Bosch UniversalImpact 18V-60 parts diagram, sheet 1
No.Part numberPart name
11605806698Housing
1012609110201Torx Flat-Head Screw 3X16
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
231600A012MMSwitchover Unit
251600A027W8Keyless Chuck
31619P15696Stator
42607202546Switch assembly
451600A0271SPlanetary Gear Train
51600A0271LLever
5916055002HRCover
601600A022JDLens
611600A026V6Cover
621600A026YFLens
6532607226517Charger EU AL 18V-20 230V 2A
6532607226519Charger UK AL 18V-20 230V 2A
6532607226593Charger Aus AL 18V-20 220-240V 2A
6802609160063Screwdriver Bit
8021600A028U6Rotor
808160111A8V0Nameplate
9160111C4HAManufacturer's nameplate
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
911607A351C9Battery Pack
911617S01Y7LBattery Pack
911617S01Y8BBattery Pack
911617S02202Battery Pack
912607337211Battery Pack PBA 18V 2,0 Ah W-b
