Bosch UniversalHedgePole 18

Bosch UniversalHedgePole 18 pole hedge trimmer: exploded parts diagram, 2 sheets, 47 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalHedgePole 18: 47 positions on 2 sheets

Bosch UniversalHedgePole 18 parts list (2 sheets)

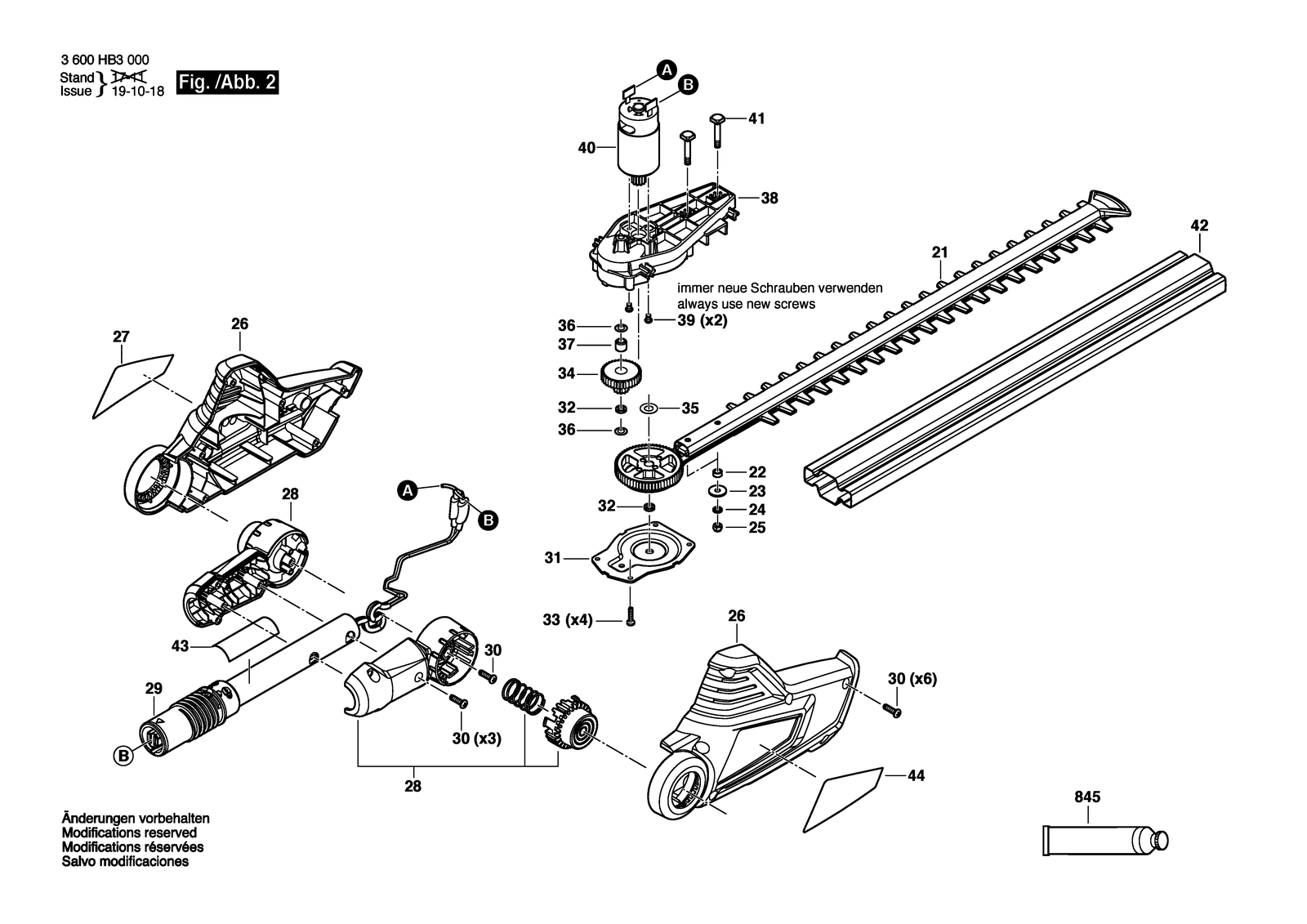

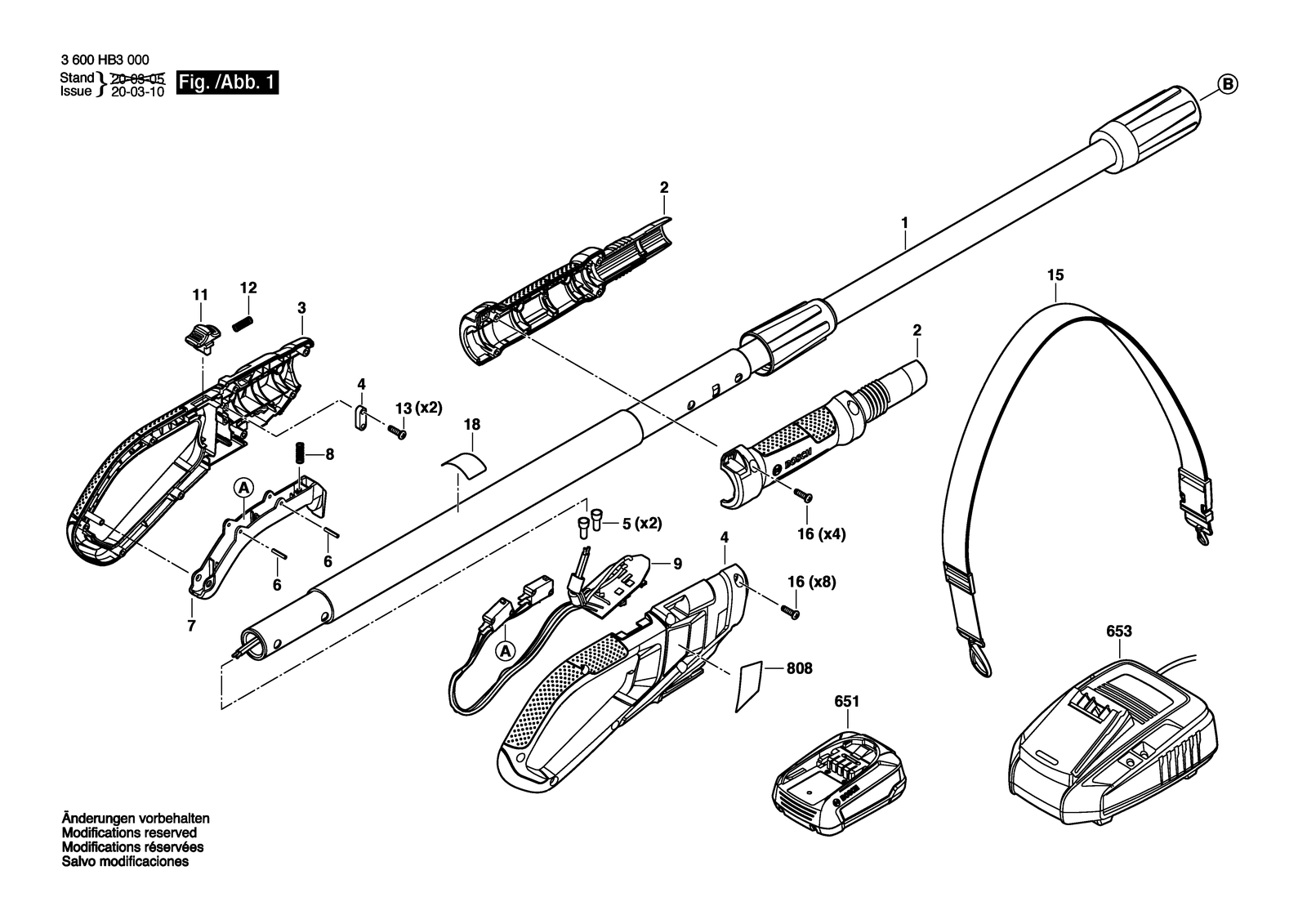

Bosch UniversalHedgePole 18 parts diagram, sheet 1Bosch UniversalHedgePole 18 parts diagram, sheet 2
No.Part numberPart name
1F016F05217Telescope Pipe
11F016F05227Button
12F016F05228Spring
13F016F05229Screw
15F016F05230Chest Harness
16F016F05231Screw Black ST4.6 X 17
18F016F05232Label
2F016F05218Housing
21F016F05233Blade
22F016F05234Washer
23F016F05235Washer
24F016F05236Washer
25F016F05237Nut
26F016F05238Motor Housing
27F016F05239Manufacturer's nameplate Universalhedgepole 18
28F016F05240Rotator
29F016F05241Telescope Pipe
3F016F05219Housing
30F016F05231Screw Black ST4.6 X 17
31F016F05243Cover
32F016F05244Washer
33F016F05245Screw
34F016F05246Gear
35F016F05247Washer 6,3X12X0,3
36F016F05248Washer 8,5X16X0,5
37F016F05249Bearing
38F016F05250Gear Box
39F016F05251Screw
4F016F05220Clamp
40F016F05252Motor
41F016F05253Bolt
42F016F05254Cover
43F016F05255Warning Label
43F016L78294Warning Label
44F016F05256Manufacturer's nameplate Universalhedgepole 18
5F016F05221Cap
6F016F05222Pin
6511607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225969Charger Aus AL 1830 CV 230/14,4-18V 1H
7F016F05223Trigger
8F016F05224Spring
808F016F05226Nameplate
808F016F05789Nameplate
8453605430003Grease Tube Albida
91600A01DA3Electronic Assembly
