Bosch UniversalGrind 850-125

Bosch UniversalGrind 850-125 angle grinder: exploded parts diagram, 1 sheet, 12 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalGrind 850-125: 12 positions on 1 sheet

Bosch UniversalGrind 850-125 parts list (1 sheet)

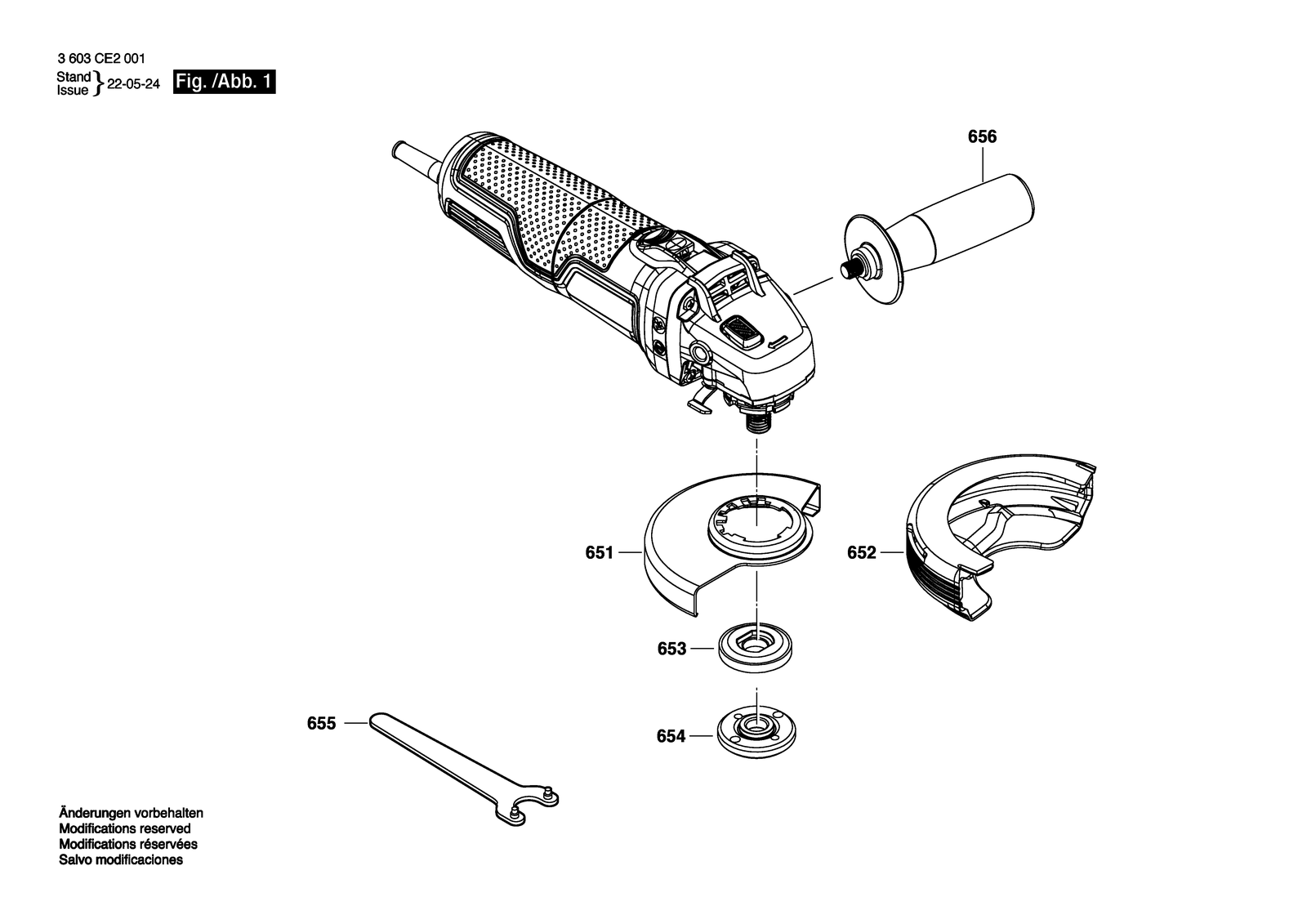

Bosch UniversalGrind 850-125 parts diagram, sheet 1
No.Part numberPart name
6511600A02E5MProtective Cover
6511600A02E5NProtective Cover
6521600A02A01Guard
6521600A02A02Guard
6531619PB8388Clamping Flange
6531619PB8388Clamping Flange
6541619PB8389Round Nut
6541619PB8389Round Nut
6551619PB4434Pin-Type Face-Wrench
6551619PB4434Pin-Type Face-Wrench
6561619PB8392Auxiliary Handle
6562609002198Handle Black
