Bosch UniversalGrind 18V-75

Bosch UniversalGrind 18V-75 cordless angle grinder: exploded parts diagram, 2 sheets, 37 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalGrind 18V-75: 37 positions on 2 sheets

Bosch UniversalGrind 18V-75 parts list (2 sheets)

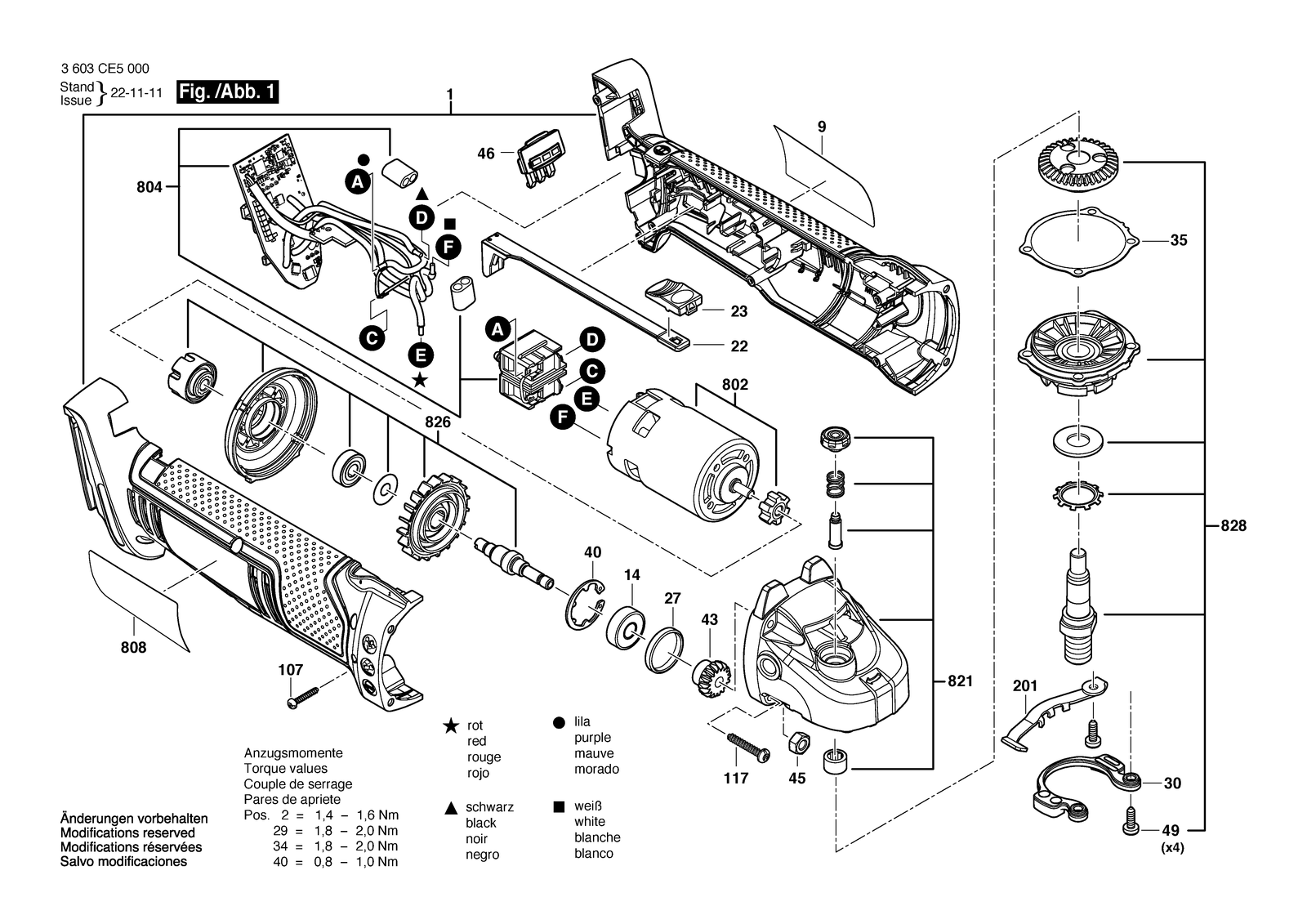

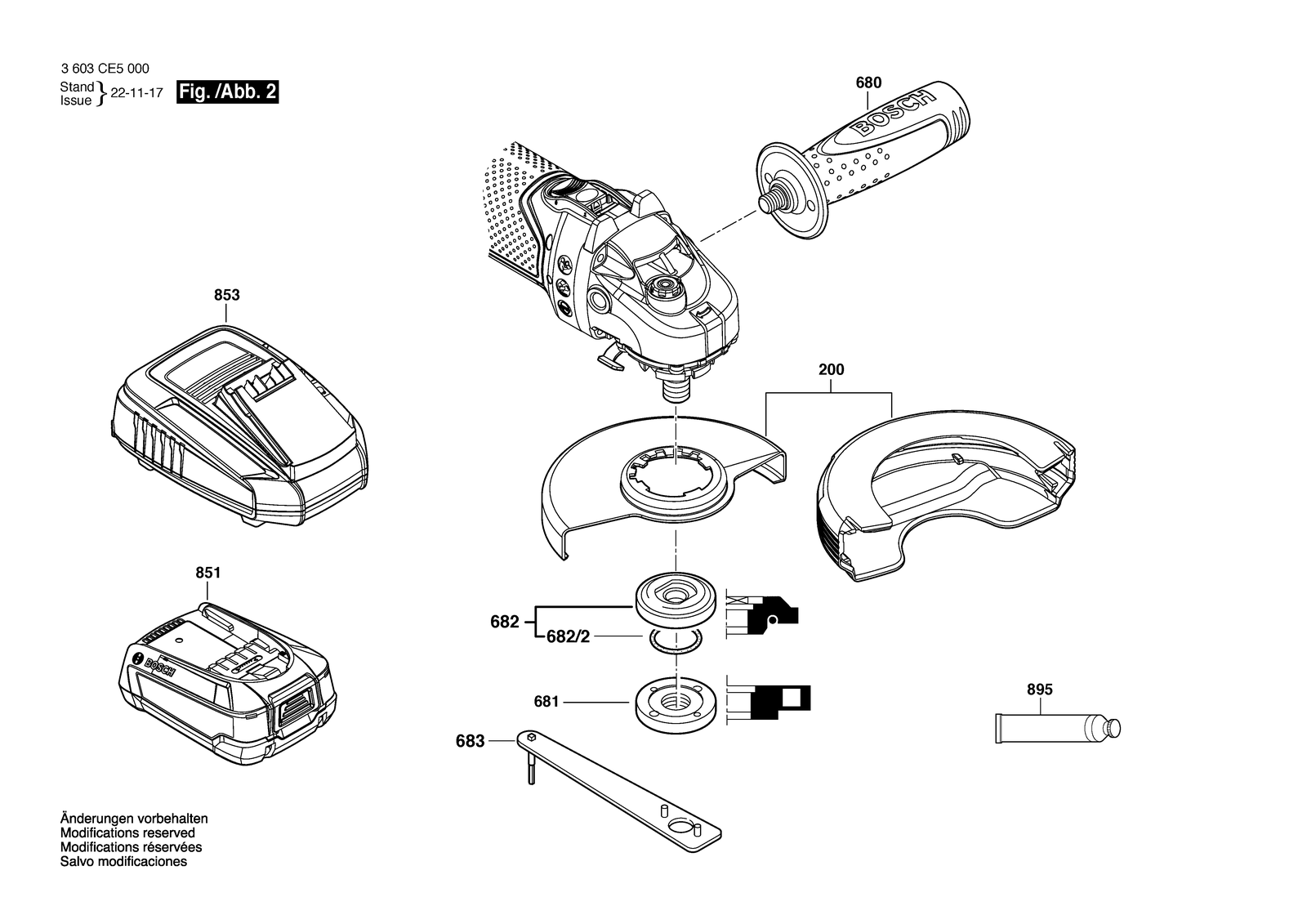

Bosch UniversalGrind 18V-75 parts diagram, sheet 1Bosch UniversalGrind 18V-75 parts diagram, sheet 2
No.Part numberPart name
11600A029GDHousing
1072603490018Torx Oval-Head Screw 3X18
1172603490024Torx Oval-Head Screw 4X25
142600905078Groove ball bearing
2001600A02FY1Protective Cover Ø115 MM
2001600A02JM9Protective Cover Ø125 MM
2012609002205Leaf Spring
221600A01U5NAdjusting Slide
231600A007ULSwitch Button
271600206025Rubber Ring
302609007464Vibration Damper
351600A00RE3Shim 1,5 MM
352609002208Shim 0,1 MM
352609002209Shim 0,2 MM
352609002210Shim 0,3 MM
402609007545Spring retaining ring
431606333633Bevel Gear Z=35
452915011007Hex Nut DIN 934-M6-8-A
461600A02A8LLens
492610386516Torx Oval-Head Screw M4X12
6802609002199Handle
6811603345043Round Nut M14
6822605703014Clamping Flange Ø22,3XØ42 MM
682/21600210055O-Ring 20,35X1,78 MM
6831619P08927Pin-Type Face-Wrench
802160702268LDC motor
8041600A02P61Electronic Module
808160111A9CDNameplate
808160111A9CFNameplate
821160580666AGear Housing
8261600A01U69Drive Unit
82816058080CSBearing Flange
8511607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
8532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
8532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
8951605430003Grease Tube 225 Ml
9160111C4U7Manufacturer's nameplate
