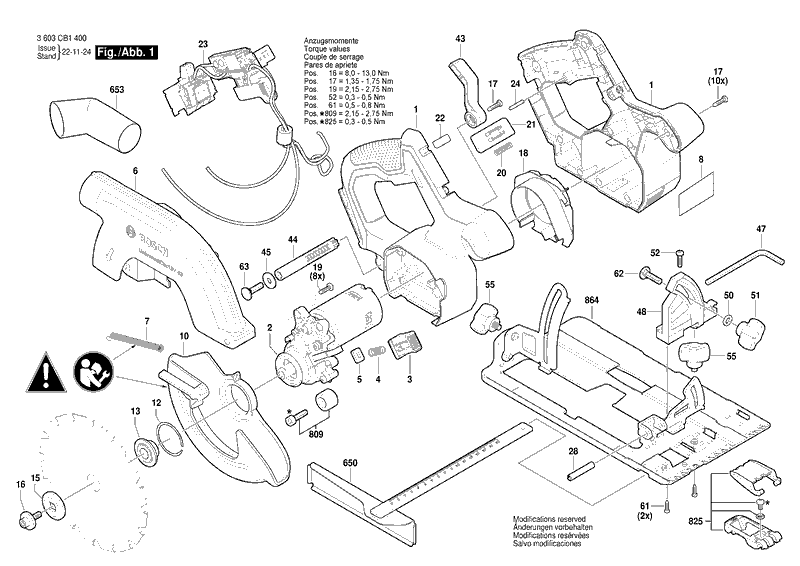

Bosch UniversalCirc 18V-53 cordless circular saw: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalCirc 18V-53: 39 positions on 1 sheet
Bosch UniversalCirc 18V-53 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PB8999 | Housing Set |
| 10 | 1619PB9006 | Lower guard |
| 12 | 1619PB9007 | Circlip |
| 13 | 1609203Y07 | Clamping Flange |
| 15 | 1609203Y08 | Conical Spring Washer |
| 16 | 1609203Y19 | Screw |
| 17 | 1619PB9008 | Tapping Screw |
| 18 | 1619PB9009 | Baffle plate |
| 19 | 1619PB9010 | Thread-Forming Screw |
| 2 | 1619PB9000 | Motor-gearbox assembly |
| 20 | 1619PB9011 | Compression Spring |
| 21 | 1619PB9012 | Switch Button |
| 22 | 1619PB9013 | LED indicator |
| 23 | 2607202569 | Electronics Module |
| 24 | 1619PB9014 | Locating pin |
| 28 | 1609203Y04 | Spring Pin |
| 3 | 1619PB9001 | Cap |
| 4 | 1619PB9002 | Compression Spring |
| 43 | 1619PB9018 | Fixing Lever |
| 44 | 1619PB9019 | Rod |
| 45 | 1609203Y40 | Plain Washer |
| 47 | 1619PB9020 | Offset Screwdriver |
| 48 | 1609203Y57 | Angle Support |
| 5 | 1619PB9003 | Felt |
| 50 | 1609203Y58 | Plain Washer |
| 51 | 1609203Y59 | Wing Nut |
| 52 | 16034300CA | Screw |
| 55 | 1609203Y61 | Wing Screw |
| 6 | 1619PB9004 | Protective Guard |
| 61 | 1609203Y62 | Tapping Screw |
| 62 | 1609203Y77 | Bolt |
| 63 | 1609203Y44 | Bolt |
| 650 | 1609203X87 | Edge Guide |
| 653 | 1609203X86 | Vacuum Adapter |
| 7 | 1609203Y02 | Extension Spring |
| 8 | 1619PB9005 | Nameplate |
| 809 | 16042205BD | Stopper |
| 825 | 1600A02RE6 | Guide Piece |
| 864 | 1609203Y18 | Base Plate |
