Bosch UniversalChainPole 18

Bosch UniversalChainPole 18 pole pruner: exploded parts diagram, 2 sheets, 54 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalChainPole 18: 54 positions on 2 sheets

Bosch UniversalChainPole 18 parts list (2 sheets)

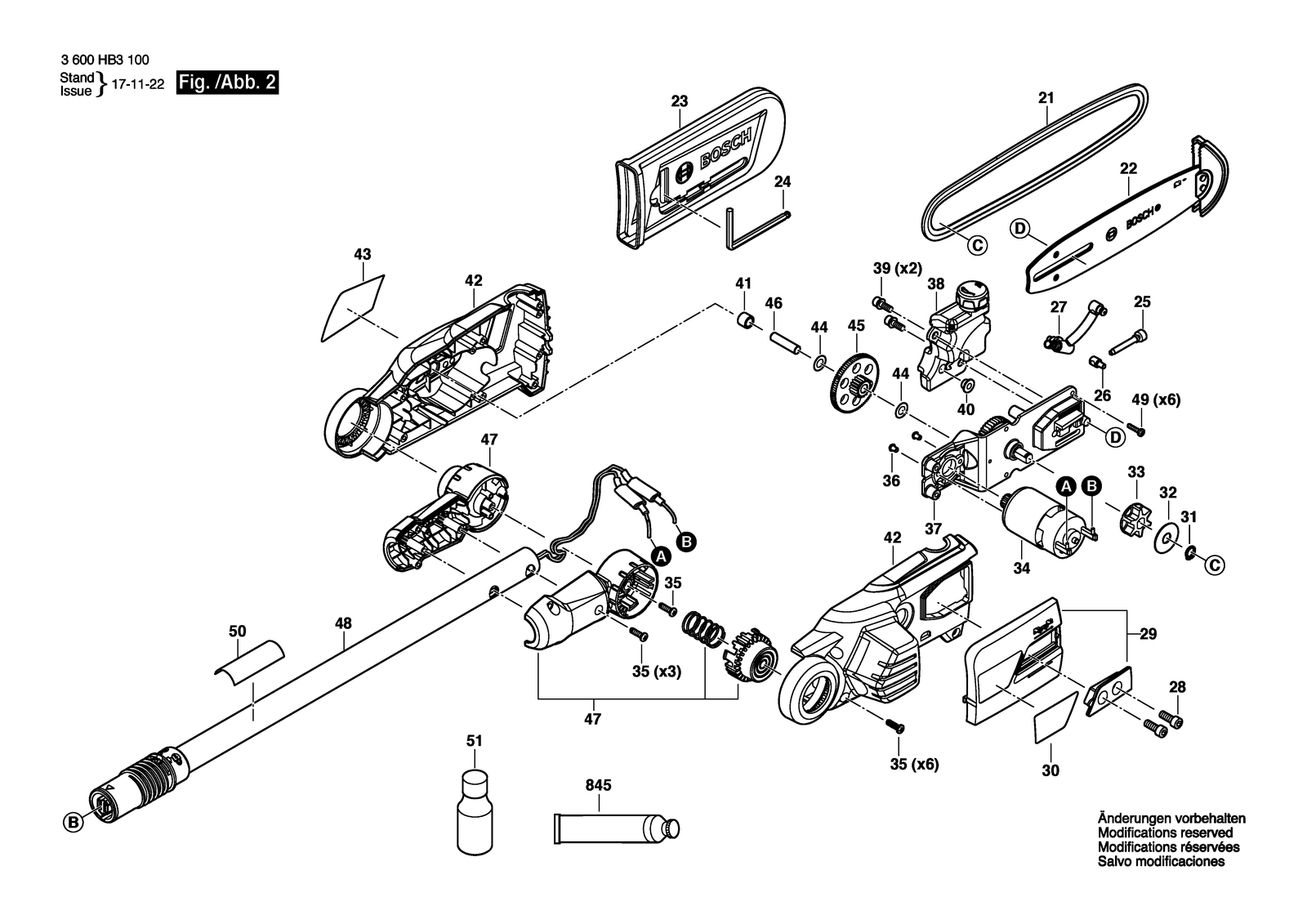

Bosch UniversalChainPole 18 parts diagram, sheet 1Bosch UniversalChainPole 18 parts diagram, sheet 2
No.Part numberPart name
1F016F05187Telescope Pipe
11F016F05227Button
12F016F05228Spring
13F016F05229Screw
15F016F05230Chest Harness
16F016F05231Screw Black ST4.6 X 17
18F016F05232Label
2F016F05218Housing
21F016F05190Chain
22F016F05191Bar
23F016F05192Cover
24F016F05193Hexagon Socket Screw Key
25F016F05194Screw
26F016F05195Holder
27F016F05196Pump
28F016F05197Hex Screw M6 X16
29F016F05198Cover
3F016F05219Housing
30F016F05199Manufacturer's nameplate Universalchainpole 18
31F016F05200Ring
32F016F05201Washer
33F016F05202Sprocket
34F016F05203Motor
35F016F05231Screw Black ST4.6 X 17
36F016F05204Screw Silver M4 X8
37F016F05205Gear Box
38F016F05206Tank
39F016F05207Screw Silver M5 X16
4F016F05220Clamp
40F016F05208Washer
41F016F05209Bearing
42F016F05210Motor Housing
43F016F05211Manufacturer's nameplate Universalchainpole 18
43F016L78294Warning Label
44F016F05212Washer
45F016F05213Plate
46F016F05214Shaft
47F016F05240Rotator
48F016F05215Telescope Pipe
49F016F05229Screw
5F016F05221Cap
50F016F05255Warning Label
51F016F05216Bottle
6F016F05222Pin
6511607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225969Charger Aus AL 1830 CV 230/14,4-18V 1H
7F016F05223Trigger
8F016F05224Spring
808F016F05189Nameplate
808F016F05790Nameplate
8453605430003Grease Tube Albida
91600A01D9TElectronic Assembly
