Bosch UniversalChain 40

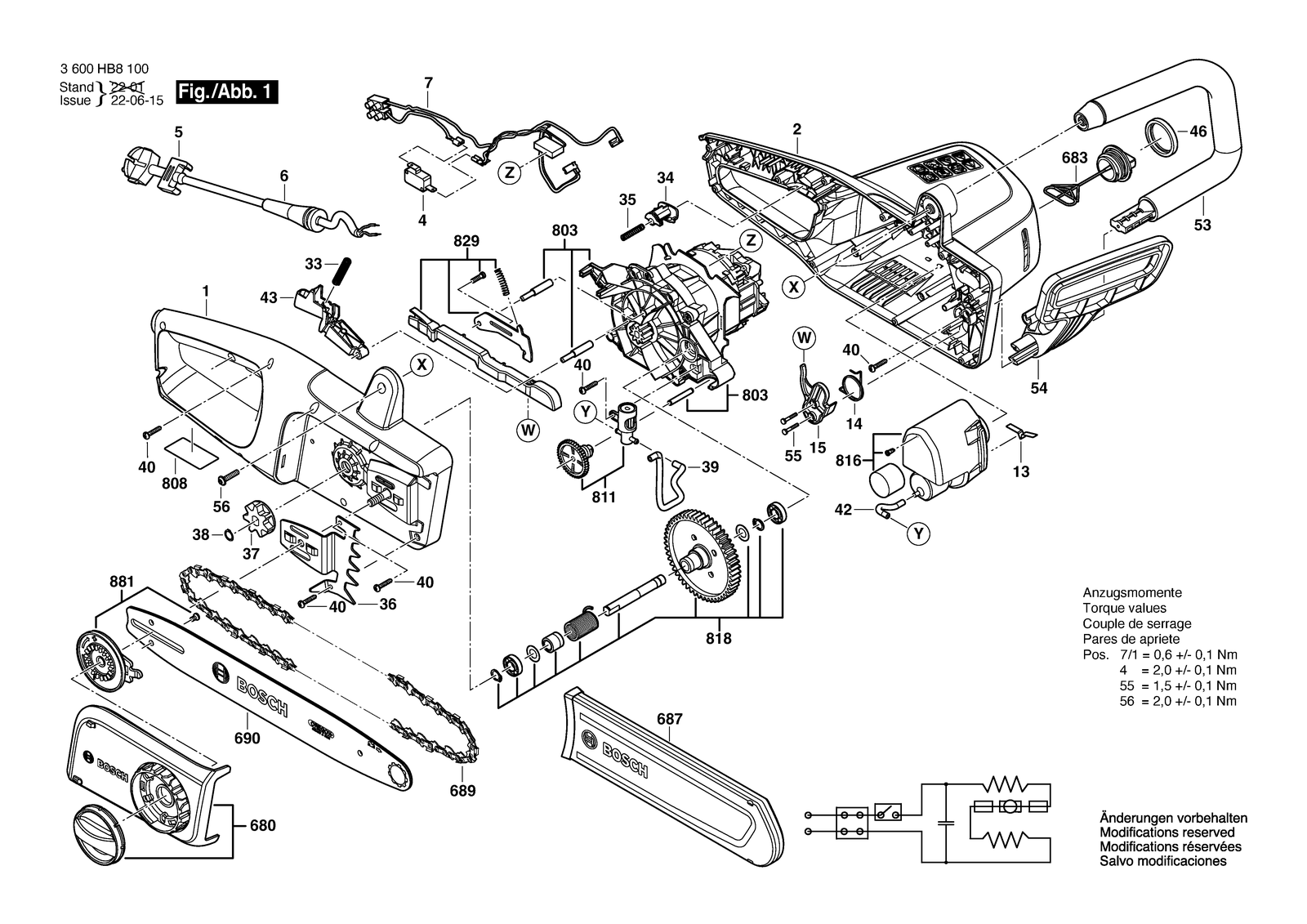

Bosch UniversalChain 40 chain saw: exploded parts diagram, 1 sheet, 155 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalChain 40: 155 positions on 1 sheet
Bosch UniversalChain 40 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 160580669U | Housing |
| 1 | 160580669U | Housing |
| 1 | 160580669U | Housing |
| 1 | 160580669U | Housing |
| 13 | 2609001047 | Spring |
| 13 | 2609001047 | Spring |
| 13 | 2609001047 | Spring |
| 13 | 2609001047 | Spring |
| 14 | 2609006397 | Torsion Spring |
| 14 | 2609006397 | Torsion Spring |
| 14 | 2609006397 | Torsion Spring |
| 14 | 2609006397 | Torsion Spring |
| 15 | 1600A015GN | Lever |
| 15 | 1600A015GN | Lever |
| 15 | 1600A015GN | Lever |
| 15 | 1600A015GN | Lever |
| 2 | 16051082HW | Motor Housing |
| 2 | 16051082HW | Motor Housing |
| 2 | 16051082PW | Motor Housing |
| 2 | 16051082PW | Motor Housing |
| 33 | 2609001048 | Compression Spring |
| 33 | 2609001048 | Compression Spring |
| 33 | 2609001048 | Compression Spring |
| 33 | 2609001048 | Compression Spring |
| 34 | 1600A015D0 | Safety Switch |
| 34 | 1600A015D0 | Safety Switch |
| 34 | 1600A0276D | Safety Switch |
| 34 | 1600A0276D | Safety Switch |
| 35 | 160461202U | Compression Spring |
| 35 | 160461202U | Compression Spring |
| 35 | 160461202U | Compression Spring |
| 35 | 160461202U | Compression Spring |
| 36 | 1600A015D1 | Mounting Plate |
| 36 | 1600A015D1 | Mounting Plate |
| 36 | 1600A015D1 | Mounting Plate |
| 36 | 1600A015D1 | Mounting Plate |
| 37 | 1600A015D2 | Sprocket wheel |
| 37 | 1600A015D2 | Sprocket wheel |
| 37 | 1600A015D2 | Sprocket wheel |
| 37 | 1600A015D2 | Sprocket wheel |
| 38 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 38 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 38 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 38 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 39 | 2609001086 | Pipe |
| 39 | 2609001086 | Pipe |
| 39 | 2609001086 | Pipe |
| 39 | 2609001086 | Pipe |
| 4 | 160720035H | Switch |
| 4 | 160720035H | Switch |
| 4 | 160720035H | Switch |
| 4 | 160720035H | Switch |
| 40 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 40 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 40 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 40 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 42 | 1600A015DE | Pipe |
| 42 | 1600A015DE | Pipe |
| 42 | 1600A015DE | Pipe |
| 42 | 1600A015DE | Pipe |
| 43 | 1600A015DS | Switch Segment |
| 43 | 1600A015DS | Switch Segment |
| 43 | 1600A0276E | Switch Segment |
| 43 | 1600A0276E | Switch Segment |
| 46 | 1600A015DJ | Sealing |
| 46 | 1600A015DJ | Sealing |
| 46 | 1600A015DJ | Sealing |
| 46 | 1600A015DJ | Sealing |
| 5 | 1604460454 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460454 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460454 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460454 | Power supply cord |
| 5 | 2604460183 | Power supply cord EU 0,4M 2 X 1,0MM H07 Rn-F |
| 53 | 160513217Y | Handle |
| 53 | 160513217Y | Handle |
| 53 | 160513217Y | Handle |
| 53 | 160513217Y | Handle |
| 54 | 1600A015CX | Protective Shield |
| 54 | 1600A015CX | Protective Shield |
| 54 | 1600A015CX | Protective Shield |
| 54 | 1600A015CX | Protective Shield |
| 55 | 1600A01N9H | Oval-Head Screw |
| 55 | 1600A01N9H | Oval-Head Screw |
| 55 | 1600A01N9H | Oval-Head Screw |
| 55 | 1600A01N9H | Oval-Head Screw |
| 56 | 2609110080 | Torx Oval-Head Screw |
| 56 | 2609110080 | Torx Oval-Head Screw |
| 56 | 2609110080 | Torx Oval-Head Screw |
| 56 | 2609110080 | Torx Oval-Head Screw |
| 6 | 2609005766 | Grommet |
| 6 | 2609005766 | Grommet |
| 6 | 2609005766 | Grommet |
| 6 | 2609005766 | Grommet |
| 680 | 1600A028X6 | Adjustment Knob |
| 680 | 1600A028X6 | Adjustment Knob |
| 680 | 1600A028X6 | Adjustment Knob |
| 680 | 1600A028X6 | Adjustment Knob |
| 683 | 1600A027C7 | RSV Cap |
| 683 | 1600A027C7 | RSV Cap |
| 683 | 1600A027C7 | RSV Cap |
| 683 | 1600A027C7 | RSV Cap |
| 687 | 1600A01B1L | Chain Guard |
| 687 | 1600A01B1L | Chain Guard |
| 687 | 1600A01B1L | Chain Guard |
| 687 | 1600A01B1L | Chain Guard |
| 689 | 2609007364 | Saw Chain AKE 35 |
| 689 | 2609007365 | Saw Chain AKE 40 |
| 689 | 2609007364 | Saw Chain AKE 35 |
| 689 | 2609007365 | Saw Chain AKE 40 |
| 690 | 1600A015H6 | Guide Rail 350 MM |
| 690 | 1600A015H7 | Guide Rail 400 MM |
| 690 | 1600A015H6 | Guide Rail 350 MM |
| 690 | 1600A015H7 | Guide Rail 400 MM |
| 7 | 2609004394 | Suppression Filter |
| 7 | 2609004394 | Suppression Filter |
| 7 | 2609004394 | Suppression Filter |
| 7 | 2609004394 | Suppression Filter |
| 803 | 1607000DW1 | Motor |
| 803 | 1607000DW1 | Motor |
| 803 | 1607000DW1 | Motor |
| 803 | 1607000DW1 | Motor |
| 808 | 160111A69M | Nameplate |
| 808 | 160111A69P | Nameplate |
| 808 | 160111A69S | Nameplate |
| 808 | 160111A74R | Nameplate |
| 808 | 160111A74T | Nameplate |
| 808 | 160111A74V | Nameplate |
| 808 | 160111A99Y | Nameplate |
| 808 | 160111A99Z | Nameplate |
| 808 | 160111A9A0 | Nameplate |
| 808 | 160111A9A2 | Nameplate |
| 808 | 160111A9A4 | Nameplate |
| 811 | 1607000DW5 | Pump |
| 811 | 1607000DW5 | Pump |
| 811 | 1600A02W44 | Pump |
| 811 | 1600A02W44 | Pump |
| 816 | 1607000DW4 | Container |
| 816 | 1607000DW4 | Container |
| 816 | 1607000DW4 | Container |
| 816 | 1607000DW4 | Container |
| 818 | 1607000DW2 | Drive Clutch |
| 818 | 1607000DW2 | Drive Clutch |
| 818 | 1607000DW2 | Drive Clutch |
| 818 | 1607000DW2 | Drive Clutch |
| 829 | 1607000DW3 | Linkage |
| 829 | 1607000DW3 | Linkage |
| 829 | 1607000DW3 | Linkage |
| 829 | 1607000DW3 | Linkage |
| 881 | 1607000EG1 | Adjustment Device |
| 881 | 1607000EG1 | Adjustment Device |
| 881 | 1607000EG1 | Adjustment Device |
| 881 | 1607000EG1 | Adjustment Device |
