Bosch UniversalAngle

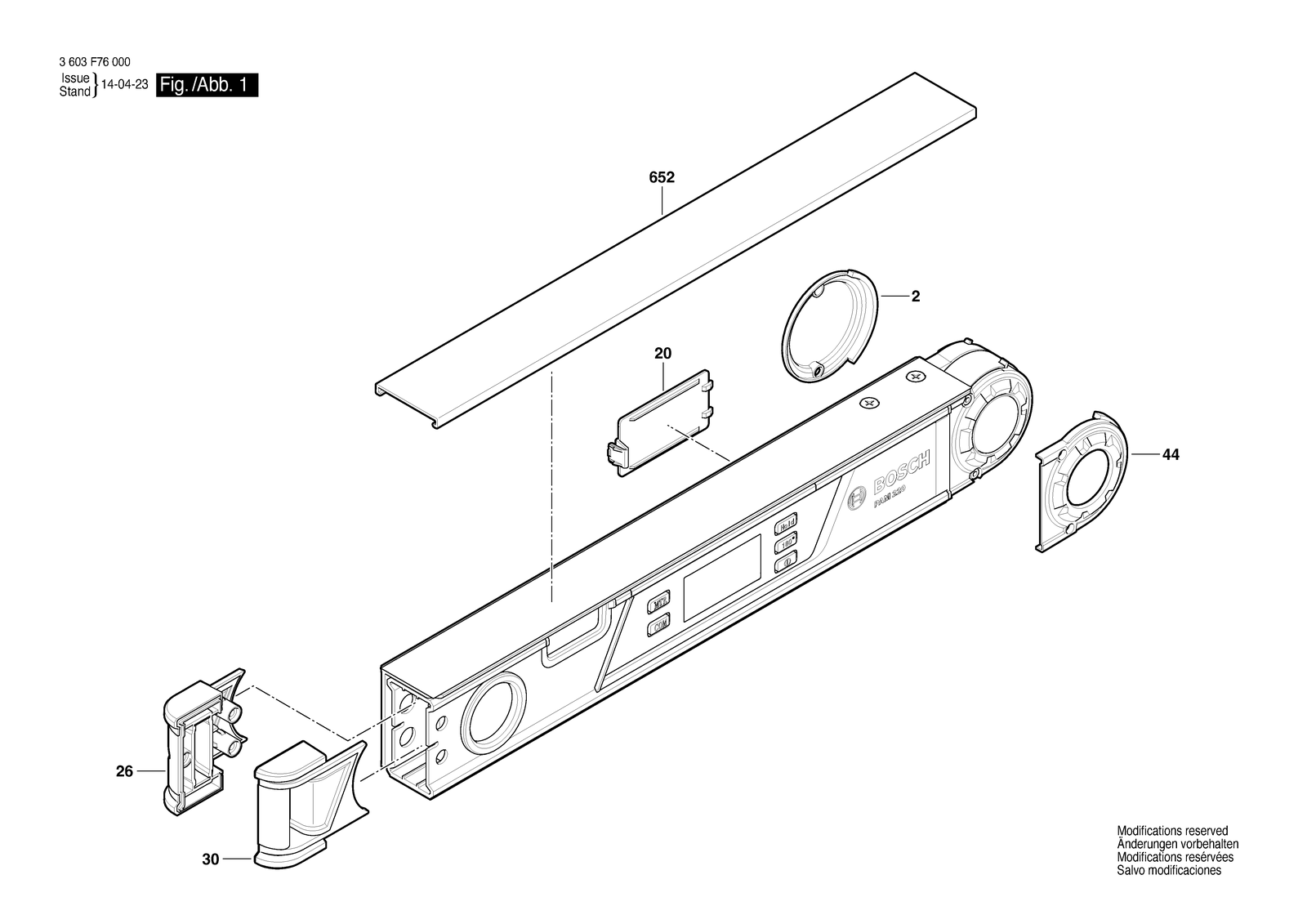

Bosch UniversalAngle protractor: exploded parts diagram, 1 sheet, 11 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniversalAngle: 11 positions on 1 sheet
Bosch UniversalAngle parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 2 | 1619PA7097 | Cover Plate |
| 2 | 1619PB9705 | Cover Plate |
| 20 | 1619PA7115 | Battery Case Cover |
| 20 | 1619PB9707 | Battery Case Cover |
| 26 | 1619PA7121 | Cover |
| 26 | 1619PB9708 | Cover |
| 30 | 1619PA7125 | Cover |
| 30 | 1619PB9711 | Cover |
| 44 | 1619PA7139 | Cover |
| 44 | 1619PB9717 | Cover |
| 652 | 1619PA7119 | Slide Rail |
