Bosch UniGrassCut 18V-23-450

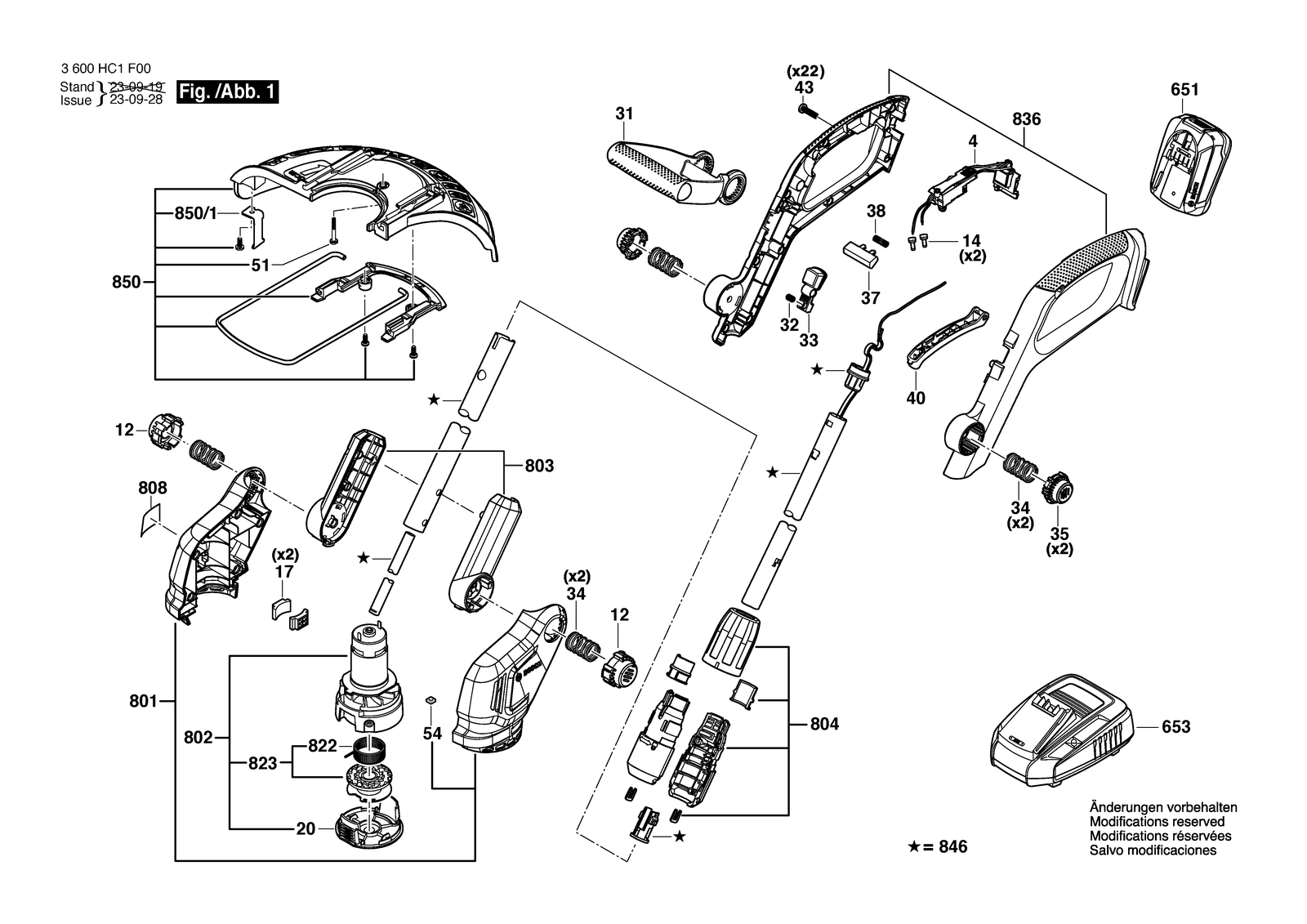

Bosch UniGrassCut 18V-23-450 lawn edge trimmer: exploded parts diagram, 1 sheet, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UniGrassCut 18V-23-450: 63 positions on 1 sheet
Bosch UniGrassCut 18V-23-450 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 1600A0154U | Trigger |
| 12 | 1600A0154U | Trigger |
| 14 | F016L74654 | Electric Connector |
| 14 | F016L74654 | Electric Connector |
| 17 | F016F05319 | Rubber Pad |
| 17 | F016F05319 | Rubber Pad |
| 20 | F016F05800 | Spool cover |
| 20 | F016F05800 | Spool cover |
| 31 | F016F05321 | Auxiliary Handle |
| 31 | F016F05321 | Auxiliary Handle |
| 32 | F016F05322 | Spring |
| 32 | F016F05322 | Spring |
| 33 | F016F05801 | Button |
| 33 | F016F05801 | Button |
| 34 | F016F05324 | Button Spring |
| 34 | F016F05324 | Button Spring |
| 35 | F016F05802 | Button |
| 35 | F016F05802 | Button |
| 37 | F016F05803 | Button |
| 37 | F016F05803 | Button |
| 38 | F016F05327 | Spring |
| 38 | F016F05327 | Spring |
| 4 | F016F05642 | Switch assembly |
| 4 | F016F05642 | Switch assembly |
| 40 | F016F05804 | Trigger |
| 40 | F016F05804 | Trigger |
| 43 | F016F05331 | Screw |
| 43 | F016F05331 | Screw |
| 51 | F016F05332 | Screw |
| 51 | F016F05332 | Screw |
| 54 | F016F05317 | Square Nut |
| 54 | F016F05317 | Square Nut |
| 651 | 1607A350RU | Battery Pack PBA 18V 2,5AH W-b 45WH |
| 651 | 1607A351C9 | Battery Pack |
| 651 | 1607A350RU | Battery Pack PBA 18V 2,5AH W-b 45WH |
| 651 | 1607A351C9 | Battery Pack |
| 653 | 2607225965 | Fast Charger EU AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607225967 | Charger Gb AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607225965 | Fast Charger EU AL 1830 CV 230/14,4-18V 1H |
| 653 | 2607225967 | Charger Gb AL 1830 CV 230/14,4-18V 1H |
| 801 | F016F06076 | Motor Housing |
| 801 | F016F06076 | Motor Housing |
| 802 | F016F05334 | Motor assembly |
| 802 | F016F05334 | Motor assembly |
| 803 | F016F06077 | Housing |
| 803 | F016F06077 | Housing |
| 804 | F016F06078 | Clamping Unit |
| 804 | F016F06078 | Clamping Unit |
| 808 | F016F06080 | Nameplate |
| 808 | F016F06081 | Nameplate |
| 808 | F016F06082 | Nameplate |
| 822 | F016F05340 | Plastic Cable |
| 822 | F016F05340 | Plastic Cable |
| 823 | F016F05341 | Cutting line cartridge |
| 823 | F016F05341 | Cutting line cartridge |
| 836 | F016F05805 | Handle |
| 836 | F016F05805 | Handle |
| 846 | F016F06079 | Pipe Frame |
| 846 | F016F06079 | Pipe Frame |
| 850 | F016F05602 | Protective Guard |
| 850 | F016F05601 | Protective Guard |
| 850/1 | F016F05569 | Blade |
| 850/1 | F016F05569 | Blade |
