Bosch UNEO Maxx cordless rotary hammer: exploded parts diagram, 2 sheets, 47 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch UNEO Maxx: 47 positions on 2 sheets

Bosch UNEO Maxx parts list (2 sheets)

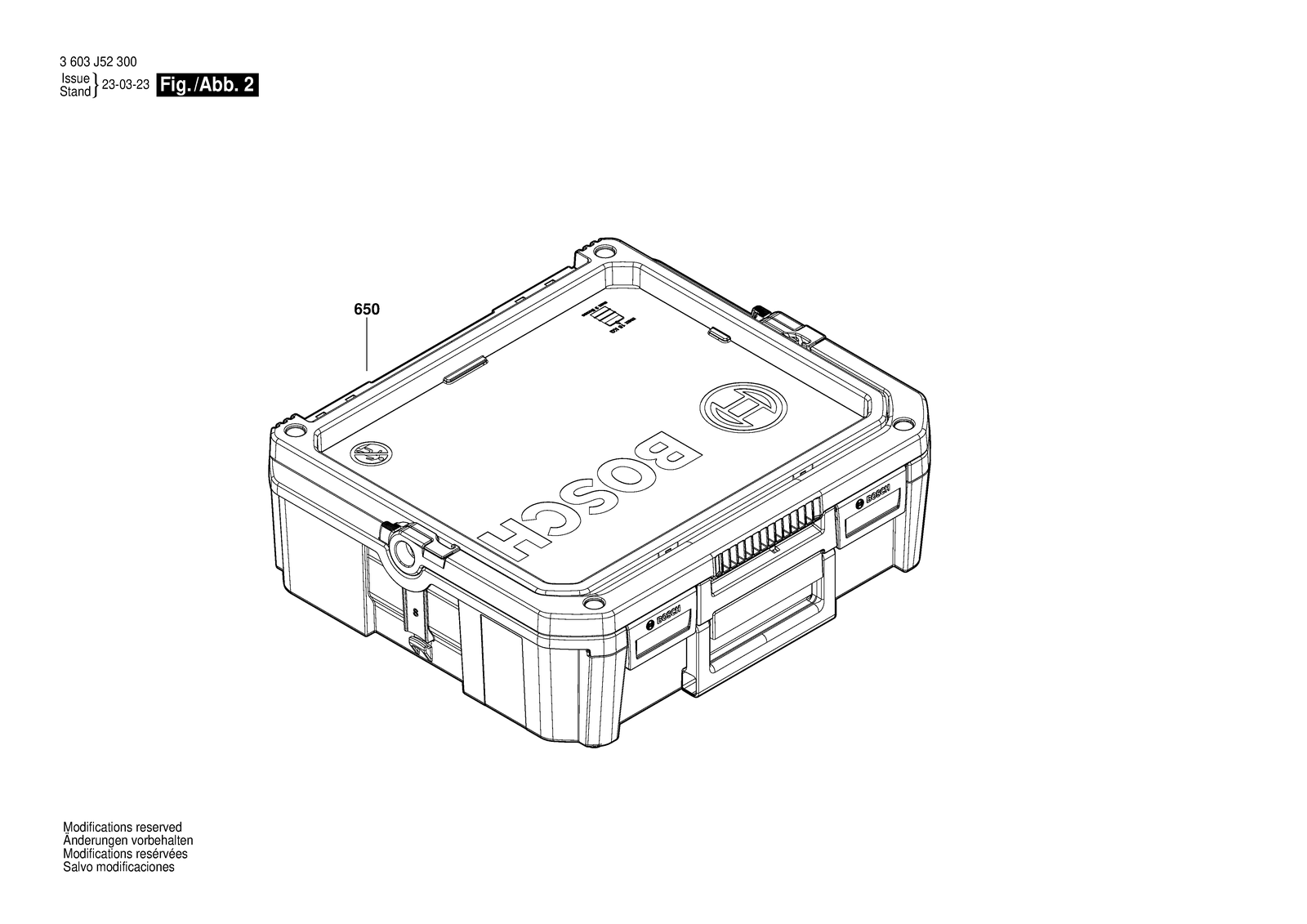

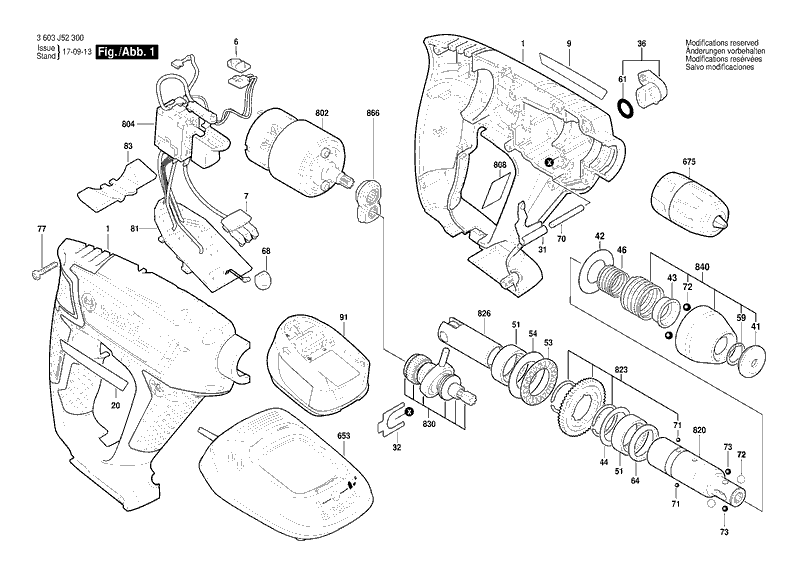

Bosch UNEO Maxx parts diagram, sheet 1Bosch UNEO Maxx parts diagram, sheet 2
No.Part numberPart name
12609004615Housing Section
202609005270Manufacturer's nameplate Uneo Maxx
311611329028Lever
321611031007Brake Plate
362609005050Clamp Handle
411610508053Protective Cap
421610102077Stop Disc
431610102074Backup ring
441610102013Shim Thick 1,0 MM
461614643018Compression Spring
511610910095Needle bearing
531610920015Roller-Cage Assembly
541610102075Support Disc
591614601064Retaining ring
62609001694Lens
612609004677O-Ring
641610283040Shaft Seal
6501600A013NMCarrying Case
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607226517Charger EU AL 18V-20 230V 2A
6751600A00ZS4Adapter
682609002543Lens
72609004616Light Conductor
702917860106Straight Pin 4X32-A-ST
711903230004Ball DIN 5401-3 Mm-Iii-St
721903230010Ball DIN 5401-5,5MM-III-ST
731903230007Ball DIN 5401-4 Mm-Iii-St
772609004724Lens Head Screw
8022609005048DC motor 18V
8042609005049Switch
808160111A2E3Nameplate
808160111A98WNameplate
812609004227Electronic Assembly
8202609005054Toolholder
8232609003045Drive bearing
8262609003044Hammer Piston
832609004622Switch Slide
8302609005053Gear Shaft
8402609005051Protection Sleeve
8662609005052Bearing Bracket
92609005269Manufacturer's nameplate Uneo Maxx
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
911617S01Y8BBattery Pack
912607337211Battery Pack PBA 18V 2,0 Ah W-b
