Bosch Uneo

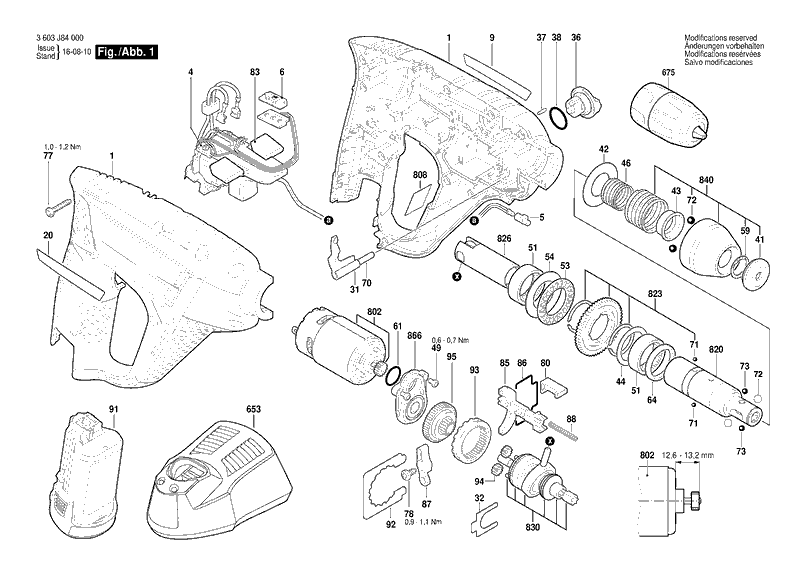

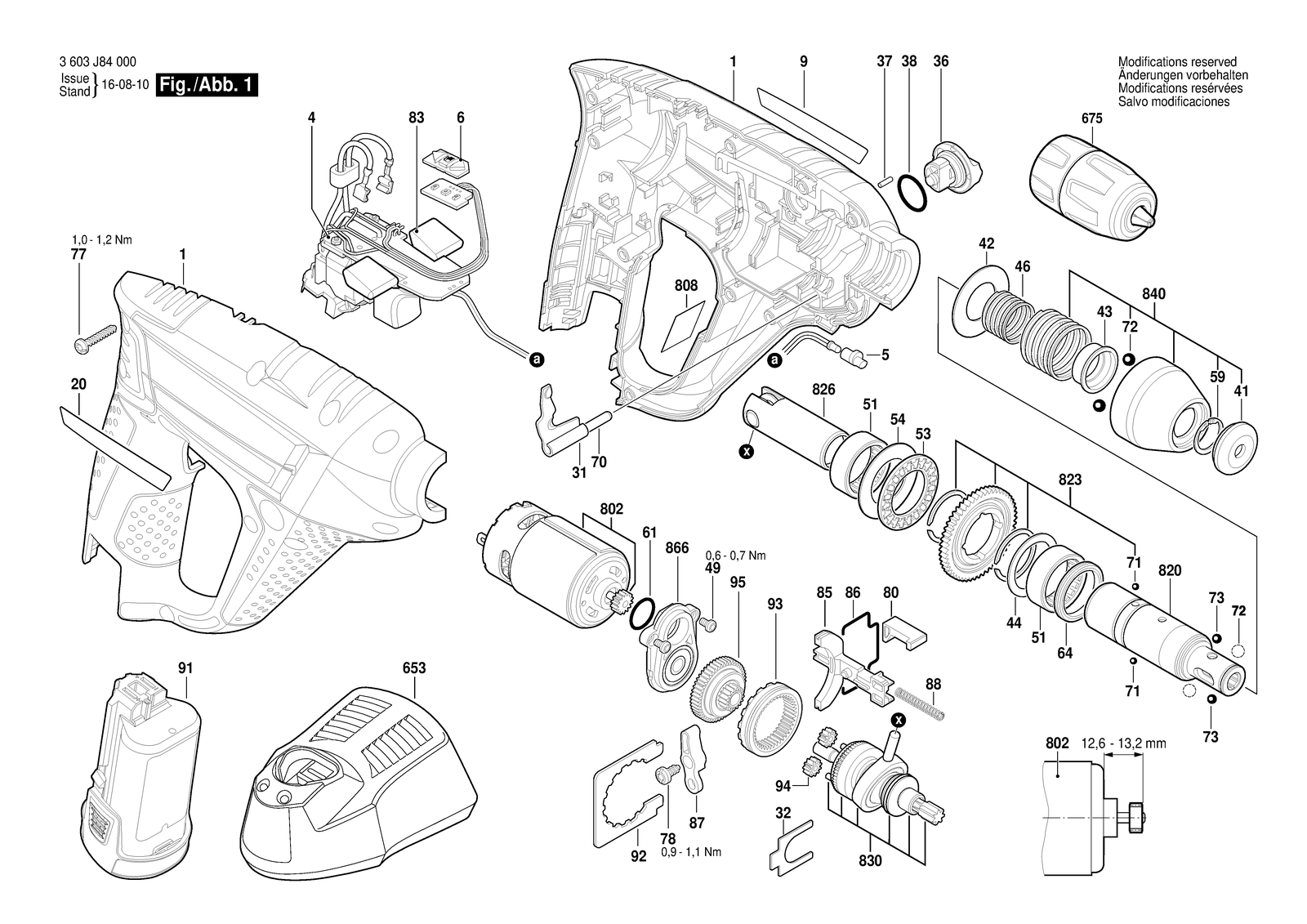

Bosch Uneo cordless rotary hammer: exploded parts diagram, 1 sheet, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch Uneo: 59 positions on 1 sheet
Bosch Uneo parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A019AN | Housing |
| 1 | 2609006382 | Housing |
| 20 | 160111C2NM | Manufacturer's nameplate Uneo |
| 20 | 2609006687 | Manufacturer's nameplate Uneo |
| 31 | 1611329028 | Lever |
| 32 | 1611031007 | Brake Plate |
| 36 | 2609006471 | Rotary Knob |
| 37 | 2609006472 | Spring Sleeve |
| 38 | 1610210201 | O-Ring 17,0X2,0 MM |
| 4 | 1607233525 | Electronic Module |
| 41 | 1610508053 | Protective Cap |
| 42 | 1610102077 | Stop Disc |
| 43 | 1610102074 | Backup ring |
| 44 | 1610102013 | Shim Thick 1,0 MM |
| 46 | 1614643018 | Compression Spring |
| 49 | 2603414048 | Torx SH cap screw M3X5-8.8-Z |
| 5 | 2609006470 | Light Conductor |
| 51 | 1610910095 | Needle bearing |
| 53 | 1610920015 | Roller-Cage Assembly |
| 54 | 1610102075 | Support Disc |
| 59 | 1614601064 | Retaining ring |
| 6 | 2609002864 | Lens |
| 61 | 1600210036 | O-Ring 13,0X1,5 MM |
| 64 | 1610283040 | Shaft Seal |
| 653 | 2607225303 | Fast Charger CN 220/10,8V, 30 Min. |
| 653 | 2607225515 | Fast Charger Gb AL 1115 CV 230/3,6-12V, 1H |
| 653 | 2607226187 | Fast Charger EU GAL 12V-20 230/3,6-12V 2A |
| 653 | 2607226189 | Fast Charger Gb GAL 12V-20 230/3,6-12V 2A |
| 653 | 2607226513 | Fast Charger Gb GAL 18V-40 220-240V |
| 675 | 1600A00ZS4 | Adapter |
| 70 | 2917860106 | Straight Pin 4X32-A-ST |
| 71 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 72 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 73 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 77 | 2609004724 | Lens Head Screw |
| 78 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 80 | 2609006473 | Slider |
| 802 | 2609006679 | DC motor |
| 808 | 160111A2DV | Nameplate |
| 808 | 160111A69V | Nameplate |
| 808 | 160111A9W6 | Nameplate |
| 820 | 2609005054 | Toolholder |
| 823 | 2609003045 | Drive bearing |
| 826 | 2609003044 | Hammer Piston |
| 83 | 2609006474 | Slide Switch |
| 830 | 2609006680 | Gear Shaft |
| 840 | 2609005051 | Protection Sleeve |
| 85 | 2609006475 | Shifter Rod |
| 86 | 2609006476 | Switch Spring |
| 866 | 2609006681 | Bearing Flange |
| 87 | 2609006477 | Control Lever |
| 88 | 2609006478 | Compression Spring |
| 9 | 160111C2NL | Manufacturer's nameplate Uneo |
| 9 | 2609006686 | Manufacturer's nameplate Uneo |
| 91 | 1607A3515X | Battery Pack |
| 92 | 2609006380 | Holding Plate |
| 93 | 2609006537 | Switch Wheel |
| 94 | 2609006536 | Planet Gear |
| 95 | 2609006381 | Double Gear Wheel |
